 Posted - July 23 2010 : 9:00:31 PM
|
all of a sudden it stopped and started making a whirring noise.

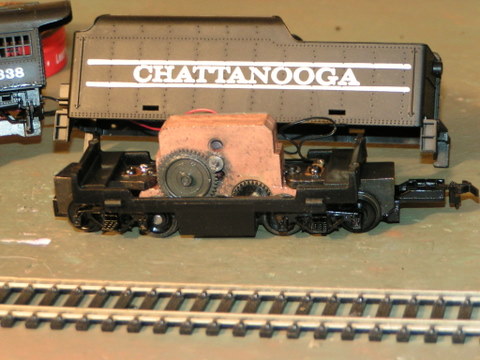

Took the tender apart and the small drive gear had slid off the shaft enough to be out of the drive train. Pressed it back on and no more than 30 seconds it whirred again.
I''ve put a couple of drops of super glue on the shaft. so far so good.
any other suggestions
|
Country:  USA ~
Posts: 424 ~
Member Since: June 25 2010 ~
Last Visit: July 30 2021
|
Alert Moderator
|
|
|
|
Posted - July 23 2010 : 9:14:47 PM
|
The Super Glue is the way to go, but you may have to do it more than once. Degreasing the gear & motor shaft with alcohol first helps the CA to stick.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - July 23 2010 : 11:38:29 PM
|
Super glue is one way to reattatch a loose gear.
I use JB Quick 2 part epoxy.
First I degrease the motor shaft,and gear,then I rough up the motor shaft with a small file to give the JB Quick something to hold onto instead of a polished motor shaft.
Put the gear on the motor,and mix up some JB,and apply.
You only need a dab of JB,and it cures in only a few minutes.
So far I've had no problems using this method.
Hope this helps.
Carl T.
President of the Cape James Terminal RR.
|
|
Country: USA ~
Posts: 691 ~
Member Since: April 16 2006 ~
Last Visit: November 01 2020
|
Alert Moderator
|
|
|
|
Posted - July 24 2010 : 7:41:47 PM
|
thanks
forgot about cleaning first and roughing up the shaft.
If it pops off again will do the process thoroughly
|
|
Country: USA ~
Posts: 424 ~
Member Since: June 25 2010 ~
Last Visit: July 30 2021
|
Alert Moderator
|
|
|
|
Posted - August 12 2010 : 02:05:30 AM
|
| new to this forum. anyone know where to get replacement tooth gear for Chatanooga Tender. This is about 44 teeth, 18mm dia., and has inner gear of 8 teeth 4mm on one side and smooth gear, 3mm dia. on the other side?
|
|
Country: USA ~
Posts: 11 ~
Member Since: August 12 2010 ~
Last Visit: August 18 2010
|
Alert Moderator
|
|
|
|
Posted - August 12 2010 : 12:16:58 PM
|
are you talking about the big gear the the pinion gear spins?
jerry
|
|
Country: USA ~
Posts: 553 ~
Member Since: January 14 2009 ~
Last Visit: September 13 2024
|
Alert Moderator
|
|
|
|
Posted - August 13 2010 : 02:49:20 AM
|
| how does one find a replacement for the main (large) tooth gear?
|
|
Country: USA ~
Posts: 11 ~
Member Since: August 12 2010 ~
Last Visit: August 18 2010
|
Alert Moderator
|
|
|
|
Posted - August 13 2010 : 03:10:41 AM
|
quote:are you talking about the big gear the the pinion gear spins?
Originally posted by smokie - August 12 2010 : 12:16:58 PM
|
yes. it is the biggest gear in the tender. 44 teeth? 18m o.d. has one inner hub with 8 teeth and one inner hub on the other side which is smooth. Hard to find replacement part???
|
|
Country: USA ~
Posts: 11 ~
Member Since: August 12 2010 ~
Last Visit: August 18 2010
|
Alert Moderator
|
|
|
steve
Big Six
Status:
offline
| |
Posted - August 13 2010 : 09:53:09 AM
|
| I might have one of those its yours for free ok
|
|
Country: USA ~
Posts: 227 ~
Member Since: January 26 2010 ~
Last Visit: May 18 2016
|
Alert Moderator
|
|
|
|
Posted - August 13 2010 : 5:50:31 PM
|
| The big gear in the center of the photo of the first post in this topic is the gear I am looking for. Take any leads I can get. And thanks for helping on this.
|
|
Country: USA ~
Posts: 11 ~
Member Since: August 12 2010 ~
Last Visit: August 18 2010
|
Alert Moderator
|
|
|
|
Posted - August 13 2010 : 8:13:08 PM
|
Sidenote of interest...
If you find yourself in need of a smaller pinion gear, cut off the teeth of a spare bull gear, the larger one on the left, flip it 180 degrees and press it on the motor shaft. The small geared center is the same size as the pinion and mates perfectly...
/tyco/forum/uploaded/shaygetz/tycorepair5.jpg
Just turn down the geared center driver on a drill 'till it clears the new gear.
/tyco/forum/uploaded/shaygetz/tycoremotor6.jpg
http://s126.photobucket.com/albums/p96/1shaygetz/videos/?action=view¤t=PA060189.flv
Edited by - shaygetz on August 13 2010 8:16:35 PM
|
|
|
|
|
Posted - August 14 2010 : 01:20:02 AM
|
Since I am new to this forum I cannot private email any members. But I am figuring this out. The white gear is the one which I need to replace. Does anyone know where I can find one? I am attaching a couple of pix from my Tyco Steam Engine 0-8-0. Thanks.
|
|
Country: USA ~
Posts: 11 ~
Member Since: August 12 2010 ~
Last Visit: August 18 2010
|
Alert Moderator
|
|
|
|
Posted - August 14 2010 : 01:22:03 AM
|
| Obviously, I don't know how to post the pictures. ??
|
|
Country: USA ~
Posts: 11 ~
Member Since: August 12 2010 ~
Last Visit: August 18 2010
|
Alert Moderator
|
|
|
|
Posted - August 14 2010 : 12:15:10 PM
|
| That would be the bull gear and it's the same whether white or black. You can pull it off of any later TYCO Power Torque loco, regardless of model, they are all the same. Just look for a junker lot on Ebay.
|
|
|
|
|
Posted - August 14 2010 : 3:57:57 PM
|
| Bull gear. I'll remember that. I may have some made. Could be useful to others. So I am bidding on the junker you suggested. Thanks.
|
|
Country: USA ~
Posts: 11 ~
Member Since: August 12 2010 ~
Last Visit: August 18 2010
|
Alert Moderator
|
|
|
|
Posted - August 22 2010 : 10:57:30 PM
|
| Thanks for the tip on flipping that gear-that's good to know.
|
|
Country: USA ~
Posts: 103 ~
Member Since: August 09 2010 ~
Last Visit: December 06 2015
|
Alert Moderator
|
|
|
|
Posted - August 28 2010 : 5:48:24 PM
|
| I had the same issue with the pinion slipping off. I held it on using a dab of solder. Just have to be very carful not to get any on the teeth.
|
|
Country: USA ~
Posts: 332 ~
Member Since: August 28 2010 ~
Last Visit: April 23 2020
|
Alert Moderator
|
|
