 Posted - June 12 2009 : 6:19:45 PM
|

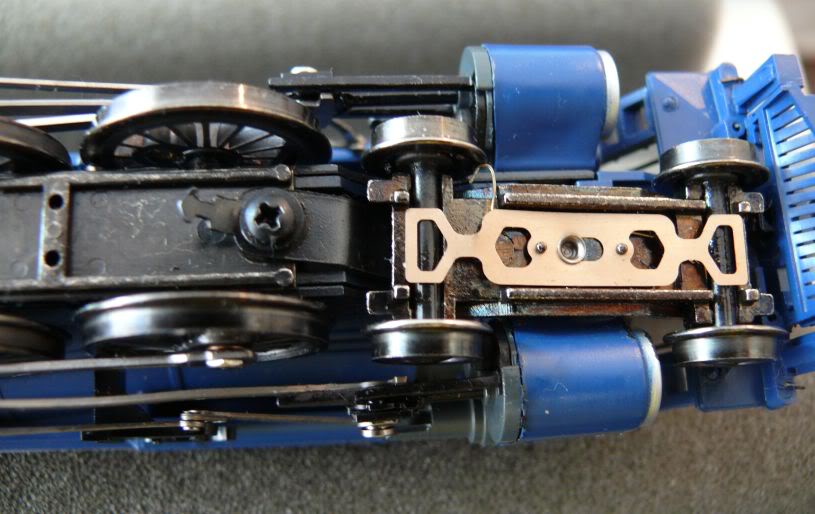

I have a '5405' 4-6-2 Heavy Pacific "CNJRR -831" & the photo below shows that the spring that tensions up the front truck is missing. But for the life of me I can't see where the other end of the spring attaches once its attached to the truck on the claw to the left of the truck attachment bolt..
Any thoughts?
Also, the power pickup from the small bent contact inside the top left truck wheel I haven't struck before - what era were they using this??
Thanks
Tanked
|
Country:  USA ~
Posts: 243 ~
Member Since: September 08 2008 ~
Last Visit: January 04 2012
|
Alert Moderator
|
|
|
|
Posted - June 12 2009 : 7:09:10 PM
|
There may have been a piece that clipped into the 2 small holes in the bottom of the frame.
I have one of those locos, when I got it the spring was missing also.
I formed a V shaped mount that I glued in the 2 holes to attach the spring to.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - June 12 2009 : 7:46:40 PM
|
quote:There may have been a piece that clipped into the 2 small holes in the bottom of the frame.
I have one of those locos, when I got it the spring was missing also.
I formed a V shaped mount that I glued in the 2 holes to attach the spring to.
Originally posted by Ray Marinaccio-June 12 2009: 7:09:10 PM
|
That was what I was considering. Although I have run it for 1.5 hrs now on some rough laid track & it hasn't hopped off the rails yet. may not need it as the truck has a bit of weight in it, being diecast.
Semi opened Loco up & found it had a can motor with a small flywheel , so must be later than 1970's??
Tanked
|
|
Country: USA ~
Posts: 243 ~
Member Since: September 08 2008 ~
Last Visit: January 04 2012
|
Alert Moderator
|
|
|
|
Posted - June 13 2009 : 12:52:36 AM
|
Mine was a basket case and was missisng the can motor. It also had a problem with the gearing.
Here's a thread on how I remotored and regeared it.
http://www.2guyzandsumtrains.com/Forums/viewtopic/t=2647.html
I like this loco alot.
/tyco/forum/uploaded/Ray Marinaccio/ahm pacific nyc.jpg
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - June 13 2009 : 05:36:42 AM
|
Tanked,
Yes, that's the late 90's revised version of the Pacific. The two holes in the bottom plate are where the brake shoes locate, which I assume you don't have. You may be right about them eliminating the spring due to the weight of the truck, but a spring would also make the electrical pickup more reliable.
Nice looking unit.
Ray, I saw an announcement a few years ago that NWSL had a replacement gearbox for the newer Pacific, but all I can find on their site is the regear kit for the old one.
Update: I just found this in their Seattle Car & Foundry PDF.
2142-6 34.95 HO Rivarossi 4-6-2 circa 2001 worm-cmpd-gear set7% speed reduction
http://www.nwsl.com/pdf%20prod%20list/pdf%20prod11.htm
The Tyco Depot
Edited by - NickelPlate759 on June 13 2009 05:46:56 AM
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - June 14 2009 : 09:03:30 AM
|
quote:Tanked,
Yes, that's the late 90's revised version of the Pacific. The two holes in the bottom plate are where the brake shoes locate, which I assume you don't have. You may be right about them eliminating the spring due to the weight of the truck, but a spring would also make the electrical pickup more reliable.
Nice looking unit.
Ray, I saw an announcement a few years ago that NWSL had a replacement gearbox for the newer Pacific, but all I can find on their site is the regear kit for the old one.
Update: I just found this in their Seattle Car & Foundry PDF.
2142-6 34.95 HO Rivarossi 4-6-2 circa 2001 worm-cmpd-gear set7% speed reduction
http://www.nwsl.com/pdf%20prod%20list/pdf%20prod11.htm
Originally posted by NickelPlate759-June 13 2009: 05:36:42 AM
|
Ok, thanks Nelson.
I have to agree with Ray - this is a lovely smooth runner. I think I stumbled on an unrun & in running it in it is now circulating slow & steady, no hiccups, will become a favorite quite quickly.
Tanked
|
|
