Posted - March 12 2009 : 8:52:29 PM
|
I have a Rivarossi HO Cab Forward that I am renovating. I have found a Front Truck I wanted to use is very 'tight' when turned over by hand.
Almost feels if there is fine grit in the gear system. Lots of friction. I don't think its the valve rods. I suspect its the vertical gear bearing surfaces.
I have another Front truck that is very free, so I know something is not right with this one.

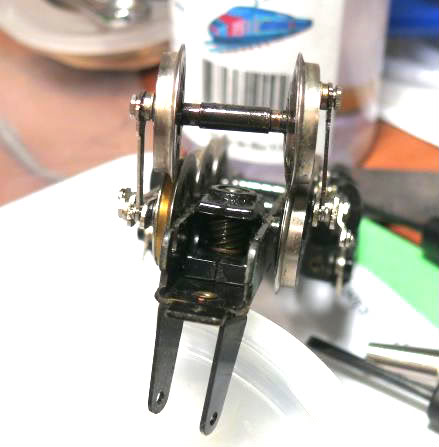

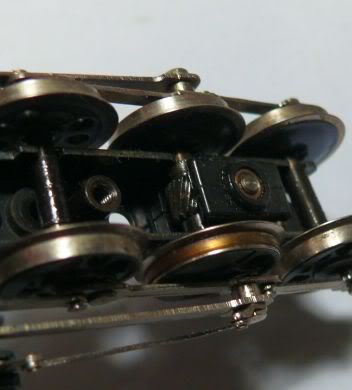

Please refer to photos below.
How do I get the vertical gear out so that I can clean the bearing surfaces? Thank you Tanked
|
Country: USA ~
Posts: 243 ~
Member Since: September 08 2008 ~
Last Visit: January 04 2012
|
Alert Moderator
|
|
|
Posted - March 12 2009 : 9:22:41 PM
|
YOU MIGHT WANT TO TRY HO SEEKER.NET/ THEYVE GOT GOOD PICTURES OF THAT UNIT.ADAM
|
Country: USA ~
Posts: 91 ~
Member Since: February 16 2009 ~
Last Visit: June 11 2009
|
Alert Moderator
|
|
|
Posted - March 17 2009 : 06:38:08 AM
|
Tanked,
That gearbox assembly should drop right out of the frame once you lift out the geared axle. You may have to rock it back and forth, but it shouldn't be in there very tight. Once removed, the two halves split apart for easy cleaning. I use 90% alcohol, which is fine if the grease isn't too dried out.
The Tyco Depot
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
