 Posted - May 14 2008 : 7:27:30 PM
|

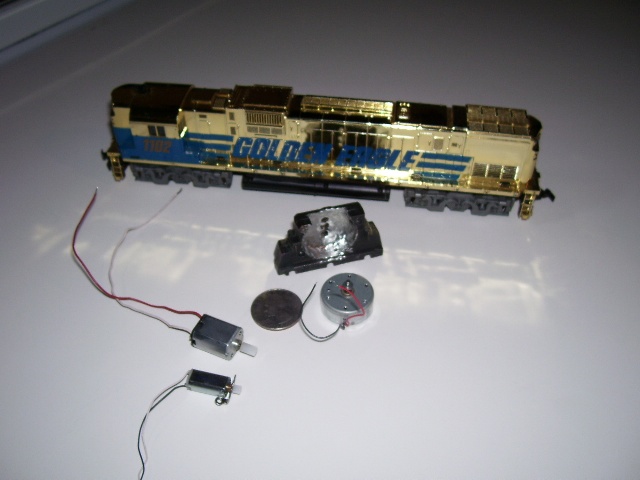

Here are some motors that I found while tearing apart an old abused Lenoxx CD player. The big flat can is the main motor and the next larger size ran the laser. The skinny one came from the first player I scrapped and also ran the laser. I wonder what the small ones might work in? All seem to run strongly from track power.
Alco Fan
Edited by - Alco Fan on May 14 2008 7:28:19 PM
|
Country:  USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: September 17 2024
|
Alert Moderator
|
|
|
|
Posted - May 15 2008 : 01:40:19 AM
|
I have one similar to the small one in the photo that I put in an N scale Bachmann 0-6-0. I don't have it ready for a test run yet so I can't comment on how it runs.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - July 02 2009 : 12:48:34 PM
|
Here's a motor I found in a Phillips MP3/CD player.
/tyco/forum/uploaded/Ray Marinaccio/rf400ca1.jpg
/tyco/forum/uploaded/Ray Marinaccio/rf400ca.jpg
Here's a link to the specs too.
http://www.mabuchi-motor.co.jp/cgi-bin/catalog/e_catalog.cgi?CAT_ID=rf_400ca
Once I find another one I plan to build a dual powered 6 axle unit. (C630, SD24 or GG1)
I did get the N scale Bachmann 0-6-0 running and it worked out great.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - July 03 2009 : 8:28:40 PM
|
Thanks Ray,
Looks thin and promising for clearing the middle axle on the 630s.
Alco Fan
|
|
Country: USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: September 17 2024
|
Alert Moderator
|
|
|
|
Posted - July 04 2009 : 7:45:14 PM
|
Ok, I'll admit I am not an electrical type guy, but don't these motors have to be 12 volt?
If not, boy I am interested...
Mike
|
Country:  Canada ~
Posts: 1586 ~
Member Since: December 07 2007 ~
Last Visit: August 14 2025
|
Alert Moderator
|
|
|
|
Posted - July 04 2009 : 8:28:00 PM
|
quote:Ok, I'll admit I am not an electrical type guy, but don't these motors have to be 12 volt?
If not, boy I am interested...
Mike
Originally posted by Mike-July 04 2009: 7:45:14 PM
|
My plan is to use one motor in each truck and wire them in series.
I have used lower voltage motors by putting resistors in series with the motors also.
Also diodes in series (like the constant intensity lighting kits) in series with the motor will drop the voltage across the motor.
I am still working on an onboard PWM control circuit to run lower voltage motors with a standard powerpack.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - July 05 2009 : 3:53:36 PM
|
It depends, Mike. Many of these motors are that are rated at 5.9V will run comfortably at 12 or 15... I've used a number of them for remotoring projects without any overheating issues. Either the listed rating is the nominal voltage instead of the maximum, or they're just very durable. Wiring a pair in series like Ray suggests will halve the speed, and make them last forever.
AF, that's the smallest can motor I've seen from a disc drive. It would definitely be a candidate for N scale projects, assuming it can handle the voltage. The medium-sized one would be a good fit in a Bachmann old-timer 4-4-0 tender.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
