 Posted - March 16 2008 : 6:21:06 PM
|
|
Hey folks, I have a 1983 model Texas 2-10-4 that I need to replace the headlamp on...Question is how does one do it...Having a problem of removing the shell off the chassis after removing the three screws ?? Thanks.
|
Country:  USA ~
Posts: 33 ~
Member Since: January 28 2007 ~
Last Visit: July 21 2012
|
Alert Moderator
|
|
|
|
Posted - March 17 2008 : 12:36:01 PM
|

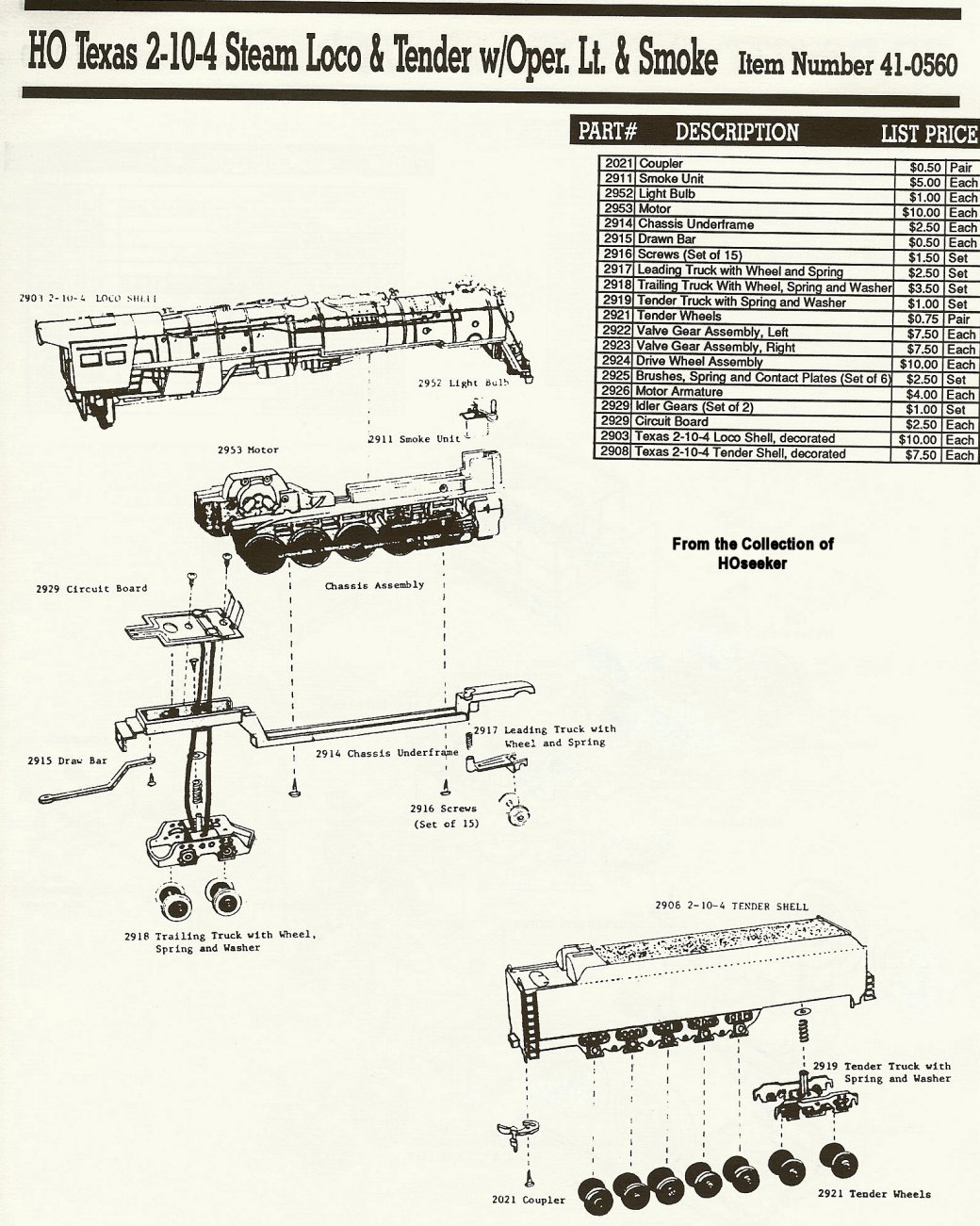

Here is the exploded diagram from HO Seeker. It looks like the bulb is sandwiched between the split frame.
http://hoseeker.net/assemblyexplosionbachmann/bachmann2104texasdiagram1990.jpg
The Tyco Depot
Edited by - NickelPlate759 on March 19 2008 1:05:21 PM
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - March 20 2008 : 9:16:31 PM
|
| I appreciate that...After removing the screws the shell just won't fully drop off...It's as if something else is attached...Shell gets loose and I am just afraid to horse it out...Anybody familiar with this sort of problem ? Unit is mint !!..THANKS
|
|
Country: USA ~
Posts: 33 ~
Member Since: January 28 2007 ~
Last Visit: July 21 2012
|
Alert Moderator
|
|
|
|
Posted - March 21 2008 : 01:11:37 AM
|
I have the Plus version of their Northern, which is held together by one screw under the cab, and a two small tabs on the frame in the front. I was wondering if the dotted line from the boiler to the frame indicated a screw boss coming down from the sand dome. I think my old 0-6-0 has a third screw in the bottom cover that screws into a boss that comes down from the top of the shell. If yours has this arrangement, the screw boss may may have a tight friction fit between the frame halves, which would explain why it doesn't release.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - March 24 2008 : 11:56:46 AM
|
| Thanks...I'll try that.
|
|
