 Posted - March 18 2016 : 11:41:35 PM
|
Long before the Bachmann E-Z App Bluetooth system, and before DCC became more common, Bachmann had what they called the "Touch-N-Go" system for HO-scale. It consisted of a battery-operated HO locomotive (mainly a GP40) and a wireless battery-operated remote control, to operate the locomotive using infrared remote technology.
It first came out in early 1988, and was still being used until some time in the mid-90s. The locomotives did not need an external power supply, and thus, it was ideal for easily operating two trains independently at the same time on a model railroad layout without the need for blocking or anything. The locomotives were your typical 80s/90s-style Bachmann GP40, with the cheap pancake motor and such; the battery case would be in the fuel tank on the bottom.
HOseeker.net has the instructions for them...
http://hoseeker.net/assemblyexplosionbachmann/bachmanntouchngosystempg1.jpg
http://hoseeker.net/assemblyexplosionbachmann/bachmanntouchngosystempg2.jpg
http://hoseeker.net/assemblyexplosionbachmann/bachmanntouchngosystempg3.jpg
Pretty neat stuff, although DCC and the new Bluetooth locomotives have now pretty much rendered this type of system obsolete. (BlueRail Trains is making Bluetooth decoders that can make a locomotive battery-operated.)
|
Country:  USA ~
Posts: 595 ~
Member Since: January 03 2013 ~
Last Visit: December 24 2023
|
Alert Moderator
|
|
|
|
Posted - March 19 2016 : 4:31:02 PM
|
You might want to check your image name, it's not displaying properly.
-Peter
|
|
Country: USA ~
Posts: 97 ~
Member Since: June 11 2015 ~
Last Visit: April 07 2024
|
Alert Moderator
|
|
|
|
Posted - April 20 2016 : 6:55:40 PM
|
If you try to go after the image via the URL, it comes back a s 403 forbidden. Does that photo website require a logon? I'm thinking the pictures are not open to the whole internet public.
Carpe Manana!
|
|
Country: USA ~
Posts: 2353 ~
Member Since: September 17 2013 ~
Last Visit: April 18 2024
|
Alert Moderator
|
|
|
|
Posted - April 21 2016 : 07:45:15 AM
|
this is same diagrams,since posting my links the originals started working,weird
http://hoseeker.net/assemblyexplosionbachmann/bachmanntouchngosystempg1.jpg
http://hoseeker.net/assemblyexplosionbachmann/bachmanntouchngosystempg2.jpg
http://hoseeker.net/assemblyexplosionbachmann/bachmanntouchngosystempg3.jpg
catfordken
if you cannot see the light at the end of the tunnel,try turning around
Edited by - catfordken on April 21 2016 4:09:42 PM
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - April 21 2016 : 5:02:39 PM
|
still getting the 403 message on the links
http://tycodepot.com/
|
|
|
|
|
Posted - April 21 2016 : 6:00:03 PM
|
quote:still getting the 403 message on the links
Originally posted by JNXT 7707Â -Â April 21 2016Â :Â 5:02:39 PM
|
Me too.
Glenn
I was thinking of the immortal words of Socrates, who said, "... I drank what?"
|
|
Country: USA ~
Posts: 1486 ~
Member Since: December 13 2008 ~
Last Visit: April 02 2024
|
Alert Moderator
|
|
|
|
Posted - April 22 2016 : 09:36:56 AM
|

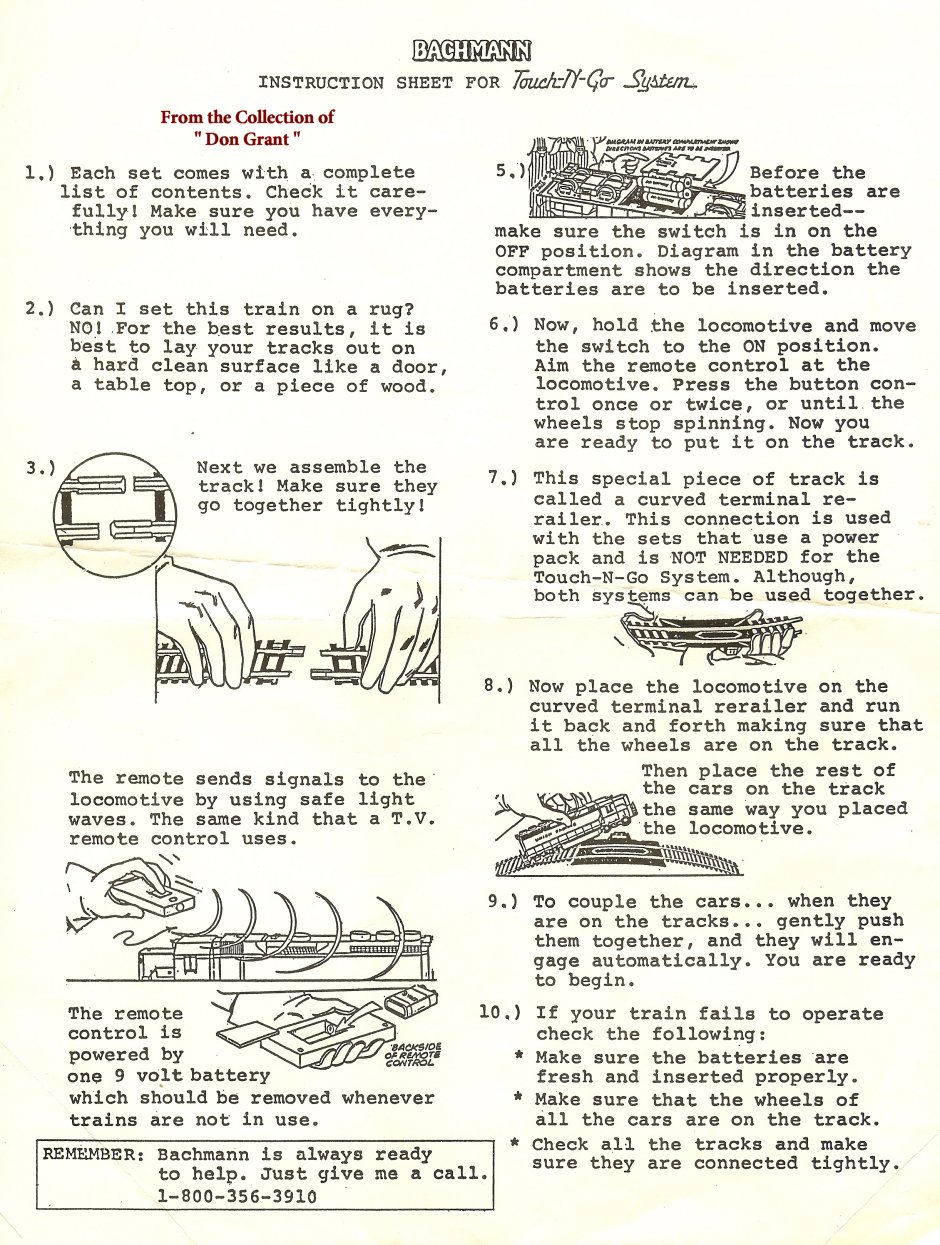

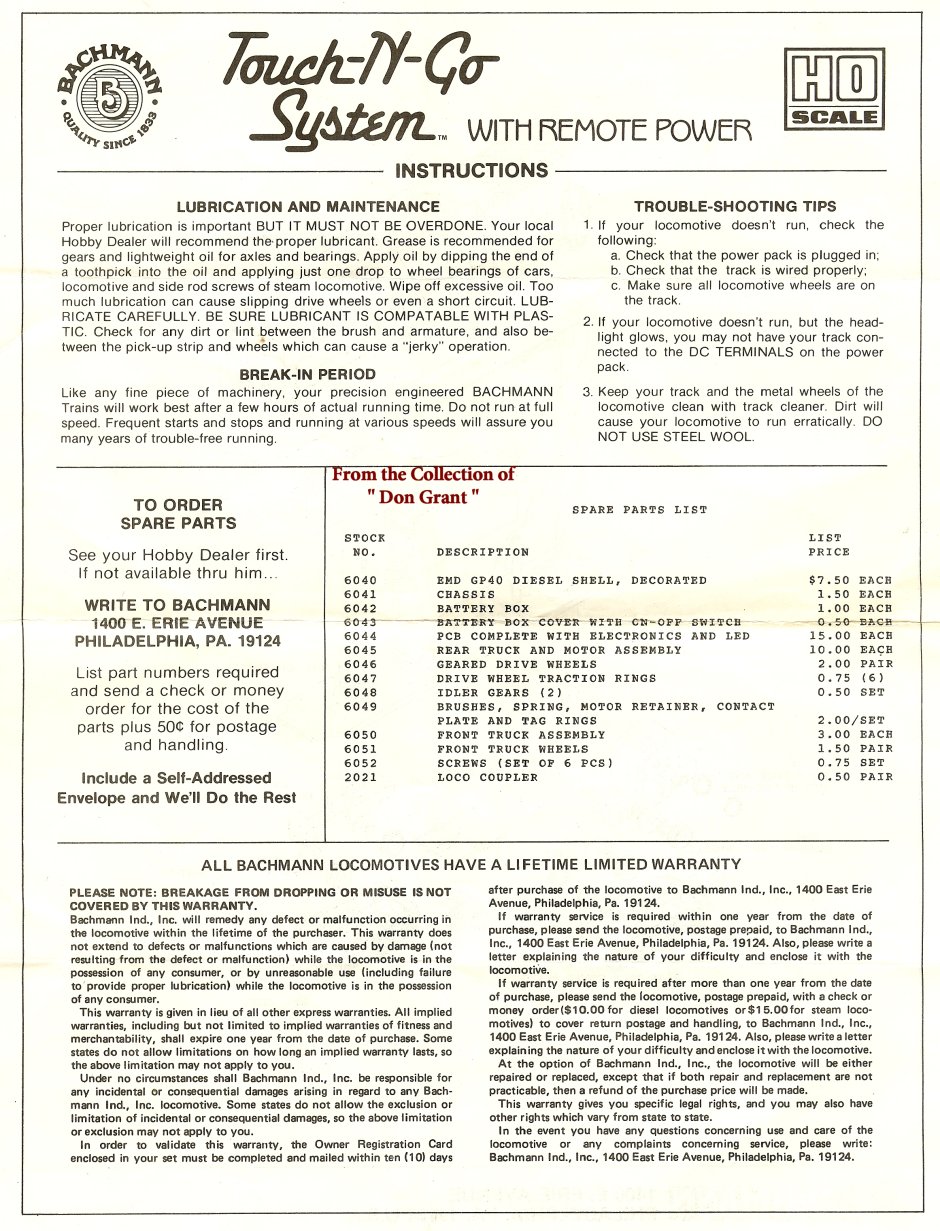

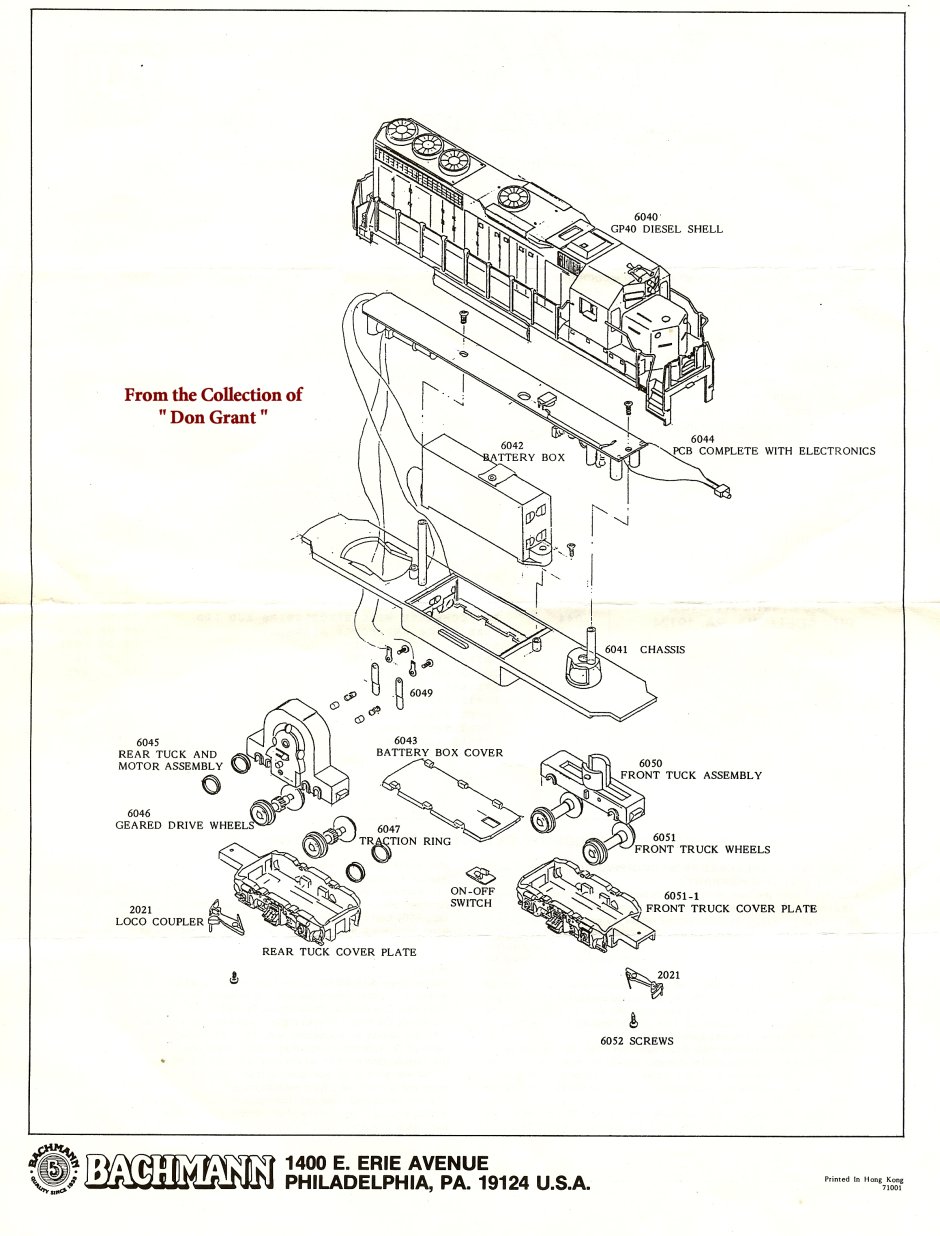

no idea whats happening,its the same link as ho seeker has always been,so here are pictures instead
catfordken
if you cannot see the light at the end of the tunnel,try turning around
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - April 22 2016 : 7:10:03 PM
|
Thanks for the pictures, Ken. A little internet research didn't turn up much, but apparently, the functionality was limited to forward-stop-reverse-stop-forward-etc. One action per push of the button. If there was more control of the locomotive, it would be fun to get a few and run them on track power as a poor man's DCC system - just for the heck of it.
Glenn
I was thinking of the immortal words of Socrates, who said, "... I drank what?"
|
|
Country: USA ~
Posts: 1486 ~
Member Since: December 13 2008 ~
Last Visit: April 02 2024
|
