 Posted - July 19 2015 : 11:25:07 PM
|
How do I go about building a Heisler cab roof? Have a chance to buy one but the original roof is gone and the one it is hideous! I don't even wanna search for that part. It's a Rivarossi. Also, what's the best way going about couplers since they're gone? Like to use horn hooks.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
Country:  USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 27 2025
|
Alert Moderator
|
|
|
|
Posted - July 20 2015 : 08:04:11 AM
|
Concerning the couplers, they are originally truck-mounted, but on my Heisler, I've body mounted Kadees. The same sort of horn-hook couplers you'd use in an Athearn or MDC car fit in Kadee coupler boxes, so this is an option open to you.
Here's the front coupler:
The front pilot beam is hollow, so I just filled the gap with some plastic and filed a surface flat. Pilot beams ride pretty high on a Heisler, so the underside of the beam is about the height of the top of the coupler box. I usually don't have much confidence in just gluing on a coupler, but I haven't managed to break this one off (yet).
Here's the rear coupler. The rear pilot beam is shaped a bit different from the front, so the built up plastic mounting pad is a bit more complex, but it allows for screwing on the coupler, so that's a good thing:

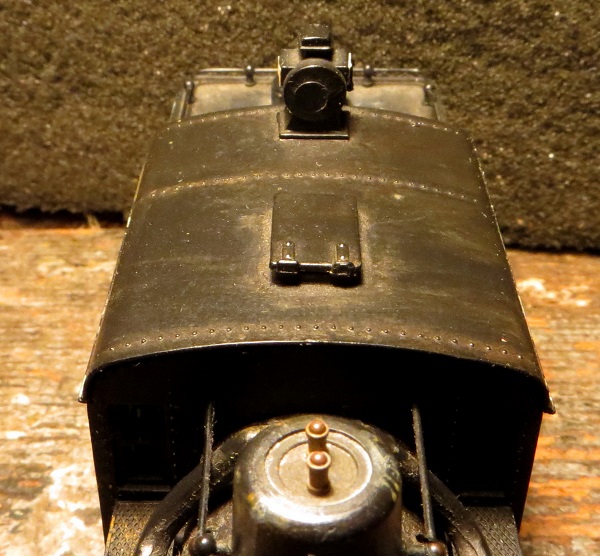

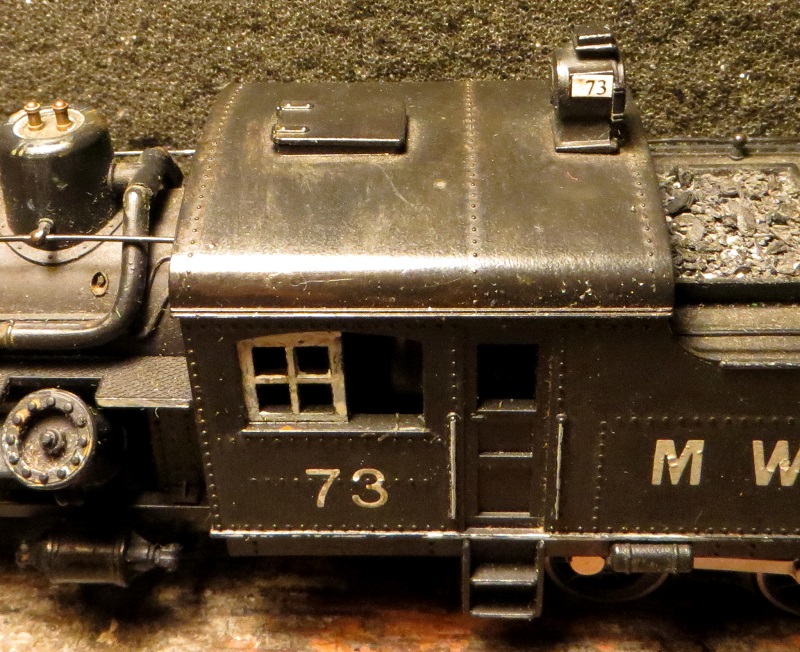

I don't have any really smart suggestions for making a roof, but here's a couple of pictures of an original roof, if that's any help:
Carpe Manana!
|
|
Country: USA ~
Posts: 2409 ~
Member Since: September 17 2013 ~
Last Visit: June 30 2025
|
Alert Moderator
|
|
|
|
|
|
