 Posted - April 11 2015 : 6:01:23 PM
|
My Hobbytown chassis rubber drive shafts finally gave out. What's a good replacement?
I was thinking about fuel lines from a RC vehicle.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
Country:  USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
Posted - April 11 2015 : 7:20:23 PM
|
Justin,
My old friend used RC fuel line a lot on his brass rebuilds. I used it a few times with good results. He provided the line, so I am not sure of the size.
Regards, John
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - April 11 2015 : 9:41:00 PM
|
I'll bring it with me tomorrow to the hobby shop.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
Posted - April 11 2015 : 10:25:59 PM
|

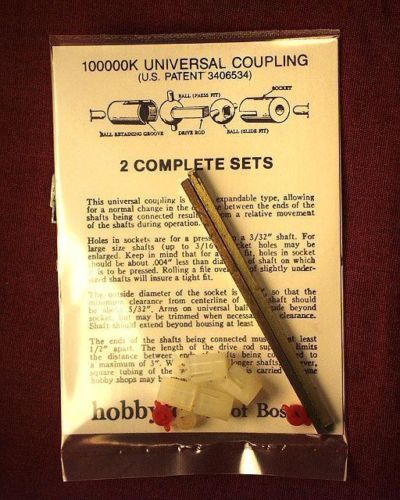

I have the E7 and F3 A&B units from Hobbytown. I replaced the rubber drive shafts with
the u-joint kits from Hobbytown. They work better and last longer. You have to know what
the diameter of the motor shaft and gearbox shaft is to get the right ones. They came in
3/32 and 2mm sizes. I found mine on evilbay at a very reasonable price. The kit comes
with enough parts for both the upper and lower drive shafts.
|
|
Country: USA ~
Posts: 865 ~
Member Since: September 23 2014 ~
Last Visit: May 01 2023
|
Alert Moderator
|
|
|
|
Posted - April 11 2015 : 10:42:26 PM
|
I've learned the shaft size is 2.4 mm. I did find the fuel lines on eBay. Not sure if it's inside or outside diameter. It's temporary. I'll eventually get some NWSL universals.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
Posted - April 12 2015 : 11:38:14 AM
|
Bear locomotive still sells these universal kits. The 3/32" is $5.50 and the 2mm is $5.70. Check out the website.
http://home.comcast.net/~bearbon/site/?/photos/&PHPSESSID=3b08c837fc0ae753bdb3b382e95f9008
These are WAYYY better than the NWSL ones, but they are a bit bigger. The ears on the balls need to be perpendicular to each other as the picture shows which is exactly opposite the NWSL ones.
Regards, Vic B.
Vic Bitleris
|
|
Country: USA ~
Posts: 55 ~
Member Since: May 08 2013 ~
Last Visit: February 20 2022
|
Alert Moderator
|
|
|
|
Posted - April 12 2015 : 3:49:45 PM
|
Thanks Vic! I've heard of the website but could never find it.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
Posted - April 12 2015 : 8:33:46 PM
|
You'll find that these drive kits are way better than tubing. They don't give and the slide
part makes for nice power transfer. Be careful when you cut the bar to length tho. It is
easy to cut it too short and it will slip out on tight turns(that is from experience ).
|
|
Country: USA ~
Posts: 865 ~
Member Since: September 23 2014 ~
Last Visit: May 01 2023
|
