 Posted - August 16 2014 : 04:11:29 AM
|

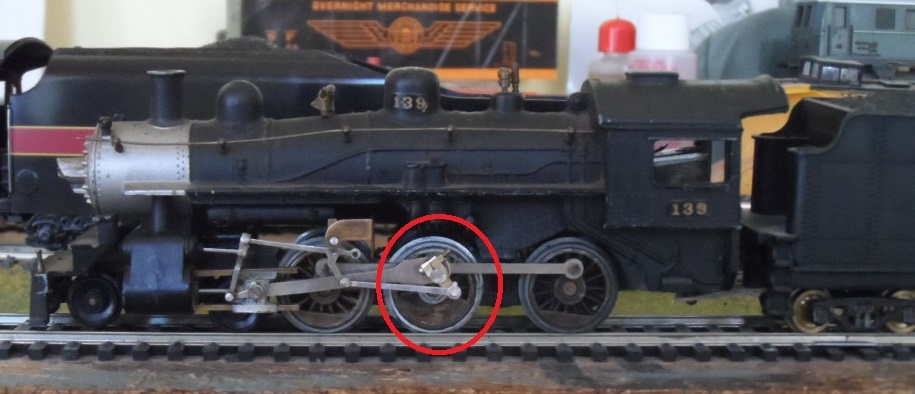

I got the loco with a broken crank pin.
Unfortunately the crank pin was broken off so that I could not unscrew the rest of the thread.
I drilled a new hole and tried to cut a new thread. Unfortunately, a rest of the old thread has fallen out and the hole was to big. The only solution was to drill a larger
holel and insert a piece of brass tube. Then I cut a new thread into the brass tube ! Erich
Edited by - Erich on August 16 2014 04:12:19 AM
|
Country:  Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - August 16 2014 : 08:48:30 AM
|
That's a good save. Stuck threaded rod is a bear to remove. Sometimes if there is enough play, an Xacto blade tip can be used to carefully turn the rod, but usually when they break, they leave a nub behind which binds it, making it all but impossible to back out easily. Looks like you got it, though. :)
Jerry
" When life throws you bananas...it's easy to slip up"
|
Country:  USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - August 26 2014 : 6:59:29 PM
|
Nice work.
I've had pretty good luck drilling out broken side rod screws with a pin vise, and then use a pin, fine tweezers, etc. with a loupe to remove the remaining brass from the threads. It always amazes me that there's plenty of thread left for the new screw to grab if you use a small enough bit. Oil makes the drilling process a lot easier, too.
If the threads end up destroyed I just degrease and make new ones with CA, but I don't know if that method would be strong enough for a clamp style eccentric.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - September 01 2014 : 2:13:38 PM
|

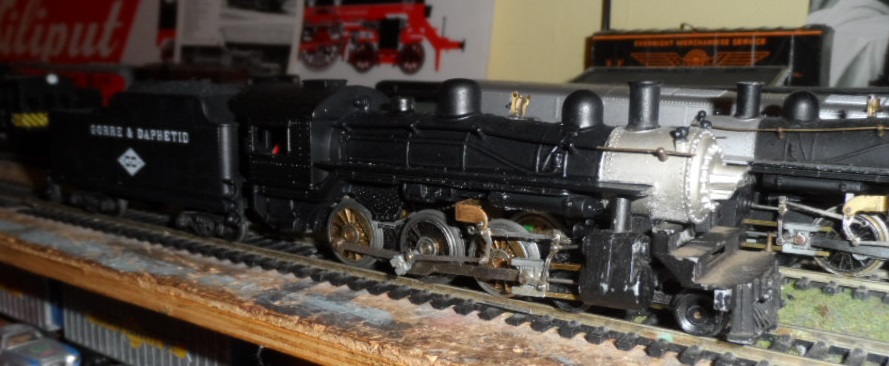

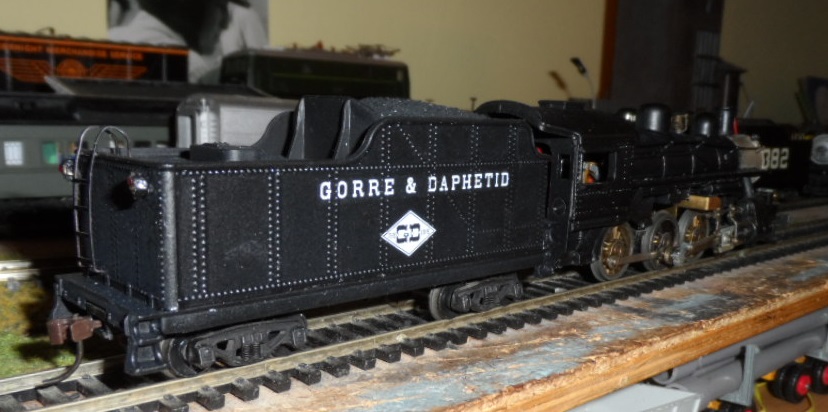

Thanks for your suggestions! Work is going on ! not finished yet! - Erich
|
|
Country: Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
