 Posted - March 20 2007 : 09:49:17 AM
|
|
I have seen coal hoppers filled with "coal"...I assume it's oil dri/cat litter painted/stained black...How is this placed and hardened in the hopper ??Thanks-FISH.
|
Country:  USA ~
Posts: 33 ~
Member Since: January 28 2007 ~
Last Visit: July 21 2012
|
Alert Moderator
|
|
|
|
Posted - March 21 2007 : 08:48:40 AM
|
| I use resin. I made a mold of the coal in a Bachmann hopper and cast resin copies. The copies fit perfectly in the Tyco 4 bay hopper. You just have to paint the coal pile and glue in place with super glue. The casting is solid resin so it does add quite a bit of weight!
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: September 19 2025
|
Alert Moderator
|
|
|
|
Posted - March 21 2007 : 09:38:50 AM
|
| Interesting...Polyester two part resin ? How did U keep the cast from sticking to the mold car ? Wonder if spar varnish would work as it would be lighter...Thanks/FISH.
|
|
Country: USA ~
Posts: 33 ~
Member Since: January 28 2007 ~
Last Visit: July 21 2012
|
Alert Moderator
|
|
|
|
Posted - March 21 2007 : 12:03:00 PM
|
| Yes, it is a 2 part casting resin. I currently use Alumilite. I remove the coal insert from the car. Then make an RTV rubber mold of the insert only. Then, 24 hours later, I pour the resin. The resin never touches the car. The insert is re-inserted into the original car. My silver Virginian 4 bay hopper rolls much better with the added weight. You could also bore a hole into the bottom of the casting to hold a magnet. A second magnet could them be used to pull the resin insert out to give you an empty car when needed.
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: September 19 2025
|
Alert Moderator
|
|
|
|
Posted - March 21 2007 : 12:22:34 PM
|
Mike, I'd like to see some pics your homemade resin coal loads.

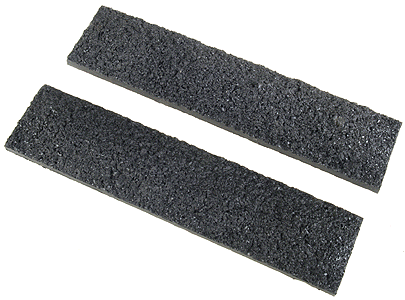

Believe I've used CM Shops 2-pack made for Athearn Quad Hoppers (Walthers #12-3104). They're $4.50 and I've had good luck dropping them in various 40ft. Open Hoppers.
Tony Cook
HO-Scale Trains Resource
http://ho-scaletrains.net
|
|
Country: USA ~
Posts: 1658 ~
Member Since: December 03 2005 ~
Last Visit: February 07 2010
|
Alert Moderator
|
|
|
|
Posted - March 21 2007 : 6:13:28 PM
|
Tony,
Give me a day or two. I will paint up a pile. The cream colored resin does not photograph well! The mold is off a Southern 40' 4 bay hopper from the near silver series.
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: September 19 2025
|
Alert Moderator
|
|
|
|
Posted - March 27 2007 : 11:57:33 PM
|
Here are a couple photos of my cast coal loads.

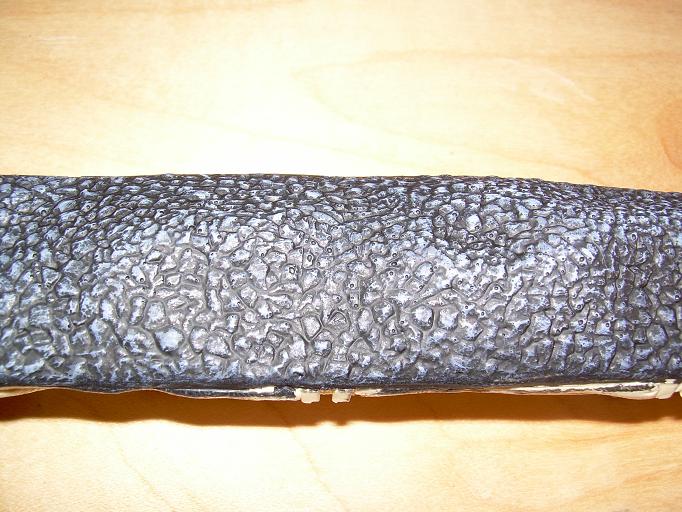

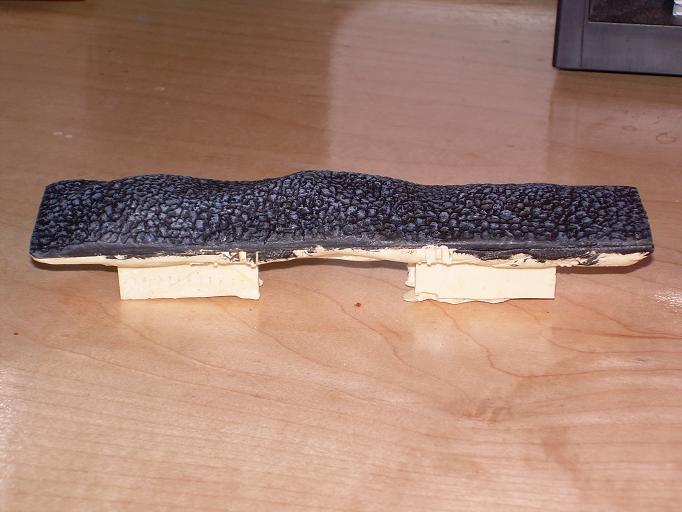

The first photo is of the complete casting. The cream/white color is what the resin looks like prior to painting. I only paint the surface that will be visible. The second photo shows a close up of the molded surface texture. The RTV rubber mold will handle much greater detail then the Bachmann piece provided.
Mike
|
|
