 Posted - March 02 2014 : 6:32:35 PM
|

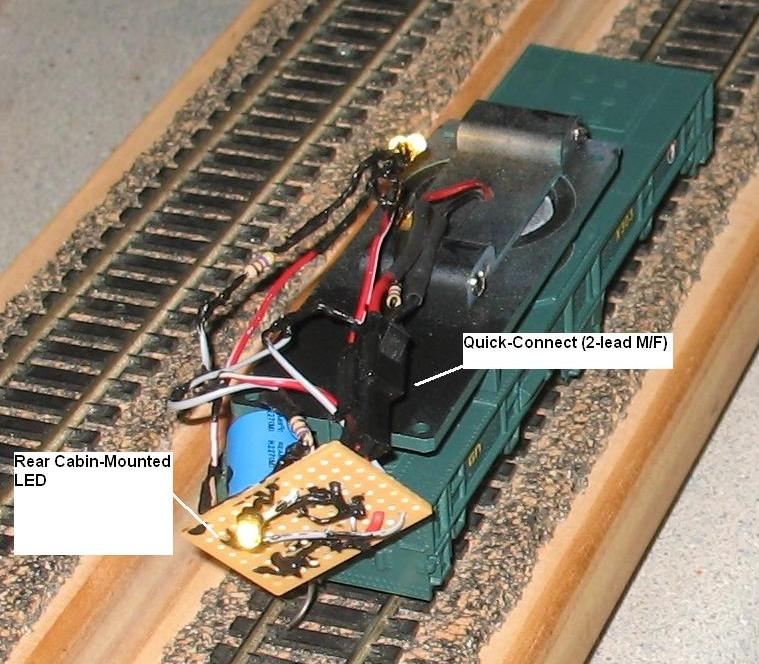

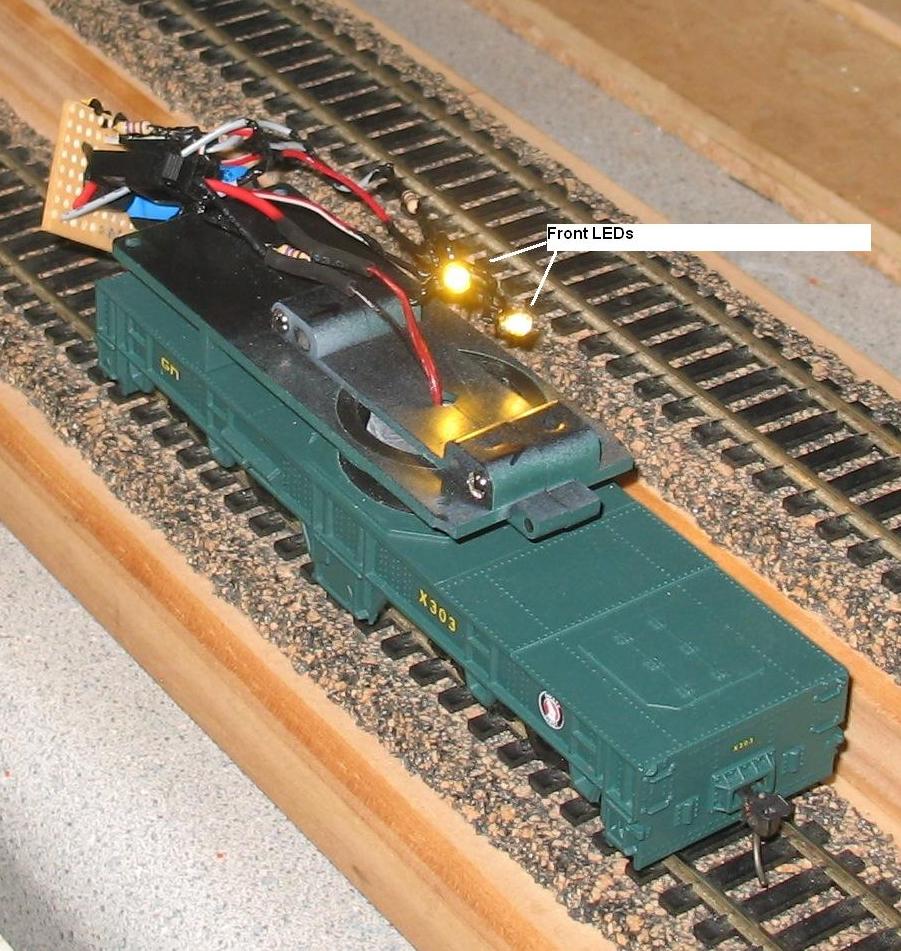

I finished the constant lighting circuit for my 200 ton GN crane today and checked it out on my test track:

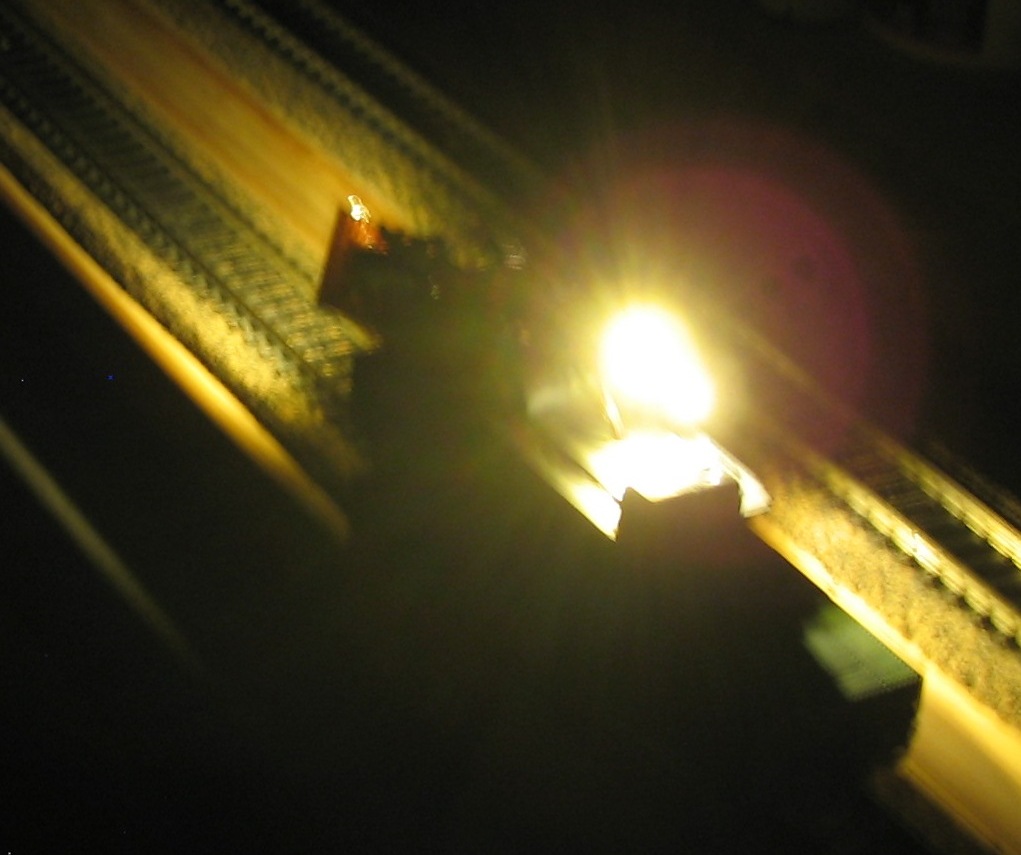

And a "night shot":
It looks like too much light- I still have some blackout masking to do with the LEDs- but amazingly, all three LEDs light in both directions, when track power is applied!
I really have to work on my circuit-building neatness skills- the wiring job is (fortunately) not going to be visible, but I know it could have been done much better. Next time!!!!!!!!
Now, decaling and dull-coating the crane cabin, then installing the circuit for a final update soon!
Siouxlake Ron
|
Country:  USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - March 02 2014 : 8:16:39 PM
|
Good grief... I can't seem to get any of my 250-ton cranes even built (I have 3), let alone wired up like this thing! Nicely done
--CRC
|
|
