 Posted - August 20 2013 : 11:54:07 AM
|

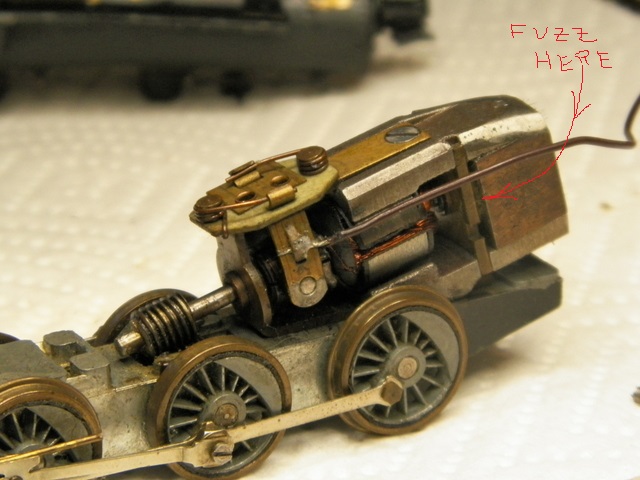

So . . . I'm cleaning up this motor from an early Mantua brass and cast 2-6-0 Mogul and I remove all this "fuzz" from between the magnet and the front of the magnet housing. Now I'm wondering if this was some kind of a felt pad that was supposed to be there to hold lubricant? Anyone know about this? Or is it just accumulated fuzz? Also, note the way the lead wire connects directly to the brush.
|
Country:  USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
waw47
Hudson
Status:
offline
| |
Posted - August 20 2013 : 3:44:48 PM
|
| Mantua's Cyclodpedia (circa 1953) describes the Mogul motor (#724) as "oil-less". So it must be fuzz.
|
|
Country: USA ~
Posts: 466 ~
Member Since: August 09 2010 ~
Last Visit: January 09 2026
|
Alert Moderator
|
|
|
|
Posted - August 20 2013 : 5:30:43 PM
|
Correction that "fuzz" is a plate of cloth used to hold oil in that area to lubricate that rear bearing of the motor.....Its not 100% oil-less but this aids in the constant need of oil during running and such......
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 20 2013 : 9:23:17 PM
|
Yep, it's felt bearing packing to hold extra oil. Don't pull it out!
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - August 21 2013 : 01:17:20 AM
|
So . . . I guess now that I've pulled it all out and trashed it, I can find a little piece of felt to replace it? A learning experience indeed.quote:Yep, it's felt bearing packing to hold extra oil. Don't pull it out!
Originally posted by NickelPlate759Â -Â August 20 2013Â :Â 9:23:17 PM
|
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
|
Posted - August 21 2013 : 03:39:36 AM
|
Barry,
Yerp, replace it with a small section, with a small hole in the middle for the end of the shaft to go into to keep it from causing friction right there.....
Once in place, then lightly "soak" it in the oil you use for lubrication of motor shafts.....But NOT dripping wet either!!!! Just damp.....
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 24 2013 : 10:18:03 AM
|
quote:So . . . I guess now that I've pulled it all out and trashed it, I can find a little piece of felt to replace it? A learning experience indeed.
Originally posted by Barry - August 21 2013 : 01:17:20 AM
|
I hate when that happens...
|
|
|
|
|
Posted - August 25 2013 : 12:17:31 PM
|
Got it running yesterday. Using a borrowed Rogers 4-6-0 tender. I can get it to run moderately slow, but going for smooth slow stops and starts is a bit sketchy even with your hand on the throttle. And it runs too hot for my tastes. Here's a short video of it http://youtu.be/BW23_XWdQwI.
I also have a question: the cab is in two pieces. It was soldered together with just a little flat piece of brass lying on top of the two sides. Is that the way it should be done?quote: quote:So . . . I guess now that I've pulled it all out and trashed it, I can find a little piece of felt to replace it? A learning experience indeed.
Originally posted by Barry - August 21 2013 : 01:17:20 AM
|
I hate when that happens...
Originally posted by shaygetz - August 24 2013 : 10:18:03 AM
|
/tyco/forum/uploaded/barry/20130825121631_100_2908.JPG /tyco/forum/uploaded/barry/20130825121648_100_2909.JPG
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
|
Posted - August 25 2013 : 12:23:11 PM
|
| Youtube address for the short video was wrong; this one works. http://youtu.be/BW23_XWdQwI
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
