 Posted - June 27 2013 : 6:26:47 PM
|
I saw a number of transfer cabooses advertised and found that the purchase threhold was a but high. I realized I had several duplicate Athearn cabooses acquired from various swap meets, so I figured I would try my hand at my first attempt at merging two separate car bodies to make my own.

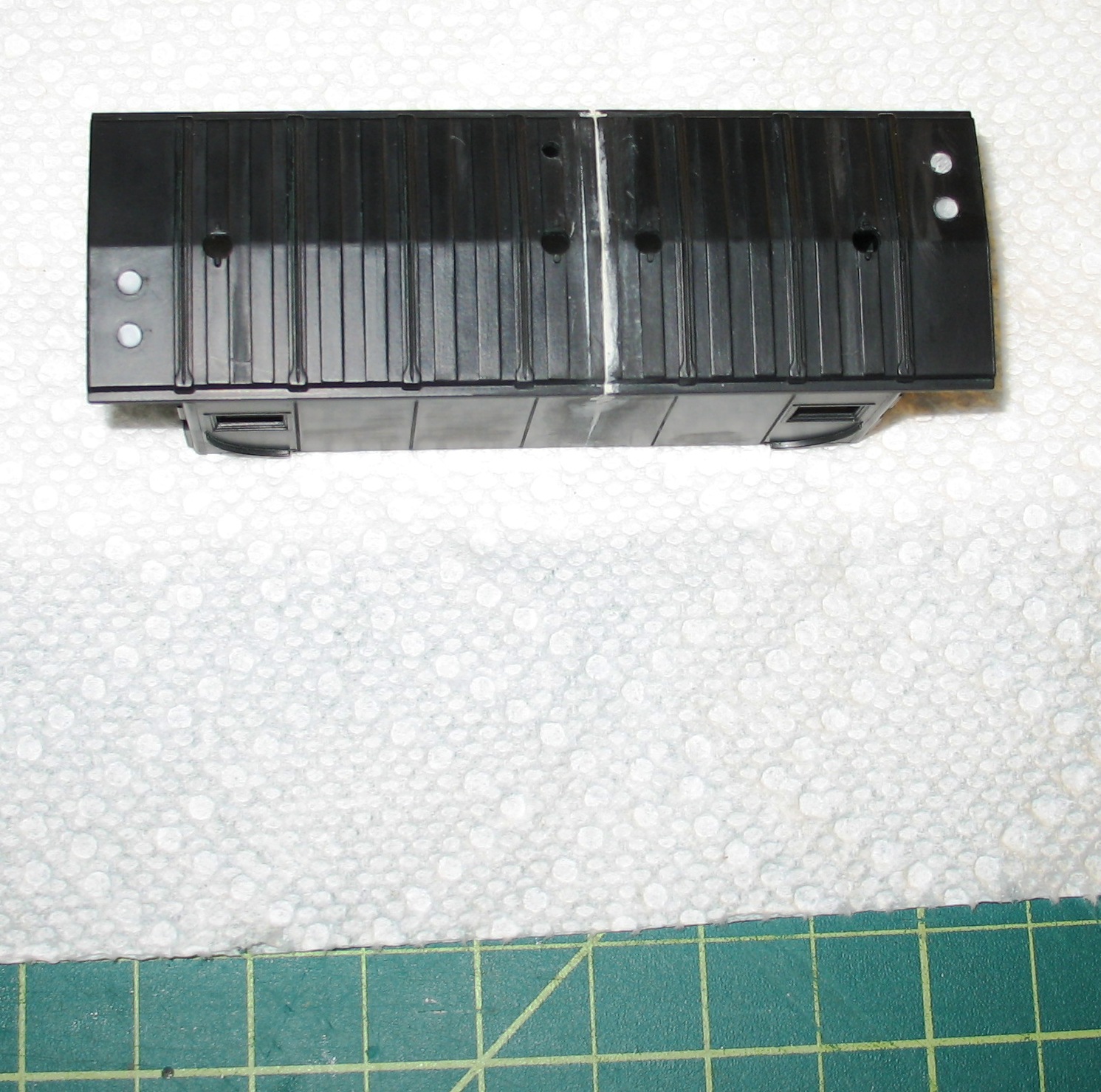

I used a masking tape line to identify the midpoints on each car, then used a Zona saw (the one with the wood handle) to cut each where marked.

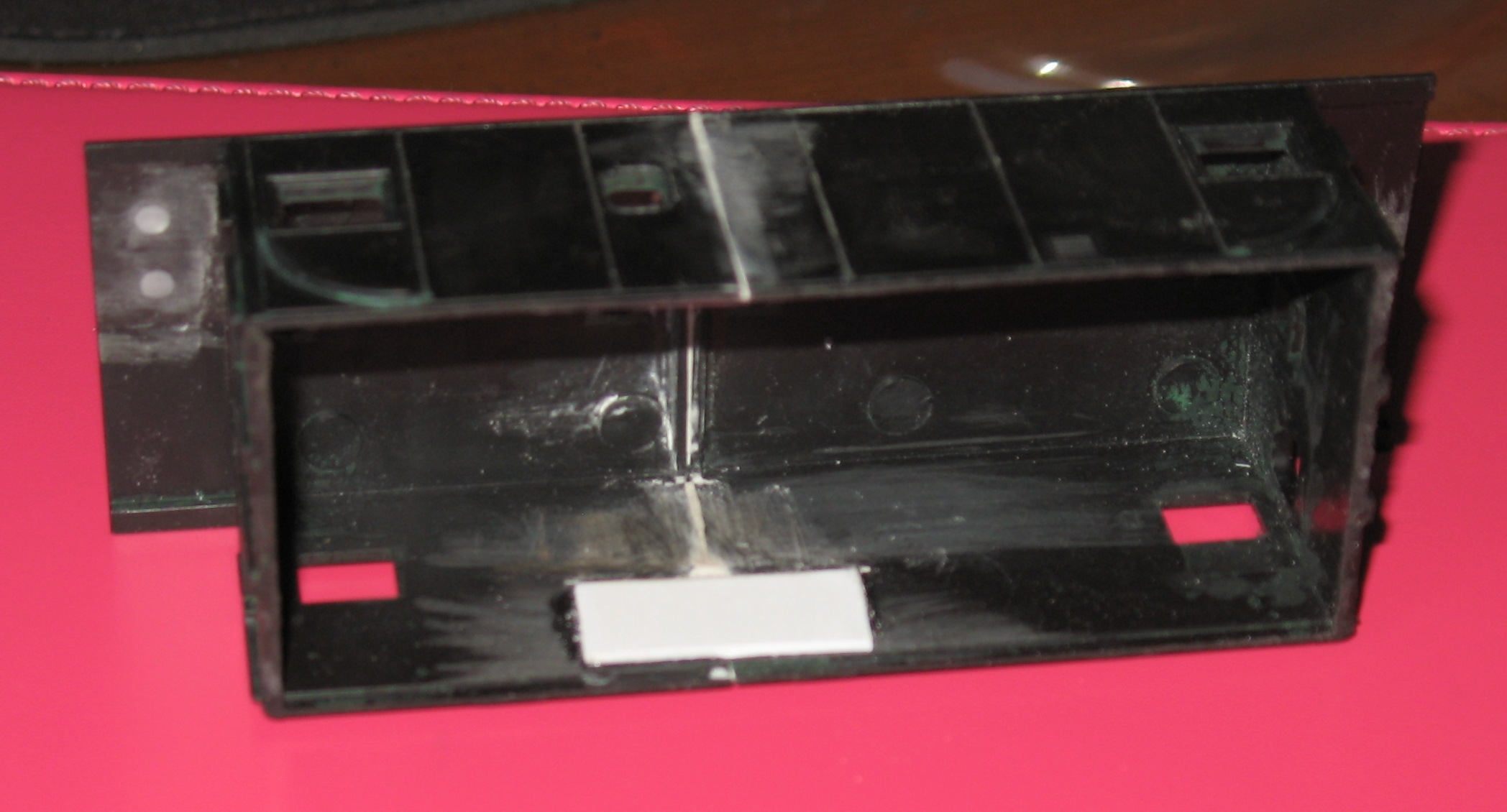

I used a piece of scrap plastic glued in as a reinforcement on each side, then used Squadron white putty as my filler, sanding and refilling twice to ensure a smooth fit.
I was originally planning to solder phosphor bronze wire into a set of side & end railings, but realized I was working with very small pieces and chickened out in favor of .020 steel wire in a novel railing arrangement.

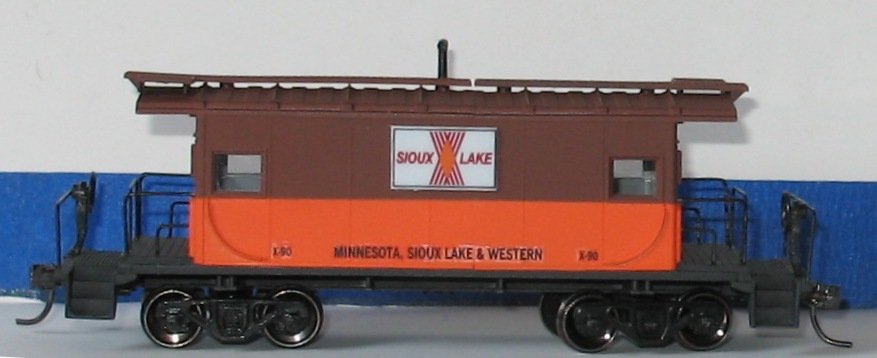

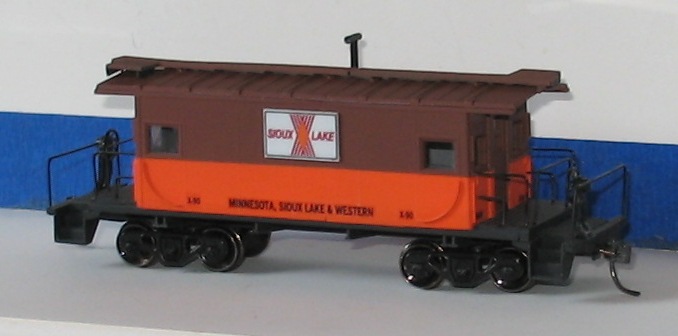

Glazed the windows, weighted the car to NMRA recommendations, painted it for my Sioux Lake railroad and glued red jewel pieces to small styrene tube ends for safety lights over each door.
This one sat on the bench for 2 months while I dithered about the railings, but now it is ready for yard crew transfer action.
|
Country:  USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - June 27 2013 : 6:58:00 PM
|
oooo very nice!
I still want a boxcar from you hehe
|
|
Country: USA ~
Posts: 14908 ~
Member Since: February 23 2009 ~
Last Visit: June 25 2025
|
Alert Moderator
|
|
|
|
Posted - June 27 2013 : 8:49:01 PM
|
Excellent kitbash! I like the paint scheme and finishing work. Keep em coming.
|
|
Country: USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: June 11 2025
|
Alert Moderator
|
|
|
|
Posted - June 27 2013 : 9:40:21 PM
|
Ron,
Yet again, NICE kitbash!
Transfer cabeese are interesting to say the least! I'm going to do a few of tghem, as well, HOWEVER mine will have really long walkways on each end, have a very short body of the "cab" in the middle of the frame!
Again, that is when I get around to it! As I actually have a few of them, to do!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - June 28 2013 : 8:38:26 PM
|
Very cool, Ron. I like the railing work.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - July 11 2013 : 11:12:20 AM
|
| Fine model!
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
|
Posted - July 11 2013 : 5:48:10 PM
|
now it needs a BBQ on one end
I swear I saw it on a ex-MP transfer caboose a couple years ago
|
|
Country: USA ~
Posts: 14908 ~
Member Since: February 23 2009 ~
Last Visit: June 25 2025
|
Alert Moderator
|
|
|
|
Posted - July 12 2013 : 11:56:48 PM
|
Ben....You would NOT believe what some Railroaders do in the need of food! I have seen it on CSX! On a line in my home town that was a mine lead for a coal tipple....Was a regular bay window caboose....with a grill on one end plateform! To this day, I'm kicking myself as I never did get a picture of it........AND it was sitting still! Last I knew, the same caboose is there still I just don't know if it still has the grille chained to the handrailing on the one end!
Funny stuff tho!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
 Posted - July 14 2013 : 12:16:14 PM
|
Excellent work!
Just a little weathering on the trucks and underframe and she'll look top notch.
Be creative, share and enjoy the hobby :-)
Edited by - AntonioFP45 on July 14 2013 12:16:34 PM
|
|
Country: USA ~
Posts: 32 ~
Member Since: July 23 2012 ~
Last Visit: December 20 2015
|
Alert Moderator
|
|
|
|
 Posted - July 14 2013 : 2:22:22 PM
|

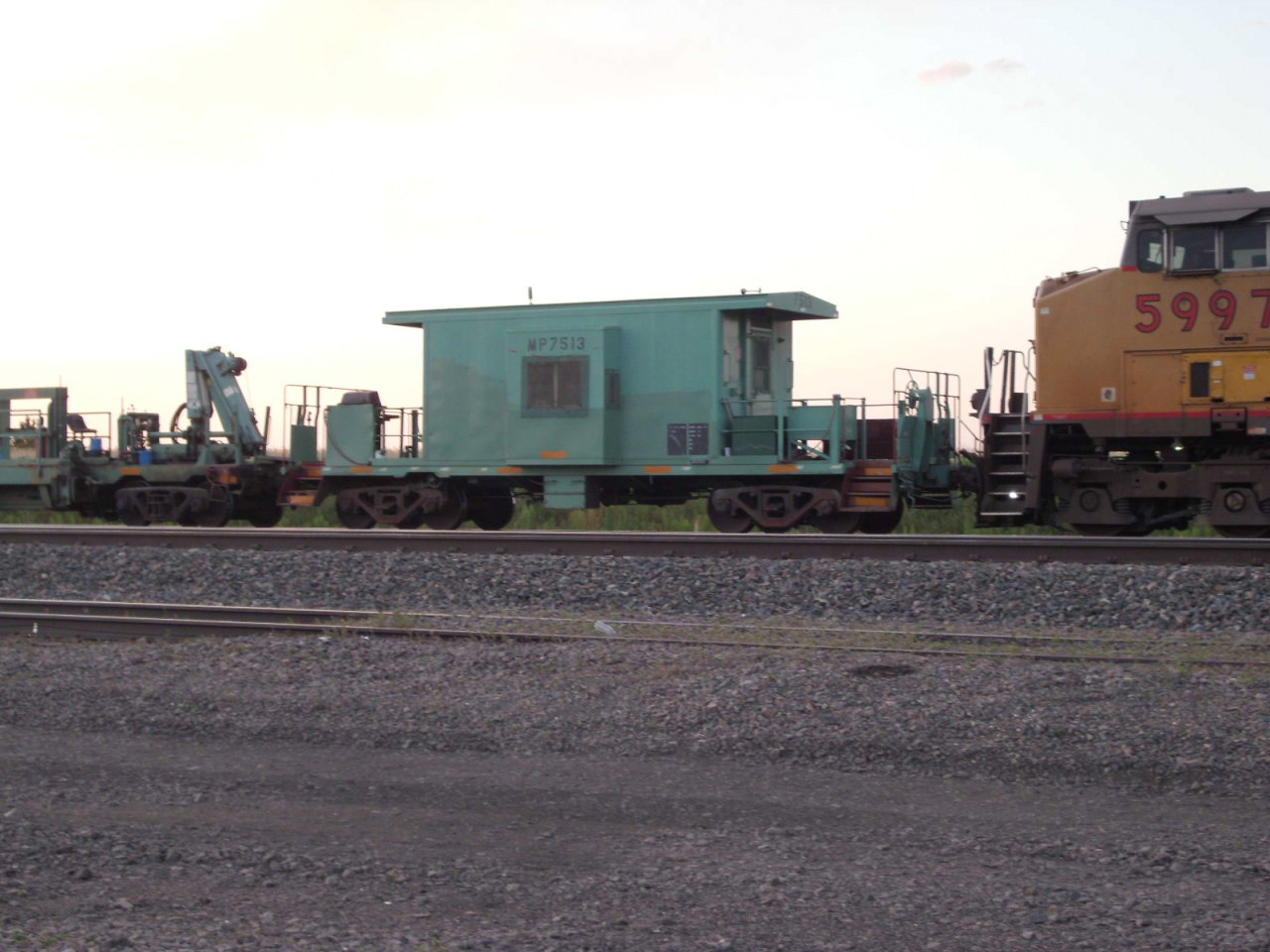

Here you go, EM-1
See the BBQ grill on the left?
This was on a UP ballast train & there were cabooses on each end
Edited by - microbusss on July 14 2013 2:25:33 PM
|
|
Country: USA ~
Posts: 14908 ~
Member Since: February 23 2009 ~
Last Visit: June 25 2025
|
Alert Moderator
|
|
|
|
Posted - July 14 2013 : 5:23:25 PM
|
Wouldn't that be a kick! Grilling hamburgers and steaks on the rear platform while playing with real trains- what a life!
Siouxlake Ron
|
|
Country: USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - July 14 2013 : 7:01:28 PM
|
Nice Boose!
There is a yard crew here in Baltimore that uses a small gas grill on the short hood of their GP.
President of the Cape James Terminal RR.
|
|
Country: USA ~
Posts: 691 ~
Member Since: April 16 2006 ~
Last Visit: November 01 2020
|
Alert Moderator
|
|
|
|
Posted - July 15 2013 : 01:04:12 AM
|
Ben,
You lucky turd! I didn't get pictures of the CSX caboose I seen with that!
Guys, seriously, on the nose end of a GP? that has to draw attention, but the employees gotta eat somehow!
Got the life.... RR'in, and grill'in, yep, you betcha!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
