Well, that seals it. I've pretty much given up on the disk drive motor retrofit solution for PT drives, since the second disk tray motor failed on me after a short amount of run time. The precious metal brushes in these motors are just not designed for high current draw, and they burn through quickly. Consider how light their duty is in a drive where they only have to position a laser head or open and close the tray every now & then: it's low current, and low duty cycle. The only way around the problem is to attach small carbon brushes to these wipers, which I will probably try at some point. (I have a number of Rivarossis repowered with motors that have PM brushes, and there aren't a lot of motor options due to space.)

Anyway, I dug out the spare PT motor I kept and put it into my modified 2-8-0. I did a complete service, and decided to try adding a thrust washer to the pinion side of the armature. These are NWSL 1.6mm ID washers, part #110-4. I was amazed at how much better the loco seemed to run, with consistent starts and low speed... the spongy response was gone, and has stayed consistent for a week. I just did the same for my Royal Blue, with the same result, so it's looking less like a coincidence.

The washer does two things: it provides a smooth bearing surface, and pushes the armature closer to the brush plate. They are .010" thick, and that takes up almost all the end play.

Time will tell if this is a good tuneup trick, but it's a cheap solution and well worth giving it a try.

The Tyco Depot
Edited by - NickelPlate759 on October 24 2012 10:22:16 PM
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator

Redneck Justin
Big Boy



The Young Dr.Frankenstein!

Status: offline

 Posted - October 24 2012 :  7:54:49 PM Link directly to this reply  Show Profile  Add Redneck Justin to Buddylist
Nelson, did you do this to the standared PT or a remotored? A wee bit confused honestly.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
 Country: USA  ~  Posts: 3147  ~  Member Since: May 07 2007  ~  Last Visit: June 10 2025 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - October 24 2012 :  8:20:24 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Justin, I added the thrust washer to the stock PT.
The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

Redneck Justin
Big Boy



The Young Dr.Frankenstein!

Status: offline

 Posted - October 24 2012 :  8:32:16 PM Link directly to this reply  Show Profile  Add Redneck Justin to Buddylist
OK.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
 Country: USA  ~  Posts: 3147  ~  Member Since: May 07 2007  ~  Last Visit: June 10 2025 Alert Moderator  Go To Top Of Page

microbusss
Big Boy





tiger

Status: offline

 Posted - October 24 2012 :  9:12:12 PM Link directly to this reply  Show Profile  Add microbusss to Buddylist
well its a good idea anyway But would a brand new motow work instead of a used one?
 Country: USA  ~  Posts: 14908  ~  Member Since: February 23 2009  ~  Last Visit: June 20 2025 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - October 24 2012 :  10:09:08 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Ben, IMO it wouldn't matter if it were new. All of these pancake can motors have precious metal brushes, and they seem too fragile. The arcing from the increased current draw burns through them. I'm going to try cutting some brush material into small rectangles and attach them to the wipers and see how that works.

As for the PT, I also gave the armature from my Royal Blue a spin in the drill and polished the commutator with 600 grit. That made a huge difference too, because it was a little rough and it made the brushes chirp.

The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

EM-1
Big Boy


B&O EM-1 7614

Status: offline

 Posted - October 25 2012 :  07:53:30 AM Link directly to this reply  Show Profile  Click to see EM-1's MSN Messenger address  Send EM-1 a Yahoo! Message  Add EM-1 to Buddylist
I'm working on this idea! As far as I can see, from looking at the PT motor frame is it needs milled to fit the motor inside the original opening.....

I'll keep everyone posted when I have the machine work done!

~John

Many have tried to, and failed, ya just can't repair stupid...

Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
 Country: USA  ~  Posts: 2911  ~  Member Since: March 26 2012  ~  Last Visit: January 14 2014 Alert Moderator  Go To Top Of Page

rgcw5
Hudson

conrock switcher

Status: offline

 Posted - October 25 2012 :  11:43:25 AM Link directly to this reply  Show Profile  Send rgcw5 a Yahoo! Message  Add rgcw5 to Buddylist
Nick, to you think you could show a picture of where the thrust washer goes? I'm having a hard time picturing it in my already overfilled mind

I've been watching all these PT remotor tips for quite a while, most of you know I've been trying to both repower a 2-8-0 and a C-630 for quite a while with some success and others, well I just can't seem to budget the time it seems (or the $)

so far all my attempts to "beef up my ALCo" has been fruitless or with limited results, the "junkyard dog", which was my last attempt, even on its own had no doggone traction whatsoever I'm almost half tempted to just take a 630 and just dual motor it.

still my issues is the "jump starts", the high end speed and the lack of pull, I dunno if twin motors will fix this or make it worse.

The PT really wasn't a bad idea, I just think going 5 pole instead of 3 would've been a better setup, unfortunately looking for a 5 pole gizmo that would "drop in" to a stock PT is close to impossible.

Either way I'm still looking for an easy, low cost way of getting this beast (my 630) back on the drag runs

just me Ray... and just because I have Tyco doesn't mean I am not a model railroader
Edited by - rgcw5 on October 25 2012 11:44:17 AM
 Country: USA  ~  Posts: 506  ~  Member Since: April 03 2011  ~  Last Visit: June 03 2025 Alert Moderator  Go To Top Of Page

Redneck Justin
Big Boy



The Young Dr.Frankenstein!

Status: offline

 Posted - October 25 2012 :  12:11:32 PM Link directly to this reply  Show Profile  Add Redneck Justin to Buddylist
rgcw5, Nelson has put the washer on the gear side under the armuture.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
 Country: USA  ~  Posts: 3147  ~  Member Since: May 07 2007  ~  Last Visit: June 10 2025 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - October 25 2012 :  7:02:50 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Ray, remove the pinion and pull out the armature, and put one washer on the shaft so it goes between the armature and the bearing on the gear side of the motor.

Pancake motor drives aren't anything new, in fact they are as old as standard gauge trains. The difference is they were built like heavy appliances, while the PT was built on the cheap.

John, are you just doing the disk drive motor retrofit, or are you modifying the brushes too?

The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

EM-1
Big Boy


B&O EM-1 7614

Status: offline

 Posted - October 25 2012 :  9:22:11 PM Link directly to this reply  Show Profile  Click to see EM-1's MSN Messenger address  Send EM-1 a Yahoo! Message  Add EM-1 to Buddylist
Nelson, for now, I'm working on the disk drive retro fit....

What I have found is the size of the disk drive motor I have, seems alittle bit on the big side to fit within the confines of the shape of the PT TYCO motor truck... As I got to thinking when I machine the whole thing out to fit the motor, the top of the PT truck, has that spot for the spring, fitted with the new can motor will remove this part and I'm not sure that it was done on the others that I had seen!?

I have not touched the insides of the can motor yet.....I want to fit it first and then maybe see if the brushes inside the can motor can be modified to be less trouble for the future.

~John

Many have tried to, and failed, ya just can't repair stupid...

Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
 Country: USA  ~  Posts: 2911  ~  Member Since: March 26 2012  ~  Last Visit: January 14 2014 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - October 25 2012 :  10:11:27 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
John, I forgot about that. These motors are a little too thick to clear the truck mount / gimbal in the diesels. Someone found a source of motors for old Playstations a few years back that were larger diameter but didn't protrude from the truck block, so they cleared the mount. I think they were very low voltage motors, which would make them better for dual motoring in series.
The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

Ray Marinaccio
Big Boy


RayAvatar

Status: offline

 Posted - October 25 2012 :  11:11:38 PM Link directly to this reply  Show Profile  Add Ray Marinaccio to Buddylist
John, This is the type motor I used in my dual motor C630.
http://www.mabuchi-motor.co.jp/cgi-bin/catalog/e_catalog.cgi?CAT_ID=rf_400ca
I wired them in series with a 75 ohm resistor in series also.
The motor blocks I machined have the top spring mount machined off.
/tyco/forum/uploaded/Ray Marinaccio/Dec20017.JPG

Ray
 Country: USA  ~  Posts: 1285  ~  Member Since: December 14 2005  ~  Last Visit: May 16 2019 Alert Moderator  Go To Top Of Page

EM-1
Big Boy


B&O EM-1 7614

Status: offline

 Posted - October 25 2012 :  11:58:01 PM Link directly to this reply  Show Profile  Click to see EM-1's MSN Messenger address  Send EM-1 a Yahoo! Message  Add EM-1 to Buddylist
Nelson,
I'm not sure I'll have that issue with the thickness of the can motor, I was more saying of the following:

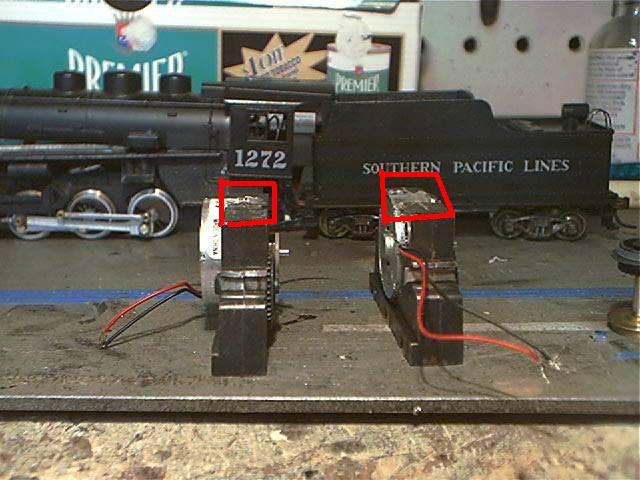

See my "red outlines" ????? Thats what I was meaning, I'd would like to keep those spring holders in place as close to factory as possible, UNLESS someone can tell me those springs aren't all what they're cracked up to be!?

Ray,
Thanks for posting that picture! I'll be using it as an reference! HOWEVER, I got another "mad" idea.......

*Evil Laugh*

I mold parts, right? Why can't I mold a PT truck to hold the motor, AFTER I machine the original? ALOT less machine work, and can be made to hold the motor in place outside of whats been done other wise all wound up into one casting!

Question tho Ray, what you got in the motors for cost? I'd be interested in buying one or so, just to try it out!

DAMN this is when I wished I had all the sand molding equipment! I'd die cast these babies!

~John

Many have tried to, and failed, ya just can't repair stupid...

Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!

Edited by - EM-1 on October 26 2012 12:01:33 AM
 Country: USA  ~  Posts: 2911  ~  Member Since: March 26 2012  ~  Last Visit: January 14 2014 Alert Moderator  Go To Top Of Page

EM-1
Big Boy


B&O EM-1 7614

Status: offline

 Posted - October 25 2012 :  11:58:56 PM Link directly to this reply  Show Profile  Click to see EM-1's MSN Messenger address  Send EM-1 a Yahoo! Message  Add EM-1 to Buddylist
All I can say is you guys.......I'm gonna have some fun with this!
~John

Many have tried to, and failed, ya just can't repair stupid...

Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
 Country: USA  ~  Posts: 2911  ~  Member Since: March 26 2012  ~  Last Visit: January 14 2014 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - October 26 2012 :  12:07:34 AM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
John, is there any PT diesel that uses the mount with the spring to hold the power truck? I thought that was just on the rear truck on the 430, which would only be an issue if you powered both trucks. It would be easy enough to make a circular retainer for it, though.

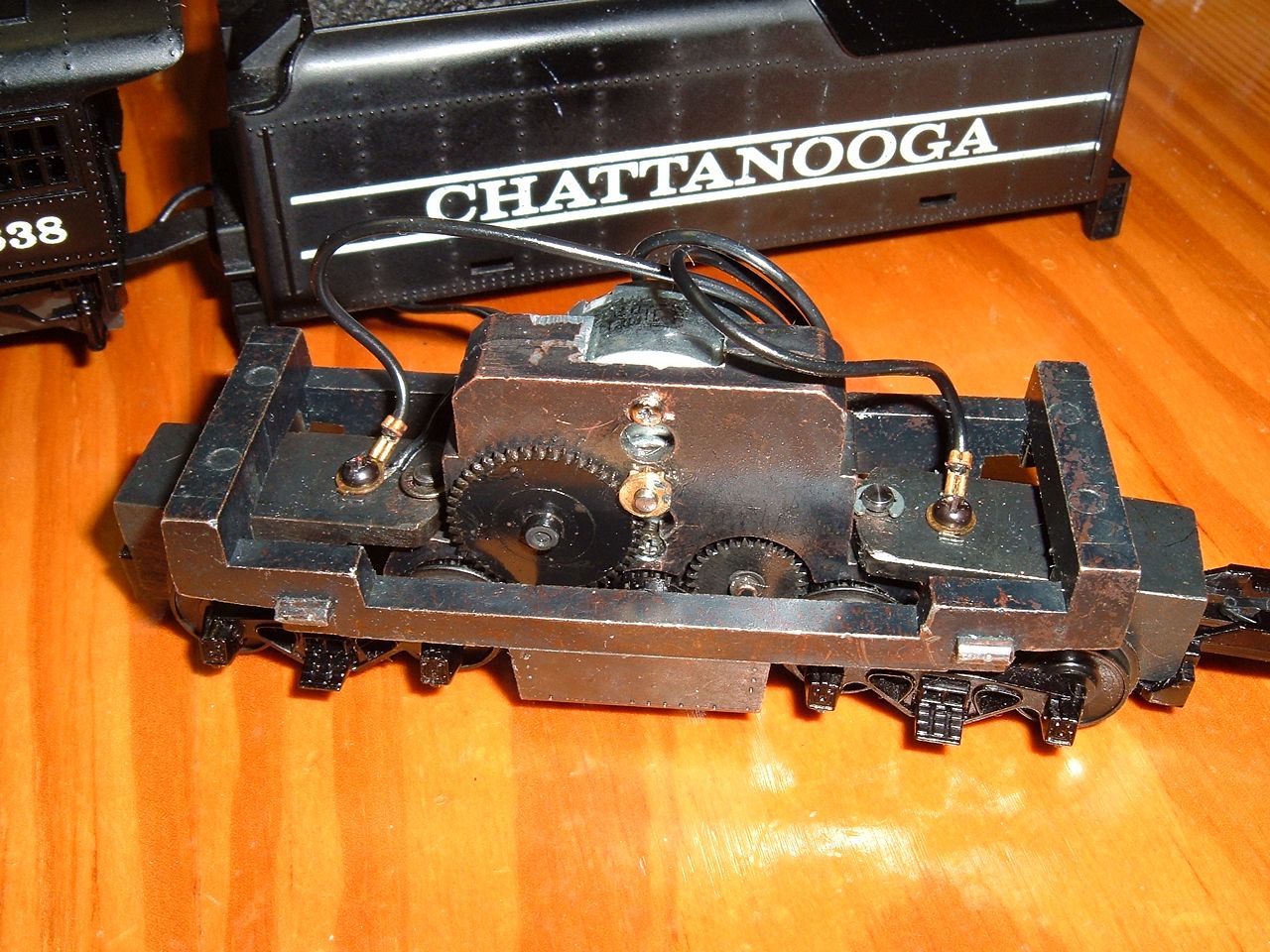

P.S. Some gratuitous shots of my original installation. I screw mounted the motor for servicing and adjusting gear mesh.

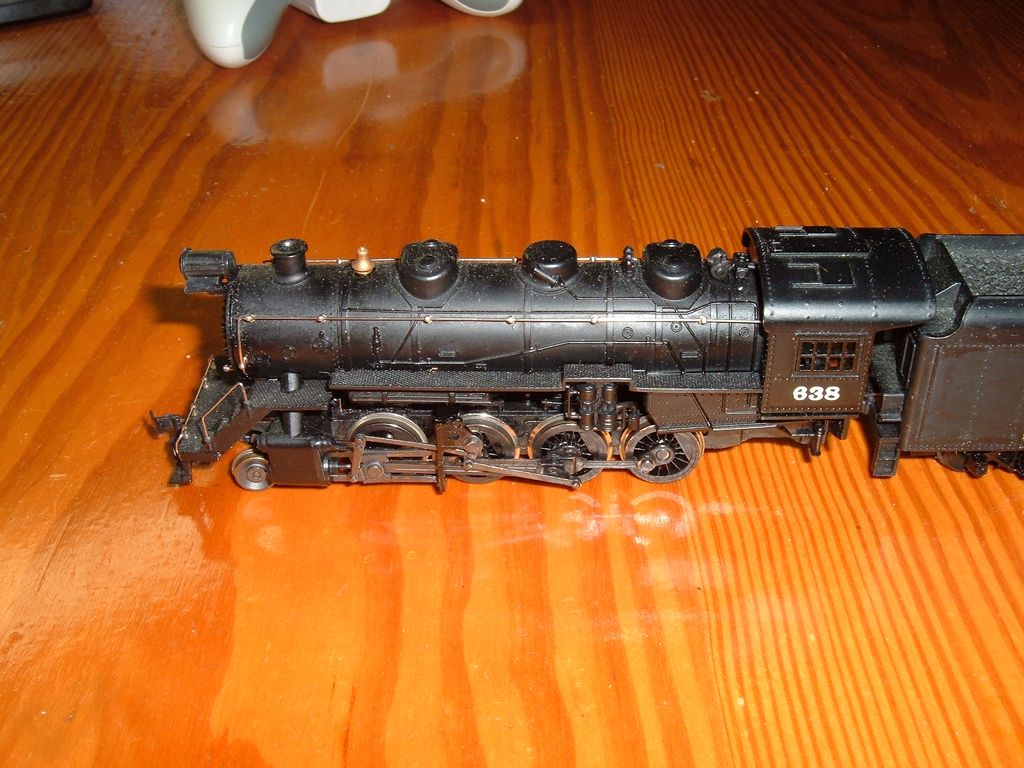

A shot of it later with blackened running gear and a shortened drawbar.

The Tyco Depot
Edited by - NickelPlate759 on October 26 2012 12:19:38 AM
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

Ray Marinaccio
Big Boy


RayAvatar

Status: offline

 Posted - October 26 2012 :  12:58:05 AM Link directly to this reply  Show Profile  Add Ray Marinaccio to Buddylist
quote:

Ray,

Question tho Ray, what you got in the motors for cost? I'd be interested in buying one or so, just to try it out!

Originally posted by EM-1 - October 25 2012 :  11:58:01 PM


I got the motors from old CD ROM drives, VCRs and CD players.
They can be found on line rather inexpencively.
The spring on top of the PT motors are used on the C630 and SD24 front and rear and the rear of all the other hood units with PT drives.

Ray
 Country: USA  ~  Posts: 1285  ~  Member Since: December 14 2005  ~  Last Visit: May 16 2019 Alert Moderator  Go To Top Of Page

Ray Marinaccio
Big Boy


RayAvatar

Status: offline

 Posted - October 26 2012 :  01:28:51 AM Link directly to this reply  Show Profile  Add Ray Marinaccio to Buddylist
quote:


Time will tell if this is a good tuneup trick, but it's a cheap solution and well worth giving it a try.

Originally posted by NickelPlate759 - October 24 2012 :  7:29:17 PM


I'll have to give this trick a try.
I recently rebuilt 4 PT locos I got at the last train show.
I was fortunate that they all had low milage on them and only needed a good cleaning.

Ray
 Country: USA  ~  Posts: 1285  ~  Member Since: December 14 2005  ~  Last Visit: May 16 2019 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - October 26 2012 :  01:48:59 AM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Ray, based on my limited experience with these 2 units it does seem to be an improvement. Every motor I've seen has thrust washers, even the old Bachmann pancakes. Can't hurt, and since the brush springs push the armature toward the opposite bearing, only one is really necessary.
The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

rgcw5
Hudson

conrock switcher

Status: offline

 Posted - October 17 2013 :  10:33:54 PM Link directly to this reply  Show Profile  Send rgcw5 a Yahoo! Message  Add rgcw5 to Buddylist
ok so I'm resurrecting a necrothread (hey it is October )

since I am STILL fiddling with my C-630's (my machinist friend has been working on a new mount for the Riv drive when he can) curious thoughts ran trough my head on the stacks of PT motors I have...

and then I wondered IF a rare earth magnet would help these hapless critters and if I could do anything to beef up the armature...

OR

is there a way of finding a 5 pole amature (yeah still have that thought) or how hard would it be to make one?

thoughts??

just me Ray... and just because I have Tyco doesn't mean I am not a model railroader
Edited by - rgcw5 on October 17 2013 10:34:59 PM
 Country: USA  ~  Posts: 506  ~  Member Since: April 03 2011  ~  Last Visit: June 03 2025 Alert Moderator  Go To Top Of Page

thetramp
Big Six

tramp

Status: offline

 Posted - October 20 2013 :  7:51:25 PM Link directly to this reply  Show Profile  Add thetramp to Buddylist
I have a tyco PT motor that is no good and would like to try my hand at putting a pancake motor in the block. I have no idea where to start. Can someone provide me with a link to a motor that would best fit this block. I am new at this so any and all help is appreicted.
 Country: USA  ~  Posts: 338  ~  Member Since: February 08 2013  ~  Last Visit: January 27 2019 Alert Moderator  Go To Top Of Page

Redwoods
Big Boy


NWPAvatar

Status: offline

 Posted - October 20 2013 :  10:12:21 PM Link directly to this reply  Show Profile  Add Redwoods to Buddylist
quote:
I have a tyco PT motor that is no good and would like to try my hand at putting a pancake motor in the block. I have no idea where to start. Can someone provide me with a link to a motor that would best fit this block. I am new at this so any and all help is appreicted.

Originally posted by thetramp - October 20 2013 :  7:51:25 PM



Try searching surplus stores and eBay for "RF300 motor". Here are a couple links that I found. Please note that some of these motors are 6V, not 12V.

http://www.goldmine-elec-products.com/prodinfo.asp?number=G18524

http://www.goldmine-elec-products.com/prodinfo.asp?number=G17687

-Thomas

 Country: USA  ~  Posts: 1084  ~  Member Since: July 07 2011  ~  Last Visit: June 11 2025 Alert Moderator  Go To Top Of Page

thetramp
Big Six

tramp

Status: offline

 Posted - October 20 2013 :  10:34:05 PM Link directly to this reply  Show Profile  Add thetramp to Buddylist
Which should I use. 6V or 12V?
 Country: USA  ~  Posts: 338  ~  Member Since: February 08 2013  ~  Last Visit: January 27 2019 Alert Moderator  Go To Top Of Page

Redwoods
Big Boy


NWPAvatar

Status: offline

 Posted - October 20 2013 :  11:00:15 PM Link directly to this reply  Show Profile  Add Redwoods to Buddylist
quote:
Which should I use. 6V or 12V?

Originally posted by thetramp - October 20 2013 :  10:34:05 PM



Definitely use 12V motors if you can find them.

The 6V versions may burn out, especially if you run your trains fast. On the other hand, if you run your trains slow, the 6V motors may be OK. I tend to run my trains slow, and so far the 6V motors I've used have not burned out. But I'm careful not to crank the throttle too high.

-Thomas
 Country: USA  ~  Posts: 1084  ~  Member Since: July 07 2011  ~  Last Visit: June 11 2025 Alert Moderator  Go To Top Of Page

thetramp
Big Six

tramp

Status: offline

 Posted - October 20 2013 :  11:04:49 PM Link directly to this reply  Show Profile  Add thetramp to Buddylist
Thanks for the info. I will look for a 12v.
 Country: USA  ~  Posts: 338  ~  Member Since: February 08 2013  ~  Last Visit: January 27 2019 Alert Moderator  Go To Top Of Page

EM-1
Big Boy


B&O EM-1 7614

Status: offline

 Posted - October 21 2013 :  12:16:20 AM Link directly to this reply  Show Profile  Click to see EM-1's MSN Messenger address  Send EM-1 a Yahoo! Message  Add EM-1 to Buddylist
AWAYS use 12 volt motors, old controls OR new ones with DCC, 12 volt is the way to go.....
~John

Many have tried to, and failed, ya just can't repair stupid...

Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
 Country: USA  ~  Posts: 2911  ~  Member Since: March 26 2012  ~  Last Visit: January 14 2014 Alert Moderator  Go To Top Of Page

rgcw5
Hudson

conrock switcher

Status: offline

 Posted - October 21 2013 :  10:28:04 AM Link directly to this reply  Show Profile  Send rgcw5 a Yahoo! Message  Add rgcw5 to Buddylist
This definatly looks like an idea! If this motor works well as a "drop in" replacement for the PT I'll have a 630 up and pulling finally!
just me Ray... and just because I have Tyco doesn't mean I am not a model railroader
 Country: USA  ~  Posts: 506  ~  Member Since: April 03 2011  ~  Last Visit: June 03 2025 Alert Moderator  Go To Top Of Page

n/a
deleted

Status: offline

 Posted - December 06 2013 :  07:33:30 AM Link directly to this reply  Show Profile  Add n/a to Buddylist
quote:
Well, that seals it. I've pretty much given up on the disk drive motor retrofit solution for PT drives, since the second disk tray motor failed on me after a short amount of run time. The precious metal brushes in these motors are just not designed for high current draw, and they burn through quickly. Consider how light their duty is in a drive where they only have to position a laser head or open and close the tray every now & then: it's low current, and low duty cycle. The only way around the problem is to attach small carbon brushes to these wipers, which I will probably try at some point. (I have a number of Rivarossis repowered with motors that have PM brushes, and there aren't a lot of motor options due to space.)

Anyway, I dug out the spare PT motor I kept and put it into my modified 2-8-0. I did a complete service, and decided to try adding a thrust washer to the pinion side of the armature. These are NWSL 1.6mm ID washers, part #110-4. I was amazed at how much better the loco seemed to run, with consistent starts and low speed... the spongy response was gone, and has stayed consistent for a week. I just did the same for my Royal Blue, with the same result, so it's looking less like a coincidence.

The washer does two things: it provides a smooth bearing surface, and pushes the armature closer to the brush plate. They are .010" thick, and that takes up almost all the end play.

Time will tell if this is a good tuneup trick, but it's a cheap solution and well worth giving it a try.

Originally posted by NickelPlate759 - October 24 2012 :  7:29:17 PM



I have used regular washers to shim the thrust bearings on motors. By installing them ahead of the shim, the bearing surface is still next to the armature so it turns against the smooth surface.

My problem currently is with the rewiring job I'm doing with the cab motor in a JWBowker. Apparently, the brush springs are weak. Does anybody know where I can get new ones. I could probably make some, but they are so tiny and fragile looking I would rather replace them.

I will try to post some photos of the rewiring project as time permits. I also want to install a constant lighting headlight. That will be a first for me, just a straight headlight. If it works, I may add constant lighting to my A-5 0-4-0 switch engine. Since I basically don't know what I'm doing, any advice is welcome

"S"tring boB
 Posts: 0  ~  Member Since: October 09 2013  ~  Last Visit: December 13 2013 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - December 06 2013 :  7:50:53 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Bob, it's possible the brushes are just worn too short. If not, you can take the brush springs off the motor and twist the coil part until they are tighter. They can be fiddly to get back on, so I use tweezers. Once I get them back over the metal contacts I park the long end over the right side of the brush tubes and install the brushes. A magnifier helps.
The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page
