 Posted - July 14 2012 : 9:22:23 PM
|
Here is a simple customization for a Fleischmann turntable. I wanted to simulate the type of truss-bridge turntables that the Southern Pacific had in the Bay Area, so I kitbashed the trusses using Tyco bridges. These are the ones that came in the over-and-under sets, I believe.

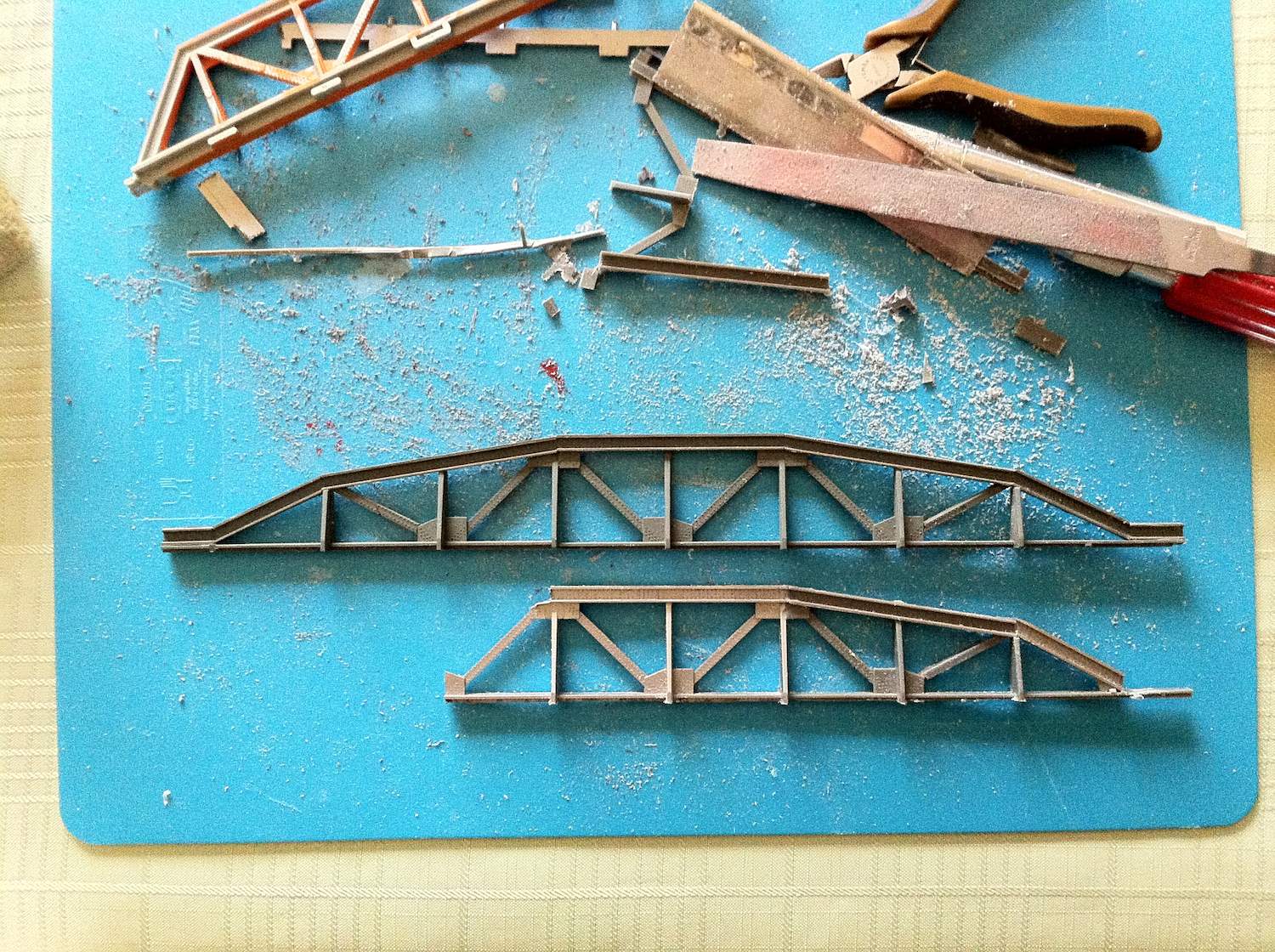

/tyco/forum/uploaded/Redwoods/bridge_under_const.jpg

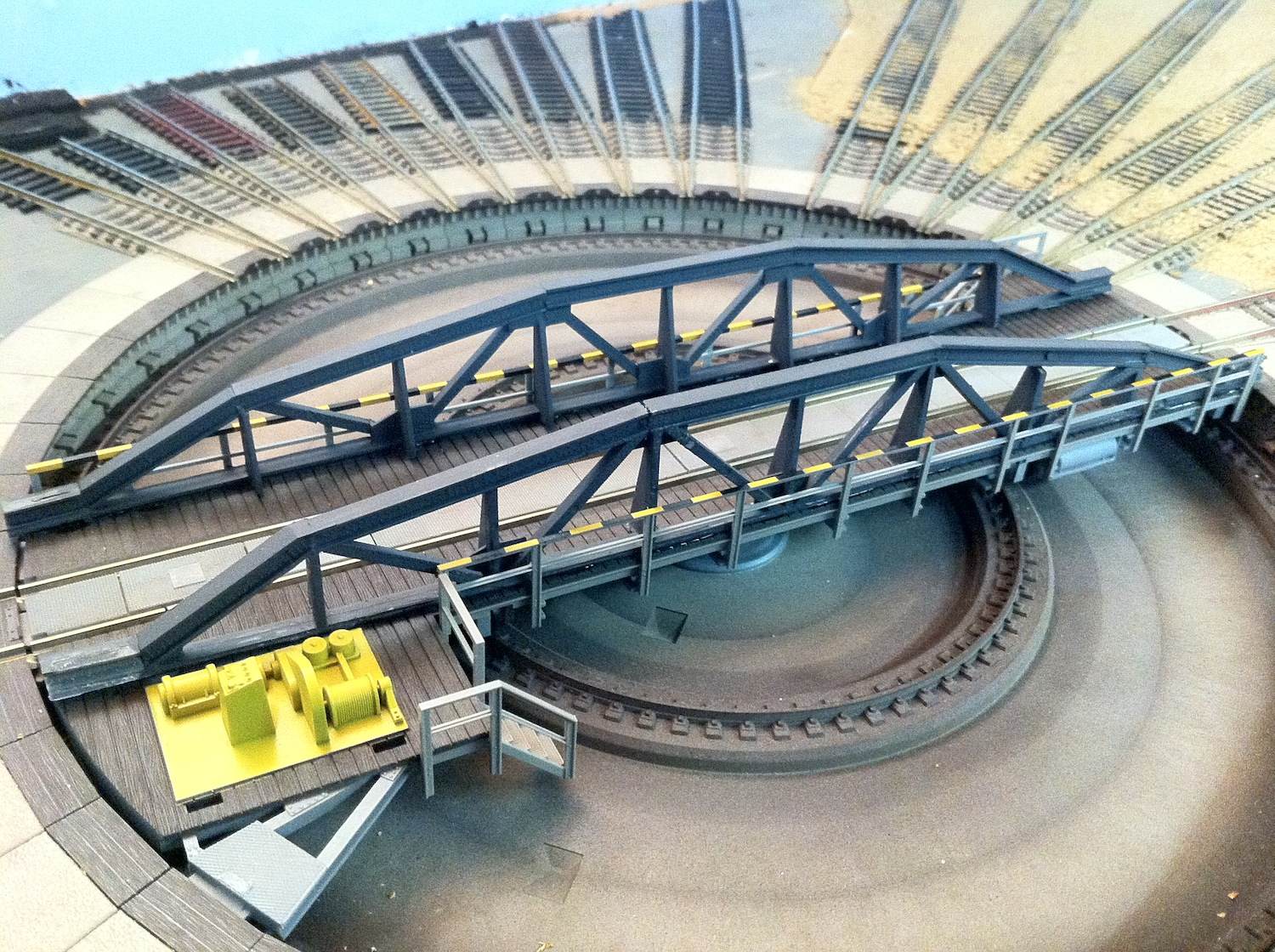

/tyco/forum/uploaded/Redwoods/turntable_w_bridge.jpg

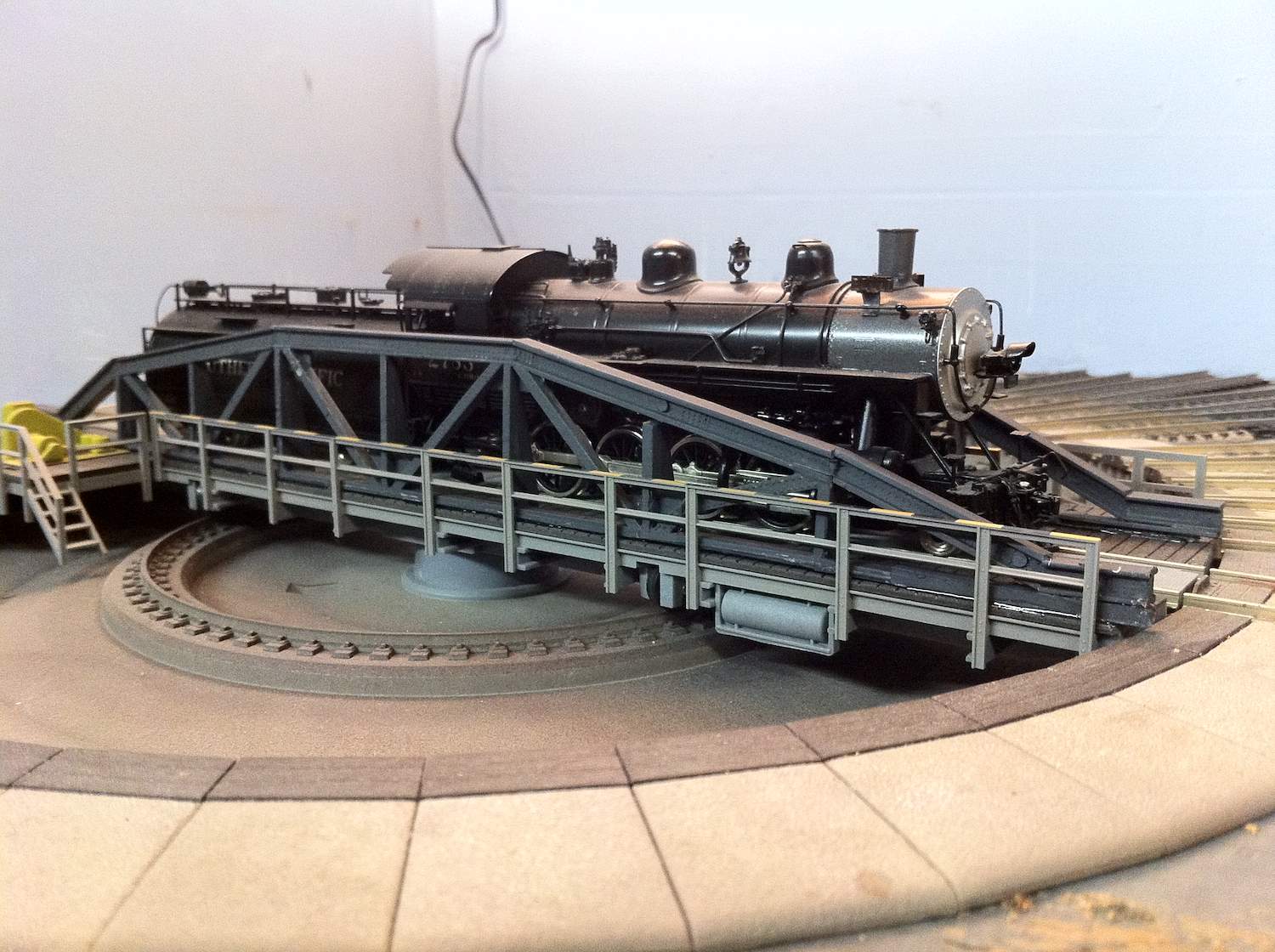

/tyco/forum/uploaded/Redwoods/loco_on_table.jpg
Here is a link to some pictures of SP turntables:
http://wx4.org/to/foam/sp/san_fran/turn/tables.html
There was a lot of cutting and gluing, but I think the final result looks good. I simply glued the trusses to the top deck of the existing turntable bridge.
-Thomas
|
Country:  USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: March 24 2025
|
Alert Moderator
|
|
|
|
Posted - July 14 2012 : 9:27:16 PM
|
Nice...
|
|
|
|
|
Posted - July 14 2012 : 9:39:15 PM
|
dang fine job. looks great.
jerry
|
|
Country: USA ~
Posts: 553 ~
Member Since: January 14 2009 ~
Last Visit: September 13 2024
|
Alert Moderator
|
|
|
|
Posted - July 15 2012 : 07:15:14 AM
|
A creative use of Tyco parts to make something different. You call it simple but it looks complex when completed. It really matches the prototype Nice, Red!
Alco Fan
Edited by - Alco Fan on July 15 2012 07:16:45 AM
|
|
Country: USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: September 17 2024
|
Alert Moderator
|
|
|
|
Posted - July 15 2012 : 10:27:04 AM
|
That really looks great Thomas!
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - July 17 2012 : 5:42:05 PM
|
 very nice
You gonna add the overhead thing that goes from a power pole to the turntable?
It won't fit a Big Boy hehehe
|
|
Country: USA ~
Posts: 14896 ~
Member Since: February 23 2009 ~
Last Visit: May 02 2025
|
Alert Moderator
|
|
|
|
Posted - July 17 2012 : 7:20:35 PM
|
| That looks great! Very classy
|
Country:  Canada ~
Posts: 3412 ~
Member Since: September 22 2006 ~
Last Visit: April 10 2025
|
Alert Moderator
|
|
|
|
Posted - July 17 2012 : 7:57:56 PM
|
Yup, I think I'll fashion the "overhead thing" out of brass. The turntable is also too small for my Bachmann GS4, but it's good for just about all my other steamers, the bulk of which are 2-8-0's or smaller.
BTW, does anyone know the correct term for the "overhead thing" that connects the bridge to power?
|
|
Country: USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: March 24 2025
|
Alert Moderator
|
|
|
|
Posted - July 18 2012 : 05:18:15 AM
|
That overhead thing I've alway heard them called "Center Arches"...
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - July 18 2012 : 12:03:41 PM
|
| Sounds about right EM. - Thomas
|
|
Country: USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: March 24 2025
|
Alert Moderator
|
|
|
|
Posted - July 22 2012 : 9:39:54 PM
|
drat came in too late for the pictures
just me Ray... and just because I have Tyco doesn't mean I am not a model railroader
|
|
Country: USA ~
Posts: 506 ~
Member Since: April 03 2011 ~
Last Visit: April 20 2023
|
Alert Moderator
|
|
|
|
Posted - July 23 2012 : 11:35:50 AM
|
Well isn't that strange... anyway, here they are reposted:
-Thomas
|
|
