 Posted - February 19 2012 : 11:44:43 PM
|

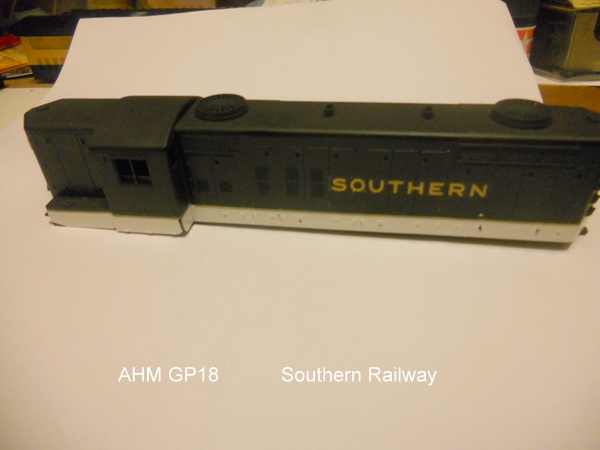

One of many projects I've started.
Unspoken expectations are premeditated failures.
|
Country:  USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - February 20 2012 : 5:32:27 PM
|
i can't tell, is it green or black? what are you doing just a repaint in the southern tux? i love 'em.
jerry
|
|
Country: USA ~
Posts: 553 ~
Member Since: January 14 2009 ~
Last Visit: September 13 2024
|
Alert Moderator
|
|
|
|
Posted - February 20 2012 : 6:32:32 PM
|
Black. Tuxedo scheme. I need to add the paper element filter to the roof. Already painted the frame. And when I get around to it, add some aftermarket handrails. Got a micro mark
HM-5 motor for it. It's practically a drop in replacement.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - February 21 2012 : 11:10:14 AM
|
Outstanding! I always liked the AHM GP-18 as a rebuild project. There are so many projects that can be done with it. And ranging from the very simple to the extreme. I have rebuilt it into various versions of the GP7, GP9, and GP18s. You can easily replace the short hood and cab with ones from a Tyco GP20 to get a lo-hood version as well.
I look forward to seeing your additions! I have thought to make a couple IC rebuilds for my road. I plan to paint them in PNC colors and use them as rentals.
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: March 03 2025
|
Alert Moderator
|
|
|
|
Posted - February 21 2012 : 12:31:47 PM
|
| Glad you mentioned that , Hypo. A low nose GP18 is also another project I've started in N&S colors. The original Norfolk and Southern which operated in North Carolina had low nose GP18's. I took an AHM shell and mated a TYCO GP20 cab and nose to it. Again, it's a partially completed project. Incidentally, those low nose units were acquired by the Southern Railway and converted to high-nose such as the one I'm modeling in the picture.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - February 21 2012 : 3:56:04 PM
|
Those 18s used by the original N+S were rather cool! The bright colors contrasted well will Southern's black. Don't forget to shorten the fuel tank. Let me know if you need photos! I can scan the section out of the GP18 book by Diesel Era. The book has a chapter on the units in use by the original N+S. Did you need a dynamic brake blister to go with your Southern 18?
I also want to try making an old Copper Basin lo-nosed unit. I just like it for the cactus emblem.
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: March 03 2025
|
Alert Moderator
|
|
|
|
Posted - February 21 2012 : 5:59:12 PM
|
Thanks for the offers. No dynamic brake.Here is a link to the one I'm modeling.
http://www.rrpicturearchives.net/locoPicture.aspx?id=119499
Edited by - NC shortlines on October 13 2013 7:57:17 PM
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - February 21 2012 : 6:20:26 PM
|
well i guess i'll have to do a couple of those as well. that's a nice little gp.
jerry
|
|
Country: USA ~
Posts: 553 ~
Member Since: January 14 2009 ~
Last Visit: September 13 2024
|
Alert Moderator
|
|
|
|
Posted - March 01 2012 : 7:47:46 PM
|
Looking pretty nice bud!
A lone amature built the ark! A large group of professionals built the titanic!
|
|
Country: USA ~
Posts: 423 ~
Member Since: September 25 2006 ~
Last Visit: November 08 2012
|
Alert Moderator
|
|
|
|
Posted - July 28 2012 : 09:04:18 AM
|

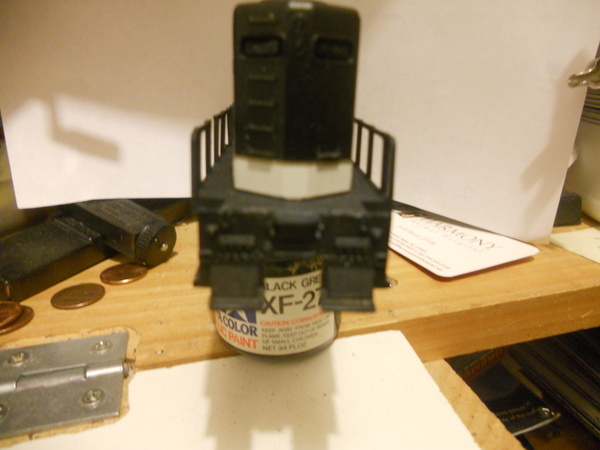

Did a little more with a GP18. The pilots on these are disgustingly too small. So I added scale size pilots.
Unspoken expectations are premeditated failures.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - July 28 2012 : 10:59:17 AM
|
Nice work.
Swapping the pilots is a great idea.
I have filled in and detailed the original pilots on a few of those. Swapping the pilot like you have done looks alot easier.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - June 26 2013 : 03:57:07 AM
|
Paul,
NICE work! I picked up this posting from one you added the link to it in. I got a few GP-18 projects done in much the same means you did!

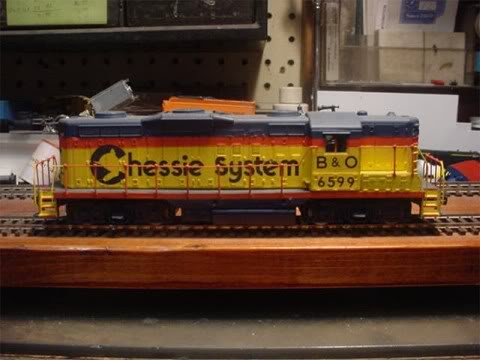

Here is one of my renditions:

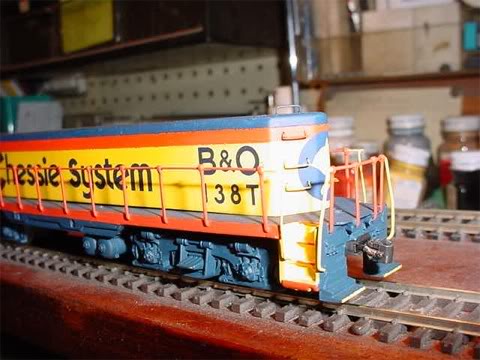

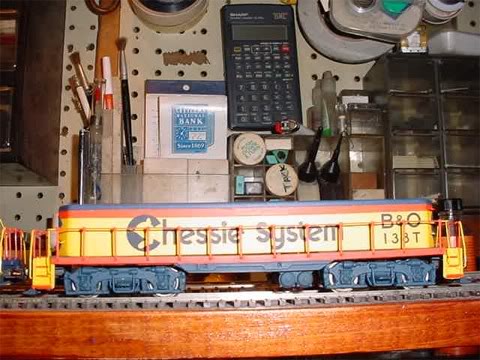

THEN, to really modify these loco's I made this:
ALL from a single AHM GP18!

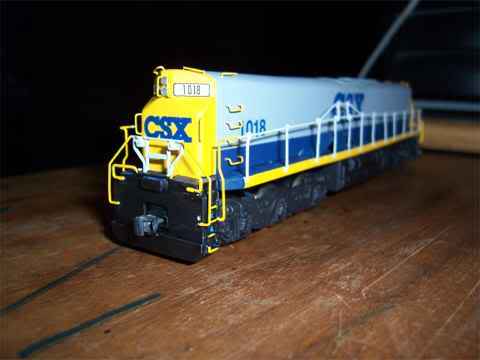

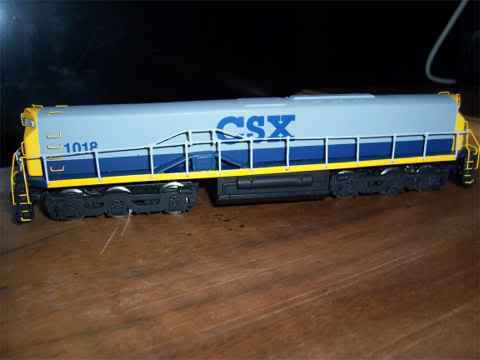

Then I have to say, want bigger stuff? The ALCO 3 axle unit, I believe its the C-630, makes a wonderful base to an MT-6 slug!
ALOT can be done with those older units, and as you know and can see, look really good at the same time!
And before I go and leave it at this, YES every slug I have built, is powered!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - June 26 2013 : 11:49:07 AM
|
Southern
Serves the South
Gives a green light to inovations
Real cool I likes all the locos
|
|
Country: USA ~
Posts: 14901 ~
Member Since: February 23 2009 ~
Last Visit: June 05 2025
|
Alert Moderator
|
|
|
|
Posted - June 26 2013 : 9:18:18 PM
|
What did you use for a motor in the Chessie slug?
Not the original AHM motor??
The MT-6 slug is an interesting looking creature.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - June 27 2013 : 01:50:17 AM
|
Paul,
YEP! The factory motors were used in ALL the slugs I've built. I lower the motor into the fuel tank further in any case or way I can when needed but believe it or not, you know how that fuel tank has that interior frame work that the clip snaps into? REMOVE it. Then glue the fuel tank in its place, SOLID! Mount the motor to the inside of the fuel tank with Silicone, OR a type of removable glue of your choice, hold it upright and true 90 degrees to the top shell. Add your wires from the trucks and off to the yard tracks he's ready for assignments!
The MT-6, that's a BEAST! It took a bit of work to get an IHC ALCO C-628 it was, (I think I said C-630 above) to become what you see as my MT-6....That slug, even has custom turned flywheels in it!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - June 27 2013 : 01:51:24 AM
|
quote:Those 18s used by the original N+S were rather cool! The bright colors contrasted well will Southern's black. Don't forget to shorten the fuel tank. Let me know if you need photos! I can scan the section out of the GP18 book by Diesel Era. The book has a chapter on the units in use by the original N+S. Did you need a dynamic brake blister to go with your Southern 18?
I also want to try making an old Copper Basin lo-nosed unit. I just like it for the cactus emblem.
Originally posted by Hypoponera - February 21 2012 : 3:56:04 PM
|
Hypoponera,
I have to comment, I like the Avatar! The ole Bachmann BQ23-7.....I WISHED they would offer that of the Spectrum line some day!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - June 28 2013 : 09:45:10 AM
|
| Yep, that is the old Bachmann BQ23-7. I detailed the shell some and then dropped it onto a current Bachmann B23-7 chassis.
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: March 03 2025
|
Alert Moderator
|
|
|
|
Posted - June 28 2013 : 10:08:04 AM
|
Hypoponera,
I just had to comment! I love the looks of the BQ23-7 so...... My favorite Bachmann from the old days!

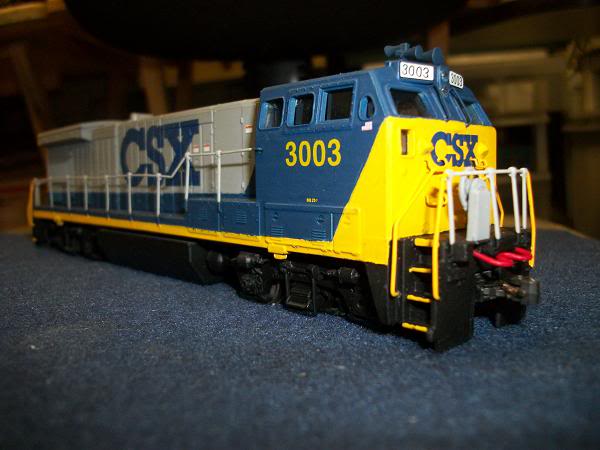

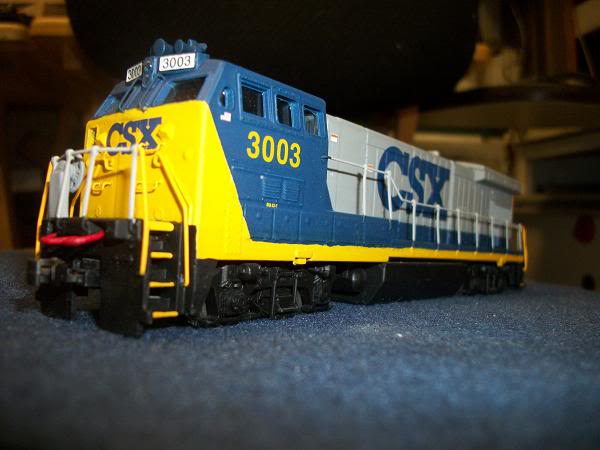

I too, have a few detailed versions.....see:
I detailed mine as well, BUT, mine is not on a Bachmann frame! I mounted mine to an Athearn UboatB frame, with all its bells and whistles, but not DCC or have sound so,..... Its straight DC Cab Control right now....IF I can find a dual model decoder with or without sound, I would add it to this one just to be able to run it at the club!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - June 28 2013 : 10:10:23 AM
|
darn it I wants one of them BQ23-7
Nicely detailed tho
|
|
Country: USA ~
Posts: 14901 ~
Member Since: February 23 2009 ~
Last Visit: June 05 2025
|
Alert Moderator
|
|
|
|
Posted - June 28 2013 : 10:29:16 AM
|
Ben,
Your getting something similar, like that, BUT, won't have the same cab! but you know I shouldn't be saying it on main screen but for your friend!
PM me on it!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - June 28 2013 : 3:39:43 PM
|
There are a few close-up photos of my BQ here:
http://tycoforums.com/tyco/forum/topic.asp?TOPIC_ID=621
Not as pretty as yours though!
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: March 03 2025
|
Alert Moderator
|
|
|
|
Posted - October 11 2013 : 01:43:30 AM
|
Great job on the Southern railway AHM GP18. Alway's love their black tuxedo paint livery & it always looks great on models.
Thanks.
Many Thanks. Regards. Pete H.
|
Country:  Australia ~
Posts: 3 ~
Member Since: October 09 2013 ~
Last Visit: October 14 2013
|
Alert Moderator
|
|
|
|
Posted - October 11 2013 : 02:12:33 AM
|
Hey Paul, ever get the GP18 done? I'd be interested in seeing what all you've done to it, those loco's have serious custom abilities!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - October 11 2013 : 10:20:07 PM
|
Nice slugs. To build one of the GP-18 slugs, did you cut down an AHM model? Not to downplay your work (because it appears you repainted it better than factory), but did you just cut the hood down to half height, or is that an entirely new hood piece on the slug? I just dont' see how you got the sides smooth like that.
Is there still room under the slug hood for an original AHM GP-18 motor and drivetrain under there?
I think the next GP-18 I see at the flea market will be the next victim 'volunteer' for such a project.
Someone give me some help; I need to stop being an armchair modeler and cut something up already!
|
|
Country: USA ~
Posts: 182 ~
Member Since: April 30 2011 ~
Last Visit: March 04 2023
|
Alert Moderator
|
|
|
|
Posted - October 13 2013 : 2:40:58 PM
|
quote:Hey Paul, ever get the GP18 done? I'd be interested in seeing what all you've done to it, those loco's have serious custom abilities!
Originally posted by EM-1Â -Â October 11 2013Â :Â 02:12:33 AM
|
Have not done anything with it. I keep starting projects and get about 2/3 through it and go on to something else. I do have some Precision Scale handrail stanchions, so I need to bend up some handrails. Thanks for asking, maybe that'll spur me on to finish it.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - July 27 2014 : 10:33:17 PM
|
Started my second GP18 project many months ago but, I got some neat details parts recently.

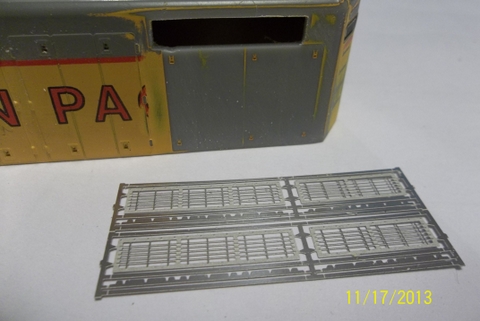

These are some stainless steel photoetch radiator grilles. They are made by Plano. Fantastic looking detail. They even have the tiny condensation drain holes and rivets. Plano has a bunch of photoetch detail parts.
|
|
