 Posted - January 23 2012 : 11:30:05 AM
|
Siouxlake
|
Country:  USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - January 23 2012 : 12:00:39 PM
|
you know you can go to the original post & re-edit the image
|
|
Country: USA ~
Posts: 14929 ~
Member Since: February 23 2009 ~
Last Visit: September 20 2025
|
Alert Moderator
|
|
|
|
Posted - January 23 2012 : 3:26:58 PM
|
Like the girl said in the old B&W movie, " Lets BOTH get on top! " < referring to trying to press down the lid of a suitcase, while two guys outside the door were trying to look thru a keyhole >.
Anyway, it doesn't matter WHICH is on top, only the motor end orientation matters (front or back). Since it's now swapped, the question is, which SIDE does the red wire go and the black wire go, to ensure proper forward / reverse direction. So the red and black wires need to be reversed on the trucks to ensure proper Fwd/Rev direction. But the motor ROTATION as to which color is on top doesn't matter, the motor will STILL turn the same direction, it's only when you swap it end for end that makes the difference.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - January 24 2012 : 05:10:45 AM
|
It took me a few minutes to figure it out, but I deleted the prior message without the image.
Siouxlake/Ron
|
|
Country: USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - January 24 2012 : 05:21:22 AM
|

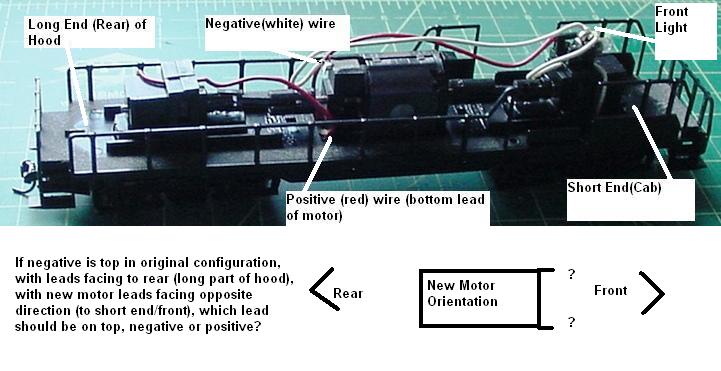

So, with the motor placed with the leads now facing front ( cab end), PRESENT wiring (as I found it) would operate with the cab end as the front, right?
I will run a temporary hookup to see which way it goes, with neg on top, to see what happens, the reverse the wiring if needed. The wheel towers are too hard to remove from the chassis to get to the connections on each that are below, so I will adjust wiring where I can access it on top. Not to mention I am adding an LED to the rear light/number board lens, which is presently unlit, and replacing the existing front bulb with another LED.
More soldering fun in the garage this week!
Siouxlake/Ron
|
|
Country: USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
