 Posted - December 31 2011 : 3:19:47 PM
|

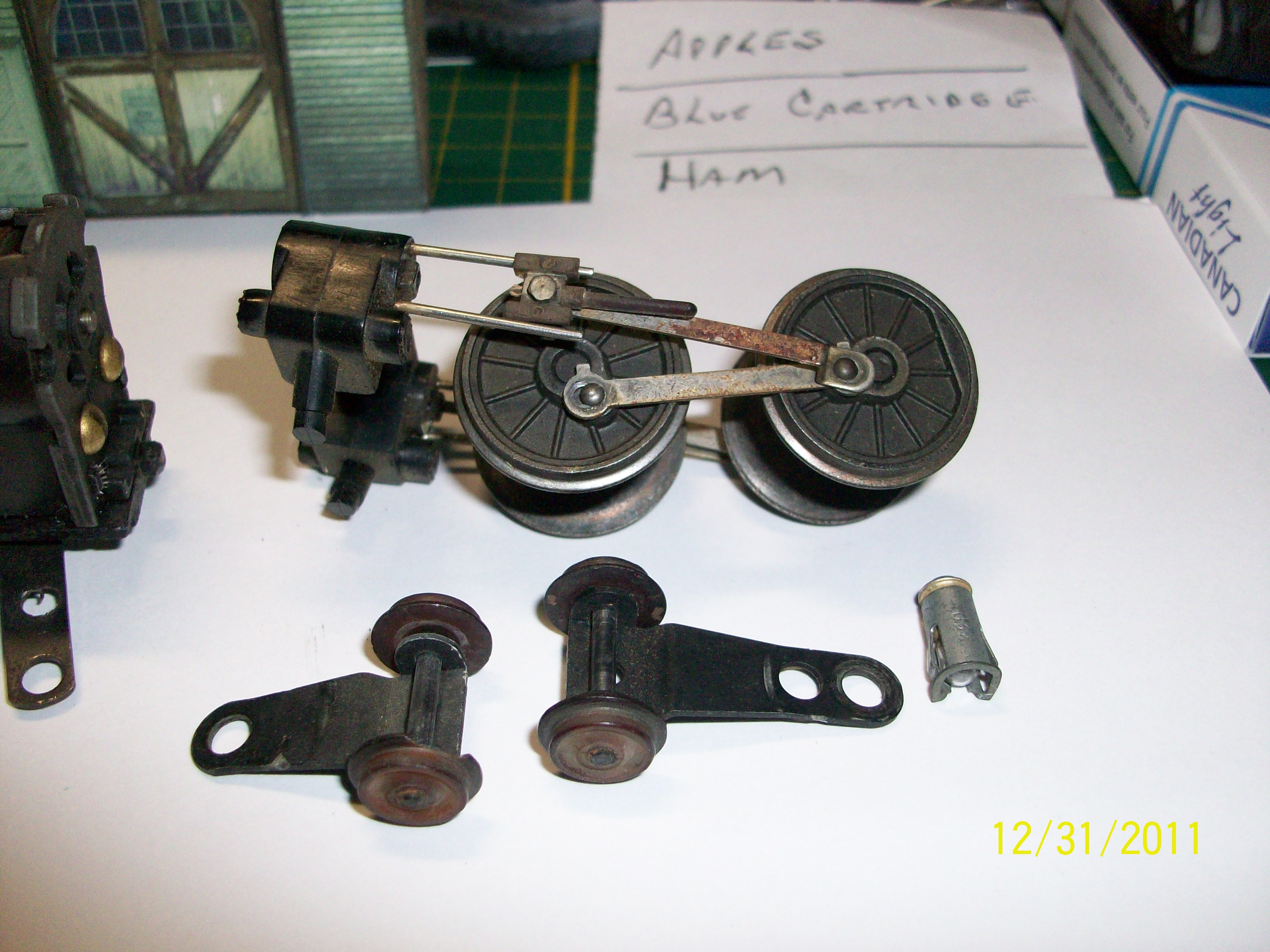

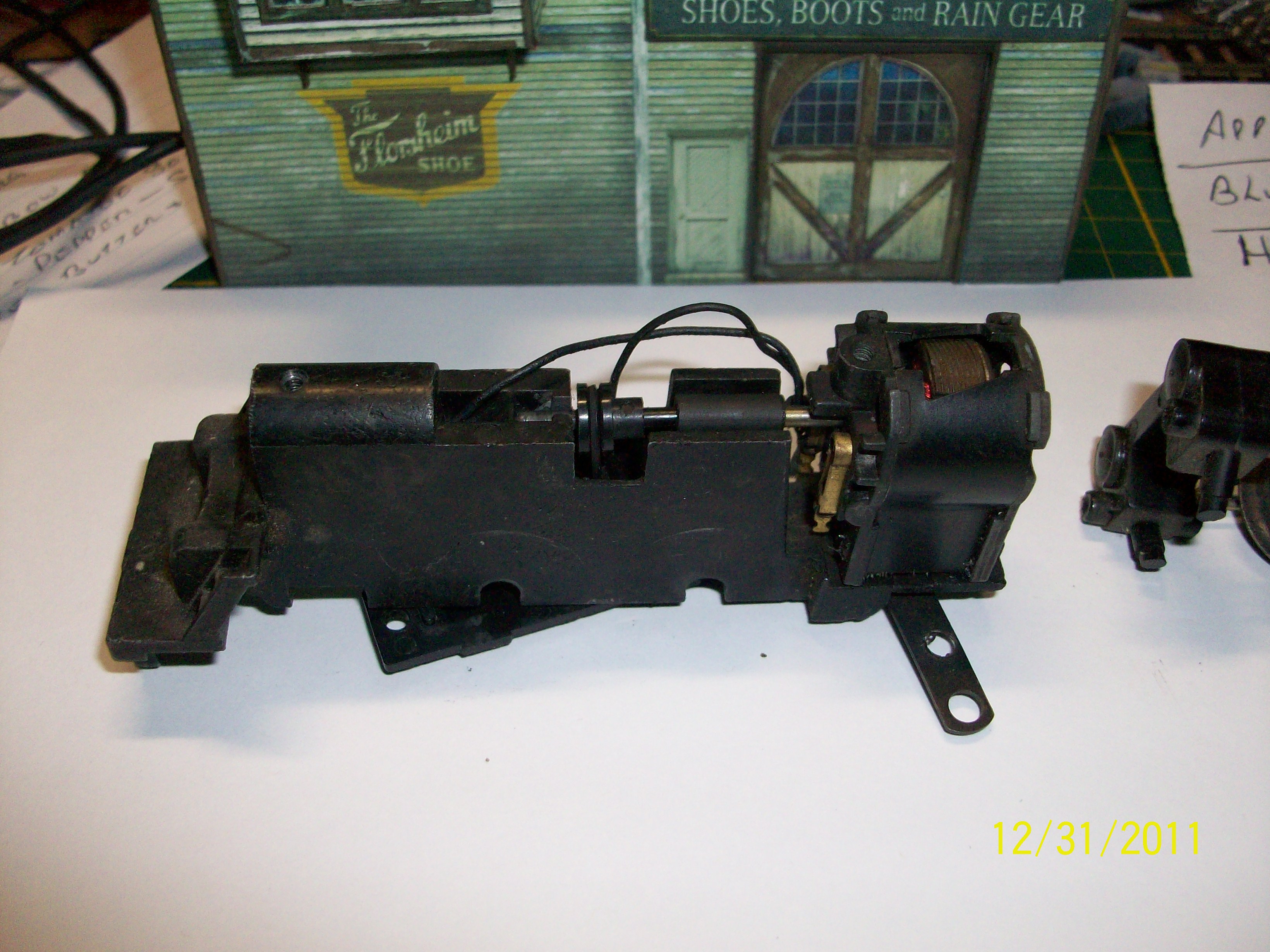

I got this is a deal and cannot find any markings on it. It is belt driven with strange little head light. I don't have a tender but if I can find out what make it is I should be able to find a tender in my junk box.
Any help would be great.
Ken

FIDDLEHEAD RAILWAY CO.
|
Country:  Canada ~
Posts: 468 ~
Member Since: January 17 2010 ~
Last Visit: February 29 2012
|
Alert Moderator
|
|
|
|
Posted - December 31 2011 : 3:22:13 PM
|
It's made by Lionel,from the early 60's.
Carl T.
President of the Cape James Terminal RR.
|
Country:  USA ~
Posts: 691 ~
Member Since: April 16 2006 ~
Last Visit: November 01 2020
|
Alert Moderator
|
|
|
|
Posted - December 31 2011 : 3:53:54 PM
|

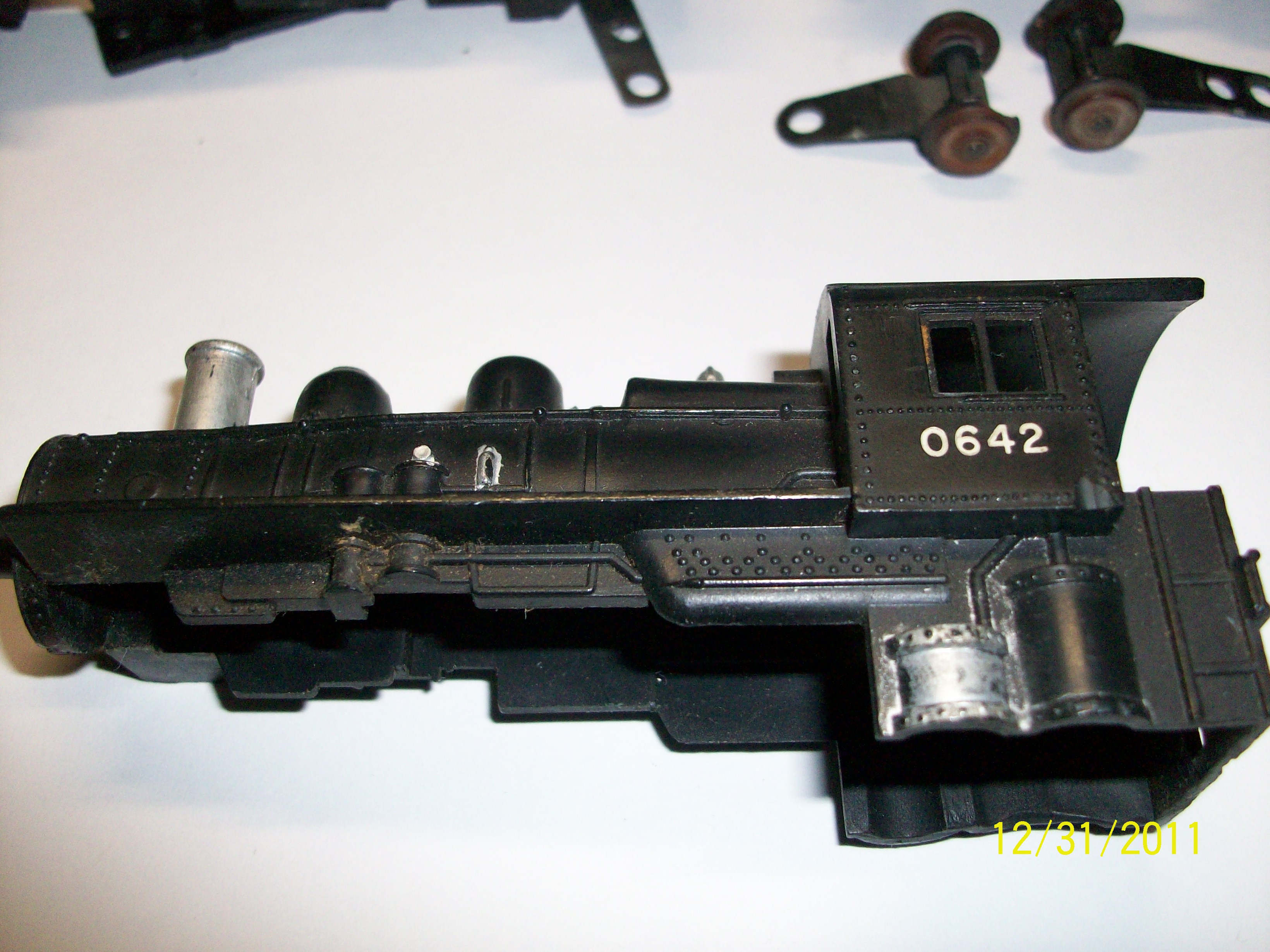

| Carl's right. The cab number is the Lionel number, if you want to look up info on it.
|
|
Country: USA ~
Posts: 151 ~
Member Since: December 29 2011 ~
Last Visit: January 05 2015
|
Alert Moderator
|
|
|
|
Posted - December 31 2011 : 4:02:15 PM
|
this is what carl t was talking about ken
http://www.hoseeker.net/lionelhoinformation/lionelhocatalog1961pg5.jpg
Edited by - catfordken on December 31 2011 4:04:47 PM
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - December 31 2011 : 5:00:22 PM
|
Hi Guys,
This is why I belong to this site. Ask a question and you get the right answer.
Thanks for your help.
Now I need to find a tender. The engine works but slow I will need to give it a good cleaning and it should run great. This is my first lionel !!!
Are the belts easy to get??
Ken
HAPPY NEW YEAR TO ALL.
May all you trains be on time in the new yaer.
FIDDLEHEAD RAILWAY CO.
|
|
Country: Canada ~
Posts: 468 ~
Member Since: January 17 2010 ~
Last Visit: February 29 2012
|
Alert Moderator
|
|
|
|
Posted - December 31 2011 : 6:05:22 PM
|
It's just an O-ring, Ken. If you still have the old one, you can go to Home Depot and pick out the right size. I did the same for an old Revell switcher.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - January 02 2012 : 5:30:28 PM
|
I was going to guess Lionel just because of the motor but the cab number also looks like a Lionel font. A nice find.
Ken that building or photo in the background is interesting, how'd you come by that one?
Alco Fan
Edited by - Alco Fan on January 02 2012 5:31:54 PM
|
|
Country: USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: September 17 2024
|
Alert Moderator
|
|
|
|
Posted - March 31 2012 : 03:50:00 AM
|
I hate to say wasn't that steamer offered by Athearn in the 60's? LOOK at the motor! SAME as the one used in the B&M 4-6-2 from the same era!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - March 31 2012 : 9:13:54 PM
|
John,
Nope, that's the Lionel motor. They were in everything from their Husky to their Pacifics. The Athearn motor was the unblackened weak open frame Hi-F motor.
Irv didn't have enough patience with steam. If he had waited a few years until they came out with their much stronger Jet motors (with the oval ring magnet), they would have performed much better. The Hi-F motors were weak in the early geared diesels, too.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - March 31 2012 : 9:16:48 PM
|
Hey Nelson:
That pic you just posted is that an Atearn "Jet" motor?
What are they like???
-Gareth
"A is A"
-Aristotle
Law of Identification
|
|
Country: Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - March 31 2012 : 9:48:01 PM
|
Gareth,

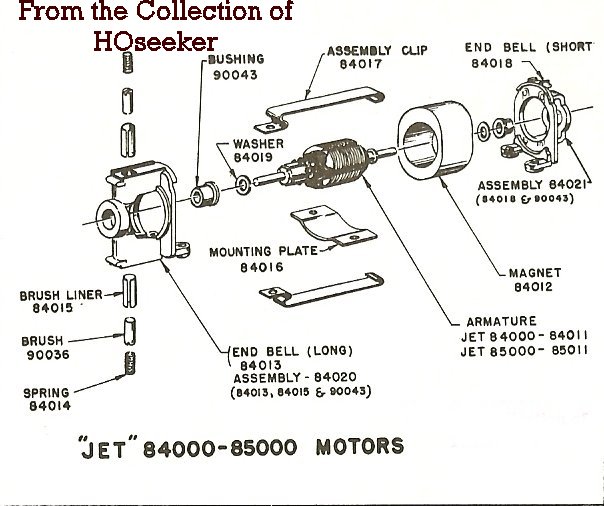

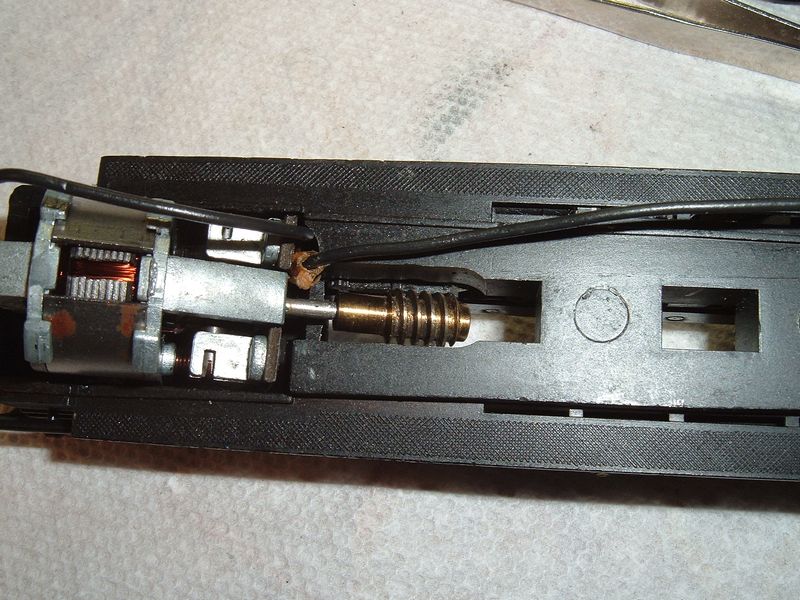

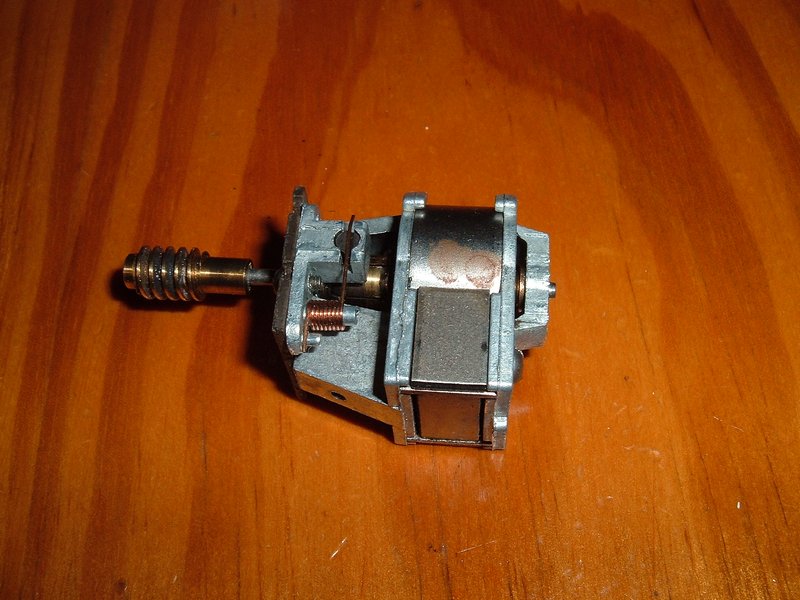

My pics are to show the Hi-F motor that was used in their 60's steam. Here's a diagram of the Jet motor. Must be a drawing from the 60's, because it uses the metal mounting plate instead of the rubber mounts.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - April 01 2012 : 12:54:55 AM
|
quote:John,
Nope, that's the Lionel motor. They were in everything from their Husky to their Pacifics. The Athearn motor was the unblackened weak open frame Hi-F motor.
Irv didn't have enough patience with steam. If he had waited a few years until they came out with their much stronger Jet motors (with the oval ring magnet), they would have performed much better. The Hi-F motors were weak in the early geared diesels, too.
Originally posted by NickelPlate759Â -Â March 31 2012Â :Â 9:13:54 PM
|
Nelson, I confused the 0-6-0 with the 0-4-2T......
I have both a Lionel 0-6-0, and then the 0-4-2T by Athearn...... The frames look REALLY similar tho....Amazing how much of that was done, but I don't recal seeing the "Hi-Fi" motor having an angle mount on it.......
Good thought tho, I wonder if the jet motor armature would fit the old Hi Fi? Interesting as if I recall the armature was the issue on the Hi-Fi motors! I might have to give that a try!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - April 01 2012 : 5:33:03 PM
|
John, they re-tooled the front end bell for their steamers to put the motor on the diagonal.
The Jet armature wouldn't fit, in fact the Hi-F armature is very short. It's almost a pancake motor. The only way to improve them is with a neodymium magnet transplant, which I have yet to do to one of these.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - April 02 2012 : 02:26:13 AM
|
Nelson,
I'll have to see what I might have for Armatures, as I might have something to fit in one of the Hi-Fi's....Hmmmmm
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
