 Posted - December 14 2011 : 10:49:37 AM
|
|
I've been searching for a low-nose gp-7 or -9, preferrably without dynamic brakes. Does anyone know of such a beast existing in HO scale? I've never seen one, other than ones having been cut up and modified.
|
Country:  USA ~
Posts: 874 ~
Member Since: October 15 2007 ~
Last Visit: June 09 2019
|
Alert Moderator
|
|
|
|
Posted - December 14 2011 : 10:58:43 AM
|
chris,only ones i know of is the cox model, modelpower and walthers ken
Edited by - catfordken on December 14 2011 11:09:25 AM
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - December 14 2011 : 11:28:01 AM
|
| I'm not sure if all those have a dynamic brake blister--I'm pretty sure the Cox one does. I suppose that would be a relatively simple modification if I could find the detail part. I've been tempted to use a Tyco/Mantua GP-20 shell to suffice. I'll post a pic as to what I'm looking to do.
|
|
Country: USA ~
Posts: 874 ~
Member Since: October 15 2007 ~
Last Visit: June 09 2019
|
Alert Moderator
|
|
|
|
Posted - December 14 2011 : 11:33:26 AM
|
I have a South Orient decal set for this...
Edited by - Adams on December 14 2011 11:36:30 AM
|
|
Country: USA ~
Posts: 874 ~
Member Since: October 15 2007 ~
Last Visit: June 09 2019
|
Alert Moderator
|
|
|
|
Posted - December 14 2011 : 11:39:36 AM
|
| athearn gp7/9 and a low nose kit i thought would be easier ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - December 14 2011 : 11:54:04 AM
|
| I'll need to look for that kit, but would still need to get rid of Athearn's dynamic brakes. I do have some Athearn shells to use.
|
|
Country: USA ~
Posts: 874 ~
Member Since: October 15 2007 ~
Last Visit: June 09 2019
|
Alert Moderator
|
|
|
|
Posted - December 15 2011 : 5:34:39 PM
|
All three locos Ken mentioned are low nosed, but have dynamic brake blisters. But they will be easier to modify then the Athearn shell.
There is no "kit" to chop the nose of the Athearn loco. You will need to do some serious plastic surgery. Not terribly hard if you are careful and measure well. Then you still need to remove the BD blister.
If you start with the Walthers or Model Power locos, the nose has already been chopped. You just need to carve away the BD blister. Then patch the damage and sand. Much easier then chopping the nose.
Another option would be to start with an AHM GP18. It comes sans BD blister. You still need to chop the nose though. Then you need to back date it to a -7 or -9. On the plus side, the hood does have scale width as opposed to Athearn, Cox, MP, and Walthers versions.
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: September 19 2025
|
Alert Moderator
|
|
|
|
Posted - December 15 2011 : 9:41:56 PM
|
Step one-Find a shell-low nose
Step two-Find an engine with no DBs.
Step three, cut out the DB Blister and trade out.
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - December 15 2011 : 10:41:31 PM
|
Hope this is useful:
http://trainlife.com/magazines/pages/23/1680/november-1990-page-8
-Gareth
"A is A"
-Aristotle
Law of Identification
|
Country:  Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - December 16 2011 : 08:23:50 AM
|
| Thanks, All, for the suggestions. I suppose I could also use the rooftop area of a Tyco GP-20 to replace a db blister--but only if I start with a similar-width shell.
|
|
Country: USA ~
Posts: 874 ~
Member Since: October 15 2007 ~
Last Visit: June 09 2019
|
Alert Moderator
|
|
|
|
Posted - December 16 2011 : 10:31:48 PM
|
| One other consideration: it would be far easier (IMO) to patch and scratchbuild the smooth, boxy, plain non-DB area of the long hood, than it would be to build and match the complex angles, curves, and contours of a chopped nose - and the resultant, required cab front. It will still take some effort and patience, but not enough to be impossible, and no more difficult than trying to cut and splice parts from other units.
|
|
Country: USA ~
Posts: 2798 ~
Member Since: September 17 2010 ~
Last Visit: July 22 2015
|
Alert Moderator
|
|
|
|
Posted - March 31 2012 : 03:55:53 AM
|

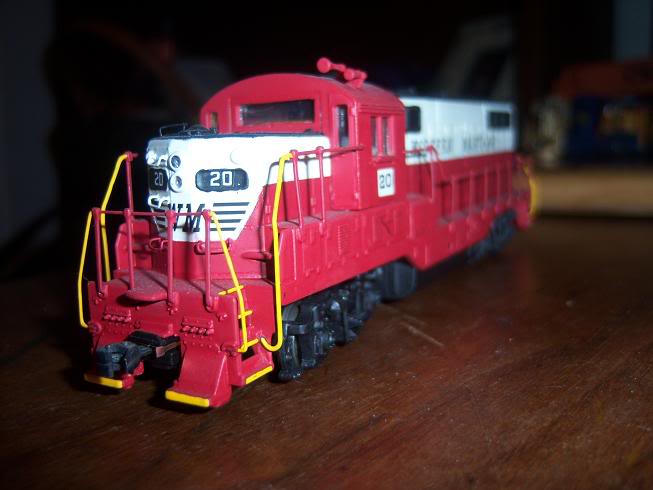

Anything like this:

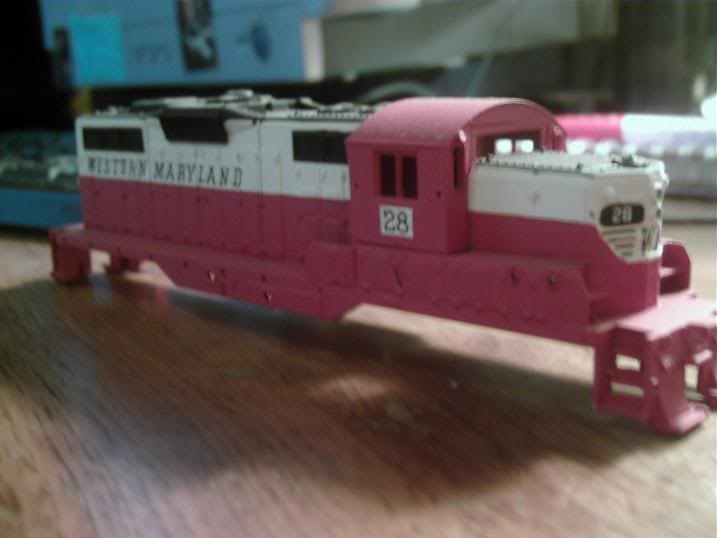

Or this:

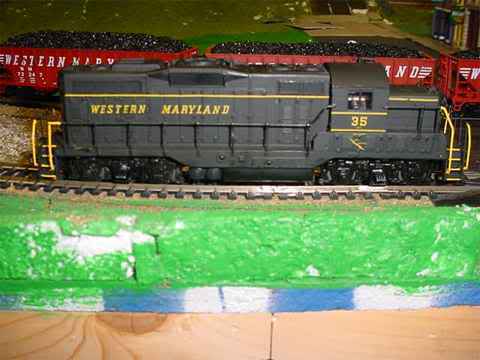

and then:
I custom made all these and I have one in Chessie System WM as well that I haven't got pictures online yet!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
