 Posted - September 18 2011 : 12:15:07 PM
|
been trying to get this working,have stripped it,cleaned it lubed it,all wheels checked and cleaned,wiring checked only way i can get motor to work is directly.fly wheels and all drives a ok,ken
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - September 18 2011 : 12:41:31 PM
|
| I've found that, if you put a screw into the frame and running a wire off of it, rather than using the frame as the common ground usually fixes that. More direct current pickup....
|
|
|
|
|
Posted - September 18 2011 : 12:53:46 PM
|
| cheers shay will give it a go ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - September 18 2011 : 1:08:52 PM
|

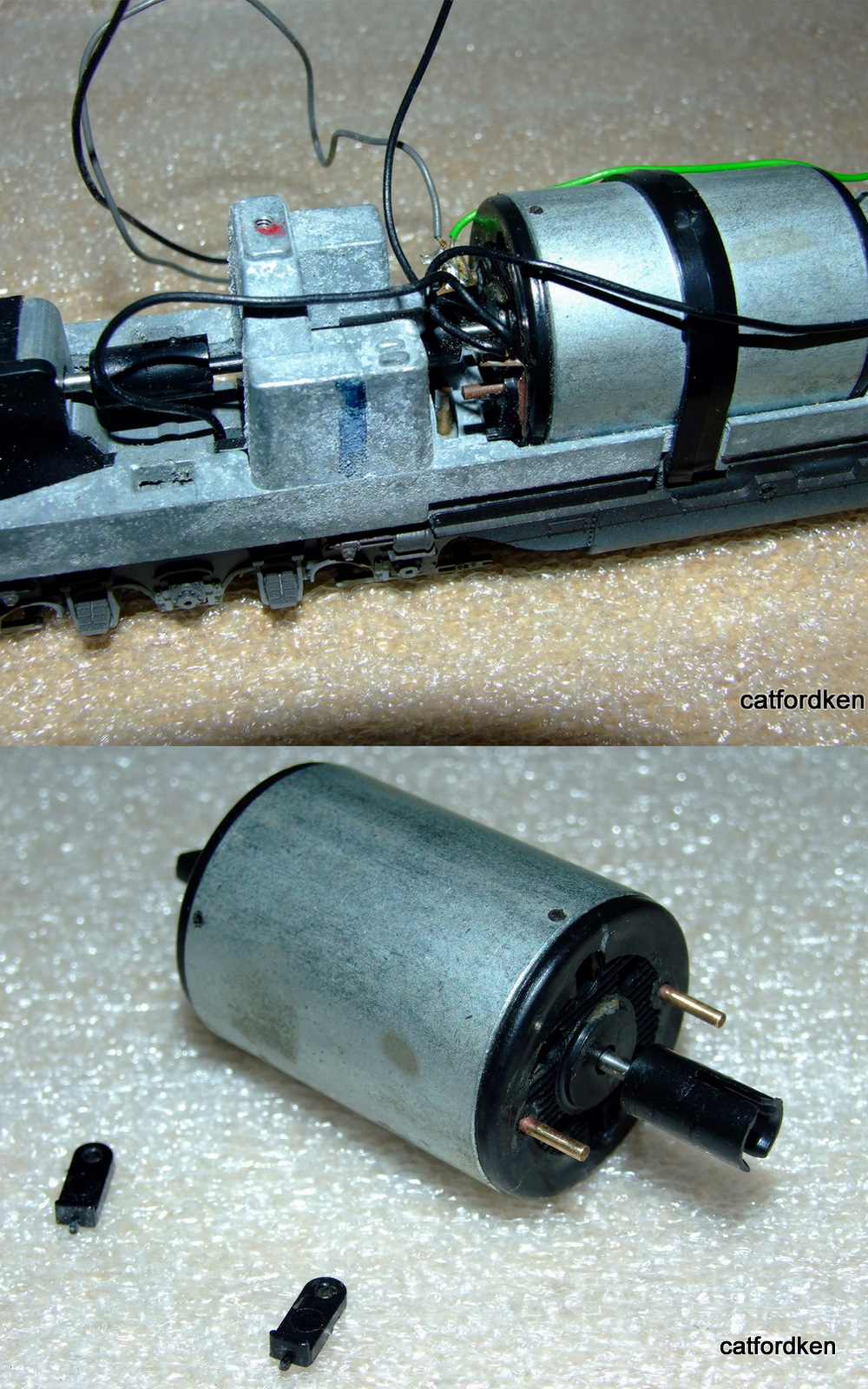

Somebody soldered a green wire to the right hand motor lug and used one of the flywheel retaining screws to ground it to the frame. Originally there was a short length of bare wire that slipped between the motor and chassis for grounding.
Check the wipers on the insulated wheels. If the trucks are disassembled it's easy to let them slip out from behind the wheels.
The Tyco Depot
Edited by - NickelPlate759 on September 18 2011 1:09:27 PM
|
Country:  USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - September 18 2011 : 1:12:18 PM
|
will do mate simple tip,but easy to overlook ken
Edited by - catfordken on September 18 2011 4:37:04 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - September 18 2011 : 4:57:45 PM
|

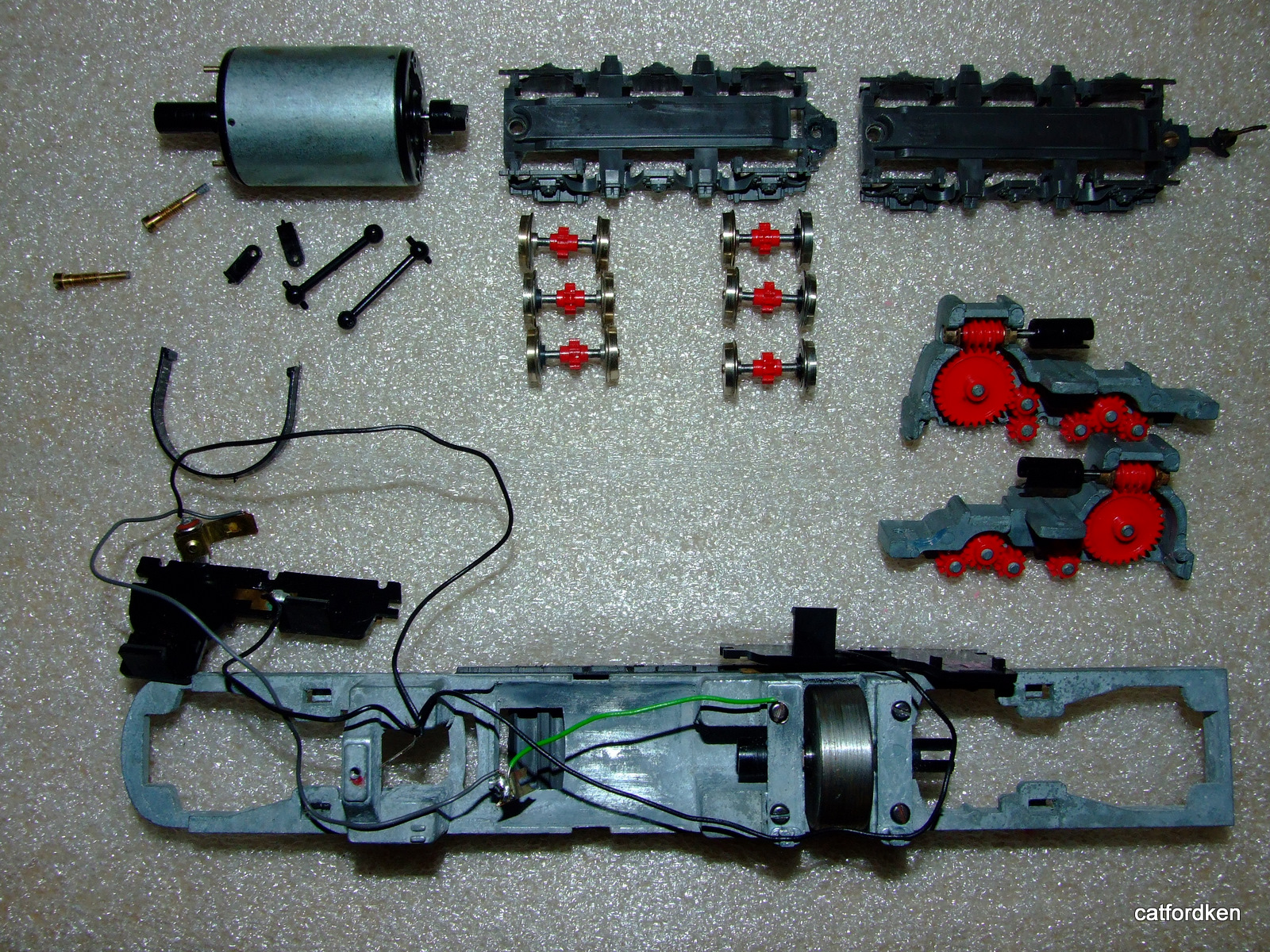

That Zamac material can get heavily oxidized, I don't see it shiny in the picture in the motor cradle area, so it's probably NOT grounding very well thru the motor casing. If I was you, I'd buff it up some and make it shiny, and do the same on the motor casing. Or run a separate ground wire to the motor to ensure proper conductivity. Also, they zinc plate the steel (motor casing), it may not transmit electrically as well if the plating is hindering conductivity, might want to check it with a meter to see if you get a consistent reading of 0 ohms anywhere on the casing shell. Rough it up with sand paper to remove some, if you have to.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - September 18 2011 : 7:06:44 PM
|
quote:Somebody soldered a green wire to the right hand motor lug and used one of the flywheel retaining screws to ground it to the frame. Originally there was a short length of bare wire that slipped between the motor and chassis for grounding.
Check the wipers on the insulated wheels. If the trucks are disassembled it's easy to let them slip out from behind the wheels.
Originally posted by NickelPlate759Â -Â September 18 2011Â :Â 1:08:52 PM
|

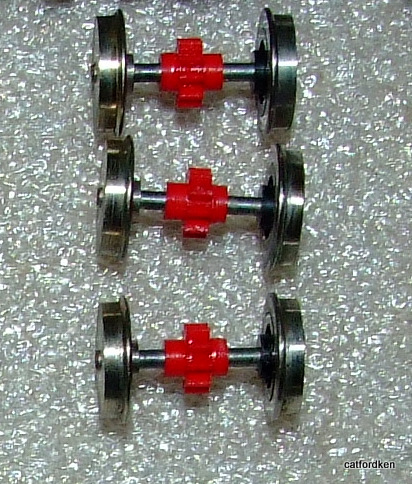

hi nickleplate759 on your above statement,you said check wipers behind insulated wheels,of the wheels below which side are you saying wiper should touch ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - September 18 2011 : 9:04:04 PM
|
Hi Ken,
The wipers pick up from the insulated wheels with the plastic centers. The all metal ones conduct power to the frame through the axles.
Btw, do you have any spare parts for these Roco E units? I've been looking for a replacement idler gear. I need the smallest idler in the truck.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
