 Posted - April 29 2011 : 3:32:36 PM
|
A while ago, I saw a Revell F-unit that had a box too and will buy it this weekend. Are they gear driven or rubber band driven? I looked at it but forgot what drive it is. It was near mint and the rear truck was lil' loose.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
Country:  USA ~
Posts: 3145 ~
Member Since: May 07 2007 ~
Last Visit: April 04 2024
|
Alert Moderator
|
|
|
|
 Posted - April 29 2011 : 3:37:58 PM
|
| hi Redneck Justin,as far as i know they were 8 wheel drive gear driven ken
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - April 29 2011 : 5:09:30 PM
|
Hey Ken:
I remember that puppy being belt driven. Anyone else chime in? I think there were two versions.
-Gareth
"A is A"
-Aristotle
Law of Identification
|
Country:  Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - April 29 2011 : 6:28:10 PM
|
you might be right gareth,1956-8 its listed as dynaglide,in 1962 its listed as powerflo ken
http://www.hoseeker.net/revellinformation/revellcatalog1956pg05.jpg
Edited by - catfordken on April 29 2011 6:32:19 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - April 29 2011 : 8:54:00 PM
|
Anybody know what belt would work as a stand in that'll hold up.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3145 ~
Member Since: May 07 2007 ~
Last Visit: April 04 2024
|
Alert Moderator
|
|
|
|
Posted - April 29 2011 : 9:37:55 PM
|
If I can find the box it's in I'll have to pull the shell and see which I have...
-Gareth
"A is A"
-Aristotle
Law of Identification
|
|
Country: Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - November 21 2011 : 6:54:30 PM
|
Didn't some Revell diesels have an "over and under" style gear drive on one power truck?
Unspoken expectations are premeditated failures.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - November 21 2011 : 6:58:08 PM
|
NCS:
That may have been a Varney, or a Globe shell on a Hobbytown chassis. Common combo at one time...
-Gareth
"A is A"
-Aristotle
Law of Identification
|
|
Country: Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - November 21 2011 : 7:50:26 PM
|
Follow this link:
http://ho-scaletrains.net/revellhoscaletrainsresource/id2.html
Scroll all the way down to the bottom and you'll find a diagram.
|
|
Country: USA ~
Posts: 1166 ~
Member Since: October 18 2009 ~
Last Visit: December 23 2018
|
Alert Moderator
|
|
|
|
Posted - November 21 2011 : 8:04:01 PM
|
Hey B77;
thats the one I have, but it will be heading out pretty soon bound for the St. Canard & Midland. Likely be backshopped at their Kentucky shops!
-Gareth
"A is A"
-Aristotle
Law of Identification
|
|
Country: Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - December 05 2012 : 11:38:27 PM
|
F units had a drive like Varney with the motor on one truck and a big gear, at least all the ones I've seen have.
The SW7 on the other hand had a motor driving a shaft with belts turning a second shaft in the truck, sort of like some Lionel HO pieces.
|
|
Country: USA ~
Posts: 956 ~
Member Since: January 27 2008 ~
Last Visit: May 27 2016
|
Alert Moderator
|
|
|
|
Posted - December 07 2012 : 9:55:48 PM
|
The NH F unit I have from Revell has a drive system identical to the sw7 mentioned before, with the exception of a longer drive shaft in between trucks, and a plastic body instead of a metal one.
Here is a varney locomotive of identical construction to my F unit: http://hoseeker.net/assemblyexplosionvarney/varney2060kf31951pg2.jpg
-and-

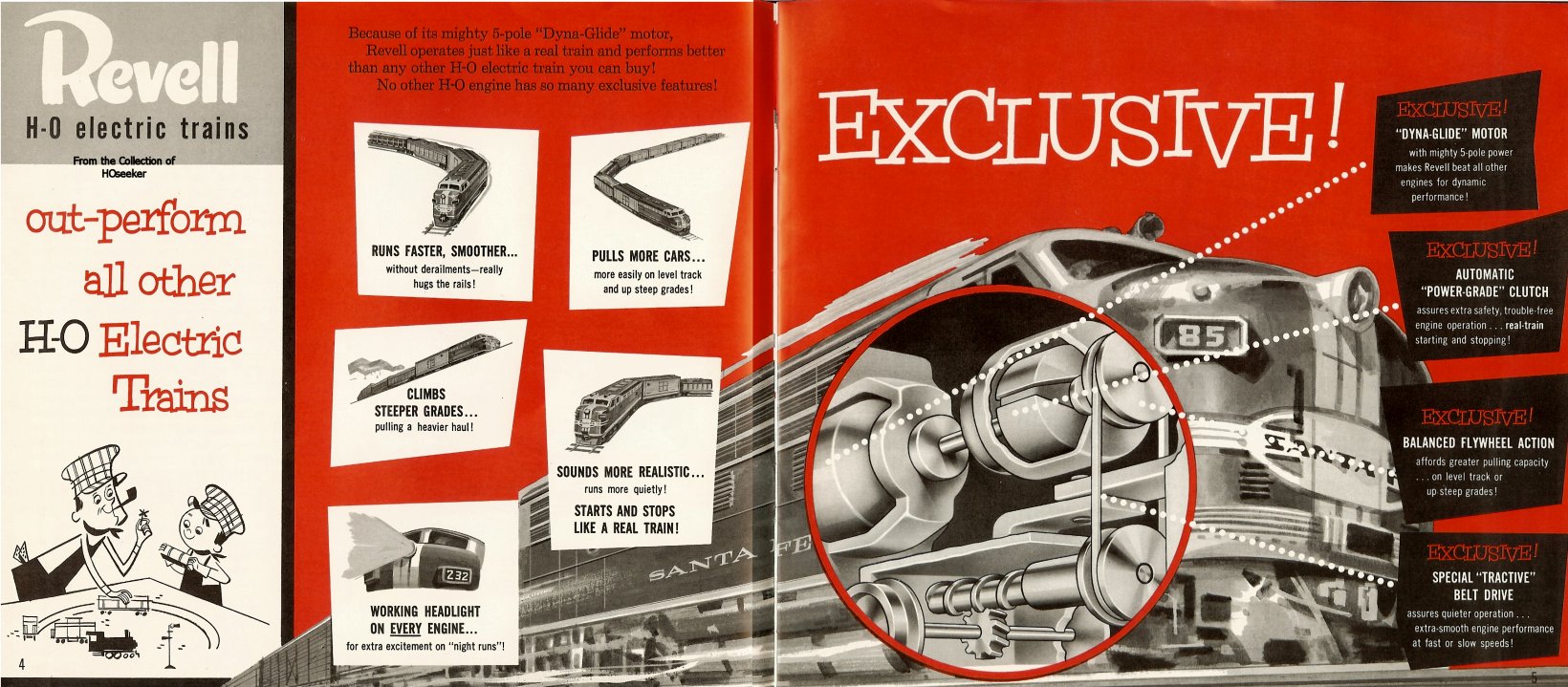

Here is a picture of a cutaway of a Revell with Belt Drive
http://www.hoseeker.net/revellinformation/revellcatalog1956pg05.jpg
Experience at flea markets along with advice from the foum suggests that Varney is essentially the same as Varney. I'm sorry to say then it could be belt or gear driven. Good luck.
|
|
Country: USA ~
Posts: 182 ~
Member Since: April 30 2011 ~
Last Visit: March 04 2023
|
Alert Moderator
|
|
|
waw47
Hudson
Status:
offline
| |
Posted - December 07 2012 : 11:59:18 PM
|
| From 1956 to 1958, Revell used a Dyna Drive motor with a Power Grade clutch and a balanced flywheel drive. The Santa Fe F7 freight (blue), Union Pacific and Atlantic Coast Line SW7s were the only diesel locomotives produced with this drive. Dyna Drive locomotives are easy recognized by their heavy metal frames. From 1958 onward Revell used Varney clone drives on all their diesel locomotives.
|
|
Country: USA ~
Posts: 466 ~
Member Since: August 09 2010 ~
Last Visit: April 26 2024
|
