 Posted - January 09 2011 : 8:08:53 PM
|
Ok, I can't find any diagrams showing the wiring in the PT for a Golden Eagle 1102 engine. Since on the GIC website http://goingincirclez.com/TycoTrains/Guide/PowerTorqueRepair there IS mention of the reversing light for a Super 630, I have to assume that there is something special about that version that allows the lights to work in forward and reverse independently. But unfortunately GIC's site didn't provide that wiring or PT picture on his website. Do you have one handy to show us? I'm curious as to how it works. I don't have any of the 630 version engines, only 430. And of course all the Tyco diagrams on HOseekers is all 60's and very early '70's, there's nothing showing the later PT layouts.
Jerry
" When life throws you bananas...it's easy to slip up"
|
Country:  USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - January 09 2011 : 9:57:59 PM
|
| I'll see if I can dig mine out and add an addendum to the repair guide (which has been seeing a lot of action of late). IIRC it used diodes. Also a rare crowing moment for Tyco as they were possibly the first company to do this in HO scale - in 1978. Who needs DCC? ;)
|
|
Country: USA ~
Posts: 2798 ~
Member Since: September 17 2010 ~
Last Visit: July 22 2015
|
Alert Moderator
|
|
|
|
Posted - January 09 2011 : 10:21:24 PM
|
quote:.... IIRC it used diodes. e - in 1978.
Originally posted by spiderj76Â -Â January 09 2011Â :Â 9:57:59 PM
|
Ahhhh, ok, that makes sense, because there's no WAY a simple bulb will only work one way unless it's wired special. I thought it had to be something like that. Since I don't have a 630 (yet), I have no way to look at the PT to see how it works. Thanks for clearing that up somewhat. I await the diagram ( in your spare time ). Much obliged, Tyco guru.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - January 09 2011 : 10:27:09 PM
|
It'll probably be a little while before I work these into the repair guide... in the meantime I'm sure these pics won't need too much explanation around these parts.

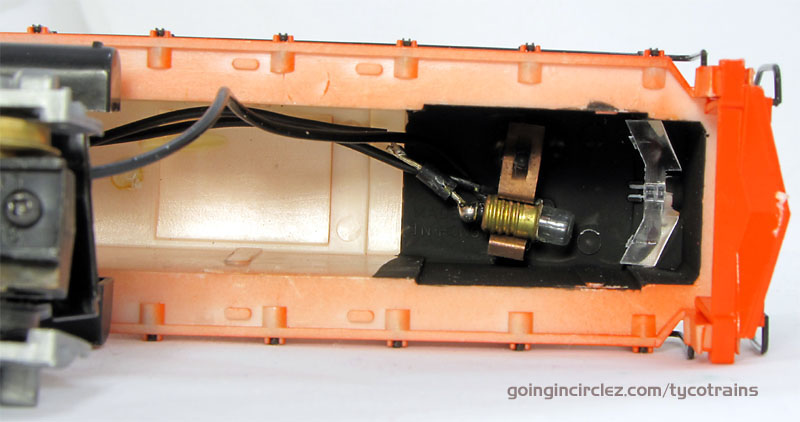

Reversing 630 (note the rear of the loco is shown):
Reversing GG1:
The diodes are mounted to a fibercard (NOT a PCB) in the center of the loco. Otherwise the wiring is much the same as the 630 - the diode is simply in series with the bulb.
|
|
Country: USA ~
Posts: 2798 ~
Member Since: September 17 2010 ~
Last Visit: July 22 2015
|
Alert Moderator
|
|
|
|
Posted - January 09 2011 : 11:19:34 PM
|
Excellent! I see how they're mounted now. That should clear up the installation , now all I need to know is what the diode value is.  thanks for your input, Tony. Much appreciated.
Jerry in Virginia
Prince William Model Railroad Club, northern Virginia
WWW.PWMRC.ORG
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - January 10 2011 : 12:08:30 AM
|
I like 1N4001 diodes. They're an easy size to work with, inexpensive and available at Radio Shack. If you want to buy in bulk, check out Mouser at $0.20 each for 1 and the price goes down for quantities 25, 100 etc. They'll ship USPS Priority, so you can avoid over inflated shipping charges like those from our favorite hobby suppliers:
http://www.mouser.com/Search/ProductDetail.aspx?R=1N4001virtualkey51210000virtualkey512-1N4001
~ Dave
*price corrected @ edit.
~ Dave
They're ALL toys
Edited by - RDC1 on January 10 2011 12:15:25 AM
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 10 2011 : 06:14:01 AM
|
quote:I like 1N4001 diodes.
~ Dave
Originally posted by RDC1Â -Â January 10 2011Â :Â 12:08:30 AM
|
I can get those from work, either off obsolete PCBs or elsewhere. Thanks for the tip. They are pretty common.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - January 10 2011 : 07:26:51 AM
|
| they look like bulbs instead of diodes
|
|
Country: USA ~
Posts: 14980 ~
Member Since: February 23 2009 ~
Last Visit: December 28 2025
|
Alert Moderator
|
|
|
|
Posted - January 10 2011 : 2:13:07 PM
|
quote: they look like bulbs instead of diodes
Originally posted by microbusss - January 10 2011 : 07:26:51 AM
|
Eh, the diode is behind the bulb, where the wire leads into the bulb ( on the 630 ). It's black like the wire, so not easy to see, unless you know what you're looking at. The Diode is soldered directly to the bulb in this case, then the wire to the other side.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
