 Posted - January 05 2011 : 11:03:03 PM
|

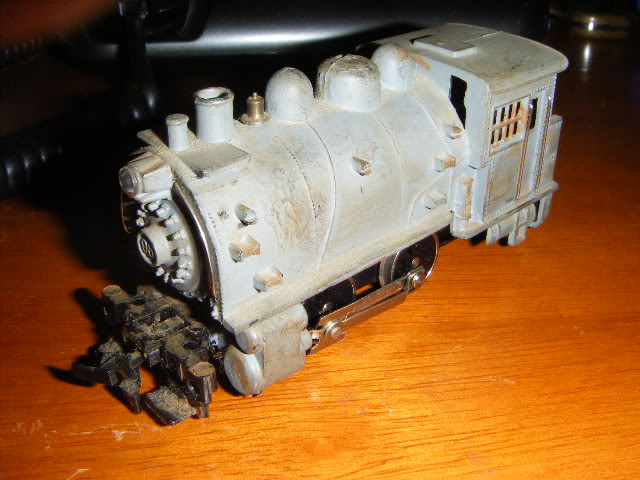

I pulled this off of the top of my neighbor's trash can. It's the dirtiest engine I ever had and it has a split drive gear on the axle. I pulled the body off, gave it a quick scrubbing & lube. The motor runs great and I'm waiting for Yardbird Trains to get back to me on a replacement gear. When I clean it up, paint it and replace the rails, it should turn out a pretty nice little lokie.
~ Dave
They're ALL toys
Edited by - RDC1 on January 07 2011 07:55:39 AM
|
Country:  USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 05 2011 : 11:33:57 PM
|
Nice save! Those Varney little Joe's are hot little items on Ebay, been watchin' a few, hard to get one for under $30, even grungy ones. My hot acq a few months ago was a Penn Line Midget, they didn't list it very well, and I got it for a reasonable price. Be cool to see your Joe chuffin' along again.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 05:18:16 AM
|
| Nice! Bowser has a Valve Gear Kit for it! - Erich
|
Country:  Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 06:37:01 AM
|
quote:Nice! Bowser has a Valve Gear Kit for it! - Erich
Originally posted by Erich - January 06 2011 : 05:18:16 AM
|
Am I going to need new valve gear?
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 07:33:17 AM
|
hi rdc1 no not new but extra valve gear,the gear you have at the moment is the basic,bowsers is what they term super detail see link ken
http://www.hoseeker.net/assemblyexplosionBowser/bowser040docksideold3218.jpg
the super detail kit you would need is #460 Valve Gear Kit
Edited by - catfordken on January 06 2011 07:36:18 AM
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 09:07:40 AM
|
Oh, OK .. Thanks!
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 10:42:23 AM
|
You found that in the trash??  Wish I was that lucky  Better talk to your neighbor & tell him you likes HO trains  I want one now
Edited by - microbusss on January 06 2011 10:42:56 AM
|
|
Country: USA ~
Posts: 15013 ~
Member Since: February 23 2009 ~
Last Visit: March 26 2026
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 12:14:13 PM
|
I like restoration projects! You got a gem, there. You could also use more realistic handrail posts.
That's one of my favorite detail items to add. Yardbird has them, Part No. D101.
Unspoken expectations are premeditated failures.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 12:52:11 PM
|

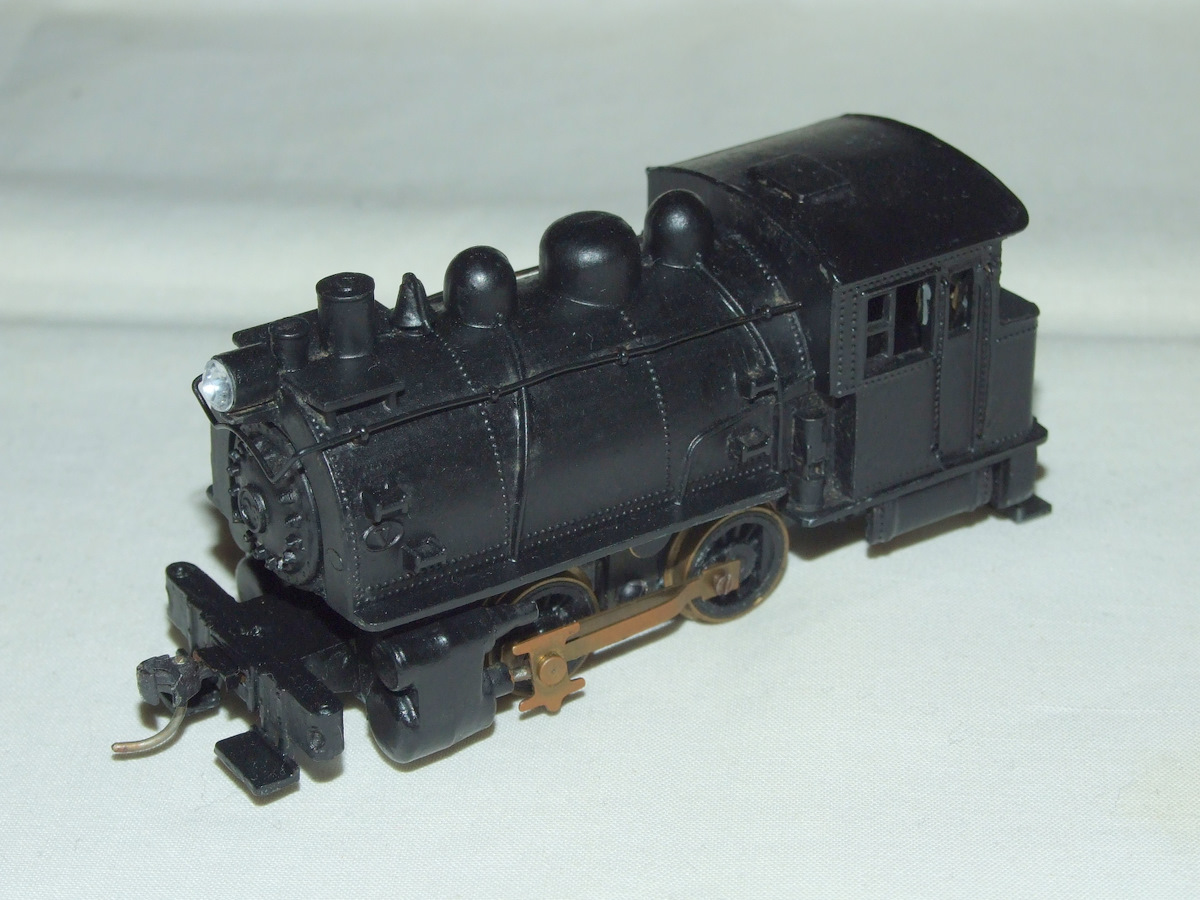

my little baby ken
Edited by - catfordken on January 06 2011 5:04:43 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 2:34:03 PM
|
Yardbird says it isn't a Varney ... he nor I don't know who made it
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 3:03:27 PM
|
i think you have a lifelike one,looks same to me ken
http://tycotrain.tripod.com/lifelikemodeltrainscollectorsresource/id42.html

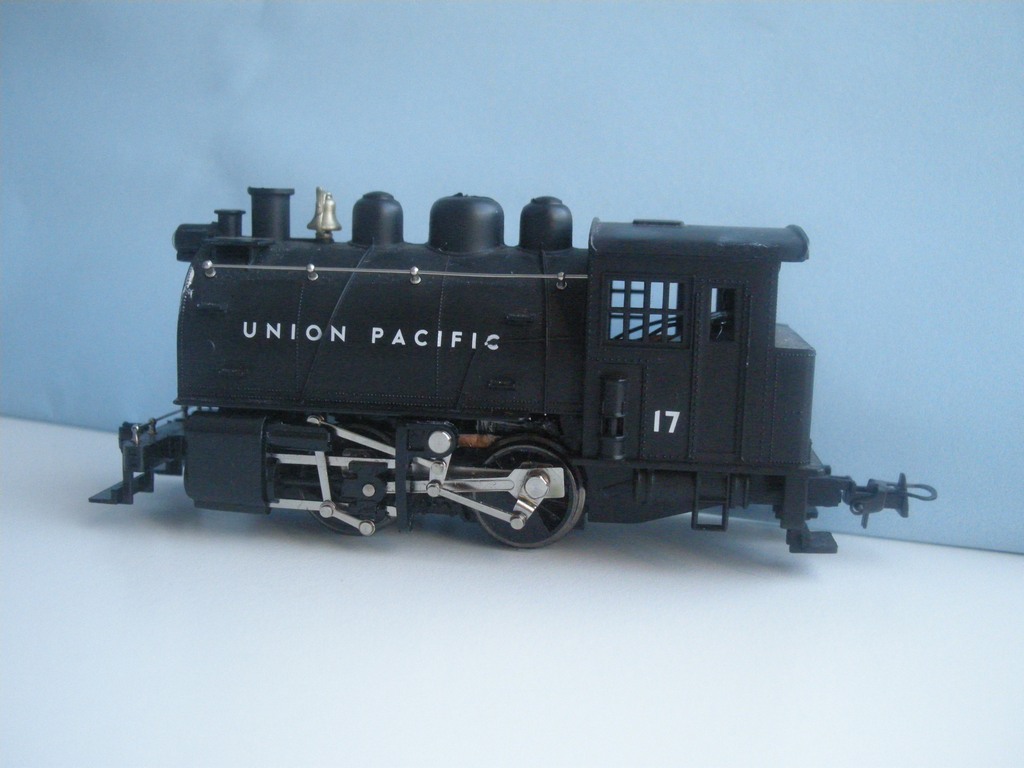

this is a varney plastic body on a lifelike chassis ken
/tyco/forum/uploaded/catfordken/20110107061257_011-1.JPG
Edited by - catfordken on January 07 2011 06:13:14 AM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 3:19:30 PM
|
Yup, I think you're correct. I wonder if I can get the drive gear.
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 3:23:45 PM
|
Lifelike, Rivarossi, Mehano .... I think they are all based on the Varney - Erich
|
|
Country: Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - January 06 2011 : 3:43:26 PM
|
quote:Yup, I think you're correct. I wonder if I can get the drive gear.
Originally posted by RDC1Â -Â January 06 2011Â :Â 3:19:30 PM
|
Talk to Bowser!
http://bowser-trains.com/hoemrrs/dockside/dockside.htm
Life Like Dockside
Use our drivers 1-17850 & 1-7851, two 1-1720 crankpin screws in front holes and two 80006 in rear holes.
File axle slots in frame with a round file to accept our drivers.
Erich
|
|
Country: Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - January 07 2011 : 07:53:58 AM
|
Wow, kool ... I'm still disappointed that it isn't a Varney, but I'm glad that I have some options. I can see where I could easily spend more than this lil engine is worth, but I didn't pay anything yet and at least she won't end up in the land fill.
I think she'll end up at a coal mining company at the Pottsville, PA end of my line.
Thanks y'all!
~ Dave
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - February 15 2011 : 8:32:12 PM
|
OK, after weeks of searching, I could not find a direct replacement gear for this lil' lokie, but I did find something close at https://sdp-si.com/eStore/

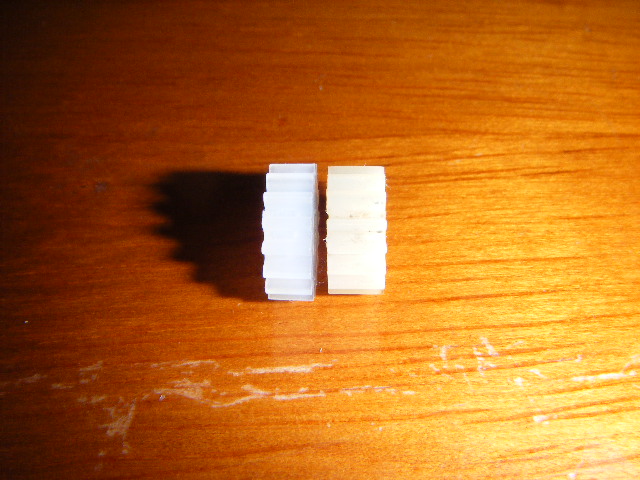

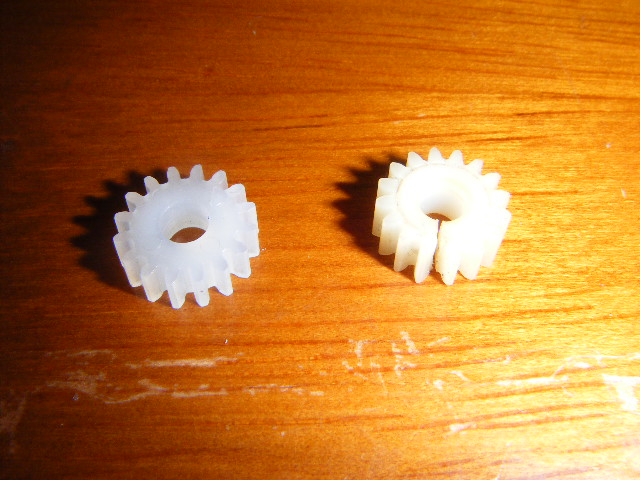

You can see the split in the original gear on the right.
In this photo you can see the difference in the width and diameter.
The new gear is a little larger in diameter, not quite as wide and the hole for the axle is slightly larger. Now, I hate to admit that I did this, but it worked. I used the Ernst Gear Kit method of enlarging the axle diameter by wrapping a small piece of Scotch tape around it. The new gear fits ... so far, so good.

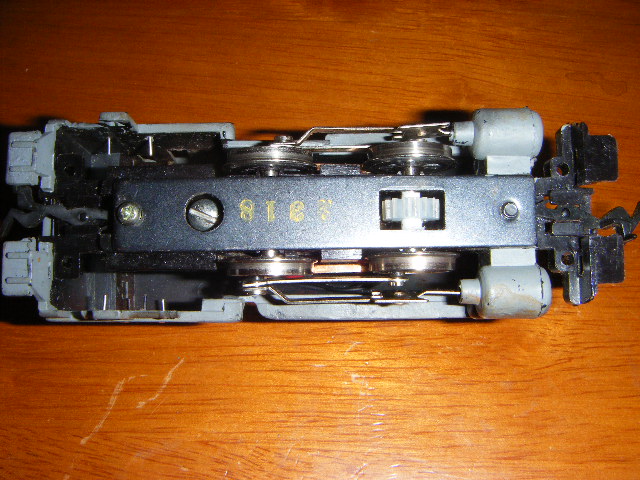

With the engine reassembled, the gears were binding a little bit, so I shimmed the bottom plate, which happens to hold the axles in place, under the front mounting screw using a fiber washer left over from a Kadee coupler. This thing runs really good now! Next, I'll trim the scotch tape off of the axle and secure the new gear with some epoxy. After that, I'll clean up the flashing from the poor molding job, paint it, detail it a little bit and install some LED lighting.
~ Dave
They're ALL toys
Edited by - RDC1 on February 15 2011 8:34:32 PM
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 12:31:00 AM
|
| Nice recovery & rebuild!
|
|
Country: USA ~
Posts: 531 ~
Member Since: January 29 2009 ~
Last Visit: July 10 2020
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 12:36:09 AM
|
Thank you!
Now I need to come up with a kool mining company name for it.
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 08:33:57 AM
|
Nice Job!
|
|
Country: Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 08:45:38 AM
|
what happens when the Scotch Tape wear out?
Gonna paint it a flat black or what?
|
|
Country: USA ~
Posts: 15013 ~
Member Since: February 23 2009 ~
Last Visit: March 26 2026
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 09:04:43 AM
|
quote:Thank you!
Now I need to come up with a kool mining company name for it.
Originally posted by RDC1Â -Â February 16 2011Â :Â 12:36:09 AM
|
You could just toss a number on it and weather it a little. Claim its your mine/yard work horse! I have a engine or two I might do this too since they are kinda odd balls and I can't find any good railroad prototypes to match them up too. I'd rather just give them a vauge idenity and use them in MOW service
|
|
Country: USA ~
Posts: 531 ~
Member Since: January 29 2009 ~
Last Visit: July 10 2020
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 10:27:45 AM
|
What about using a tube slided over the axle to fit the gear?
Maybe you have to make a groove into the tube if it´s to large.
|
|
Country: Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 10:41:47 AM
|
quote:what happens when the Scotch Tape wear out?
Originally posted by microbusss - February 16 2011 : 08:45:38 AM
|
The tape is necessary to enlarge the axle diameter evenly, to ensure the gear is centered and true to the axle centerline. One caution with this approach is to make sure the tape ends align with each other at the seam through the layers. and do not overlap.
That said... tape COULD wear. So what I would do is cut the strip of tape to be slightly narrower than the gear. Center the gear over the tape, and you should then have a small gap between the gear and the axle on either side. Fill this gap with epoxy or what have you, and that should be a much stronger repair with less likelihood of wear and slippage. Haven't tried this myself, but it seems like it should work.
Good job on the resurrection!
|
|
Country: USA ~
Posts: 2798 ~
Member Since: September 17 2010 ~
Last Visit: July 22 2015
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 11:03:10 AM
|
Yeah, I was thinking a satin or flat black.
I'd still like to come up with a whimsical name to put on it. I don't care if it's a fantasy name or not.
I couldn't find any tubing that would work without causing a lot of extra work.
I actually left a 2mm gap between tape ends to prevent wobble on the gear. That's a good idea to trim the tape so that the epoxy goes beneath the gear. Thanks!
I'm probably going to order a few more of these gears for spares in case of another breakdown.
Thanks for the comments you guys!
~ Dave
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 10:54:29 PM
|

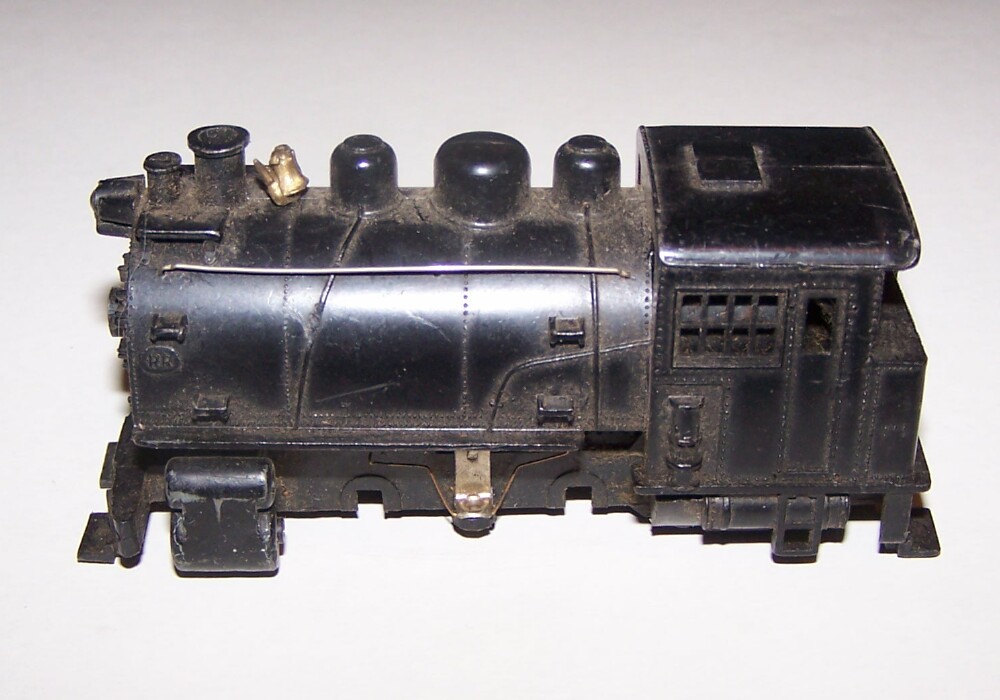

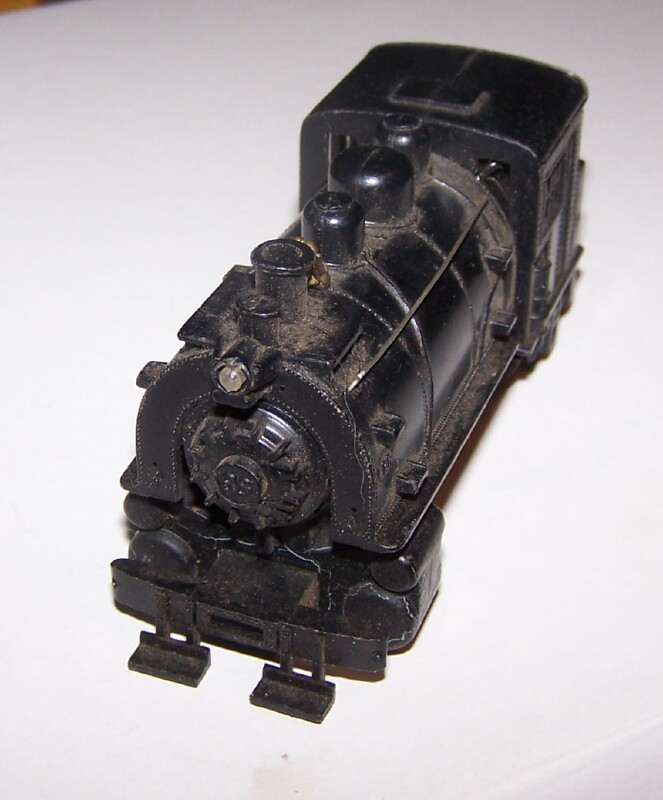

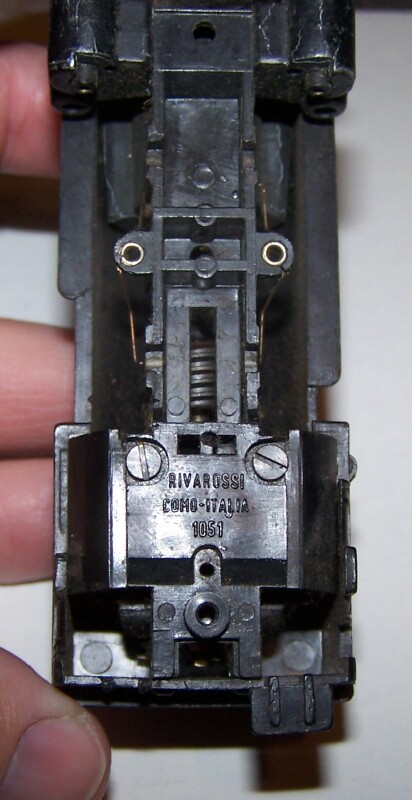

After looking at these little engines, I dug out my stash of junkbox Rivarossi engines I'd bought from my club buddy last year. I have one exactly like these here, mine says Rivarossi Como-Italia 1051 on the bottom. The fairly complete one has a broken off step in back, and a spare shell is in better shape except for the rear step area, which is broken worse, and the smoke stack is cut back some. Now all I need is the drivers and rods to complete one.
I may have to try those Lifelike wheels and rods to get this Rivarossi back running again.
BTW, I noticed the center of my front engine door had 98 imprinted inside it. Do any of your versions have a number printed there in front?
Jerry
" When life throws you bananas...it's easy to slip up"
Edited by - AMC_Gremlin_GT on February 16 2011 11:00:23 PM
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - February 16 2011 : 11:24:01 PM
|
Yup, mine is 98 and I believe that the Varney is also 98. I've seen photos of B&O's 98, like this one:
http://star.ap.teacup.com/1435prr/timg/middle_1229327217.jpg
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
