 Posted - August 23 2010 : 7:28:24 PM
|

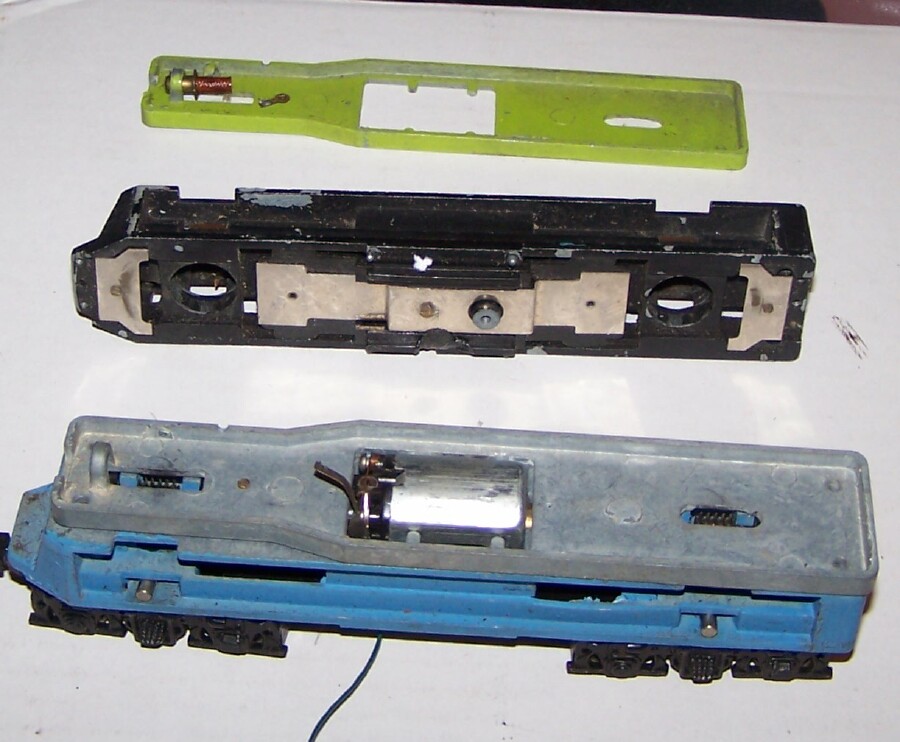

Here's two engine chassis's, one's complete and turns over, has a flat can in it. The other is just a zinc chassis, missing engine, trucks and internal parts. Never seen anything like this one, looked thru HoSeeker, but couldn't match it to anything this morning. Anyone know what it is? Motor is binding some, no grease to speak of on the gears or plastic universal joints. Doesn't look like anything I've seen before.
No shell came with these chassis's, either, so not sure what will fit them. Seem to be of quality build. No zinc rot that I see, either.
Jerry
" When life throws you bananas...it's easy to slip up"
|
Country:  USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - August 23 2010 : 7:51:32 PM
|
Hi Jerry,
That's the AHM FT, which was made for them by Kader (Bachmann). It's built just like a Minitrix N scale diesel, with the same pickup/wiper arrangement, and the pins holding on the trucks.
http://www.hoseeker.org/AHMRivarossiassembly/ahmbuildersbiblepage103.jpg
http://www.ho-scaletrains.net/ahmhoscalelocomotives/id21.html
I don't know about that Mystery Machine paint job, but I'm guessing it isn't original. Both of mine have black frames.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - August 23 2010 : 8:09:53 PM
|
quote:Hi Jerry,
That's the AHM FT, which was made for them by Kader (Bachmann).
I don't know about that Mystery Machine paint job, but I'm guessing it isn't original.
Originally posted by NickelPlate759Â -Â August 23 2010Â :Â 7:51:32 PM
|
Ok, so it's a half-breed, an AHM made by Bachmann? Strange. Guess I didn't delve deep enough into HOSeeker, I did briefly look at AHM, but didn't recall anything like that, so didn't search all the engines. Thanks for the "pin" point .
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - August 23 2010 : 8:15:50 PM
|

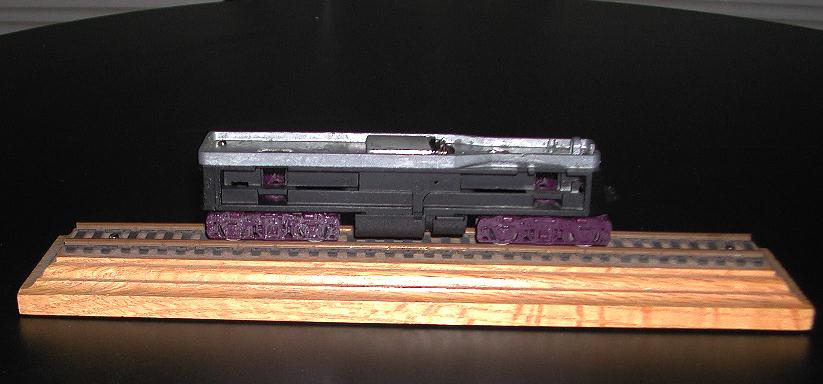

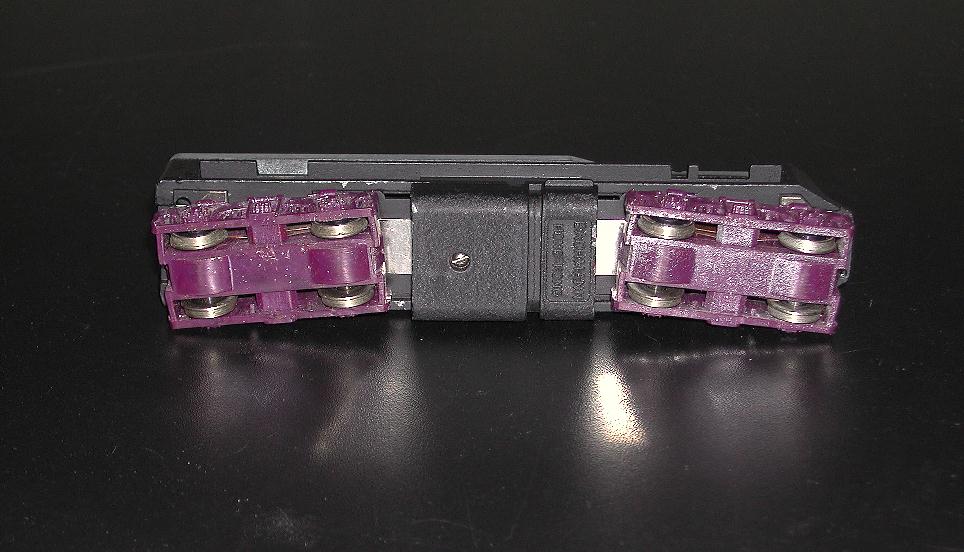

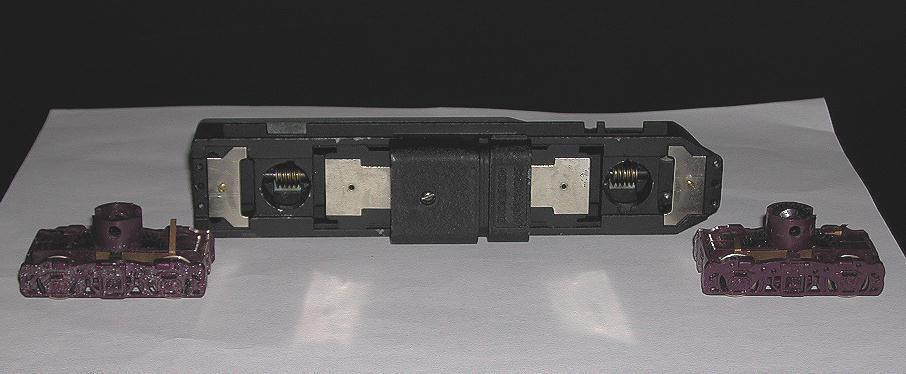

Here is the Bachmann Setup used on the Autotrain Engine. You can see the purple trucks. that was used on the Auto train U33B.  Carl
Numquam Immoderatio Satis Est
(Too Much Is Never Enough )
|
|
Country: USA ~
Posts: 632 ~
Member Since: January 23 2006 ~
Last Visit: June 21 2020
|
Alert Moderator
|
|
|
|
Posted - August 23 2010 : 9:23:11 PM
|
quote:
Ok, so it's a half-breed, an AHM made by Bachmann? Strange. Guess I didn't delve deep enough into HOSeeker, I did briefly look at AHM, but didn't recall anything like that, so didn't search all the engines. Thanks for the "pin" point .
Jerry
Originally posted by AMC_Gremlin_GTÂ -Â August 23 2010Â :Â 8:09:53 PM
|

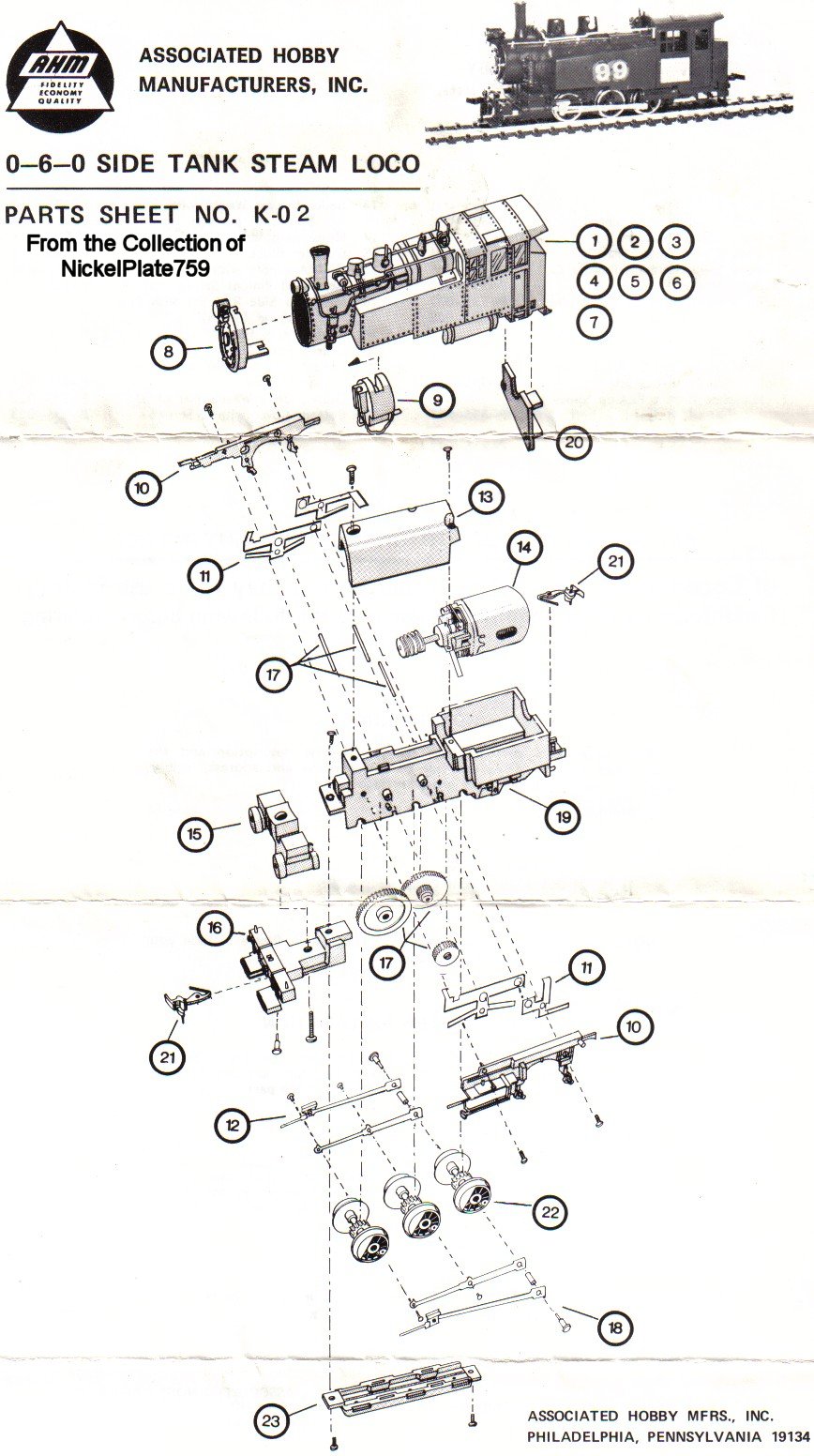

Yep. They also made an 0-6-0 side-tanker for AHM, and it was also built like an N scale steamer with all the axles geared. I don't think either the FT or 0-6-0 were produced for too many years.
http://www.hoseeker.org/AHMRivarossiassembly/AHM060sidetankpg2.jpg
That's the same drive Bachmann used for their 0-6-0 Saddle Tank loco from the early 70's. None of these locos seemed to come from the factory with any lubrication on the gearing, so greasing them improves performance.
I remotored my FT and replaced the universal couplings with silicone tubing, and it's much quieter now.
Eric... I like your loco's purple shoes.
The Tyco Depot
Edited by - NickelPlate759 on August 23 2010 9:24:02 PM
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - August 25 2010 : 01:07:18 AM
|
I wants that VintageHO
|
|
