 Posted - December 18 2009 : 09:23:42 AM
|
Back in the early 1960s Rivarossi made American style box cars for the first time. Makeing them for AHM and Lionel at the same tme. I have a odd one here. It is clearly a American box car but no American couplers. Like it was made for a European market but found its way here somehow. Most likely for Americans who like to run European trains.

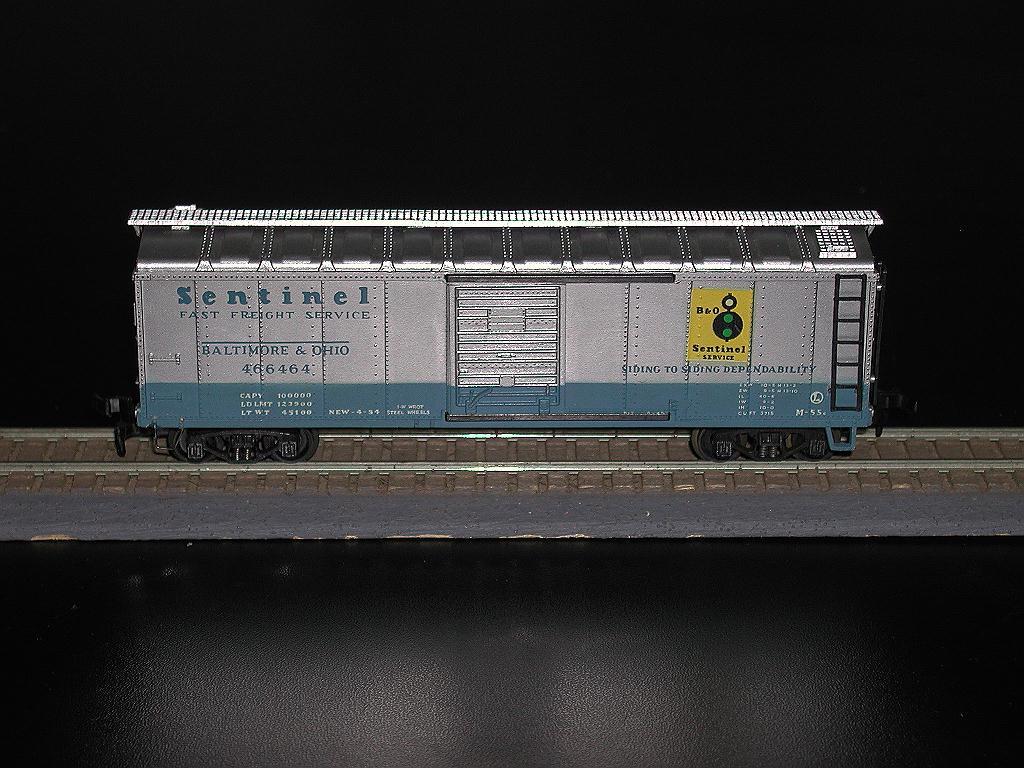

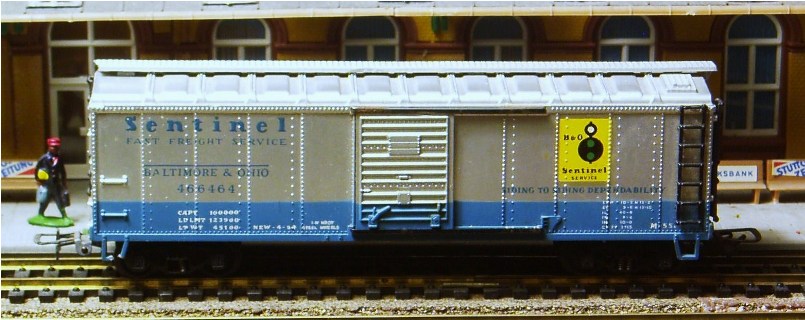

It is a nice looking B&O, silver and blue Sentinel service box car, with a very different coupler.
frank
toptrain
" It's a Heck of a Day " !!!
Edited by - toptrain on December 18 2009 3:29:15 PM
|
Country:  USA ~
Posts: 7523 ~
Member Since: August 07 2008 ~
Last Visit: August 24 2025
|
Alert Moderator
|
|
|
|
Posted - December 18 2009 : 10:42:47 AM
|
I bought an AHM car in 1972 that had a set of those couplers in the box as optional couplers. It had typical talgo AHM trucks.
Are the trucks on yours typical talgo AHM trucks or are the couplers body mounted?
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - December 18 2009 : 3:28:31 PM
|

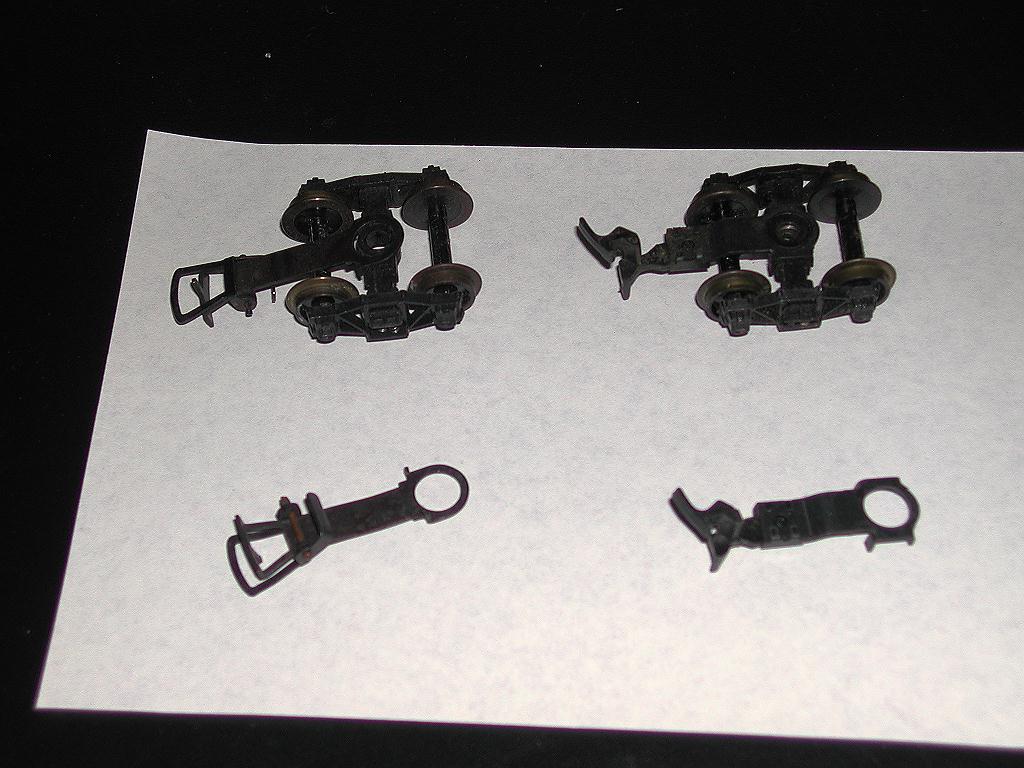

Ray This car has sprung trucks. If you look at both in the photo you'll see the left side is missins a spring. It and others that I have came with these sprung trucks. The coupler is on a arm that clips on top of the trucks center support. This top support is made of sheet metal. The side frames are of plastic. And of course the springs. The is a unique truck made by Rivarossi.
frank
toptrain
" It's a Heck of a Day " !!!
Edited by - toptrain on December 19 2009 12:18:51 PM
|
|
Country: USA ~
Posts: 7523 ~
Member Since: August 07 2008 ~
Last Visit: August 24 2025
|
Alert Moderator
|
|
|
|
Posted - December 19 2009 : 4:41:30 PM
|

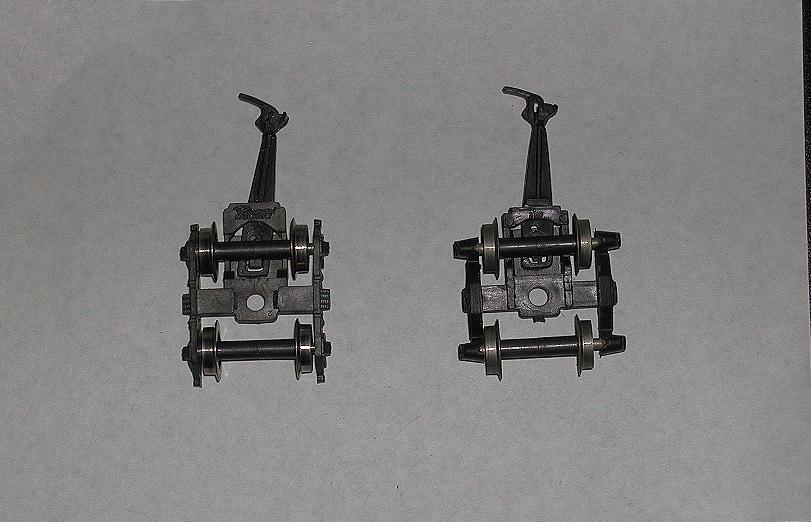

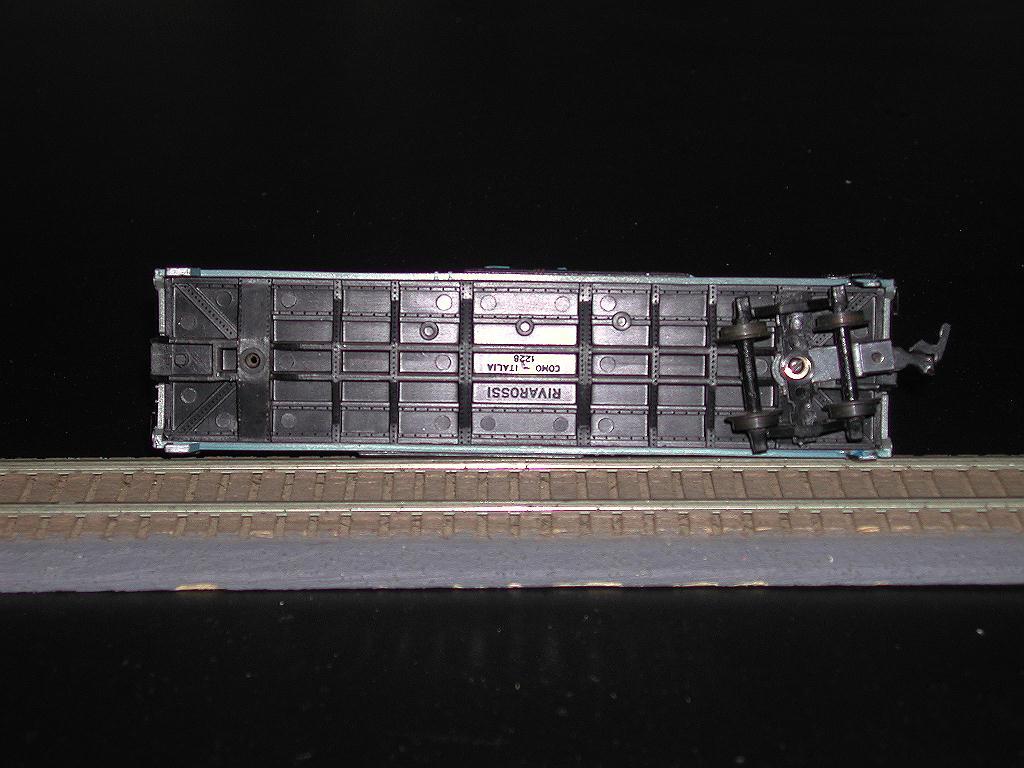

Hi Frank. That Rivarossi Boxcar is older then 1960s. It was made in the 1950s. Rivarossi made the Identical Boxcar for Lionel in 1957. The only difference is the couplers and the "L" on the side of the car. Rivarossi Made the couplers seperate, so they could use either style coupler. Later, in the beginning of the 1960's when AHM started importing Rivarossi, the Trucks changed to the type Ray mentioned. . It is also Interesting to note the cars also had coupler pockets molded in the bottoms for body mounted couplers, That did not appear until much later in the AHM years. Carl.

Numquam Immoderatio Satis Est
(Too Much Is Never Enough )
Edited by - VintageHO on December 19 2009 4:53:22 PM
|
|
Country: USA ~
Posts: 632 ~
Member Since: January 23 2006 ~
Last Visit: June 21 2020
|
Alert Moderator
|
|
|
|
Posted - December 24 2009 : 09:30:13 AM
|
Carl : A sincere Merry Christmas or Happy Holidays to you and yours.
I knew. You knew. But you presented the info very nicely for everyone else. Good Pictures Carl. And you used the Lionel box car.
Happy holidays to Everyone ! ! !
frank
toptrain
" It's a Heck of a Day " !!!
Edited by - toptrain on December 24 2009 09:32:18 AM
|
|
Country: USA ~
Posts: 7523 ~
Member Since: August 07 2008 ~
Last Visit: August 24 2025
|
Alert Moderator
|
|
|
|
Posted - December 24 2009 : 10:52:21 AM
|
Thanks for the info Guys.
The bottom of the car I am trying to find trucks for looks like the one VintageHO posted photos of. It is NYC though.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
