Author Previous Topic: Japanese Tinplate? Topic Next Topic: is this tyco

TankedEngine
Big Six

Status: offline

 Posted - December 20 2008 :  6:19:40 PM Link directly to this topic  Show Profile  Add TankedEngine to Buddylist
I have an HO tender & some wagons in need of replacement couplers.
I am not very good at matching to the Kadee tables, so would appreciate it if someone who can do that could tell me what I need. Also, I am not sure what brand the 2 wagons are and would be interested to know that.

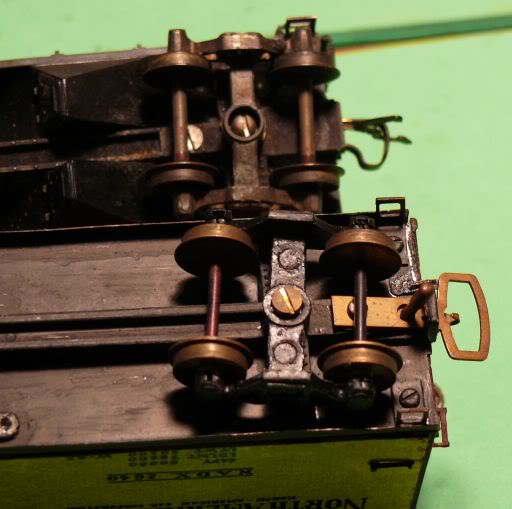

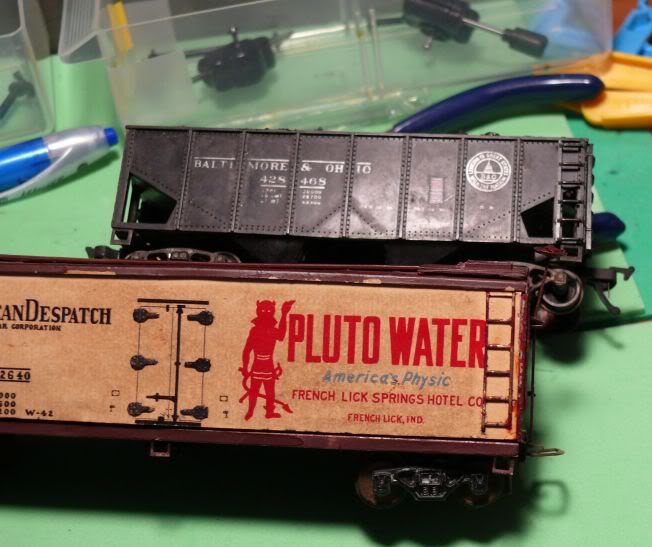

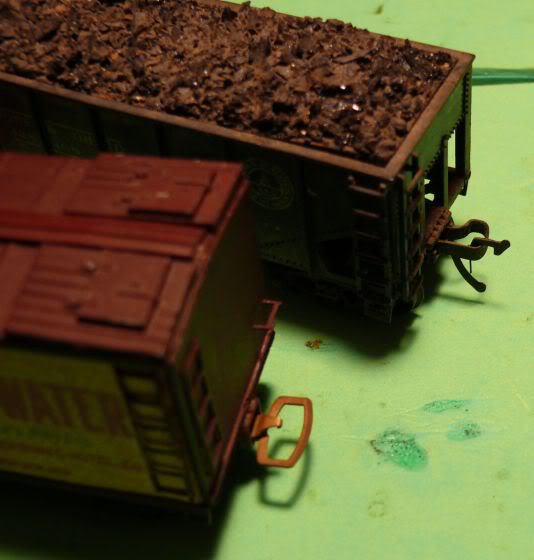

First up is a pair of Mantua?, Varney?? wagons with different couplers [old, metal]

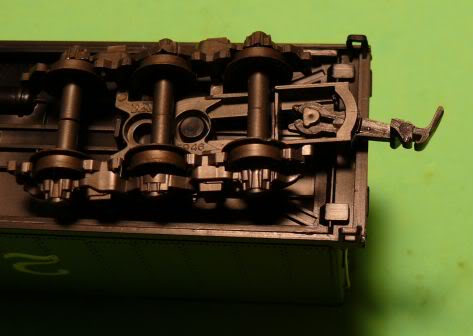

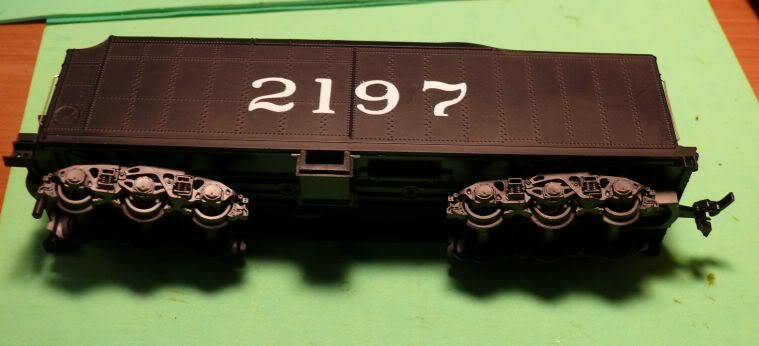

Next is a Rivarossi 6 axle [non power] tender . I have another one with the coupler that is sticking out the RHS in the pictures, broken. What kadee do I need?





Thank you
Tanked
 Country: USA  ~  Posts: 243  ~  Member Since: September 08 2008  ~  Last Visit: January 04 2012 Alert Moderator

Brianstyco
Big Boy


Mint Silver Streak

Status: offline

 Posted - December 20 2008 :  8:12:46 PM Link directly to this reply  Show Profile  Add Brianstyco to Buddylist
#5 using the kadee box screwed or glued to the underframe looks like it would work on those cars--at least that what i would use if mine
 Country: USA  ~  Posts: 2507  ~  Member Since: January 31 2006  ~  Last Visit: October 21 2017 Alert Moderator  Go To Top Of Page

shaygetz
Big Boy


Status: offline

 Posted - December 20 2008 :  11:13:10 PM Link directly to this reply  Show Profile  Add shaygetz to Buddylist
Like Ken said, ol' reliable, the Kadee #5 should fix you up there. When you get the couplers, make sure you pickup their standards gauge and a pack each of their .010" and .015" shim washers too.

BTW, the first one is a Baker coupler, used by John Allen on his Gorre and Daphetid. The second is a Mantua hook/loop, a common coupler before the horn/hook on the Rivarossi and Kadees took over.
 Posts: 2465  ~  Member Since: April 15 2007  ~  Last Visit: December 01 2023 Alert Moderator  Go To Top Of Page

catfordken
Big Boy




SREnglishGentlemanAvatar

Status: offline

 Posted - December 21 2008 :  09:02:07 AM Link directly to this reply  Show Profile  Send catfordken a Yahoo! Message  Add catfordken to Buddylist
personally with rivarossi,i use mchenrys which are direct replacements for the rivarossi fittings,and work with kadees ken

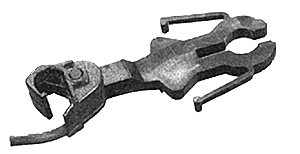

McHenry Coupler #56
 Country: United Kingdom  ~  Posts: 8294  ~  Member Since: September 28 2006  ~  Last Visit: October 20 2021 Alert Moderator  Go To Top Of Page

TankedEngine
Big Six

Status: offline

 Posted - December 21 2008 :  12:31:39 PM Link directly to this reply  Show Profile  Add TankedEngine to Buddylist
quote:
personally with rivarossi,i use mchenrys which are direct replacements for the rivarossi fittings,and work with kadees ken
McHenry Coupler #56



Originally posted by catfordken-December 21 2008: 09:02:07 AM



Gentlemen
Thank you for your advice, & the shim tip, Shaygetz.
I should be able to fix these wagons now.
Tanked
 Country: USA  ~  Posts: 243  ~  Member Since: September 08 2008  ~  Last Visit: January 04 2012 Alert Moderator  Go To Top Of Page
