 Posted - July 09 2008 : 2:47:11 PM
|
I was changing the traction tires on a 1960's Tyco engine today when I noticed that both of the plastic drive wheels had a crack in them. The crack on each wheel ran from the outside all the way in to the axle. I also noticed this on one of my 1960's streamliners. Has anyone else seen this before, and is it something I should be worried about?

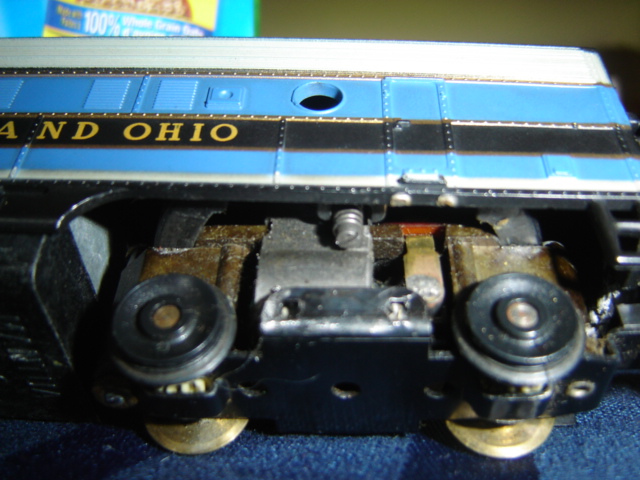

Kinda hard to see in the pic, but the cracks are at 3 o'clock on the left wheel and 6 o'clock on the right.
-cheez
|
Country:  Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: August 26 2025
|
Alert Moderator
|
|
|
|
Posted - July 09 2008 : 2:55:58 PM
|
hi cheez like all things plastic has a life span dependant on heat,water etc plastic becomes very brittle with age,and in average enviroment not much to do other than replace,even if you replace with metal insulated ones the plastic insulater will deteriate,but will take a little longer to do so,and that is what i would do ken
Edited by - catfordken on July 09 2008 2:58:41 PM
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - July 09 2008 : 3:02:35 PM
|
| If I have a cracked wheel that's not noticeably out of round, I just glue the crack with super glue, which seems to help prevent further problems.
|
Country:  USA ~
Posts: 874 ~
Member Since: October 15 2007 ~
Last Visit: June 09 2019
|
Alert Moderator
|
|
|
|
Posted - July 09 2008 : 3:39:55 PM
|
Hey Ken. You're right about that, and since they're 45 year old drive wheels I'm not surprised they cracked. Unfortunately I don't have any replacements for the 1960's grooved wheels. I'll try Adams super glue method. The wheels are still perfectly round, so it should work fine. Thanx for the help guys.
-cheez
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: August 26 2025
|
Alert Moderator
|
|
|
|
Posted - July 09 2008 : 4:11:59 PM
|
I have glued them together also.
Another alternative is to use the ungeared wheel with traction tire from the tender drive Power Torque drive.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - July 09 2008 : 10:26:14 PM
|
Hey Ray. I hadn't thought about the wheels on Tyco steamers. Are they the same size?
Anyway I put some super glue on the wheels and replaced the tires, so it should good for a while.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: August 26 2025
|
Alert Moderator
|
|
|
|
Posted - July 09 2008 : 10:44:37 PM
|
Hello Cheez, I found the same cracks on one of my engine wheel sets also.
Thanks for the cure for the problem from the others.
Mike
|
|
Country: Canada ~
Posts: 1586 ~
Member Since: December 07 2007 ~
Last Visit: August 20 2025
|
Alert Moderator
|
|
|
|
Posted - July 10 2008 : 01:48:25 AM
|
quote:Hey Ray. I hadn't thought about the wheels on Tyco steamers. Are they the same size?
Originally posted by DaCheez - July 09 2008 : 10:26:14 PM
|
They are the same diameter with the PT traction tires installed. They look a little different but hard to see when the side frames are installed.
I replace the ungeared wheels with traction tires on the steamer tenders with metal wheels to improve the electrical pick up and use the ungeared wheels with traction tires on the MU-2 power trucks.
Adding a little weight to the tender makes up for the 2 traction tired being removed and the tender is more stable on the track.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - July 11 2008 : 06:15:40 AM
|
quote:
They are the same diameter with the PT traction tires installed. They look a little different but hard to see when the side frames are installed.
I replace the ungeared wheels with traction tires on the steamer tenders with metal wheels to improve the electrical pick up and use the ungeared wheels with traction tires on the MU-2 power trucks.
Adding a little weight to the tender makes up for the 2 traction tired being removed and the tender is more stable on the track.
Originally posted by Ray Marinaccio - July 10 2008 : 01:48:25 AM
|
Ray, I've done the same thing to improve the pickup on the Chattanooga tender. I've also added NWSL 1/8" washers to the driven axles between the ungeared wheel and the truck block on a few of them, since the gearing tends to come out of mesh without them. I don't think they gauged the driven axles correctly - they're always too narrow, and need to be re-gauged.
I do have one PT geared wheel with a split in it as well, which gives it a click once per revolution.
The Tyco Depot
Edited by - NickelPlate759 on July 11 2008 06:20:45 AM
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
