Hello, all

I am hoping someone can help me here.

My daughter loved our recent Polar Express ride, and I thought she might like it if I got my Tyco Chattanooga Choo Choo train from boyhood running around our tree this year .

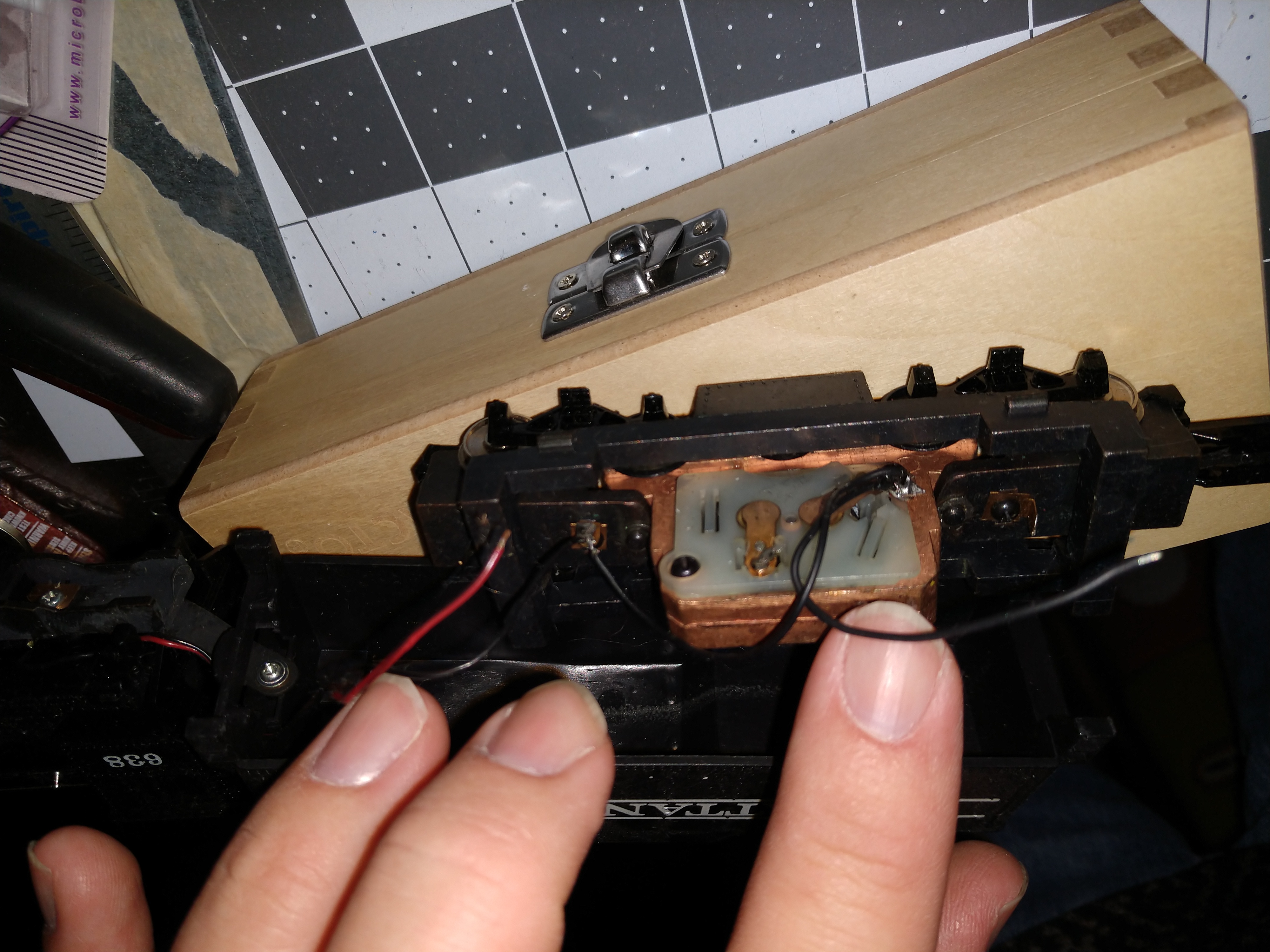

But as you can see in the photo, two of the wires on my engine have come loose. I can find zero wiring do iagrzms online.

Can anyone give me hints as to which wire I should solder where? I suspect the black one goes into the clip behind the motor and the red one goes to the empty spot on the motor. But I could have that backwards, or even have it completely wrong.

These trains used to be everywhere back in the 70s. Anyone still have a working version (or enough electrical knowledge) to help?

Thank you!

 Country: USA  ~  Posts: 3  ~  Member Since: December 23 2021  ~  Last Visit: December 23 2021 Alert Moderator

Andrew McCarley
Switcher

Status: offline

 Posted - December 23 2021 :  02:25:29 AM Link directly to this reply  Show Profile  Add Andrew McCarley to Buddylist


Hopefully a better picture, that loads right side up.

-Allen McCarley
 Country: USA  ~  Posts: 3  ~  Member Since: December 23 2021  ~  Last Visit: December 23 2021 Alert Moderator  Go To Top Of Page

Brian4321
Hudson

Gilbert HO

Status: offline

 Posted - December 23 2021 :  08:29:44 AM Link directly to this reply  Show Profile  Add Brian4321 to Buddylist
Hi Allen,

I sold my Chattanooga set, otherwise, I'd pop the shell and show you a pic. However, I did find this online. Hope it helps:

https://www.bing.com/images/search?view=detailV2&ccid=YN4k8a7N&id=D515192FEEFC4FD4BDE1F372EDD06052AA62131B&thid=OIP.YN4k8a7NBWUj8Ww0mHNm5QHaFj&mediaurl=https%3a%2f%2fschematron.org%2fimage%2ftyco-ho-engine-wiring-diagram-26.jpg&cdnurl=https%3a%2f%2fth.bing.com%2fth%2fid%2fR.60de24f1aecd056523f16c34987366e5%3frik%3dGxNiqlJg0O1y8w%26pid%3dImgRaw%26r%3d0&exph=600&expw=800&q=tyco+trains+wiring+diagram&simid=608041466637989944&FORM=IRPRST&ck=EB2717418699EC51427645FDC6CF894C&selectedIndex=9&qpvt=tyco+trains+wiring+diagram&ajaxhist=0&ajaxserp=0
 Country: USA  ~  Posts: 510  ~  Member Since: February 18 2013  ~  Last Visit: April 07 2024 Alert Moderator  Go To Top Of Page

Andrew McCarley
Switcher

Status: offline

 Posted - December 23 2021 :  10:20:45 AM Link directly to this reply  Show Profile  Add Andrew McCarley to Buddylist
Thank you, Brian! That was perfect!

-Allen McCarley
 Country: USA  ~  Posts: 3  ~  Member Since: December 23 2021  ~  Last Visit: December 23 2021 Alert Moderator  Go To Top Of Page

Brian4321
Hudson

Gilbert HO

Status: offline

 Posted - December 23 2021 :  11:55:58 PM Link directly to this reply  Show Profile  Add Brian4321 to Buddylist
Hi Allen,

Glad to assist. Hope to see a pic or two of the engine running around your x-mas tree.

Have a Merry Christmas!
 Country: USA  ~  Posts: 510  ~  Member Since: February 18 2013  ~  Last Visit: April 07 2024 Alert Moderator  Go To Top Of Page

Chops124
Big Boy





Penn Central Logo

Status: offline

 Posted - December 24 2021 :  12:12:45 AM Link directly to this reply  Show Profile  Add Chops124 to Buddylist
https://youtu.be/UDU6AbybXMk
