 Posted - June 07 2021 : 12:51:15 PM
|
It's been a while since I have posted anything on this forum and that's because I have been working on a very special project...
Because I love narrow gauge trains I have always wanted to model them but hon3 trains are so darn expensive. But recently I found a roundhouse hon3 2-8-0 kit on ebay that I liked so I bidded and won!
Here is the process of me building it:
I wanted to model this locomotive which worked on a branchline of the Rio Grande Southern Railroad that served a mine near perins peak west of Durango:
But I realized that it would just take too many modifications to make this locomotive so I decided to model Rio Grande Southern #42
So that is what I did.

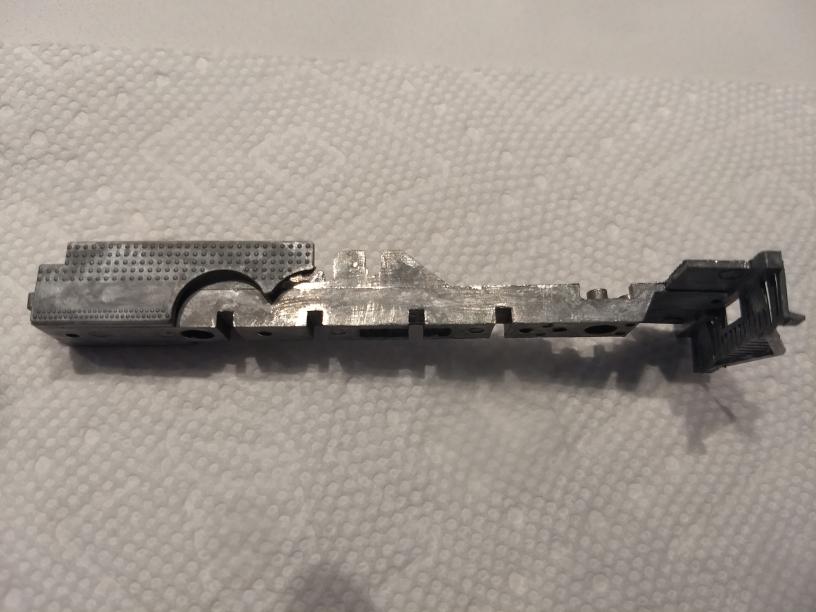

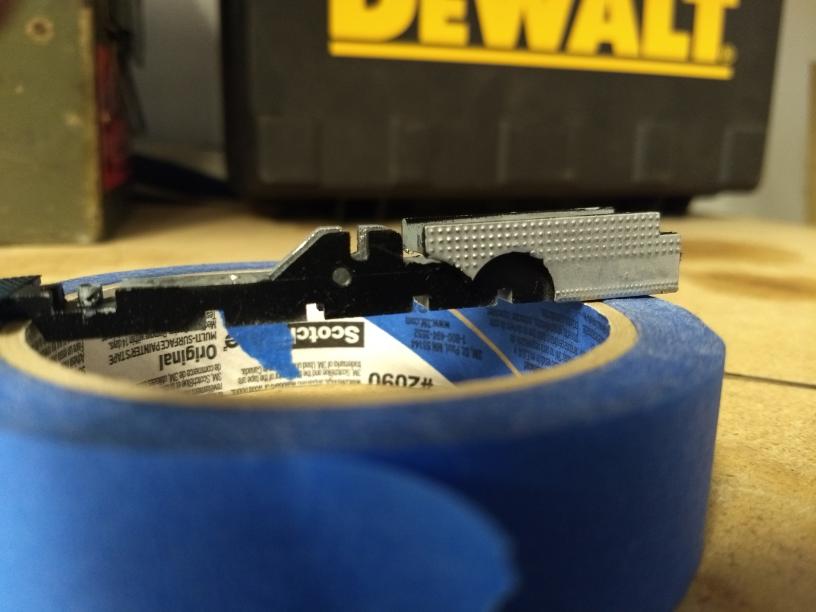

I started by filing down the flashing on the Die Cast mechanism parts

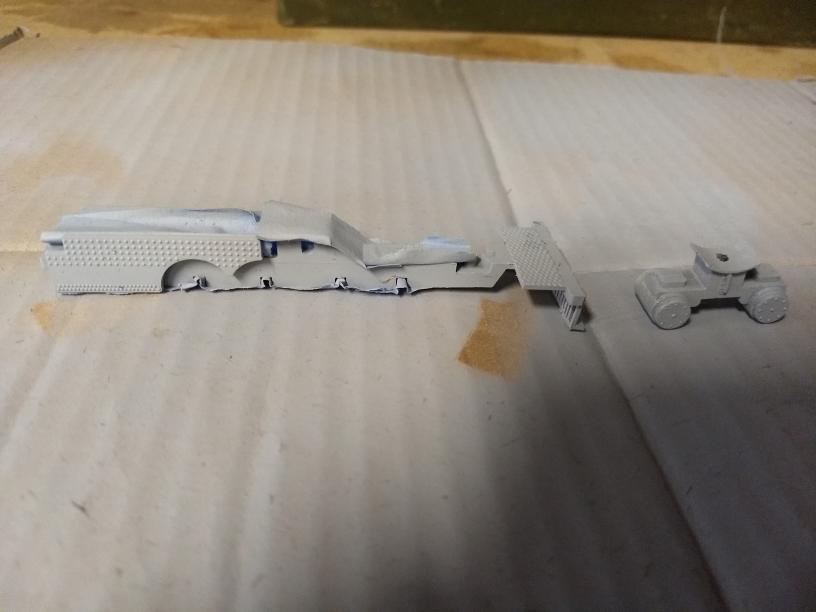

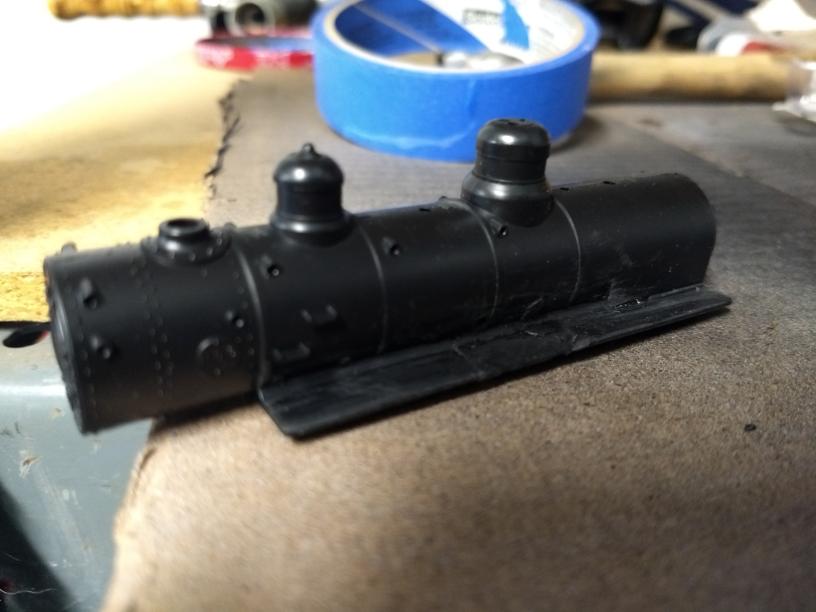

the sprayed on the primer on the parts that I was going to paint

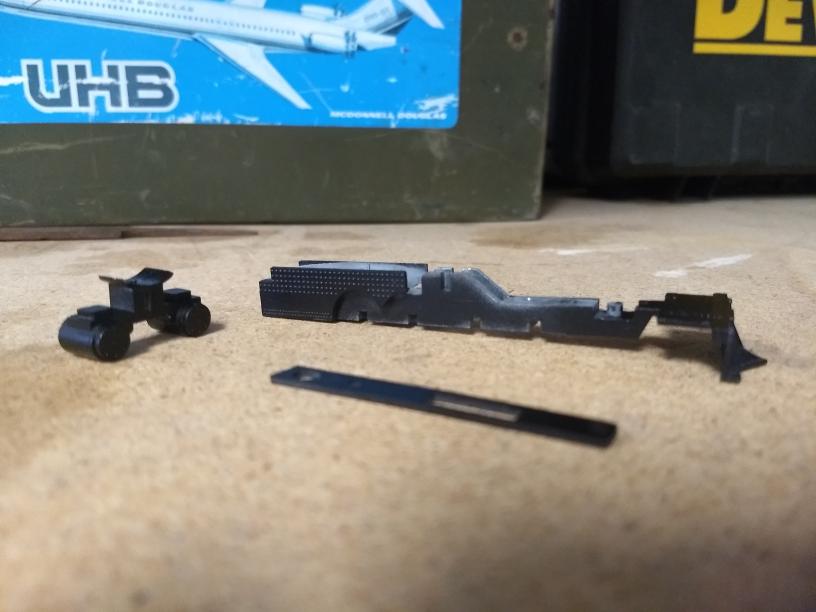

then I sprayed them matte black
I then brush painted the firebox
then I started Building the Mechanism
Unfortunately the main rod broke and I couldn't fix it but then I had an Idea, I took at piece of wire and made a loop on the end to be able to the pin in the crosshead then, I used epoxy to attatch the wire to the main rod. and... It worked! (fingers crossed it stays that way)
here is a video of bench testing the mechanism:
https://youtu.be/XaUaCeH0iJg
with That done I started working on the cosmetic details
I started by filling in a gap in the walkway where the air compressors go
using a piece of plastic and some epoxy. then I glued one of the air compressors on top of the wakway like on RGS #42.

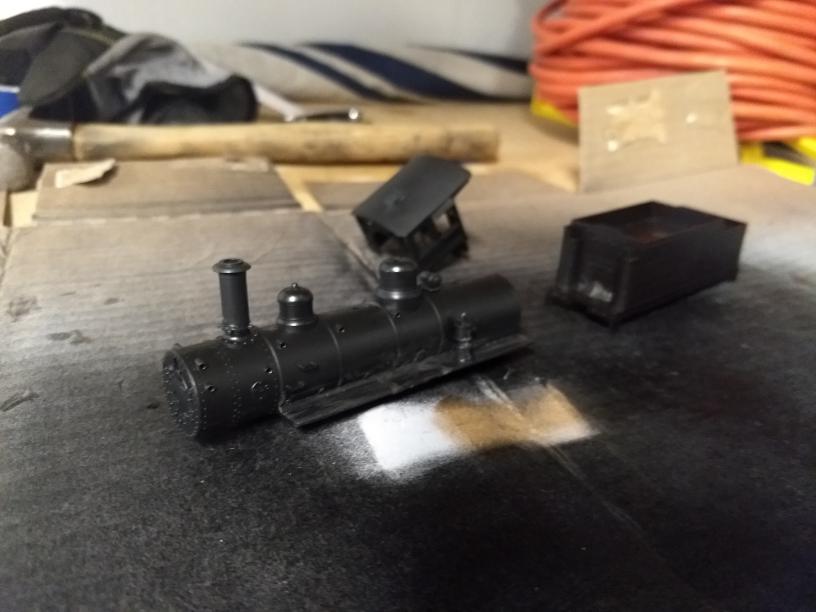

Then I sprayed on the primer then the black paint

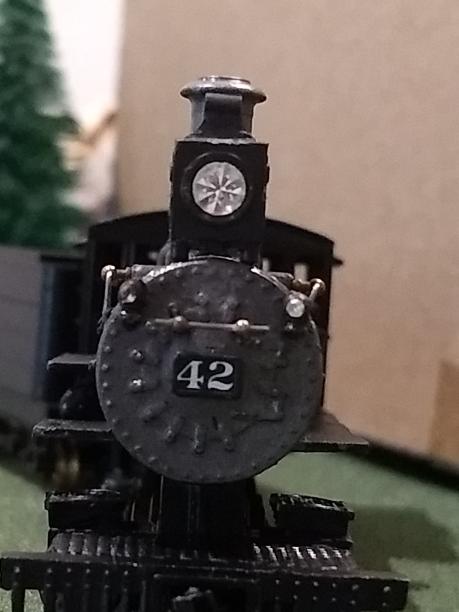

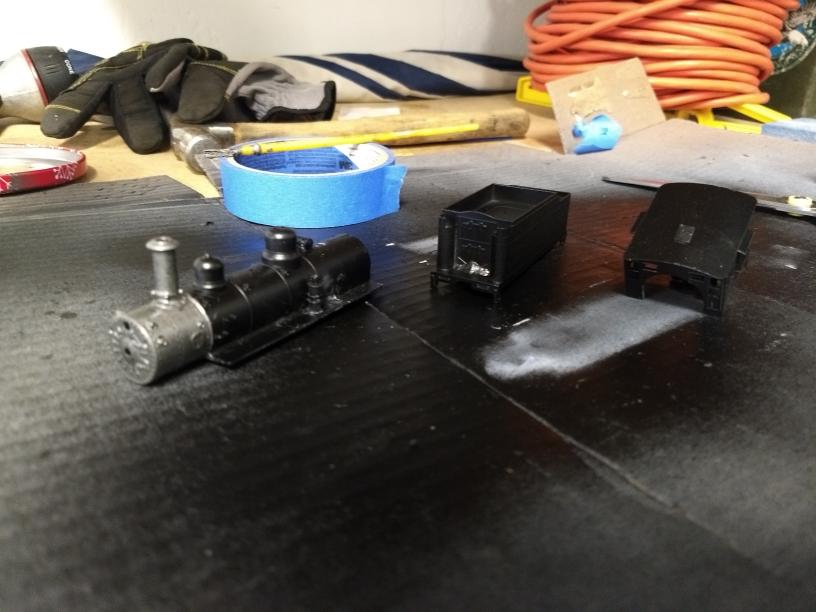

and I also brush painted the smokebox silver
Then I sprayed on some gloss clear coat for the deacls to stick to

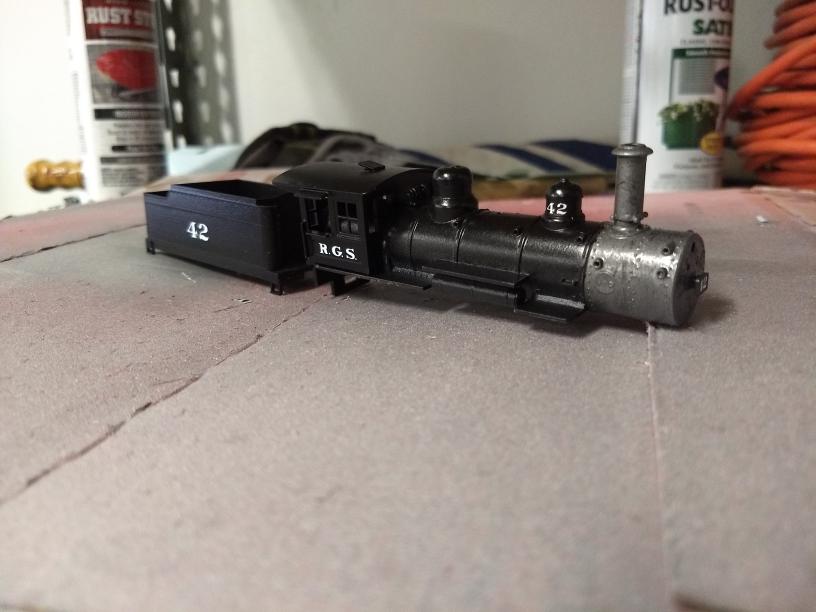

and then applied the decals and sprayed on matte clear coat on top of them

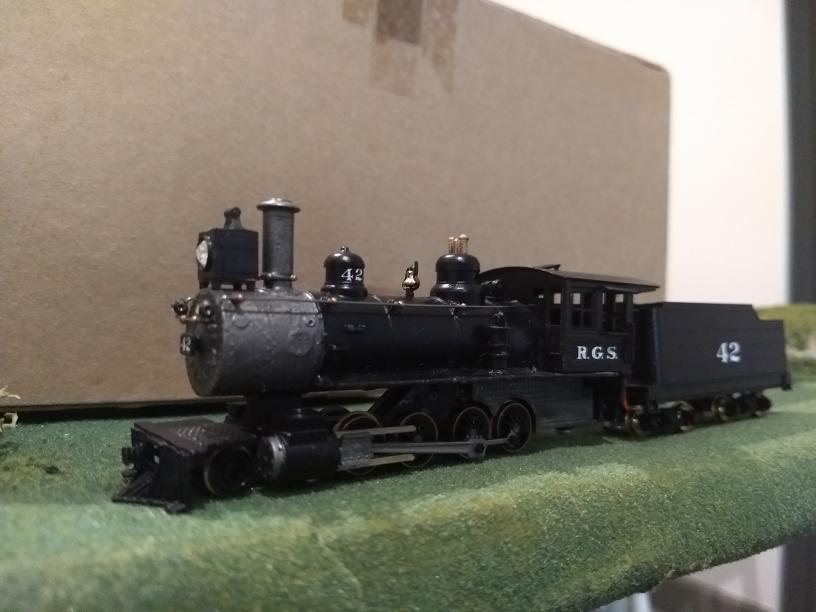

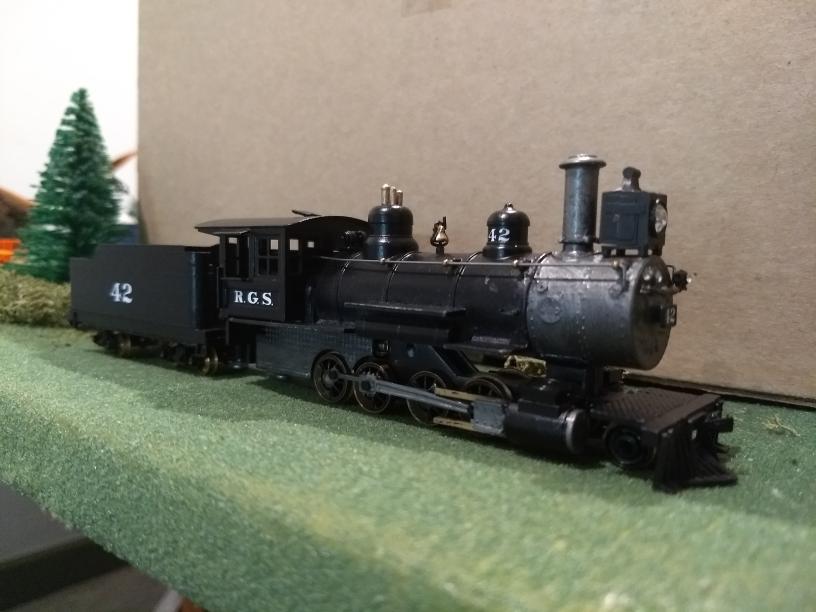

then I could finally put the shell on the mechanism

I am almost done with the loco now all I need to do Is weather it and add a coal load!
And of course I still need an hon3 layout to run it on and some hon3 cars for it to pull
This was my first time ever Building a locomotive kit and It was hard! But I had a lot of fun and learned a lot of things!
Edited by - Erik The Train Nerd on June 07 2021 12:52:26 PM
|
Country:  USA ~
Posts: 556 ~
Member Since: December 26 2019 ~
Last Visit: February 22 2024
|
Alert Moderator
|
|
|
|
Posted - June 07 2021 : 4:06:54 PM
|
This is an amazing undertaking. Doesn't HOn3 just use
N scale track?
|
|
Country: USA ~
Posts: 11192 ~
Member Since: December 09 2013 ~
Last Visit: April 17 2024
|
Alert Moderator
|
|
|
|
Posted - June 07 2021 : 5:22:19 PM
|
quote:This is an amazing undertaking. Doesn't HOn3 just use
N scale track?
Originally posted by Chops124Â -Â June 07 2021Â :Â 4:06:54 PM
|
Standard gauge in N is 9mm which is about 30" in HO.
Carpe Manana!
|
|
Country: USA ~
Posts: 2353 ~
Member Since: September 17 2013 ~
Last Visit: April 17 2024
|
Alert Moderator
|
|
|
|
Posted - June 07 2021 : 5:25:15 PM
|
| yep, I gotta get special hon3 track
|
|
Country: USA ~
Posts: 556 ~
Member Since: December 26 2019 ~
Last Visit: February 22 2024
|
Alert Moderator
|
|
|
|
Posted - June 07 2021 : 9:58:57 PM
|
Looks amazing, Erik! Great work!
"Let your light so shine before men, that they may see your good works, and glorify your Father which is in Heaven." - Matthew 5:16
Youtube Channel: www.youtube.com/rpmodelrailroads
Instagram: https://www.instagram.com/rp_model_railroads/
|
|
Country: USA ~
Posts: 4669 ~
Member Since: August 11 2017 ~
Last Visit: July 20 2023
|
Alert Moderator
|
|
|
|
Posted - June 08 2021 : 5:30:01 PM
|
| Really, special HOn3 track?
|
|
Country: USA ~
Posts: 11192 ~
Member Since: December 09 2013 ~
Last Visit: April 17 2024
|
Alert Moderator
|
|
|
|
Posted - June 09 2021 : 9:18:38 PM
|
Looks good! I suggest Micro Engineering Code 70 flex track.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3145 ~
Member Since: May 07 2007 ~
Last Visit: April 04 2024
|
Alert Moderator
|
|
|
|
Posted - June 10 2021 : 1:53:08 PM
|
Has that really neat narrow gauge look, that of an elephant in ballerina
shoes. I could not do what you have accomplished. I got extra loose HO
coal, if you want some. I'll drop it in an envelope. PM me if wanted.
Edited by - Chops124 on June 10 2021 1:54:17 PM
|
|
Country: USA ~
Posts: 11192 ~
Member Since: December 09 2013 ~
Last Visit: April 17 2024
|
Alert Moderator
|
|
|
|
Posted - June 16 2021 : 12:28:11 PM
|
| Thanks for all the kind comments, Chops thanks for the offer but I already put a coal load in the tender
|
|
Country: USA ~
Posts: 556 ~
Member Since: December 26 2019 ~
Last Visit: February 22 2024
|
Alert Moderator
|
|
|
|
Posted - June 16 2021 : 11:55:32 PM
|
Mine is leftover from last Christmas. Came in the stocking.
Edited by - Chops124 on June 16 2021 11:56:15 PM
|
|
Country: USA ~
Posts: 11192 ~
Member Since: December 09 2013 ~
Last Visit: April 17 2024
|
Alert Moderator
|
|
|
|
Posted - June 17 2021 : 09:05:40 AM
|
Lmao
|
|
