 Posted - January 27 2016 : 9:20:44 PM
|

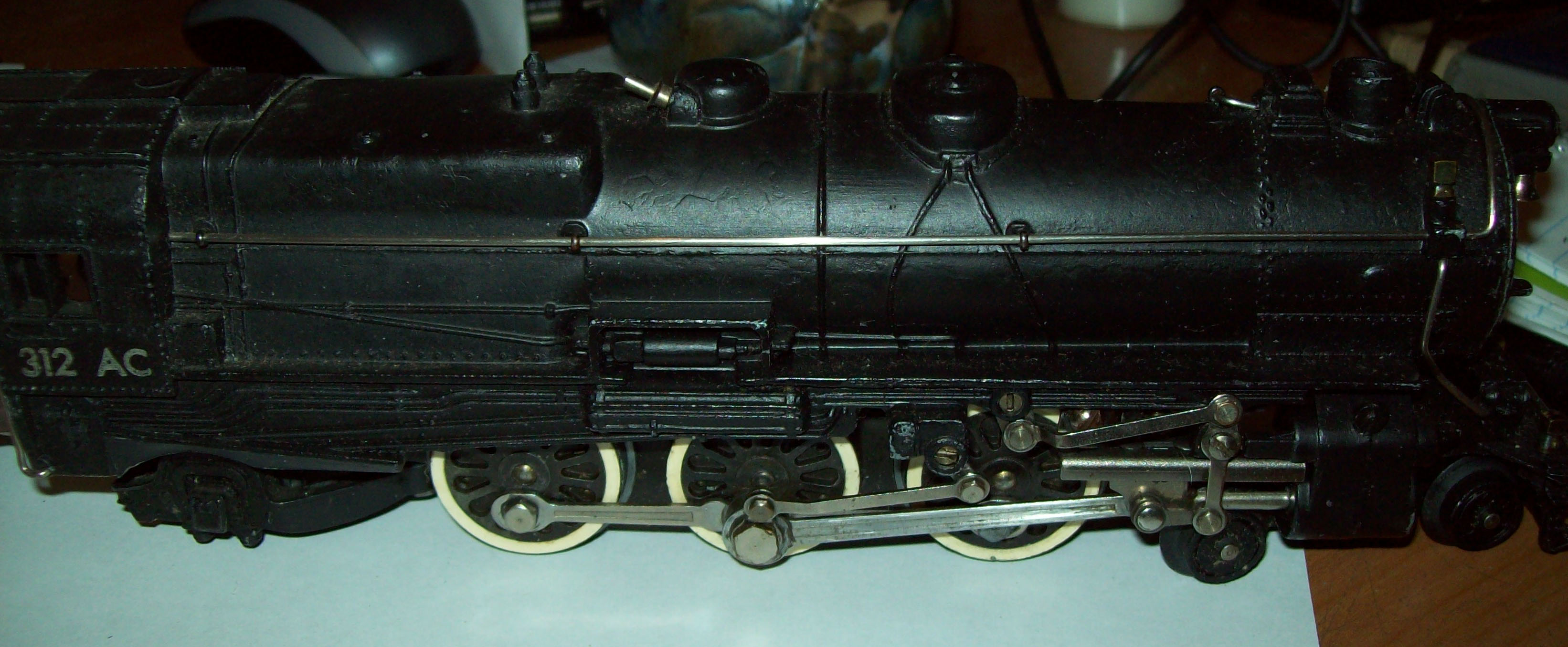

I received this loco last weekend when I went to Houston to do a closeout
and sale from my mother's estate. I think it is a American Flyer 4-6-2 K5
Pacific, S scale. However, I don't know if it is a DC or AC loco. I couldn't
find a reversing switch anywhere on the loco or tender. I found a similar
one on eBay, but the engine number did not have the AC after it.
There is no pickup for a third rail which makes me tend to think it is a DC. Any
help would be appreciated.
|
Country:  USA ~
Posts: 865 ~
Member Since: September 23 2014 ~
Last Visit: May 01 2023
|
Alert Moderator
|
|
|
|
Posted - January 27 2016 : 9:53:25 PM
|
| That's pretty cool George. Did it belong to anyone you knew?
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
|
Posted - January 27 2016 : 11:35:20 PM
|
| Is it S or O?
|
|
Country: USA ~
Posts: 1121 ~
Member Since: August 19 2011 ~
Last Visit: December 29 2025
|
Alert Moderator
|
|
|
|
Posted - January 28 2016 : 12:21:33 AM
|

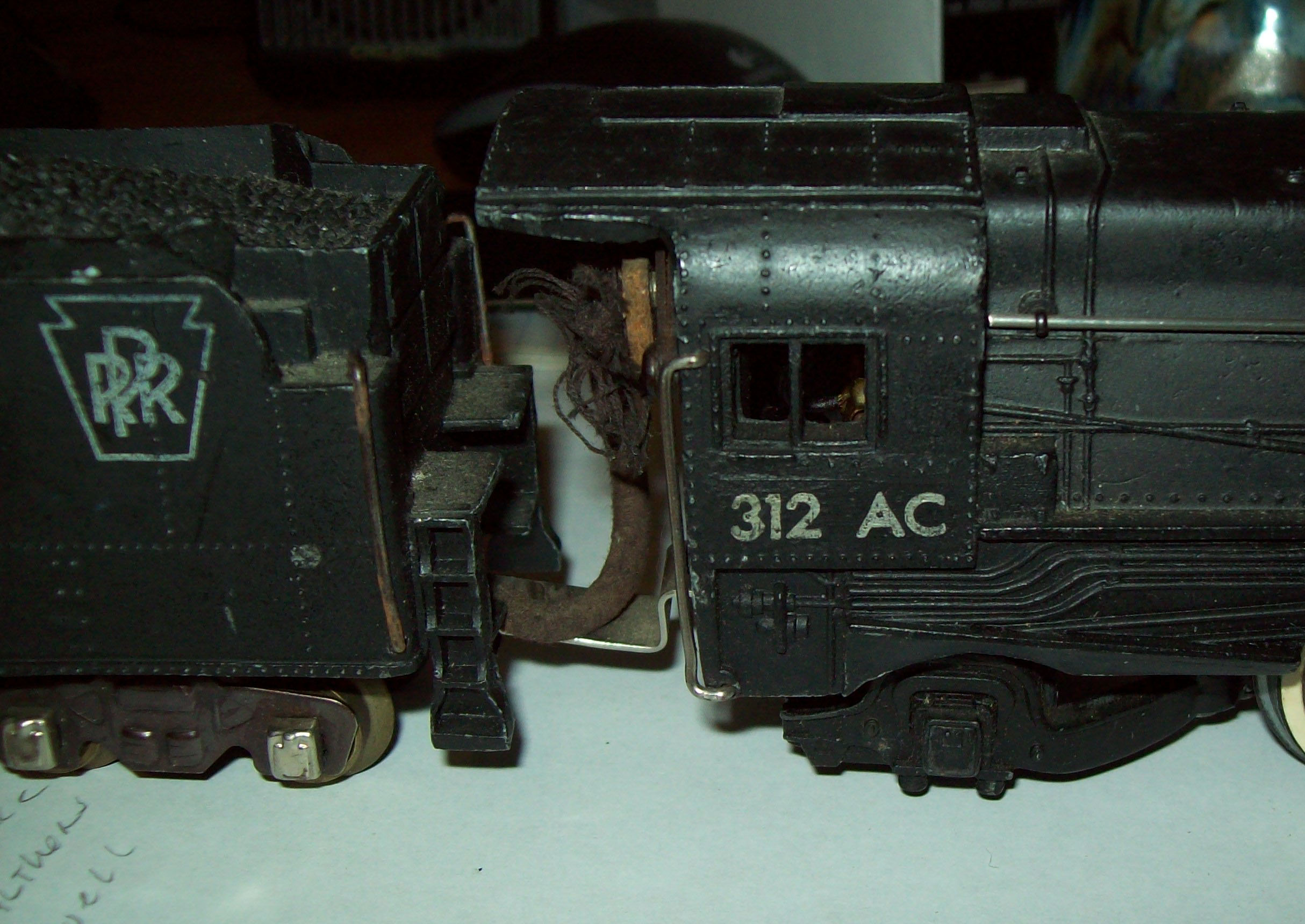

I Googled American Flyer 312 AC and got a wiring diagram for an AC unit with a reversing unit in the tender. The picture showed a motor with a field coil which would make it capable of running on AC, unlike a permanent magnet motor.
I'm not sure how the reversing unit works. The Lionel would change directions when the power was interrupted. It seems to me I've heard of a unit that would use some other signal like a short burst of higher voltage or something, but I don't know if that was AF.
Carpe Manana!
|
|
Country: USA ~
Posts: 2411 ~
Member Since: September 17 2013 ~
Last Visit: December 16 2025
|
Alert Moderator
|
|
|
|
Posted - January 28 2016 : 02:57:42 AM
|

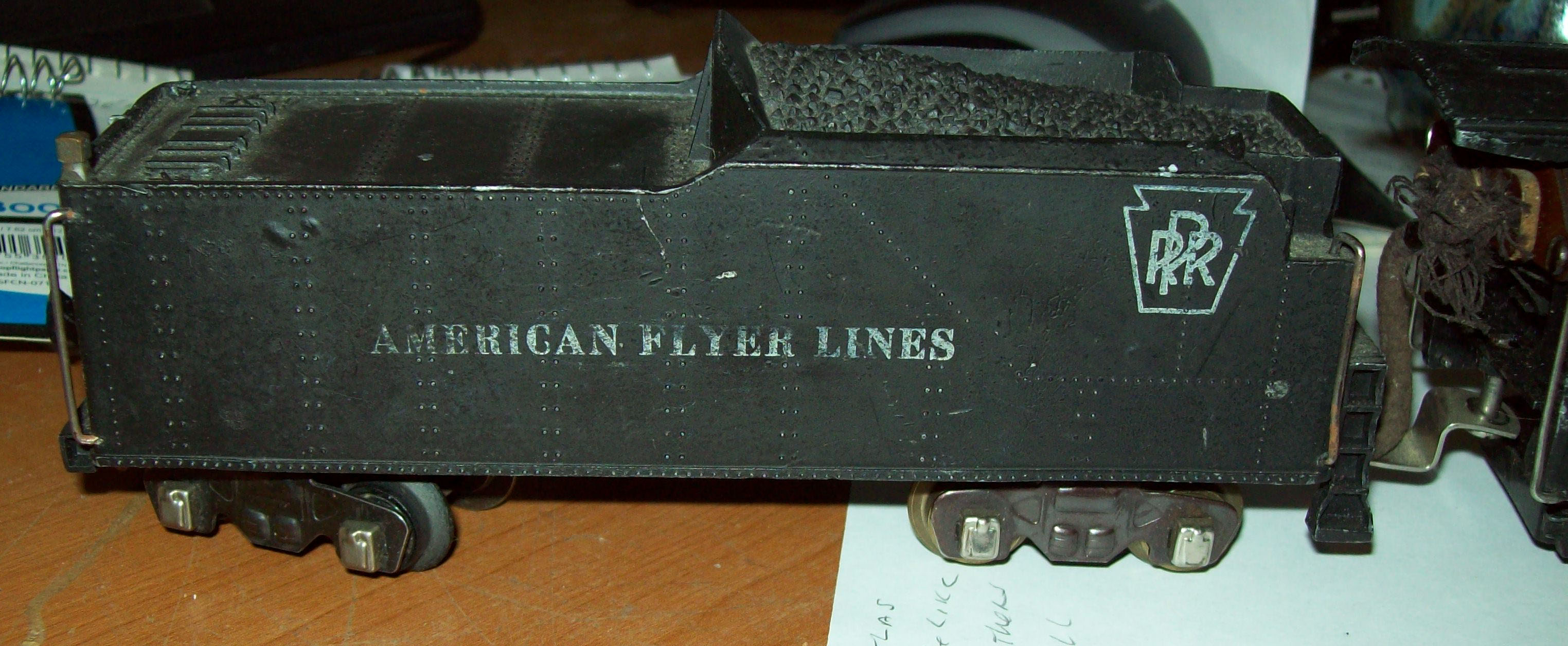

Look for the reverse unit lever under the tender floor between the trucks. Lever will lock it in forward or reverse. Power on, moves. Off neutral power again other direction. Changes polarity as AC power trains do not reverse at power supply. The e unit will need cleaning first in order for it to run. It's S gauge. Pre 1955. 4 piece die cast. Link coupler is earlier.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: December 30 2025
|
Alert Moderator
|
|
|
|
Posted - January 28 2016 : 11:16:10 AM
|
Thanks all. To answer the questions: It is S scale and I believe it belonged to
my uncle (on my mothers side). This places the date on it from between the
late 40s to the very early 50s. Since I don't do S scale, it'll stay with me as
a memento of my late uncle.
|
|
Country: USA ~
Posts: 865 ~
Member Since: September 23 2014 ~
Last Visit: May 01 2023
|
Alert Moderator
|
|
|
|
Posted - January 28 2016 : 11:35:28 AM
|
you might find this site handy ken
http://americanflyerexpress.com/American-Flyer-Express/American-Flyer-Express-Pages/American-Flyer-Express-Photos-Pages/American-Flyer-Steam-Engines/Pennsylvania-K-5-Pacifics/american-flyer-express-pacifics-pennsylvania-k-5-06.htm
catfordken
if you cannot see the light at the end of the tunnel,try turning around
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - January 29 2016 : 10:25:57 PM
|
After checking the site that Cat linked, it seems that this is the 1949 version. However, the trailing truck on the 1949 version did not have side frames so someone has replaced the original with a
truck from the 1950s version.
|
|
Country: USA ~
Posts: 865 ~
Member Since: September 23 2014 ~
Last Visit: May 01 2023
|
Alert Moderator
|
|
|
|
Posted - January 29 2016 : 11:03:20 PM
|
You might want to set up a small track for this to run on occasionally, do some S scale on the side. It seems like it could be fun - If nothing else, S scale has the advantage of there being no shortage of automobiles available cheap thanks to Hot Wheels.
Feedback-hungry attention w****
|
|
Country: USA ~
Posts: 750 ~
Member Since: December 05 2015 ~
Last Visit: January 24 2024
|
Alert Moderator
|
|
|
|
Posted - January 30 2016 : 10:08:20 AM
|
I've already lined up some track and a transformer. I'm gonna try to service it and get it
running.
|
|
