 Posted - January 28 2015 : 7:12:58 PM
|
I received a Hobbyline F unit today that has a shell that looks real close to new. From the outside I would say it has rarely been used. It even has a unique coupler that I have never seen on it, I assume it must have been what they used at the time.

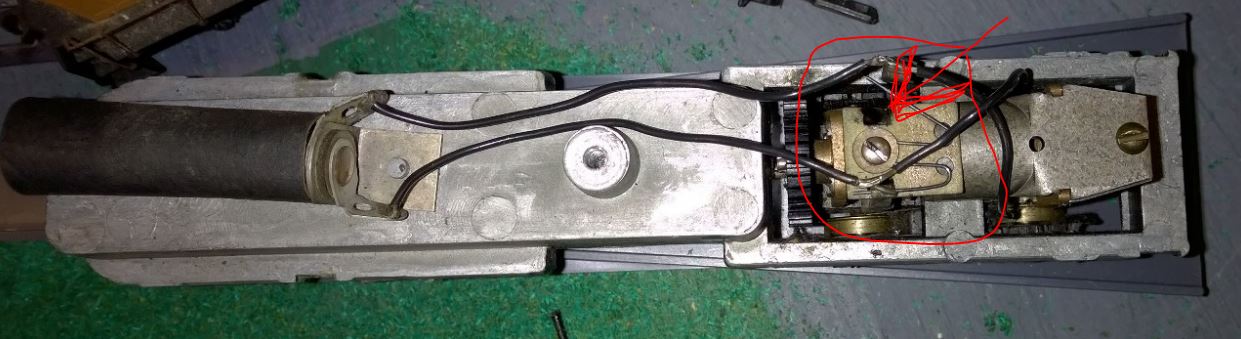

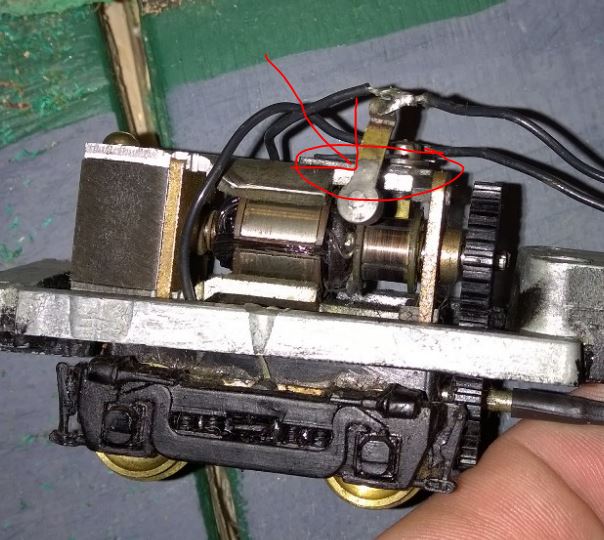

Issue I am having is with the motor. The top plate that holds the springs in place is broken on one side. Where can I get one of these? One of the brushes is just dangling on the wires. The motor, comm brushes look real good. It is just the piece that holds the brushes in place that I see an issue with.
Edited by - toptrain on November 19 2015 2:04:54 PM
|
Country:  USA ~
Posts: 332 ~
Member Since: August 28 2010 ~
Last Visit: April 23 2020
|
Alert Moderator
|
|
|
|
Posted - January 28 2015 : 7:53:42 PM
|
I have the same issue with a Japanese trolley motor. I'm going to attempt a repair using a couple of pieces of old circuit board material, less the copper of course, and JB Weld.
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 28 2015 : 8:02:52 PM
|
I have repaired several of these by drilling tiny holes in the board and using a piece of wire to hold the brush in place. I anchored the wire with super glue.
If you can't fix it send me your address.
Randy
|
|
Country: USA ~
Posts: 366 ~
Member Since: April 30 2011 ~
Last Visit: March 27 2026
|
Alert Moderator
|
|
|
|
Posted - January 28 2015 : 9:39:45 PM
|
They're basically just a fiber board, either 'glass or cardboard. THey get brittle with the heat and age, and eventually crack apart. I have scraps of raw PCB fiberglass pcbs, I was going to attempt to make one to fix a Marx power truck unit, very similar to the HObbyline unit. Should be doable. I still haven't attempted it yet. But it should be a relatively straight-forward process. Hard part will be cutting the slots correctly for the brush arms.
Jerry in VA
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - January 29 2015 : 09:26:47 AM
|
| The more I think about it the more I am leaning twords cutting a new board. I am not even sure how the motor is attached currently. The lower truck is mounted to it through a hole in the frame, this I can see from the side. Unfortunately without dismantling the truck I cannot tell if it is a rivet or screw that is used. The motor comm is near perfect. I placed a wire from the track to the com and it came to life. The brushes are mostly still flat, very little wear.
|
|
Country: USA ~
Posts: 332 ~
Member Since: August 28 2010 ~
Last Visit: April 23 2020
|
Alert Moderator
|
|
|
|
Posted - January 29 2015 : 10:34:11 AM
|
If this helps. Here is a listing I found for parts for a Hobbyline switcher. The motor looks like the same one and the board is good.
http://www.ebay.com/itm/HO-HOBBYLINE-DIESEL-SWITCHER-POWERED-CHASSIS-PARTS-LOT-W-MOTOR-/291204077660?pt=Model_RR_Trains&hash=item43cd1d985c
|
|
Country: USA ~
Posts: 865 ~
Member Since: September 23 2014 ~
Last Visit: May 01 2023
|
Alert Moderator
|
|
|
|
Posted - January 29 2015 : 11:13:52 AM
|
quote:
Thanks for the link, I saw that earlier and thought the same thing (I am one of the 3 current watchers). Only issue is that as soon as I saw it I new my next issue would be fixing a Hobbyline switcher.
|
|
Country: USA ~
Posts: 332 ~
Member Since: August 28 2010 ~
Last Visit: April 23 2020
|
Alert Moderator
|
|
|
|
Posted - January 29 2015 : 11:50:12 AM
|
The motor appears to be a DC60, if that helps. I'm thinking it looks like a job for PC board and a Dremel tool. :)
|
|
Country: USA ~
Posts: 432 ~
Member Since: March 04 2008 ~
Last Visit: December 28 2018
|
Alert Moderator
|
|
|
|
Posted - January 29 2015 : 2:55:22 PM
|
I used the broken piece as a pattern to cut a new one out of styrene. Works well.
Evan
|
Country:  Canada ~
Posts: 505 ~
Member Since: August 09 2014 ~
Last Visit: January 15 2025
|
Alert Moderator
|
|
|
|
Posted - November 19 2015 : 1:47:39 PM
|
Same drive in HObbyline Alco FA1, FB1, and FM H15-44. Looking for a C&O H-44-10.
frank
toptrain
" It's a Heck of a Day " !!!
Edited by - toptrain on November 19 2015 3:24:14 PM
|
|
