 Posted - January 05 2015 : 07:05:59 AM
|

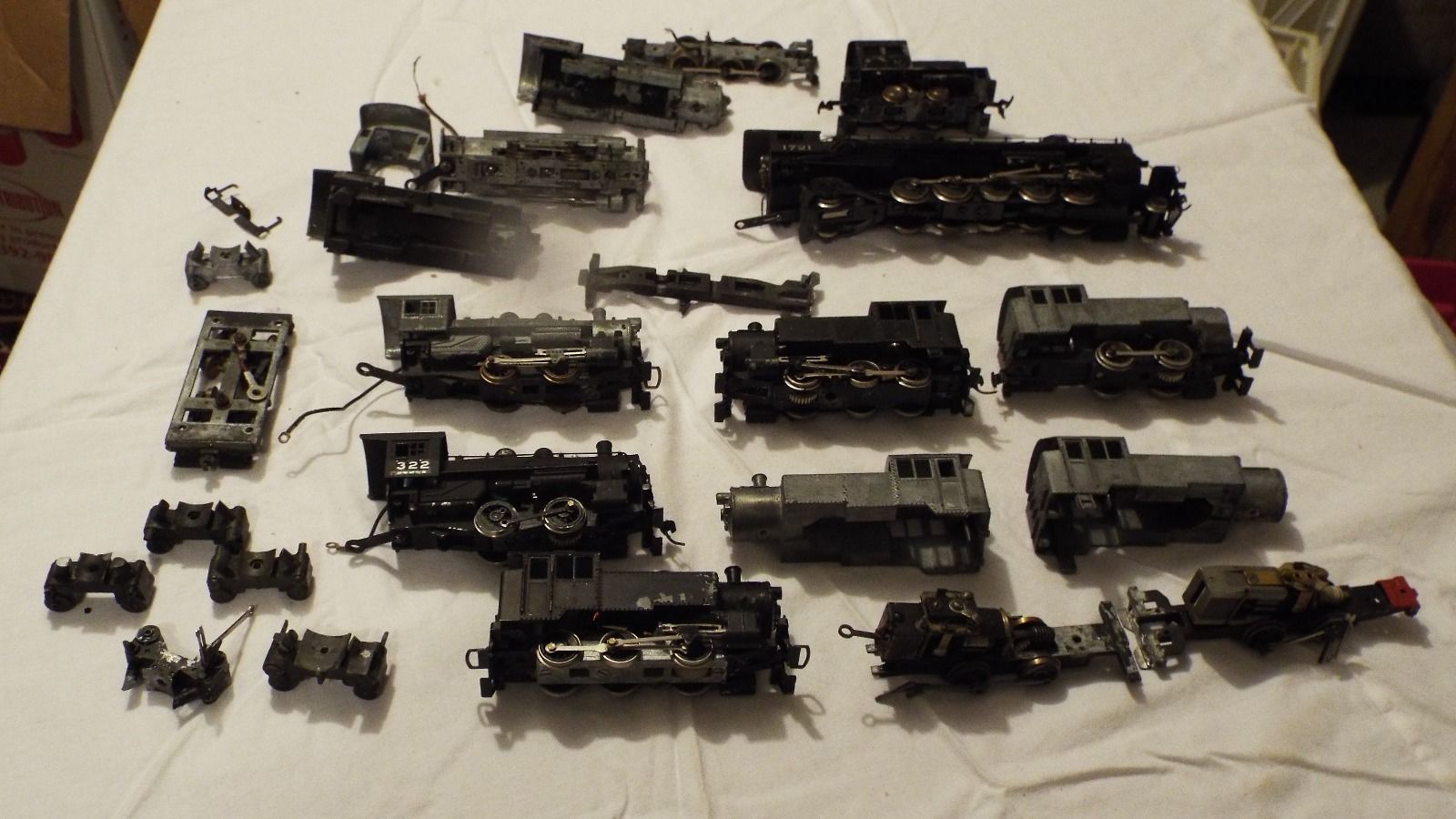

My JOTW offering:
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
Country:  USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - January 05 2015 : 09:54:51 AM
|
quote:My JOTW offering:
Originally posted by Mustangs_n_Trains - January 05 2015 : 07:05:59 AM
|
That's not junk, it potential. I see several projects in there.
|
|
Country: USA ~
Posts: 332 ~
Member Since: August 28 2010 ~
Last Visit: April 23 2020
|
Alert Moderator
|
|
|
|
Posted - January 05 2015 : 7:01:42 PM
|
quote: quote:My JOTW offering:
Originally posted by Mustangs_n_Trains - January 05 2015 : 07:05:59 AM
|
That's not junk, it potential. I see several projects in there.
Originally posted by tkruger - January 05 2015 : 09:54:51 AM
|
Me too.
-Steve
"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
|
|
Country: USA ~
Posts: 3533 ~
Member Since: February 17 2014 ~
Last Visit: January 11 2023
|
Alert Moderator
|
|
|
|
Posted - January 05 2015 : 7:32:58 PM
|

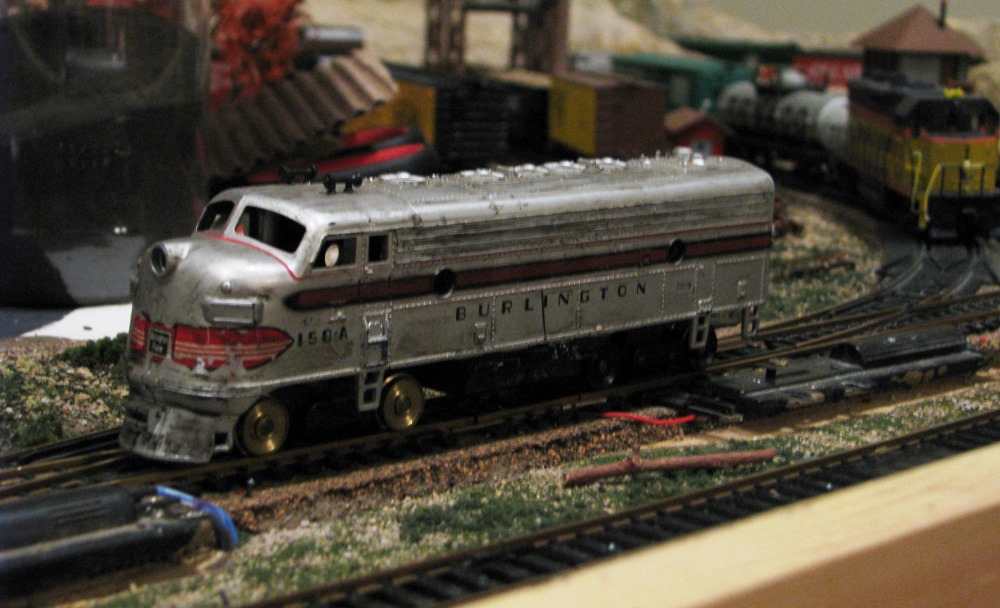

Found this in my junk box this week. I got it running fairly well but it gets hot and stops. I let it cool off for a couple of minutes and it runs great again. How can I fix that?
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
|
Posted - January 05 2015 : 9:30:18 PM
|
quote:Found this in my junk box this week. I got it running fairly well but it gets hot and stops. I let it cool off for a couple of minutes and it runs great again. How can I fix that?
Originally posted by thetramp - January 05 2015 : 7:32:58 PM
|
That's a sign of a weak magnet. Those magnets are fairly easy to replace in this locomotive. Use the "rare earth" neoprene magnets and you will below than pleased with their performance at all speeds, especially slow speeds.
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - January 05 2015 : 9:33:12 PM
|
quote:Found this in my junk box this week. I got it running fairly well but it gets hot and stops. I let it cool off for a couple of minutes and it runs great again. How can I fix that?
Originally posted by thetramp - January 05 2015 : 7:32:58 PM
|
The reasons I know for overheating are:
1) Stiff mechanism causing the motor to work too hard - clean gears, bearings, etc. and regrease/oil with fresh lubricant. Check for carpet fuzz, or burrs causing, poorly aligned gears and bearings.
2) Weak motor magnet - touch something steel to the motor magnet and see if the field seems strong or wimpy. About the only fix for this is to replace the old magnet with neodymium magnets.
Carpe Manana!
|
|
Country: USA ~
Posts: 2416 ~
Member Since: September 17 2013 ~
Last Visit: February 09 2026
|
Alert Moderator
|
|
|
|
Posted - January 05 2015 : 10:31:47 PM
|
[/quote]
The reasons I know for overheating are:
1) Stiff mechanism causing the motor to work too hard - clean gears, bearings, etc. and regrease/oil with fresh lubricant. Check for carpet fuzz, or burrs causing, poorly aligned gears and bearings.
2) Weak motor magnet - touch something steel to the motor magnet and see if the field seems strong or wimpy. About the only fix for this is to replace the old magnet with neodymium magnets.
Originally posted by scsshaggy - January 05 2015 : 9:33:12 PM
[/quote]
Looking at the underside of this engine, the bottom plate is riveted on. How would I grease the gears?
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
|
Posted - January 05 2015 : 11:50:36 PM
|
quote:Looking at the underside of this engine, the bottom plate is riveted on. How would I grease the gears?
Originally posted by thetramp - January 05 2015 : 10:31:47 PM
|
Can you get at the gears from the top of the truck? I don't recognize the make of this particular engine to know how it's assembled. The thing is, I have looked at old engines, before, in which the grease had gotten old and hard like wax.
Carpe Manana!
|
|
Country: USA ~
Posts: 2416 ~
Member Since: September 17 2013 ~
Last Visit: February 09 2026
|
Alert Moderator
|
|
|
|
Posted - January 06 2015 : 02:42:15 AM
|
It's in pretty rough shape, so you should also check the magnet for any steel screws, spikes , etc. that might be stuck across the magnet poles. You can blast it out with contact cleaner, which is pretty good at removing even hardened grease without drilling it out. Check the slots in the commutator for any packed in dirt, which can cause shorts and overheating. Remove the brushes and clean them, and clean the slots with the tip of an X-Acto blade if necessary.
Wait for it to dry out, then oil the bearings lightly through the holes in the underside and press a little light grease onto the axle gears from the side of those punched out gear covers, clean off any excess and let it run in.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - January 06 2015 : 07:26:12 AM
|
quote: quote:Looking at the underside of this engine, the bottom plate is riveted on. How would I grease the gears?
Originally posted by thetramp - January 05 2015 : 10:31:47 PM
|
Can you get at the gears from the top of the truck? I don't recognize the make of this particular engine to know how it's assembled. The thing is, I have looked at old engines, before, in which the grease had gotten old and hard like wax.
Originally posted by scsshaggy - January 05 2015 : 11:50:36 PM
|

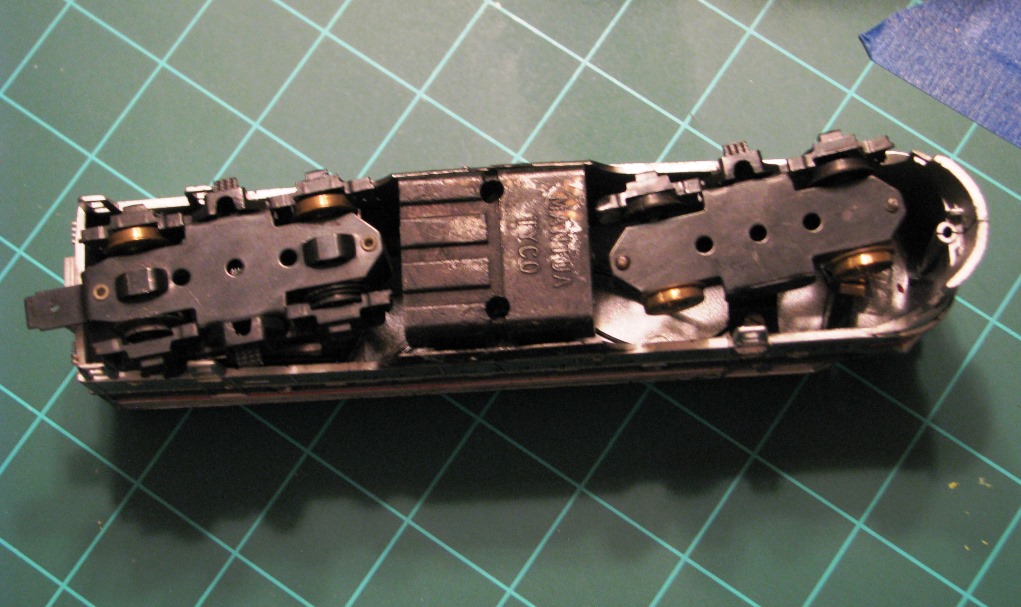

The engine is a mantua/tyco. See the picture below.When I get back from work, I will try and pull the motor out of the shell. I greased it from the underside last night so today I will put it on the track and see if that helped. Thanks
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
|
Posted - January 06 2015 : 6:55:41 PM
|
| Ok, I pulled the motor out and the magnet seems strong. Then I greased it and it is running pretty good. I ran it for about 20 minutes and the motor still gets warm but does not stop running. If you look at the rear of the engine, it is missing the coupler clip. Can someone tell me what kind of a clip holds the coupler on? Where can I find one?
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
|
Posted - January 07 2015 : 12:05:01 AM
|
Hey Tramp, if you can't find a clip for it, tap it for a 2-56 screw and put a Kadee on it.
Evan
|
