 Posted - December 31 2014 : 9:41:21 PM
|
You can't make this stuff up! introducing Tractive Power Corp's TP56!
The locomotive is based on a cut-down EMD SD40 frame, and rides on a single three-axle EMD HTC bogie, It has three EMD D77 traction motors and is powered by a Caterpillar C9 industrial diesel engine rated at 375 hp.
/tyco/forum/uploaded/JRG1951/20141231212523_TP56.gif
http://www.tractivepowercorp.com/
Would make an interesting model Kit-Bash!
Regards John
To be absolutely certain about something, one must know everything or nothing about it. <> Henry A. Kissinger
|
Country:  USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
 Posted - December 31 2014 : 10:00:37 PM
|
Might try that with a 2 axle truck. Don't have any three axle ones.
Edited by - wildecoupe on December 31 2014 10:12:51 PM
|
|
Country: USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
|
|
Posted - December 31 2014 : 10:02:48 PM
|
 I JUST saw that pic in Model Railroader Dec 2014 issue!
|
|
Country: USA ~
Posts: 14913 ~
Member Since: February 23 2009 ~
Last Visit: June 30 2025
|
Alert Moderator
|
|
|
|
Posted - December 31 2014 : 10:05:19 PM
|
| I have a few Athearn blue box 2 axil trucks. Wonder if I could drive a critter like that with a CD motor placed in the cab?
|
|
Country: USA ~
Posts: 332 ~
Member Since: August 28 2010 ~
Last Visit: April 23 2020
|
Alert Moderator
|
|
|
|
Posted - December 31 2014 : 10:42:55 PM
|
Looks like a N scale Con Cor SW1500 in 1:1 scale!
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 27 2025
|
Alert Moderator
|
|
|
|
Posted - December 31 2014 : 10:45:40 PM
|

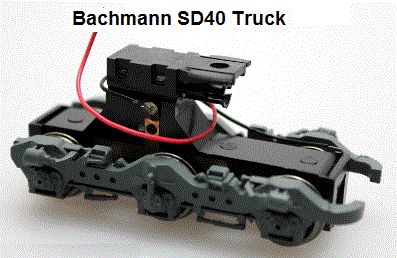

Might be able to use a small can motor and a Bachmann SD40 truck.
Regards John
If I smelled as bad as you I wouldn't live near people. <> Mattie Ross - True Grit
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - December 31 2014 : 11:00:56 PM
|
Hmmmm. I think I got a good micro motor for it!
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 27 2025
|
Alert Moderator
|
|
|
|
Posted - January 01 2015 : 12:48:59 PM
|
Now that's actually pretty cool and it would make a pretty sweet kitbash in my book.
-Steve
"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
|
|
Country: USA ~
Posts: 3533 ~
Member Since: February 17 2014 ~
Last Visit: January 11 2023
|
Alert Moderator
|
|
|
|
Posted - January 02 2015 : 8:16:29 PM
|
Ok! It is cold and I cannot paint or install a new floor in my old house. So I am here at my office where it is warm. I was killing some time and this is the result.
An idea for an HTC truck kitbash. Not a TP56, but a Free Lance switcher made from an HTC truck and a SW switcher shell. You will need a HTC power truck, an SW shell, a small can motor, and some odds and ends.
The drawings are modified from the train-web site, so do not think I am a drafting guru. Those guys do great work. No frame or motor mount details just a raw idea
Happy New Year. John
Data is not information, information is not knowledge, knowledge is not understanding, understanding is not wisdom. <> Clifford Stoll
Edited by - JRG1951 on January 02 2015 10:21:53 PM
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - January 02 2015 : 9:34:46 PM
|
John,
It looks like, if you packed lead everywhere it would fit, you'd have a pretty nice running switcher. Three axles spaced out that far would even run fairly well across switch frogs.
It's got handsome lines, too. Are you considering building it?
Carpe Manana!
Edited by - scsshaggy on January 02 2015 9:36:09 PM
|
|
Country: USA ~
Posts: 2407 ~
Member Since: September 17 2013 ~
Last Visit: June 28 2025
|
Alert Moderator
|
|
|
|
Posted - January 02 2015 : 10:21:02 PM
|
Don,
I may build it, right now it is a exercise to keep my mind busy and provide some connection with my hobby. My stuff and family are about 180 miles north and the weather is to bad to travel, so I have a warm office and some time. I picked this idea up on another Forum, from a guy that does interesting things. I have always been mostly a free lancer so this was my idea of the engine.
http://model-railroad-hobbyist.com/node/20505?page=9#comment-177135
Happy New Year, John
If we knew what it was we were doing, it would not be called research, would it? <> Albert Einstein
Edited by - JRG1951 on January 03 2015 12:39:23 AM
|
|
