 Posted - November 09 2014 : 11:33:30 AM
|
anyone got a schematic for the old Mantua/Tyco 10 wheelers?

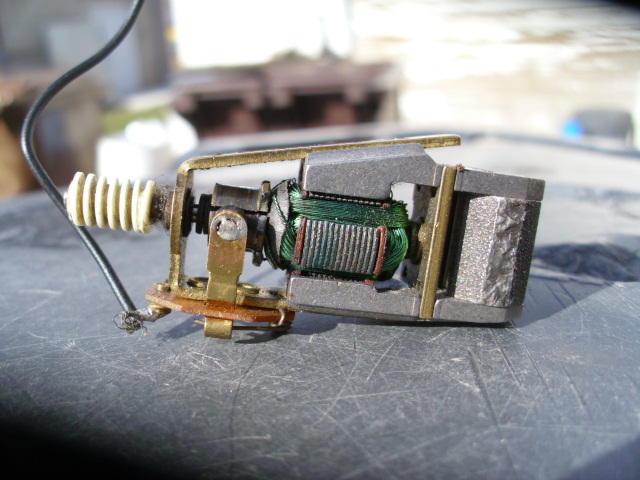

I took this motor out, tested it, works fine
Now I needs to know how it goes back in
Motor came out of a junk 4-6-0 I got for $4 with tender
|
Country:  USA ~
Posts: 15013 ~
Member Since: February 23 2009 ~
Last Visit: March 27 2026
|
Alert Moderator
|
|
|
|
 Posted - November 09 2014 : 11:58:14 AM
|
HO Seeker. Look under Mantua in literature section.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
Posted - November 09 2014 : 2:15:10 PM
|
The motor frame grounds to the locomotive frame and the wire goes to the tender.
When you look at the locomotive from the front, the left side drivers pick up power from the rail. The right side tender wheels pick up the other rail power.
The locomotive frame picks up the Positive charge and the tender picks up the Negative charge from the rails.
To make the motor go forward, connect the positive lead of you power to the frame of the motor and the negative lead to the wire. That is the way it was designed to work.
Edited by - oldtimer52 on November 09 2014 2:26:38 PM
|
|
