 Posted - October 23 2014 : 11:16:11 AM
|

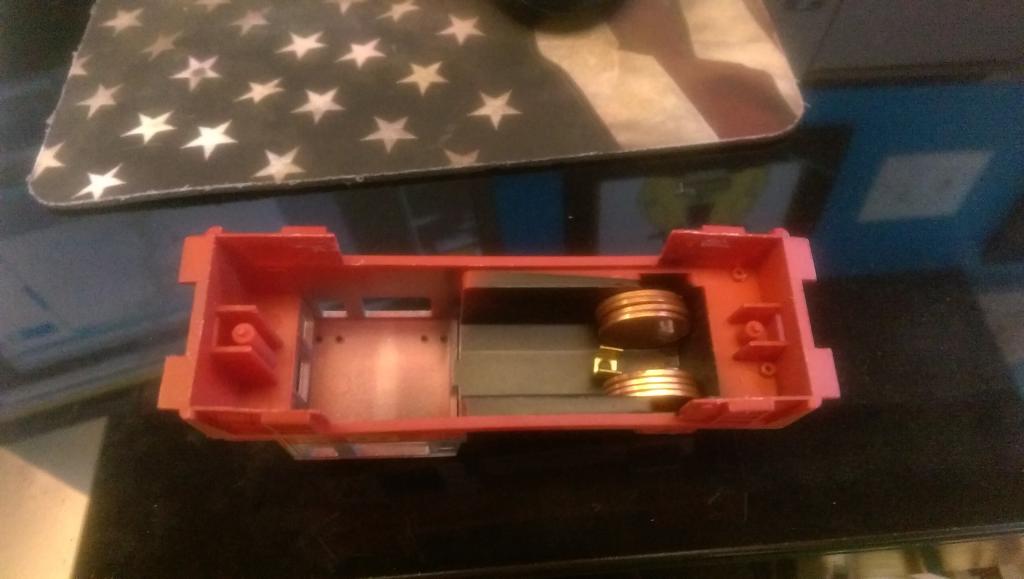

Just got back in to scale railroad modeling and inherited some HO items. This Tyco diesel switcher was missing a coupler and so I picked up some Kadee #5 couplers to fix it.

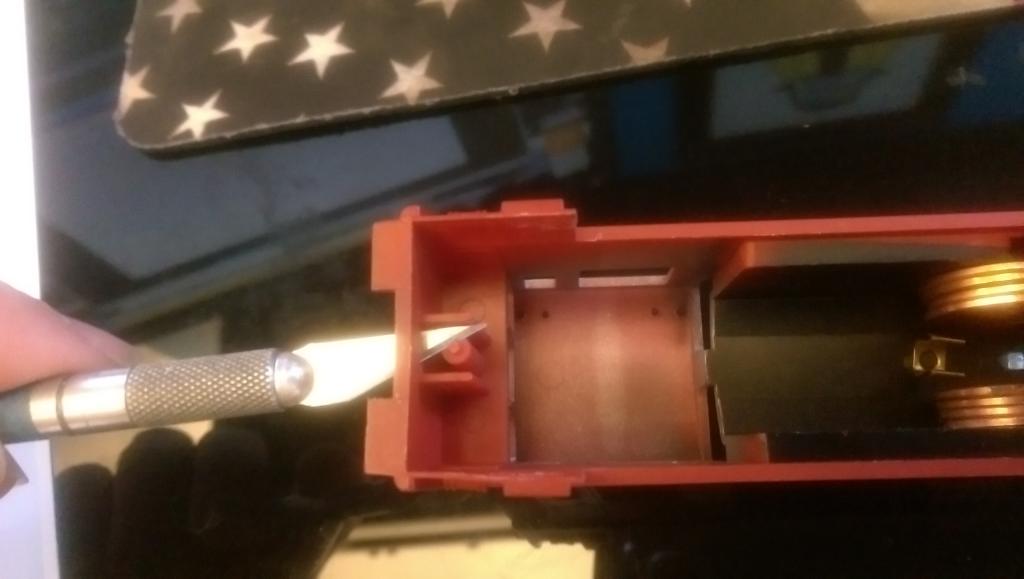

First step was to remove the pin that held the old coupler in place.

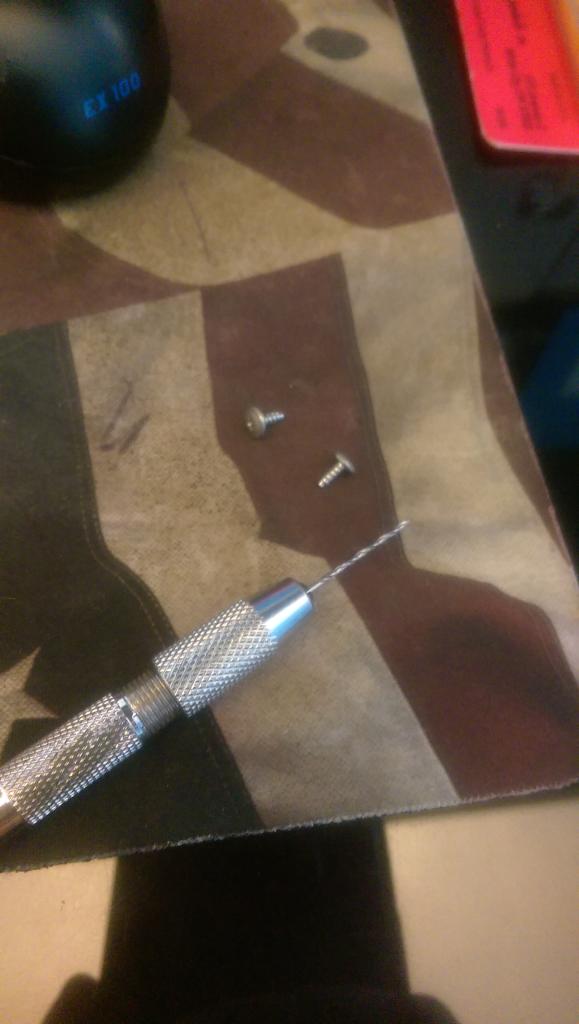

Find some screws sized accordingly. Not sure what size these are, they were from my model doo-dad scrap yard. And a drill and bit sized for the screws. This bit was actually smaller than what I needed, but was good for the pilot hole.

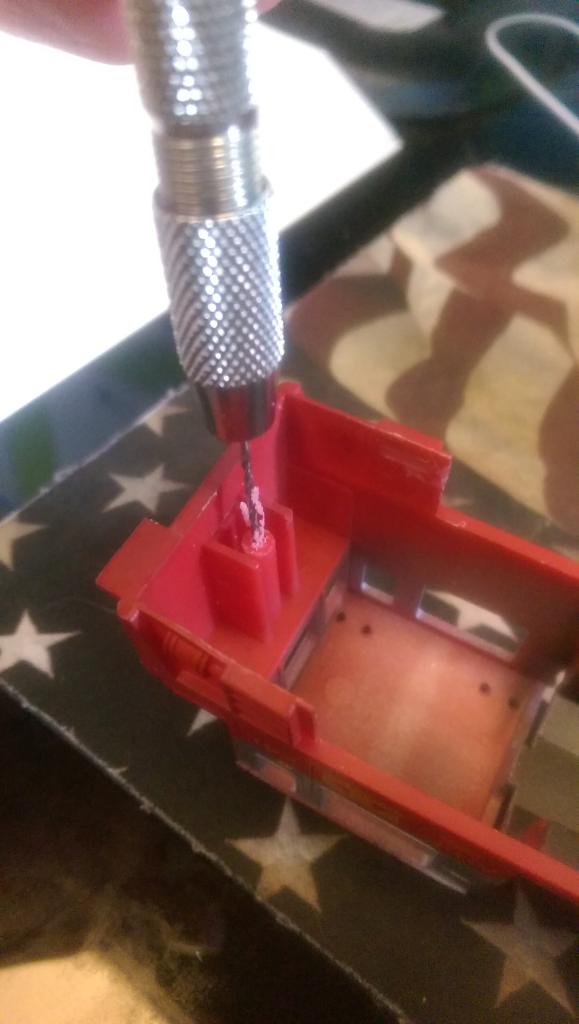

Drill out the holes (in this case, pilots for the larger bit).

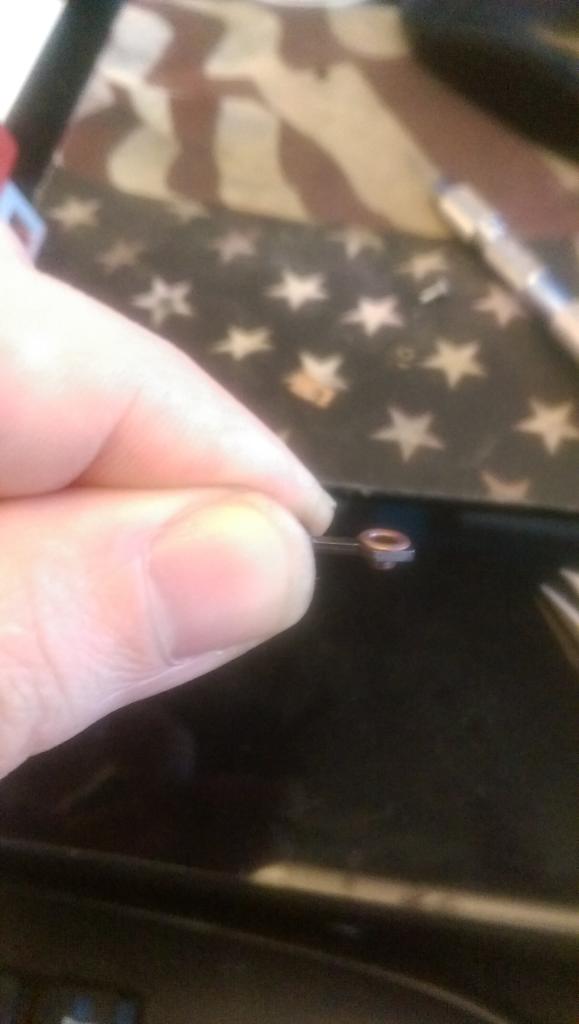

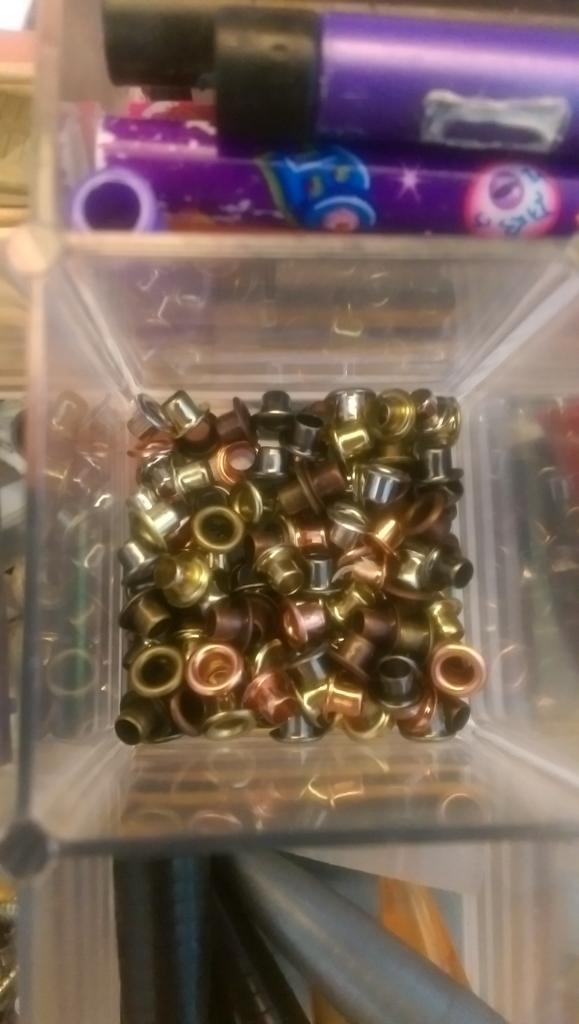

I picked these eyelets up from HobbyLobby. They fit perfectly inside the #5 couplers.

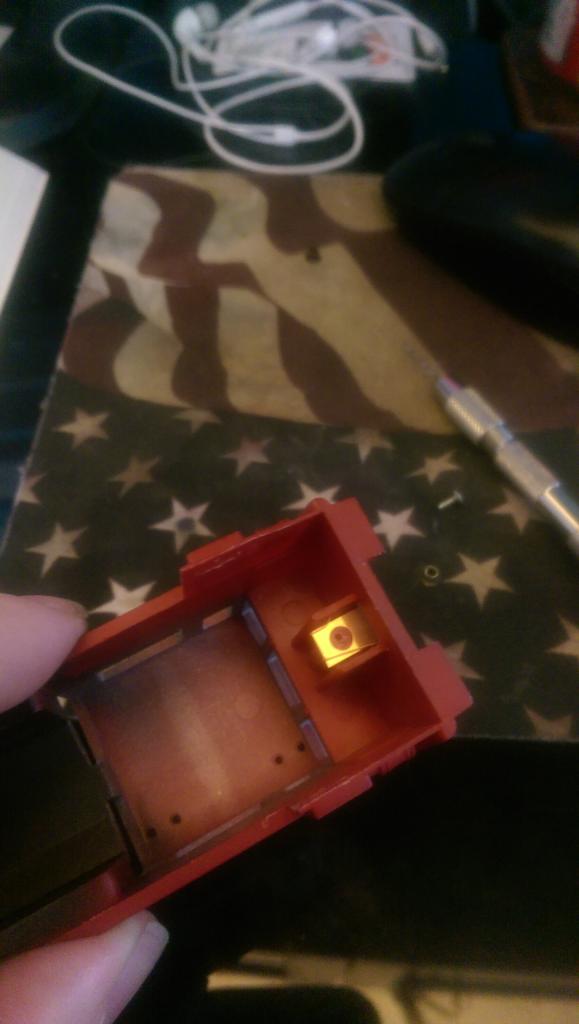

Slide in the centering spring. It fits perfectly.

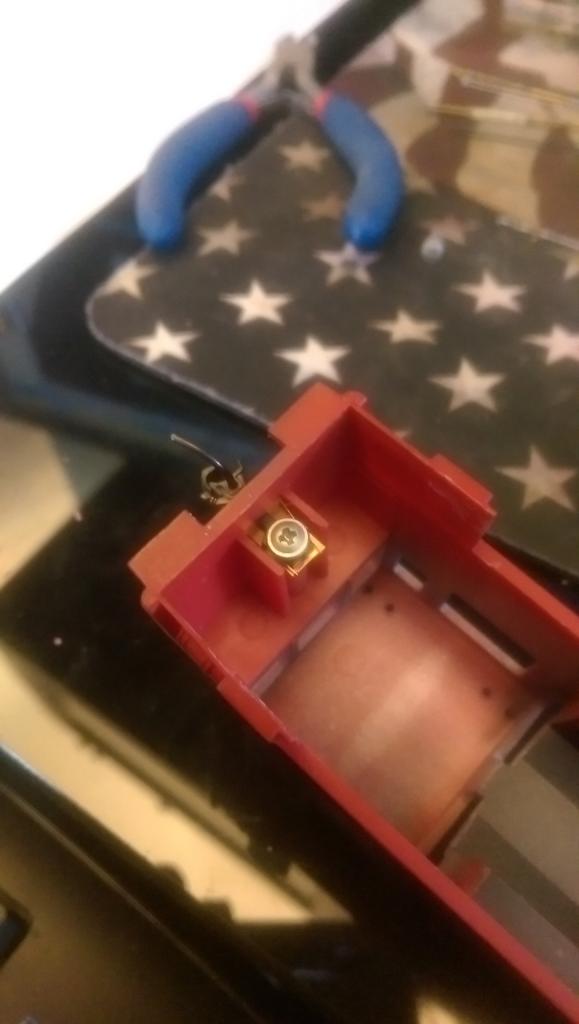

Slide the coupler into the slot, drop the eyelet into the hole, align everything and screw down. You may need to file the bottom of the eyelet some, but not so much that the screw then binds the eyelet with the coupler.

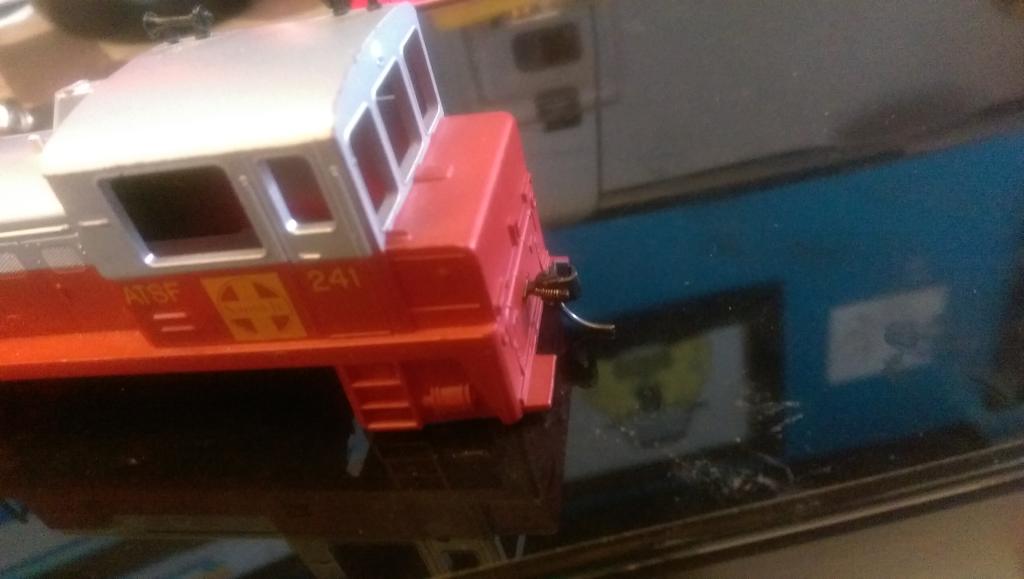

All done. Repeat for other end.
Thanks for looking,
Tim
|
Country:  USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
|
|
Posted - October 23 2014 : 11:40:54 AM
|
Tim,

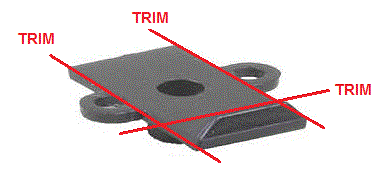

Great Job and well documented. You can also take the top of of the Kadee box and trim it to fit upside down in the TYCO box and you have a ready made spacer and holder.
Regards, John
Atheism is a non-prophet organization. George Carlin
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - October 23 2014 : 12:33:51 PM
|
I like what you did there, Tim. Those eyelets are an interesting addition, didn't think of that. I may have to get some to play with myself. :) Thanks for posting and sharing that.
Jerry in VA
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - October 23 2014 : 1:30:53 PM
|
Thanks for the tip! I hadn't any of those yet when I did this upgrade, but do now. I might have to use them on some of my other conversions.
quote:Tim,
Great Job and well documented. You can also take the top of of the Kadee box and trim it to fit upside down in the TYCO box and you have a ready made spacer and holder.
Regards, John
Atheism is a non-prophet organization. George Carlin
Originally posted by JRG1951Â -Â October 23 2014Â :Â 11:40:54 AM
|
Glad to share!
quote:I like what you did there, Tim. Those eyelets are an interesting addition, didn't think of that. I may have to get some to play with myself. :) Thanks for posting and sharing that.
Jerry in VA
Originally posted by AMC_Gremlin_GTÂ -Â October 23 2014Â :Â 12:33:51 PM
|
Edited by - wildecoupe on October 23 2014 1:32:02 PM
|
|
Country: USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
|
|
Posted - October 24 2014 : 12:24:25 AM
|
quote:...I may have to get some to play with myself. :)...
Originally posted by AMC_Gremlin_GTÂ -Â October 23 2014Â :Â 12:33:51 PM
|
You really need a comma in that sentence!
Glenn
I was thinking of the immortal words of Socrates, who said, "... I drank what?"
|
|
Country: USA ~
Posts: 1701 ~
Member Since: December 13 2008 ~
Last Visit: March 25 2026
|
Alert Moderator
|
|
|
|
Posted - October 24 2014 : 12:25:45 AM
|
I agree those eyelets are a creative solution.
Glenn
I was thinking of the immortal words of Socrates, who said, "... I drank what?"
|
|
Country: USA ~
Posts: 1701 ~
Member Since: December 13 2008 ~
Last Visit: March 25 2026
|
Alert Moderator
|
|
|
|
Posted - October 24 2014 : 08:58:45 AM
|
HAHAHA!
quote: quote:...I may have to get some to play with myself. :)...
Originally posted by AMC_Gremlin_GTÂ -Â October 23 2014Â :Â 12:33:51 PM
|
You really need a comma in that sentence!
Originally posted by gmoney - October 24 2014 : 12:24:25 AM
|
|
|
Country: USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
|
|
Posted - November 03 2014 : 12:53:06 PM
|
When I put the shell back on the chassis, I had to remove the eyelet as the screw was hitting the weight. I might put the eyelet back on and file down the little round protrusion on the weight. I believe this little protrusion was there to help hold the horn coupler in place.
Tim
|
|
Country: USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
