 Posted - July 05 2014 : 10:13:29 PM
|

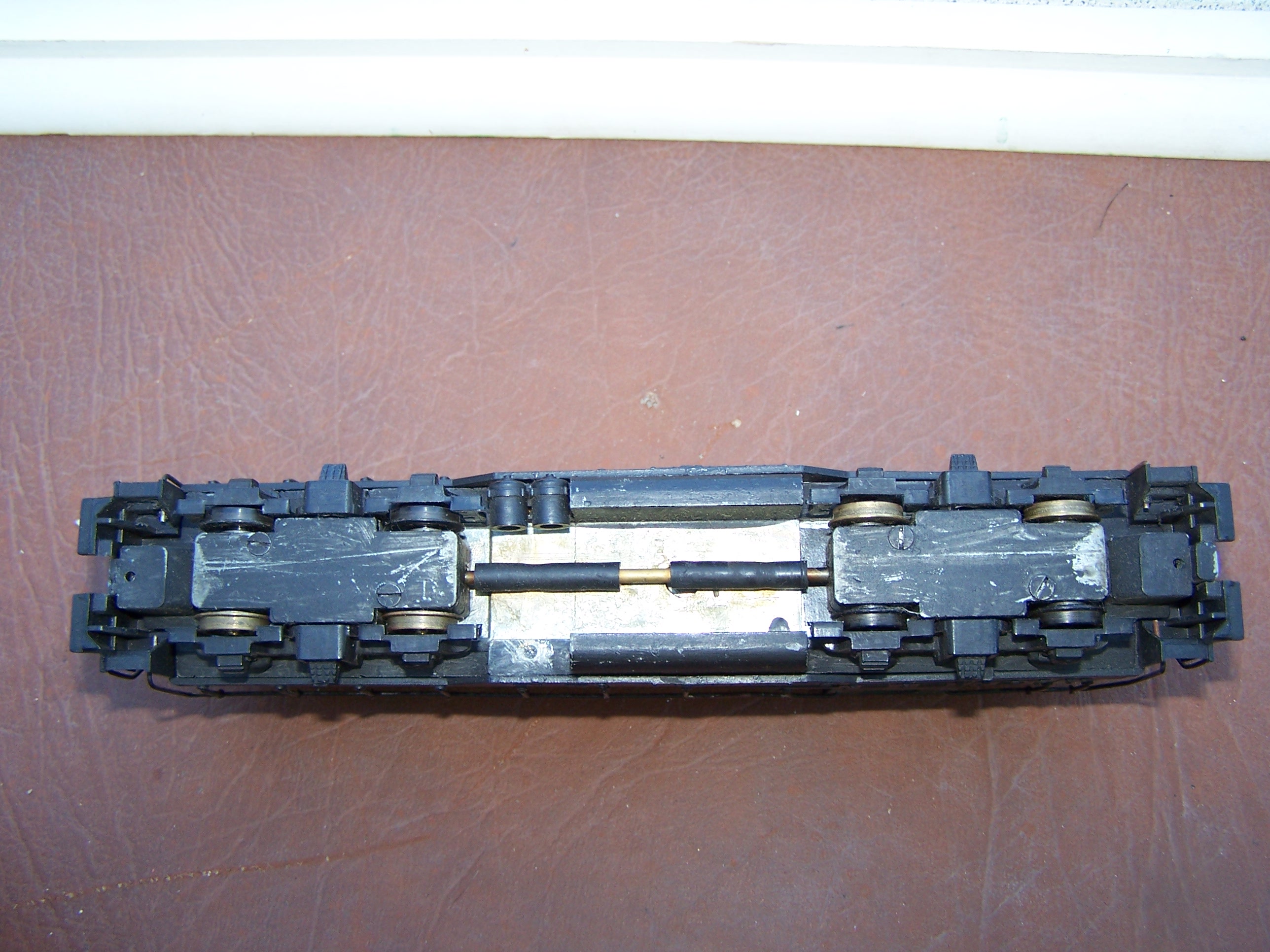

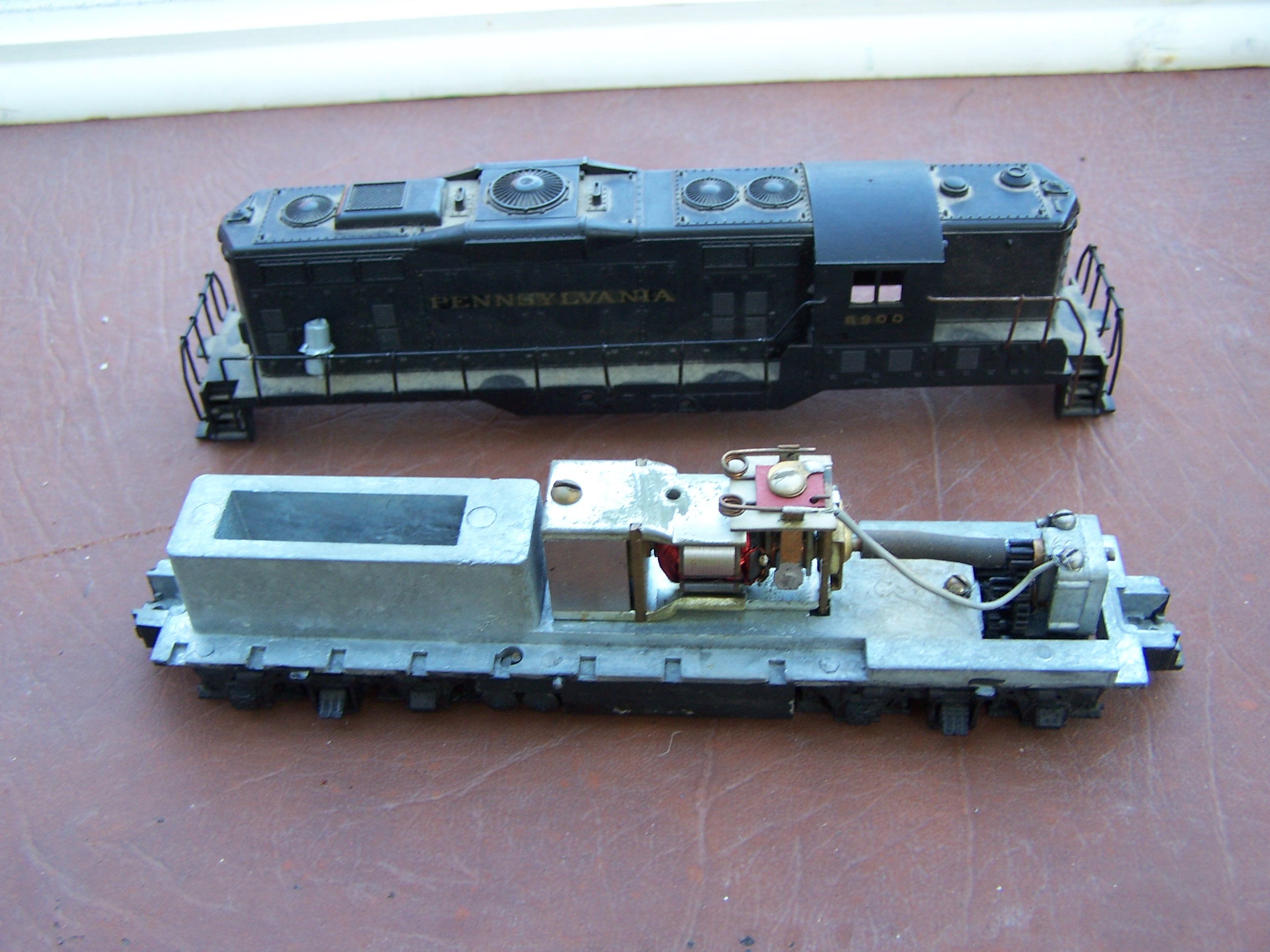

While hitting some antique stores in Vienna VA today, I found a few boxes of trains under a table, so had to start digging through them.  Some Lionel O, some AF S, and quite a bit of HO of various makes. This engine, which I think is a GP-9, has an internal rubber tube to the truck from the motor, with an open-frame motor, and then it has a dual rubber tube driveshaft exposed underneath. Not familiar with this type of power transfer, Globe maybe? Haven't tried it yet. Thanks for any help.
Jerry
" When life throws you bananas...it's easy to slip up"
|
Country:  USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - July 06 2014 : 09:45:10 AM
|
Cool find Jerry!
I have no knowledge what the drive is, but the first thing I thought of when I saw it was that it sure looks a lot like the Hobbytown drive Darth Santa Fe used in his E6 rebuild.
http://tycodepot.com/
|
|
|
|
|
Posted - July 06 2014 : 12:44:36 PM
|
quote:Cool find Jerry!
I have no knowledge what the drive is, but the first thing I thought of when I saw it was that it sure looks a lot like the Hobbytown drive Darth Santa Fe used in his E6 rebuild.
Originally posted by JNXT 7707Â -Â July 06 2014Â :Â 09:45:10 AM
|
I'm not sure either. The shell is of course making me think Globe as well, but I haven't seen the mechanism before. I do, however, have a spare motor that matches that one if yours is fried. I had no idea what it went to but kept it anyways, now I guess we'll find out!
--CRC
|
|
Country: USA ~
Posts: 930 ~
Member Since: January 25 2012 ~
Last Visit: August 23 2023
|
Alert Moderator
|
|
|
|
Posted - July 06 2014 : 7:31:52 PM
|
quote:
I'm not sure ...as well, but I haven't seen the mechanism before. I do, however, have a spare motor that matches that one if yours is fried.
Originally posted by PRR 4800Â -Â July 06 2014Â :Â 12:44:36 PM
|
I took this engine to my hobby job today, and put it on the test track. It sputtered and moved a little. So I took it apart, cleaned the armature pads (dirty), oiled the motor bushings and transmission shaft bushings (dry as well ), then put it back on the track. It ran MUCH better, and faster, than before. I then opened up the truck cases, and the gears were mostly dry. Didn't have any white grease there, so I put the cover back on and will do the greasing at home. Overall it looks like it will run OK with some basic tune-up maintenance done. I'm always interested in the oddball or unknown drive units, as they're not very common. Looks like the motor is OK, PRR, it look so clean, other than the copper pads being dirty, you'd think it was new.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
Pierce
Big Six
Status:
offline
| |
Posted - July 06 2014 : 8:23:39 PM
|
It is defiantly a older Hobbytown drive
Adam
|
|
Country: USA ~
Posts: 204 ~
Member Since: August 19 2008 ~
Last Visit: January 21 2022
|
Alert Moderator
|
|
|
|
Posted - July 06 2014 : 9:54:44 PM
|
Based on what you guys posted and what I know so far about older H0 scale trains (which is not too much at the moment but I'm learning), that GP-9 is some Hobbytown loco although I couldn't find any Hobbytown locomotive that looked like that thing so it might also be a re-motored locomotive.
-Steve
"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
Edited by - kovacste000 on July 06 2014 9:55:02 PM
|
|
Country: USA ~
Posts: 3533 ~
Member Since: February 17 2014 ~
Last Visit: January 11 2023
|
Alert Moderator
|
|
|
|
Posted - July 06 2014 : 10:00:01 PM
|
Hobbytown chassis from back-in-the-day with a Athearn GP7/9 body. Hobbytown only made chassis.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 02 2025
|
Alert Moderator
|
|
|
|
Posted - July 06 2014 : 10:21:30 PM
|
quote:Hobbytown chassis from back-in-the-day with a Athearn GP7/9 body. Hobbytown only made chassis.
Originally posted by Redneck Justin - July 06 2014 : 10:00:01 PM
|
That would make more sense. I believe we have a winner.
--CRC
|
|
Country: USA ~
Posts: 930 ~
Member Since: January 25 2012 ~
Last Visit: August 23 2023
|
Alert Moderator
|
|
|
|
Posted - July 07 2014 : 08:04:36 AM
|
Yep ! " Hobbytown of Boston" made kits for a lot of different locomotives and included a body with the drive . This one came with a Athearn GP7 body. It was a kit and it took some time to assemble the drive. That motor was strong enough to power 2 or 3 more locomotives. With these drives 2 or 3 locos with power trucks, were interconnected together with one motor driving all the locos. With this set-up the locos were connected with draw bars and not couplers to keep it together as one unit. You needed no sound unit with these locomotives for they had a distinctive geared drive sound and they sounded great yanking long trains around large layouts.
frank
toptrain
" It's a Heck of a Day " !!!
Edited by - toptrain on July 07 2014 08:08:44 AM
|
|
Country: USA ~
Posts: 7516 ~
Member Since: August 07 2008 ~
Last Visit: May 02 2025
|
Alert Moderator
|
|
|
|
Posted - July 07 2014 : 3:57:24 PM
|
I think that chassis will also work with a Tyco GP20.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 02 2025
|
Alert Moderator
|
|
|
|
Posted - July 09 2014 : 08:12:27 AM
|
| Chassis will only work with the wide-body shells - Athearn, Lionel, Cox, Model Power, a Lionel U18B or Rectifier will also fit.
|
|
