 Posted - May 06 2014 : 2:56:29 PM
|
FYI

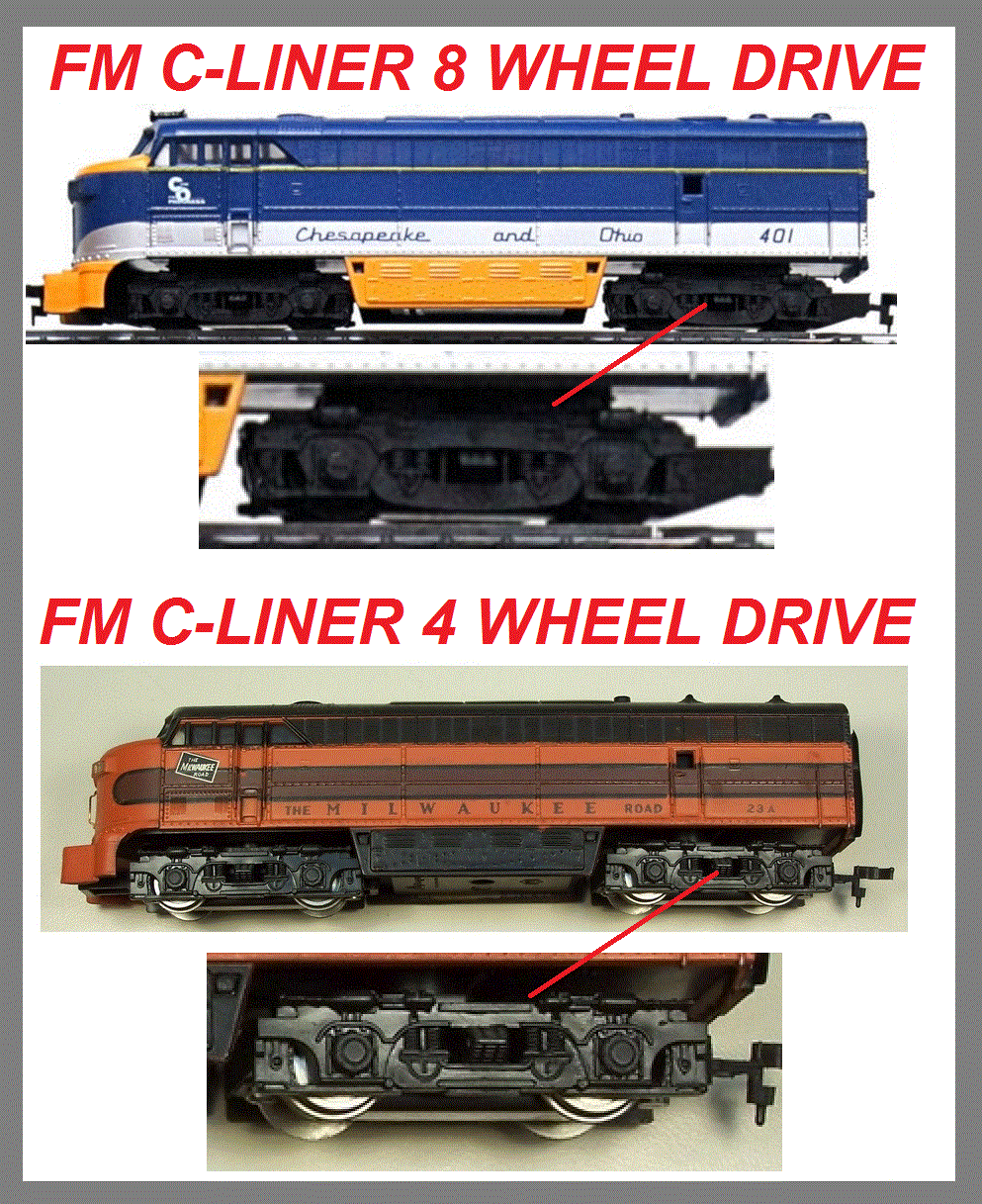

Here are some illustrations that may help identify the difference between a 4 wheel drive and an 8 wheel drive AHM/IHC FM C-LINER. One of NickelPlate759's post made me aware that there were 8 wheel drive Mehano C-LINERS.
Does any body have a parts diagram for the 8 wheel drive model, can't find one on HOSeeker.
Regards, John *******
There are three types of baseball players: those who make it happen, those who watch it happen, and those who wonder what happens. <> Tommy Lasorda
|
Country:  USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - May 06 2014 : 4:35:43 PM
|
| The 8-wheel drive actually exists in some AHM releases, I have one here that seems to be 100% original in a Bicentennial paint scheme, that is 8 wheel drive. Best guess they were changed in the early 1980s.
|
|
Country: USA ~
Posts: 956 ~
Member Since: January 27 2008 ~
Last Visit: May 27 2016
|
Alert Moderator
|
|
|
|
Posted - May 06 2014 : 5:27:11 PM
|
The C&O unit is 8 wheel drive, although you can tell it's a dummy by the plastic wheels. They are easily powered with drive parts from any dual drive Mehano diesel.
Some of the signs are the more realistic scale FM sideframes, the gearboxes visible between the truck and chassis, coupler mounts, etc. The Milwaukee unit is the more common 4 wheel drive with the oversized bulky trucks based off the diecast Rivarossi originals.
The Tyco Depot
Edited by - NickelPlate759 on May 06 2014 5:27:51 PM
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - May 06 2014 : 6:25:57 PM
|
Are there any associated clues in the shells? Such as detail of the fans, etc...or even road names?
http://tycodepot.com/
|
|
|
|
|
Posted - May 06 2014 : 6:58:58 PM
|
Not that can reliably determine the drive type. They did change from 3 separate lenses to one lightbar and from pimple fans to flat grilles sometime in the 70's, but the later shells are found on both. The trucks are the only indicator. The coupler box jutting from the rear truck is a dead giveaway, for one.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - May 06 2014 : 7:06:08 PM
|
quote:The coupler box jutting from the rear truck is a dead giveaway, for one.
Originally posted by NickelPlate759Â -Â May 06 2014Â :Â 6:58:58 PM
|
Yes - identical to the coupler box on the AHM 8-wheel drive Alco RS11.
http://tycodepot.com/
|
|
|
|
|
Posted - April 19 2017 : 11:57:28 PM
|
Interesting, I have an Atlas C Liner and the motor only works in
reverse. Is there an easy fix? Has that vertical turret motor that
powers the truck.
Edited by - Chops124 on April 19 2017 11:58:24 PM
|
|
Country: USA ~
Posts: 11212 ~
Member Since: December 09 2013 ~
Last Visit: May 19 2024
|
Alert Moderator
|
|
|
|
Posted - April 20 2017 : 12:44:22 AM
|
| The 8 WD shell also has cast in "claws" near the center that slip into the chassis. Also it takes a very unique weight, similar to the one in the very late Tyco F unit made by Mehano.
|
|
Country: USA ~
Posts: 158 ~
Member Since: June 21 2016 ~
Last Visit: January 30 2021
|
Alert Moderator
|
|
|
|
Posted - November 20 2017 : 8:08:26 PM
|
| what motor does the all wheel drive one have?
|
|
Country: USA ~
Posts: 10 ~
Member Since: September 20 2017 ~
Last Visit: July 30 2019
|
