 Posted - December 23 2013 : 8:46:20 PM
|
|
I have a tyco motor that has just started giving me a problem. It is the newer type with the gear wheels on the side of the motor. Well, the small pinion gear that turns the largest gear pops out just enough to not turn the large gear. It only take about five feet of running before it pops out. How can that be fixed? Otherwise the motor runs great. If a picture is need, I can post one.
|
Country:  USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
MikeK
Switcher
Status:
offline
| |
Posted - December 23 2013 : 8:50:26 PM
|
| Please post a pic, I'd like to see it.
|
|
Country: USA ~
Posts: 50 ~
Member Since: December 15 2013 ~
Last Visit: August 27 2014
|
Alert Moderator
|
|
|
|
Posted - December 23 2013 : 9:04:51 PM
|

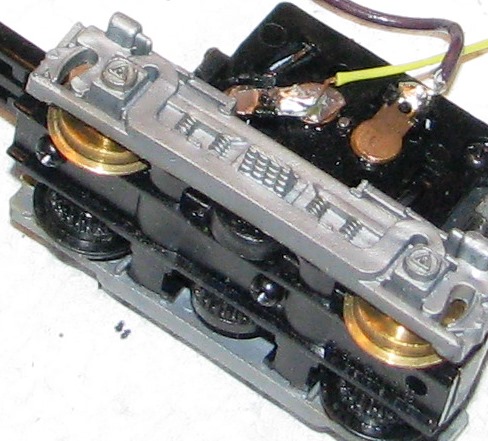

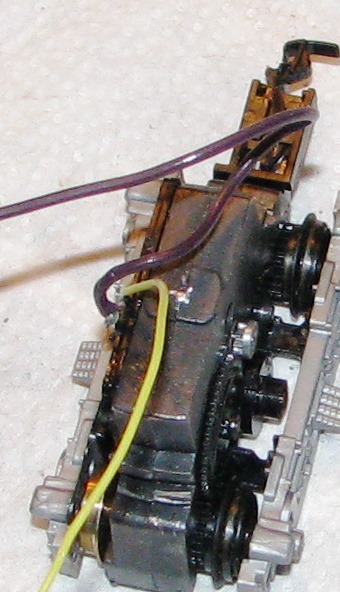

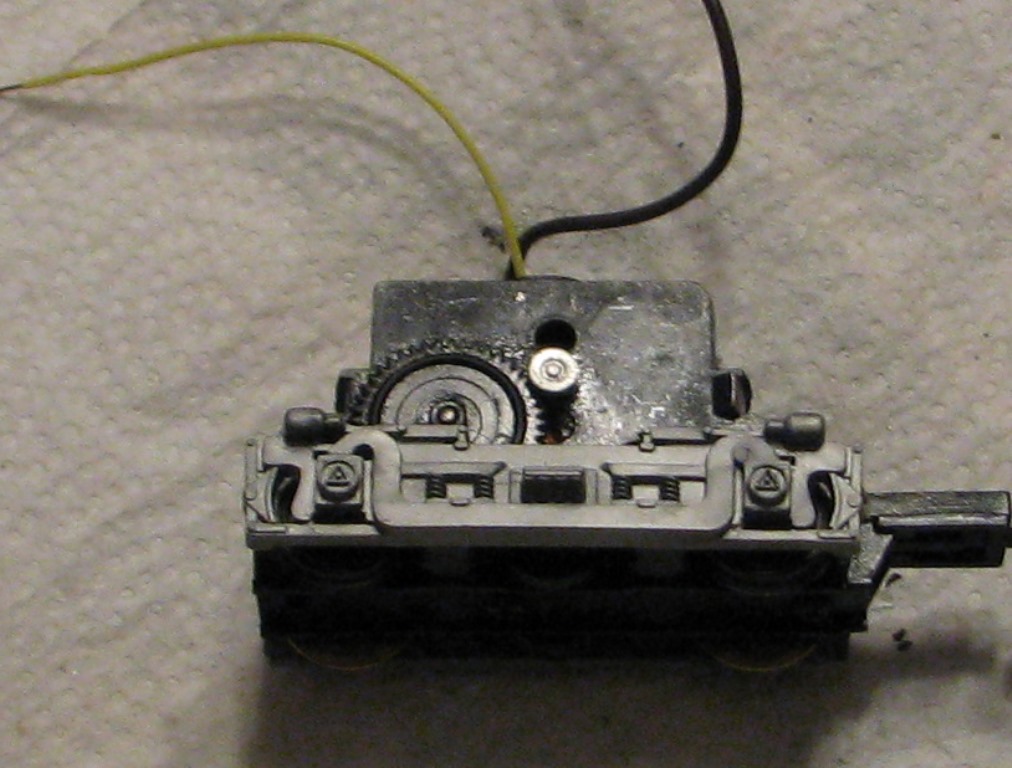

Here's the picture
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
MikeK
Switcher
Status:
offline
| |
Posted - December 23 2013 : 10:23:52 PM
|
Rotate the truck so the shaft shows going into the frame. Use a flash.
On first glance, I would glue a brass plate on the frame, you seem to have room. This gives you a chance to align the gears before the glue sets.
Also, you could put a bushing in the hole.
Check the small gear, replace it if it's worn.
Edited by - MikeK on December 23 2013 10:24:51 PM
|
|
Country: USA ~
Posts: 50 ~
Member Since: December 15 2013 ~
Last Visit: August 27 2014
|
Alert Moderator
|
|
|
|
Posted - December 23 2013 : 10:38:05 PM
|
Not sure what shot you need.
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
|
Posted - December 23 2013 : 11:38:09 PM
|
Remove the pinion (small gear) and drop it in alcohol or some other solvent to remove the lubricants, and degrease the motor shaft as well. Reinstall it, then use a very small drop of CA (I recommend Zap brand) on the outside of the pinion to hold it to the shaft. It shouldn't slip after that.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
MikeK
Switcher
Status:
offline
| |
Posted - December 24 2013 : 12:00:08 AM
|
| Good sharp pictures there, Tramp. No room for a plate, no need to bush if the gear is just slipping on the shaft when it warms up. Give the ca a try, degrease as mentioned by NickelPlate.
|
|
Country: USA ~
Posts: 50 ~
Member Since: December 15 2013 ~
Last Visit: August 27 2014
|
Alert Moderator
|
|
|
|
Posted - December 25 2013 : 11:54:50 AM
|
NickelPlate759, I did what you said. I took the pinion gear off, cleaned it with alcohol than cleaned the shaft with alcohol, reassembled. Than I put a drop on CA glue to hold the pinion gear on, let set over night and that worked. Will see in the long run if that holds up. Cross your fingers. Thanks for the help.
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
|
Posted - December 25 2013 : 11:41:49 PM
|
It should work. I had trouble getting it to hold as a kid, but I didn't do the degreasing part.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - December 26 2013 : 11:55:23 AM
|
also some of them pinion gears could slip & race the motors!
Mine sure did on my Tyco E7 CofSF loco when I tested it one time
I had a friend help me get it back on & he even lube it too with STP I think
|
|
