 Posted - November 06 2013 : 4:56:02 PM
|
I bought a can motor to convert my Bachmann 4-4-0, but the drive shaft was too small for the universal sockets I had for it. Querying Northwest Short Line was to no avail, because they weren't sure of the motor shaft diameter, either.

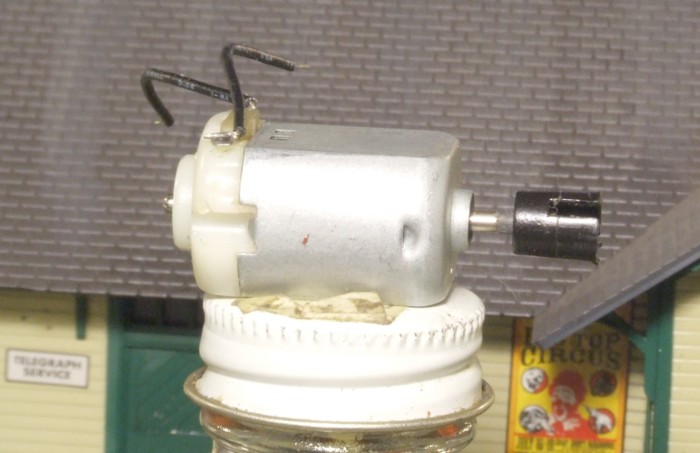

Anyway, I threw the motor in my parts drawer until I figured out what to do with it, which I did this week. I slid a length of shrink tubing on the shaft. It was a nice tight fit, and I left a little hanging past the end so I could slide a universal socket on it. I had to force the socket on the shaft and shrink tubing combination, but when I was done, it fit nice and tight and should do the job, should I ever decide to re-motor the Bachmann, which now runs fine with the cheap Tyco throttle and Dremel Speed controller combination. Here is a photo of the modified motor. You can see the shrink tubing extending past the universal socket
This may help some who are having problems with re-motoring projects
![]()
RBNicholson
|
Country:  USA ~
Posts: 96 ~
Member Since: September 12 2013 ~
Last Visit: November 19 2013
|
Alert Moderator
|
|
|
|
Posted - November 06 2013 : 6:24:42 PM
|
quote:... I slid a length of shrink tubing on the shaft. It was a nice tight fit, and I left a little hanging past the end so I could slide a universal socket on it. ...
Originally posted by RBNicholson - November 06 2013 : 4:56:02 PM
|
That is indeed a clever solution. Thanks for posting. I am sure I will be using this idea some day.
Thomas
|
|
Country: USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: June 11 2025
|
