 Posted - September 29 2013 : 10:40:45 AM
|

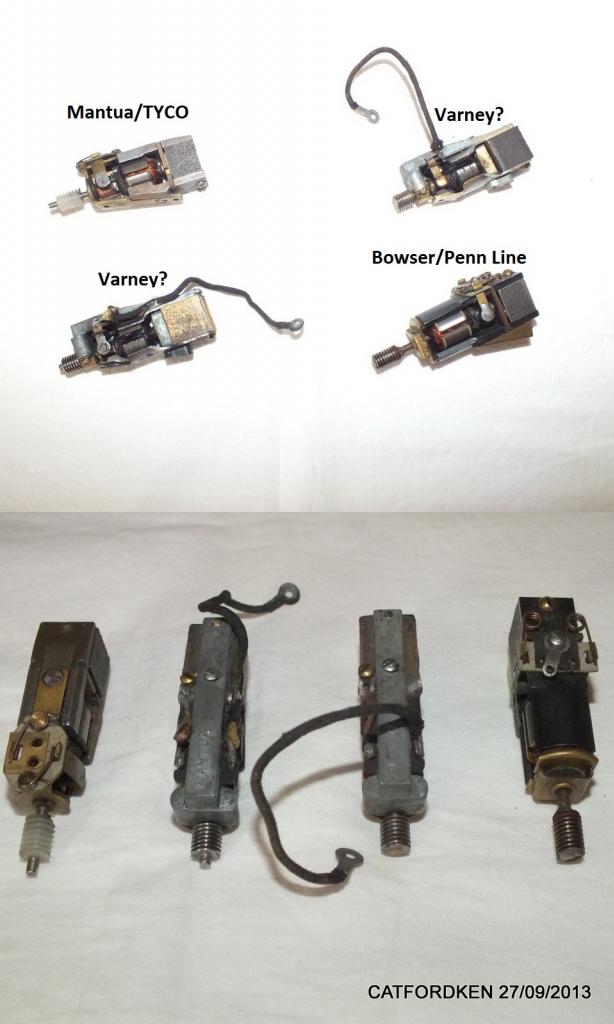

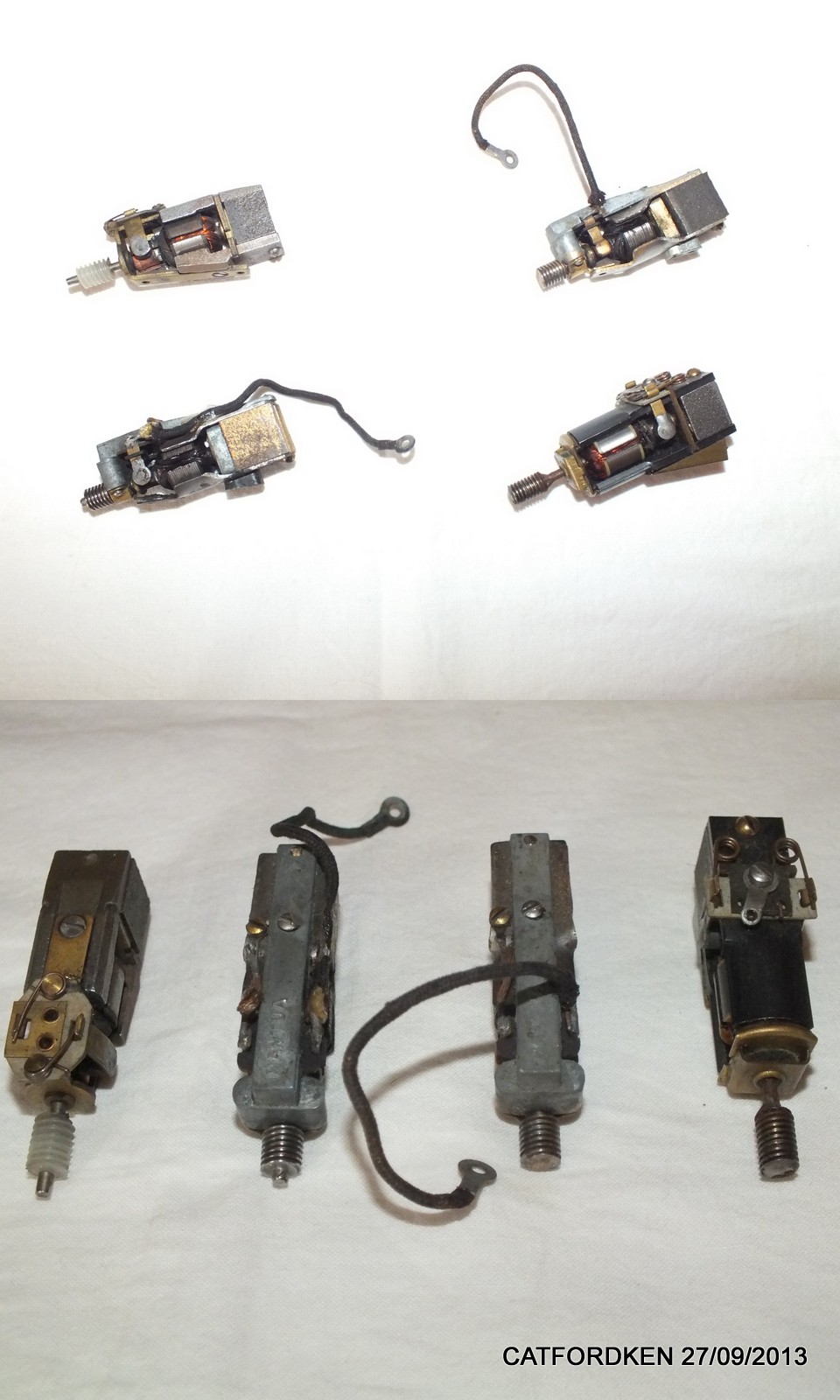

can anyone tell me which locomotives these motors belong to,or the period,top picture,top 2 are mantua,as is bottom left,no maker on bottom right,bottom picture reading left to right,first 3 are mantua,4th unknown,ken
Edited by - catfordken on September 29 2013 10:44:32 AM
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - September 29 2013 : 12:40:02 PM
|
Ken, that motor on the right/bottom looks to be of AHM or Tempo design. The brush mounting gives it away. Probably a steam engine, but to what, I don't know. But having worked on enough motors now, that design seems to be of Tempo origin to me.
Jerry
" When life throws you bananas...it's easy to slip up"
|
Country:  USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - September 29 2013 : 12:47:30 PM
|
| hi jerry i have never owned a tempo loco,so i do not know where it came from?,so am still puzzled,but thanks ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - September 29 2013 : 3:31:30 PM
|
Ken see:
Hope this helps!
EDIT:
I think, MAYBE, those 2 I have marked "Varney?" could be OLD Mantua.....Back in the days of brass Mantua, but again, I'm unsure of it!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
Edited by - EM-1 on September 29 2013 3:32:54 PM
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - September 29 2013 : 7:01:38 PM
|
Bottom right motor could also be MDC-Roundhouse. My 50's all metal 0-6-0 had that same motor.
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - September 29 2013 : 8:03:10 PM
|
The one on the lower right looks like a Pitman DC-60 to me. I don't know in what model it might have served.
Carpe Manana!
|
|
Country: USA ~
Posts: 2416 ~
Member Since: September 17 2013 ~
Last Visit: February 09 2026
|
Alert Moderator
|
|
|
waw47
Hudson
Status:
offline
| |
Posted - September 29 2013 : 9:47:20 PM
|
Top Left: Mantua PM-1 Post-War 12 Volts Small steam locomotives
Top Right: Mantua #201 Pre-War 6-8 Volts Small steam locomotives
Bottom Left: Mantua #201 Pre-War 6-8 Volts Small steam locomotives
Bottom Right: Pittman DC-60 Used on some Varney F-3s & Docksides, also used on some small Penn line steam locomotives.
|
|
