 PVC engine cradle for repair work.
   All users can post NEW topics in this forum
   All users can reply to topics in this forum
 Printer Friendly
Author Previous Topic: it pays to tag sale Topic Next Topic: Paige Enterprises vintage HO Scale Logging Skidder

AMC_Gremlin_GT
Big Boy



GremlinBL2

Status: offline

 Posted - September 03 2013 :  8:16:29 PM Link directly to this topic  Show Profile  Send AMC_Gremlin_GT an AOL message  Send AMC_Gremlin_GT a Yahoo! Message  Add AMC_Gremlin_GT to Buddylist

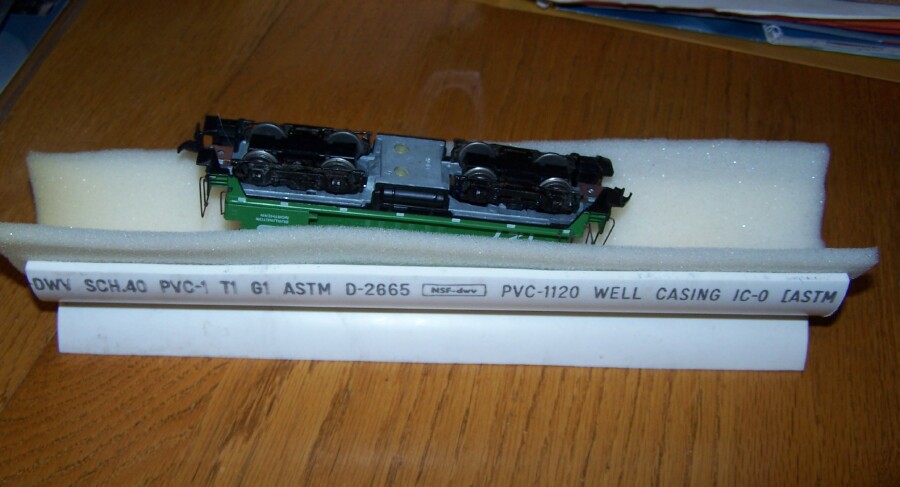

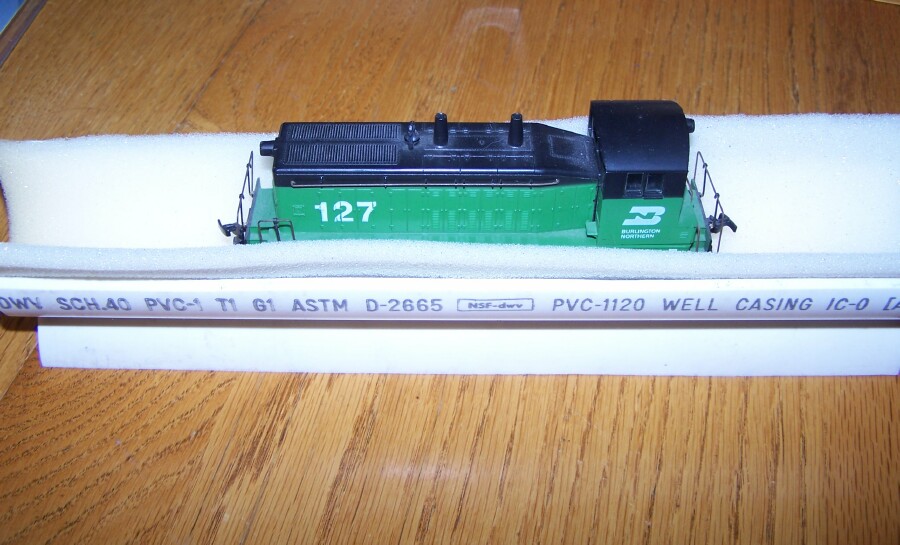

Since starting my new 2nd job as a model train repair tech, I decided I needed a cradle of sorts to hold the engines while bench-working on them. I had some wooden ones at home, but wasn't totally satisfied with them, and they're bulky. So, having oodles of 2" PVC in 2-foot lengths, I took some to regular work, cut them on the bandsaw, and proceeded to turn them into something useful, finally. here's my results, they work great for HO diesel and steam engines both. I made a long one (18 inches ) for large steam engines, and a 12 inch for regular diesels and smaller tooters. I bit of work on the drill press to make mounting holes, and it was finished in just a few minutes time. Nice to have that bandsaw, for sure, that made short work on the lengthwise cuts!

Jerry

" When life throws you bananas...it's easy to slip up"
 Country: USA  ~  Posts: 3974  ~  Member Since: January 04 2009  ~  Last Visit: January 11 2019 Alert Moderator

gmoney
Big Boy


SCRF 77

Status: offline

 Posted - September 03 2013 :  9:49:58 PM Link directly to this reply  Show Profile  Add gmoney to Buddylist
Is the base the leftover part cut off the cradle?
Glenn

I was thinking of the immortal words of Socrates, who said, "... I drank what?"
 Country: USA  ~  Posts: 1701  ~  Member Since: December 13 2008  ~  Last Visit: March 25 2026 Alert Moderator  Go To Top Of Page

AMC_Gremlin_GT
Big Boy



GremlinBL2

Status: offline

 Posted - September 03 2013 :  11:06:36 PM Link directly to this reply  Show Profile  Send AMC_Gremlin_GT an AOL message  Send AMC_Gremlin_GT a Yahoo! Message  Add AMC_Gremlin_GT to Buddylist
quote:
Is the base the leftover part cut off the cradle?

Originally posted by gmoney - September 03 2013 :  9:49:58 PM

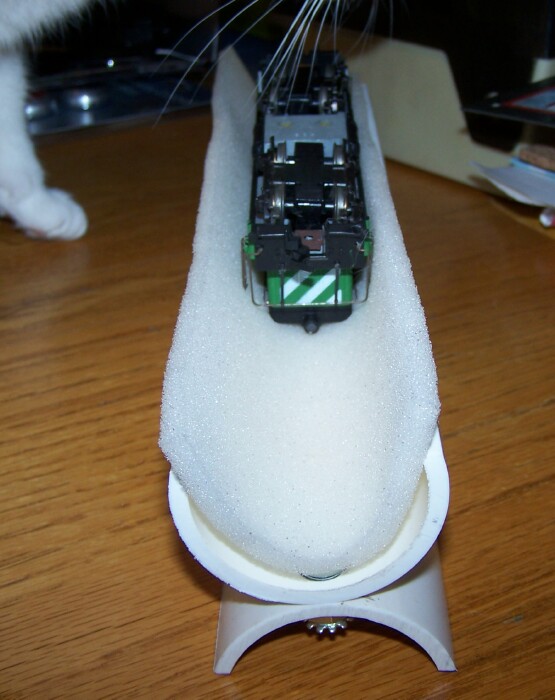

Ha ha! Good CATCH there! Yes, I reused 99.999% of the PVC, just didn't have any use for PVC dust shavings. I cut it just off dead-center, used the smaller part for the base, the larger for the cradle part. Minimum waste, maximum usage! Very stable, too, even the big diesels won't tip it over, it's got a wide enough base footprint to keep it steady. And not near as bulky as a 2x6 wooden base cradle I made. I drilled one end holding the top on the bottom piece, attached it with a bolt, then drilled the other one, so it kept it in place. Like I said, with a bandsaw and a drill press ( side by side ) I literally did this in minutes. Your results may vary.

Jerry
" When life throws you bananas...it's easy to slip up"
 Country: USA  ~  Posts: 3974  ~  Member Since: January 04 2009  ~  Last Visit: January 11 2019 Alert Moderator  Go To Top Of Page
