 Posted - August 14 2013 : 05:06:26 AM
|
Guys, check this out! The roundhouse must have been built with a VERY TIGHT radius front wall to need that many tracks "overlapping" YES! OVERLAPPING each other in the space from the turntable to the roundhouse!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
Country:  USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 14 2013 : 09:31:31 AM
|
A very short turntable, as that one appears to be, could necessitate overlapping tracks, or a very large roundhouse with a large number of stalls (and a large radius front wall). A very tight radius front wall would actually move the tracks further apart.
Glenn
I was thinking of the immortal words of Socrates, who said, "... I drank what?"
|
|
Country: USA ~
Posts: 1704 ~
Member Since: December 13 2008 ~
Last Visit: March 30 2026
|
Alert Moderator
|
|
|
|
Posted - August 14 2013 : 1:36:38 PM
|
That is a 4-10-0 on the turntable. Gobernador is a province in Spain, and a name for a 4-10-0 engine. The Central Pacific had the only North American example.
http://en.wikipedia.org/wiki/4-10-0
Regards, John **********************************************
One of my favorite philosophical tenets is that people will agree with you only if they already agree with you. You do not change people's minds. <> Frank Zappa
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - August 14 2013 : 2:44:30 PM
|
Glenn,
Now, wouldn't the roundhouse front wall being more curved (tight radius) would make the need for more tracks as that turn table is around 70 feet in length.....So, with a tight radius front wall on the roundhouse, and ALOT of stalls all together, would create the need for the cross over type tracks between the turntable and roundhouse.....
Spacing I do believe would need to be adjusted, spacing being, the distance from the turntable, to the roundhouse.....Either way, its an odd one!
That's A LOT going on, between a turntable and a roundhouse, need-less-to-say!!!!!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
Edited by - EM-1 on August 14 2013 2:53:23 PM
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 14 2013 : 8:22:45 PM
|
Ahhh!! All the white... it's blinding!
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - August 14 2013 : 8:34:04 PM
|

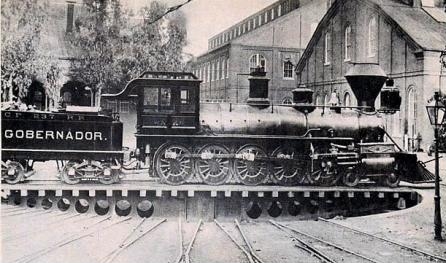

from a photo-shop chop...
Better, Nickle Plate?
John
I don't have a one track mind. It depends on the turn-out.
"I love your catenary!"
Is that a power-trip or just another pick-up line?
|
Country:  Canada ~
Posts: 1124 ~
Member Since: December 15 2006 ~
Last Visit: January 30 2023
|
Alert Moderator
|
|
|
|
Posted - August 14 2013 : 8:40:37 PM
|
Thanks much. Now I don't have to cover my eye-holes.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - August 15 2013 : 02:54:57 AM
|
Sorry guys! That's how I found it!
Interesting rail set up huh?
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 15 2013 : 3:37:22 PM
|
quote:Glenn,
Now, wouldn't the roundhouse front wall being more curved (tight radius) would make the need for more tracks as that turn table is around 70 feet in length.....So, with a tight radius front wall on the roundhouse, and ALOT of stalls all together, would create the need for the cross over type tracks between the turntable and roundhouse.....
Spacing I do believe would need to be adjusted, spacing being, the distance from the turntable, to the roundhouse.....Either way, its an odd one!
That's A LOT going on, between a turntable and a roundhouse, need-less-to-say!!!!!
Originally posted by EM-1Â -Â August 14 2013Â :Â 2:44:30 PM
|
John,
Let's assume we have a half-circle roundhouse, and that that fact never changes. The tighter the radius of the front wall, the closer it would have to be to the turntable, and thus the shorter it would have to be, and the shorter it is, the fewer stalls it could contain, so fewer tracks running to the turntable from that half-circle roundhouse, so they will be spaced further apart around that half-circle. An illustration would help, but I don't have access to any such software at the moment.
To get a larger number of tracks within that half-circle, we have to make the front wall longer to accommodate more stall doors, and to make it longer we have to move it away from the turntale, thus increasing it's radius.
That's probably as clear as mud!
Glenn
I was thinking of the immortal words of Socrates, who said, "... I drank what?"
|
|
Country: USA ~
Posts: 1704 ~
Member Since: December 13 2008 ~
Last Visit: March 30 2026
|
