 Posted - July 03 2013 : 09:31:10 AM
|

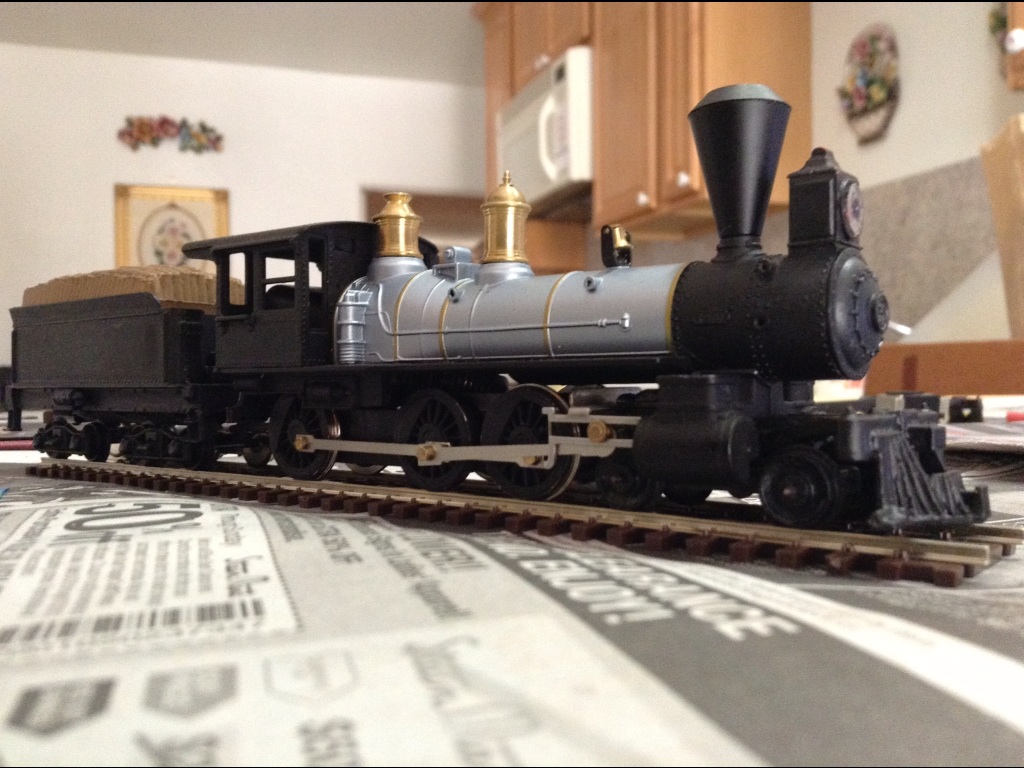

This is my 1994 Mantua Rogers 4-6-0 named Oswald. The smokebox front was (graciously) donated by a Tyco "Spirit of '76" locomotive which I had gutted for parts. Yesterday, I took apart Oswald's rods to give her drivers a fresh coat of black and to cover up her chrome tyres from the sides. She is on a chassis from the Spirit of 76 since her original fell and broke a pilot step off. When I put her back together, her wheels kept jamming more than a Bob Marley concert, even after her rod screws and motor were checked over. A worrying thing is that for the "76" chassis, the rear and middle brass holders kept falling out. Is this a common problem, the jamming, or could it be the holder plates? Please respond quickly.
"And it will all be surrounded by a train"
- Walt Disney
|
Country:  USA ~
Posts: 33 ~
Member Since: July 03 2013 ~
Last Visit: May 25 2021
|
Alert Moderator
|
|
|
|
Posted - July 03 2013 : 10:41:15 AM
|
Reymond,
Sounds like you might have a brass bearing those little "U" shaped parts touching the inside of the drivers.....OR they have a bad burr on them, have a closer look and see if there is a centering nub on the frame, and a hole in the brass "U" shaped bearings, this is to hold them in place....
IF not this, try loosening the motor screw, and see if it rolls with the motor worm gear making NO contact with the driver gear.....Miss-alignment of this can and will cause the whole unit to bind up.
IF it still binds, then be sure to check the siderod bolts, that they aren't hitting the siderod screws! IF one is turning itself out, a rivet in the side rods could be hitting as well as a siderod itself! Adjust/tighten as needed, DO NOT overtighten tho!
Any of this doesn't help, you might need a new worm gear on the motor, OR a new driver with a idler gear on it.
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - July 03 2013 : 11:11:59 AM
|
To make it a bit clearer, when I hold Oswald, like, a little bit over the track, she can spin fine, but when I set her down, she jams. Anyone have this added problem?
"And it will all be surrounded by a train"
- Walt Disney
|
|
Country: USA ~
Posts: 33 ~
Member Since: July 03 2013 ~
Last Visit: May 25 2021
|
Alert Moderator
|
|
|
|
Posted - July 03 2013 : 11:29:23 AM
|
Rey,
Sounds like you got a gearing issue....When held up no weight on the drivers she spins fine! Add weight which puts pressure on the gearing it jams up.....Look at the gearing and see if it might have a worn gear!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - July 03 2013 : 6:36:18 PM
|
Crisis averted! Brought her down to the Original Whistle Stop in Pasadena and turns out it's a short from a snapped wire leading to the headlight (which I apparently need to sauter). Thank you for the advice though, I'll keep it in mind if she acts up again.
"And it will all be surrounded by a train"
- Walt Disney
|
|
Country: USA ~
Posts: 33 ~
Member Since: July 03 2013 ~
Last Visit: May 25 2021
|
Alert Moderator
|
|
|
blaneo
Switcher
.JPG)
Status:
offline
| |
Posted - July 04 2013 : 9:34:26 PM
|
That is one good looking loco!
Blane is the name,
Trains are the game.
|
|
Country: USA ~
Posts: 96 ~
Member Since: December 03 2012 ~
Last Visit: June 24 2019
|
Alert Moderator
|
|
|
|
Posted - July 04 2013 : 9:58:57 PM
|
quote:That is one good looking loco!
Originally posted by blaneo - July 04 2013 : 9:34:26 PM
|
Yes I super agree But I still wants one
|
|
Country: USA ~
Posts: 15010 ~
Member Since: February 23 2009 ~
Last Visit: March 20 2026
|
Alert Moderator
|
|
|
|
Posted - July 04 2013 : 11:18:23 PM
|
Reymond, she looks great in that paint job. I can't imagine how the brass bearings could fall out, tho, short of the bottom plate being very loose.
Btw, are you one of Hyde's buddies? He's close to you, and says "sauter" also.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - July 05 2013 : 10:39:18 AM
|

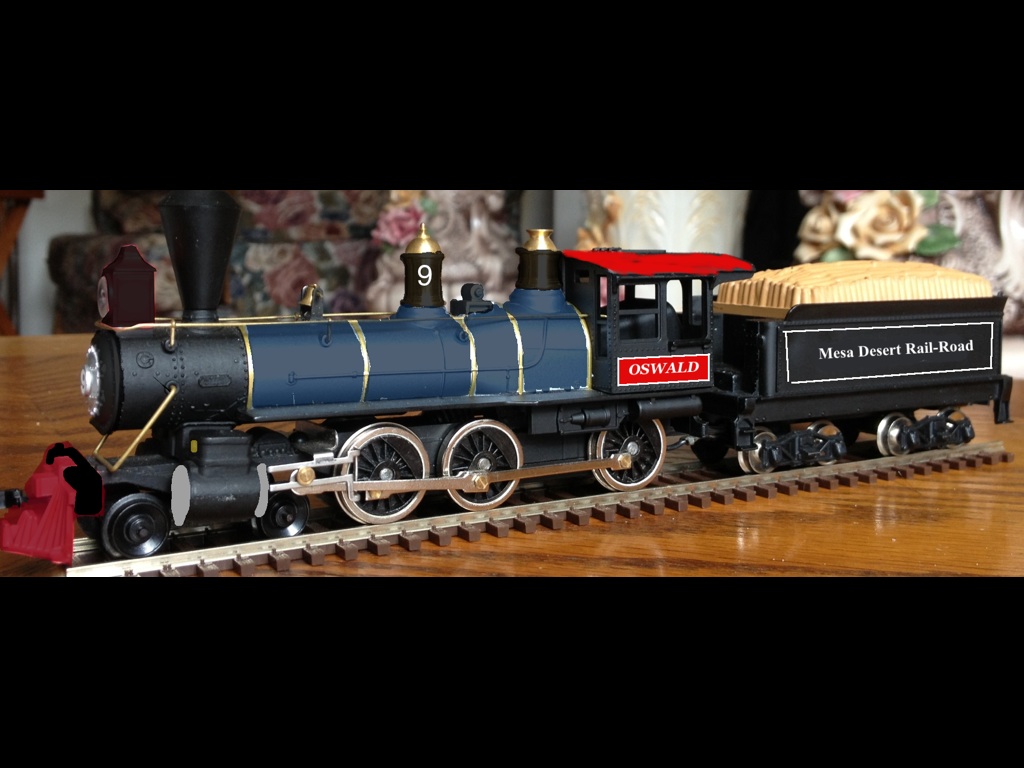

To 759, fraid not, and also, her paintjob's not finished yet. By the end of summer, I want her to look like this:
"And it will all be surrounded by a train"
- Walt Disney
|
|
Country: USA ~
Posts: 33 ~
Member Since: July 03 2013 ~
Last Visit: May 25 2021
|
Alert Moderator
|
|
|
blaneo
Switcher
Status:
offline
| |
Posted - July 05 2013 : 10:59:44 AM
|
Oh! Nice colors.
Blane is the name,
Trains are the game.
|
|
Country: USA ~
Posts: 96 ~
Member Since: December 03 2012 ~
Last Visit: June 24 2019
|
Alert Moderator
|
|
|
|
Posted - July 05 2013 : 8:08:38 PM
|
quote:Reymond, she looks great in that paint job. I can't imagine how the brass bearings could fall out, tho, short of the bottom plate being very loose.
Btw, are you one of Hyde's buddies? He's close to you, and says "sauter" also.
Originally posted by NickelPlate759Â -Â July 04 2013Â :Â 11:18:23 PM
|
Nelson,
You know, I have one painted like this, with "B&O" in delux gold on the tender for lettering AND cab number! I always thought that was a great paint scheme!
Cab number on mine is 1366.....I painted it as when I got it, was painted in red oxide primer, nothing more and needed finished so.....That was back in a day when I remember seeing the same loco 4-6-0, painted in B&O in blue and silver, as the Dixie Belle, by Mantua! I think, mine is TYCO.
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - July 06 2013 : 11:00:54 AM
|
quote: quote:Reymond, she looks great in that paint job. I can't imagine how the brass bearings could fall out, tho, short of the bottom plate being very loose.
Btw, are you one of Hyde's buddies? He's close to you, and says "sauter" also.
Originally posted by NickelPlate759Â -Â July 04 2013Â :Â 11:18:23 PM
|
Nelson,
You know, I have one painted like this, with "B&O" in delux gold on the tender for lettering AND cab number! I always thought that was a great paint scheme!
Cab number on mine is 1366.....I painted it as when I got it, was painted in red oxide primer, nothing more and needed finished so.....That was back in a day when I remember seeing the same loco 4-6-0, painted in B&O in blue and silver, as the Dixie Belle, by Mantua! I think, mine is TYCO.
/tyco/forum/uploaded/EM-1/B30_1366_Shop_004.jpg
/tyco/forum/uploaded/EM-1/B30_1366_Shop_002.jpg
Originally posted by EM-1Â -Â July 05 2013Â :Â 8:08:38 PM
|
With mine, I was gonna paint it a really gaudy colour scheme similar to this -> http://omega-steam.deviantart.com/art/Oswald-In-MDRR-Drab-and-Decor-373833163?q=gallery%3Aomega-steam%2F25057678&qo=9 <- but it would have been too complicated, so I got some advice from a friend who modeled the Western and Atlantic and he said the current WIP scheme would be better as a turn of the century scheme, which I'm modelling (around 1911, to be exact)
"And it will all be surrounded by a train"
- Walt Disney
|
|
Country: USA ~
Posts: 33 ~
Member Since: July 03 2013 ~
Last Visit: May 25 2021
|
Alert Moderator
|
|
|
|
Posted - September 14 2013 : 9:20:13 PM
|
quote:
This is my 1994 Mantua Rogers 4-6-0 named Oswald. The smokebox front was (graciously) donated by a Tyco "Spirit of '76" locomotive which I had gutted for parts. Yesterday, I took apart Oswald's rods to give her drivers a fresh coat of black and to cover up her chrome tyres from the sides. She is on a chassis from the Spirit of 76 since her original fell and broke a pilot step off. When I put her back together, her wheels kept jamming more than a Bob Marley concert, even after her rod screws and motor were checked over. A worrying thing is that for the "76" chassis, the rear and middle brass holders kept falling out. Is this a common problem, the jamming, or could it be the holder plates? Please respond quickly.
Originally posted by ReymondSt.James - July 03 2013 : 09:31:10 AM
|
I had the same problem when I rebuilt my 4-8-0. Turne out to be a siderod scrfew had tightened up and wouldn't let the rear wheels turn free, which of course transmitted to the rest of the mechanism. My solution was a brass spacer of a type that I found at WalMart. They are about 5/64OD, and work perfectly. As soon as I installed one on the offending crank screw, the problem was solved. If you can't find them at WM, send me your address via Email, and I'll send you some.
RBNicholson
RBNicholson
|
|
Country: USA ~
Posts: 96 ~
Member Since: September 12 2013 ~
Last Visit: November 19 2013
|
Alert Moderator
|
|
