babuff
Little Six
Status:
offline
| |
 Posted - May 16 2013 : 9:21:12 PM
|

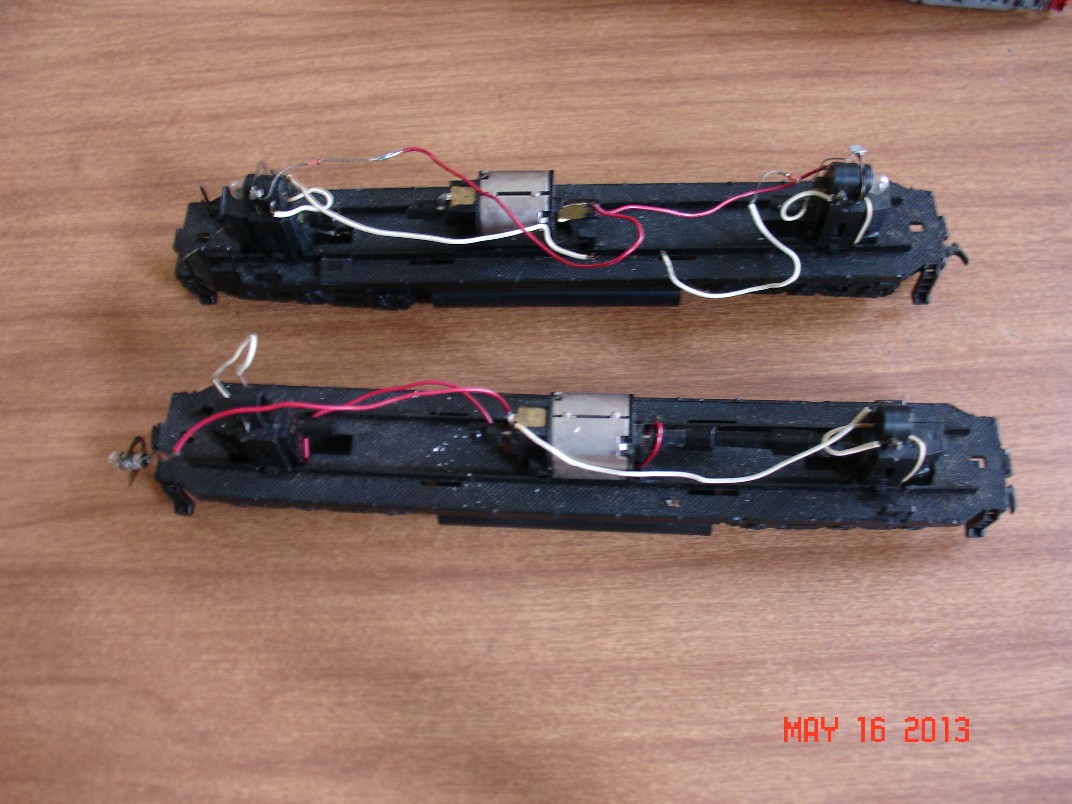

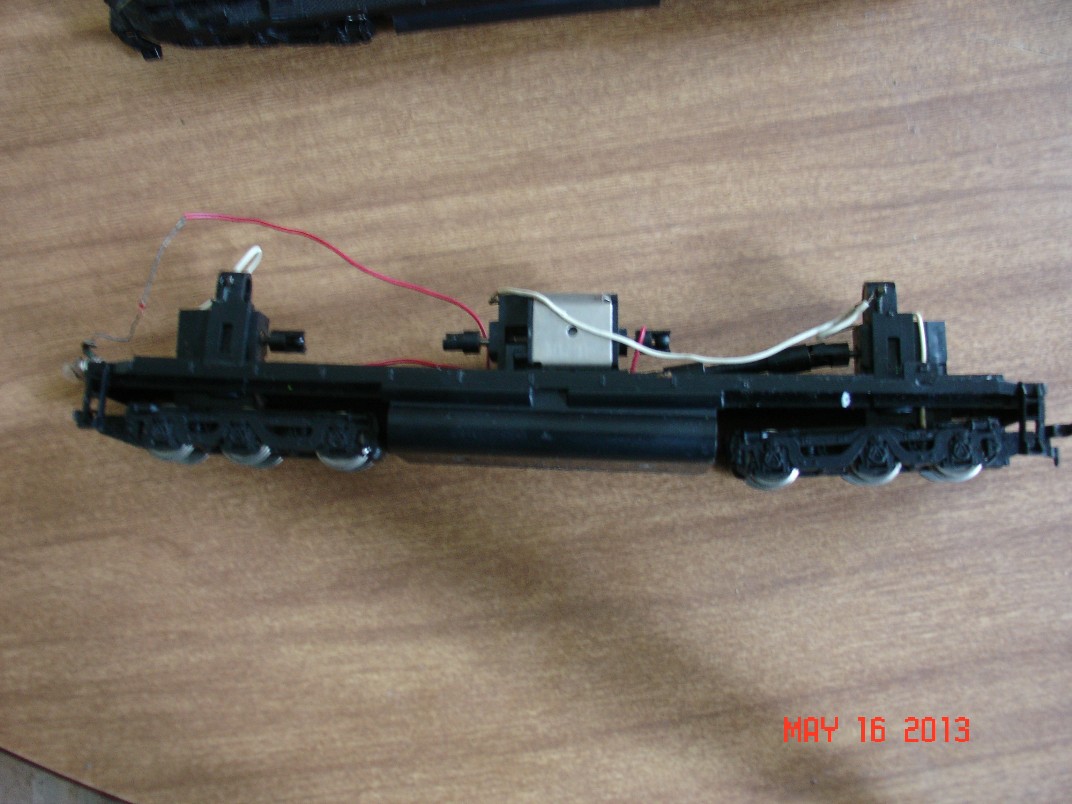

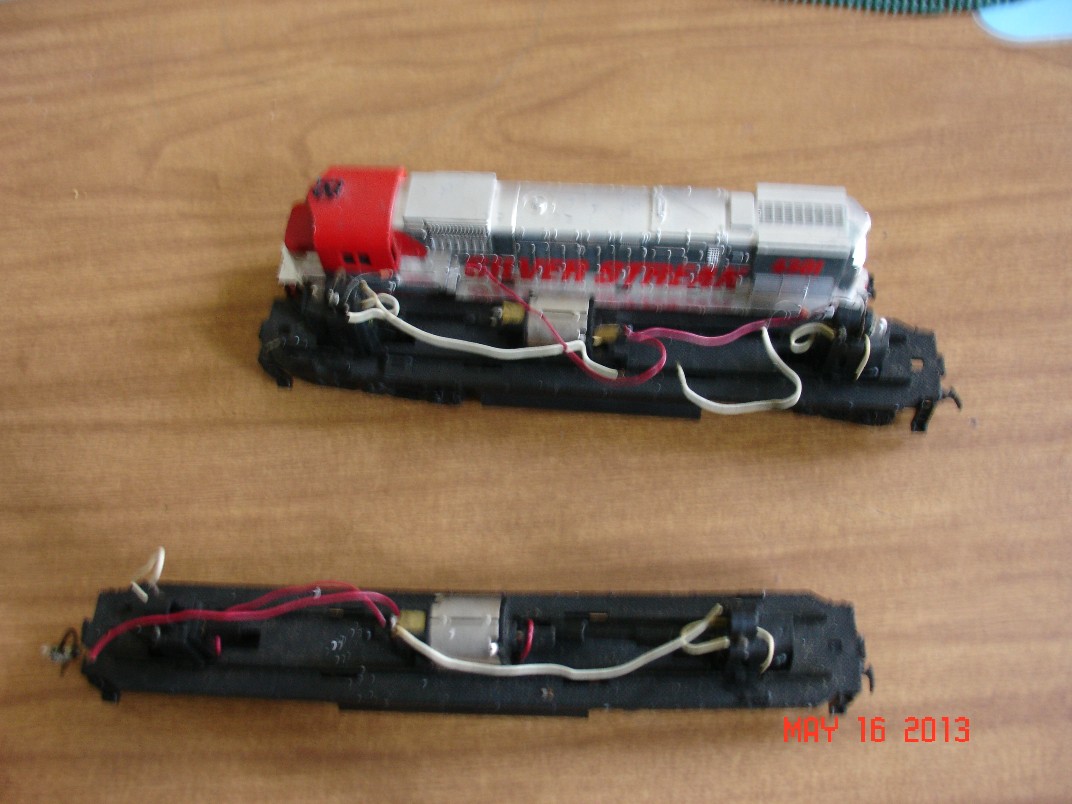

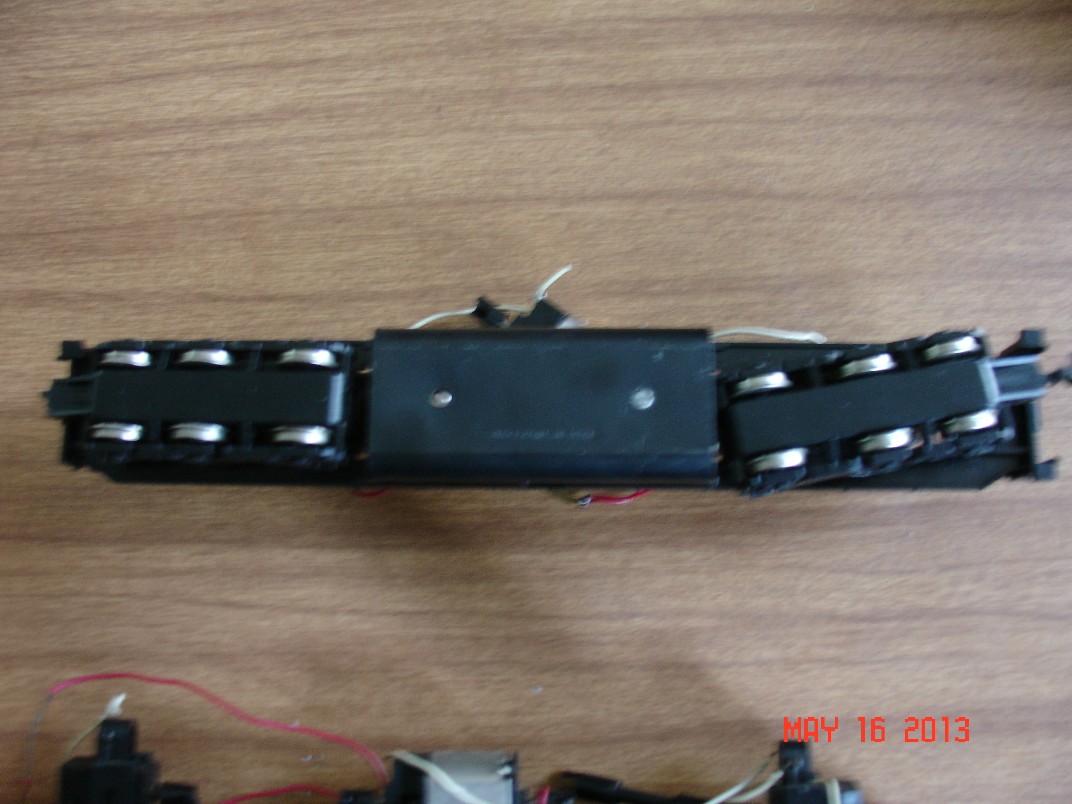

recently aquired these at a tag sale not certain who made them and what engine they are for
they are longer than a 630 and scale out at 47ft end sill to end sill
they have the ubiquitous made in yugoslavia and noting more
any help would be greatly appreciated
|
Country:  USA ~
Posts: 185 ~
Member Since: April 16 2013 ~
Last Visit: March 30 2015
|
Alert Moderator
|
|
|
|
Posted - May 16 2013 : 9:26:00 PM
|
Mehano Alco 628.
http://www.ho-scaletrains.net/ahmhoscalelocomotives/id19.html
They were sold by a number of companies over the years.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
babuff
Little Six
Status:
offline
| |
Posted - May 16 2013 : 10:09:51 PM
|
thanks nickleplate I went to hoseeker and the only thing I could find was a blurred instruction sheet for it. I did find a better one for a MEHENO sd40 that was a little better. would like to rebuild these but parts may be a problem. for starters one of the motors is missing a brush and spring. I suppose I could improvise I checked out the MEHENO web site and the appear to only sell train sets and no parts. well I will set these aside for now , a good kit bashing project
|
|
Country: USA ~
Posts: 185 ~
Member Since: April 16 2013 ~
Last Visit: March 30 2015
|
Alert Moderator
|
|
|
|
Posted - May 17 2013 : 12:01:28 AM
|
You might look at HOSeeker Model Power diesel diagrams. It appears that they use the same motor. The RS11, RS2 & others use this motor. I believe that the model power F2 may use a updated motor that may fit the same mounting. I have not verified that this motor is a drop in replacement. Good Luck!
Regards,
John
*******************************************************************************
It is possible to fly without motors, but not without knowledge and skill. <> Wilbur Wright
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - May 17 2013 : 10:29:26 AM
|
| I have some of the parts you are missing. I have a spare shell and motors. Send me a PM for details!
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: September 19 2025
|
Alert Moderator
|
|
|
|
Posted - May 17 2013 : 1:22:47 PM
|
Unfortunately the key parts on these are the driveshafts - I just cobbed one back together a while back. They're unique to these locomotives. Without those, all you have is some spare parts. But then with the handrails smashed off that's all they're good for anyways.
The motor is fully interchangeable with GP18, later RS11 and RS2, and the SD40-2, if you change the couplings on the ends. Later Premier versions of this loco they changed the motor and mounting somewhat. The gears in the trucks are also interchangable with some of the gears in the other locomotives. Truck clips are unique (I still need one).
|
|
Country: USA ~
Posts: 956 ~
Member Since: January 27 2008 ~
Last Visit: May 27 2016
|
Alert Moderator
|
|
|
babuff
Little Six
Status:
offline
| |
Posted - May 22 2013 : 4:40:02 PM
|
I have a complete drive shaft on one of them. many thanks to Hypoponera for the parts I need to get 1 up and running
I was not sure if the gears were interchageable with my RS2 I had found somebody on EBAY who had a huge collection of parts on their e store. Sorry IVRR325 didn't see any truck clips but will keep an eye out when I go to the train show next weekend
|
|
Country: USA ~
Posts: 185 ~
Member Since: April 16 2013 ~
Last Visit: March 30 2015
|
Alert Moderator
|
|
|
|
Posted - May 22 2013 : 4:52:54 PM
|
Most of the 4 wheel and 6 wheel trucks have interchangable parts. I just wish a gear reduction kit was made for these! I say go ahead and add all-wheel pick up to. The wheels are on a insulated axle so no shorts will occur.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: January 16 2026
|
Alert Moderator
|
|
|
|
Posted - May 22 2013 : 7:42:33 PM
|
quote:I just wish a gear reduction kit was made for these!
Originally posted by Redneck Justin - May 22 2013 : 4:52:54 PM
|
There is: a pair of Atlas Alco worms. They cut the speed in half.
http://www.tycoforums.com/tyco/forum/topic.asp?TOPIC_ID=10552
No one has them on eBay right now. Atlas lists worms for the RS-1, but there's no picture so I can't be sure they are the same.
https://secure.atlasrr.com/mod1/itemdesc.asp?ic=9810305&eq=&Tp=
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - May 23 2013 : 09:08:01 AM
|
| Watch out for those Atlas worms! I tried the plastic Atlas worms in Mehano trucks. They don't fit! So I now have a bunch of the Atlas worms that I can't use. Stick with the hard to find brass worms. These are made by Kato and sold under both the Kato name as well as the Atlas name.
|
|
Country: USA ~
Posts: 715 ~
Member Since: May 03 2006 ~
Last Visit: September 19 2025
|
Alert Moderator
|
|
|
babuff
Little Six
Status:
offline
| |
Posted - May 25 2013 : 10:16:49 PM
|
| thanks for the heads up I was toying with the idea of trying the atlas worms. I know that NWSL has metal reduction sets for AHM steam engines, but diesels? would have to check the specs. really close
|
|
Country: USA ~
Posts: 185 ~
Member Since: April 16 2013 ~
Last Visit: March 30 2015
|
Alert Moderator
|
|
|
|
Posted - May 26 2013 : 12:33:53 AM
|
Here's another thread on the subject, and a link to Darth's MR thread about it. He used a different model worm that is smaller diameter and quite a bit shorter, as you'll see in the pics.
http://www.tycoforums.com/tyco/forum/topic.asp?TOPIC_ID=7598
http://cs.trains.com/mrr/f/88/t/57323.aspx
The Atlas part description is "ATLAS Alco Worm & Shaft 707315," but they don't seem to be available anymore.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
