 Posted - May 01 2013 : 12:31:49 AM
|

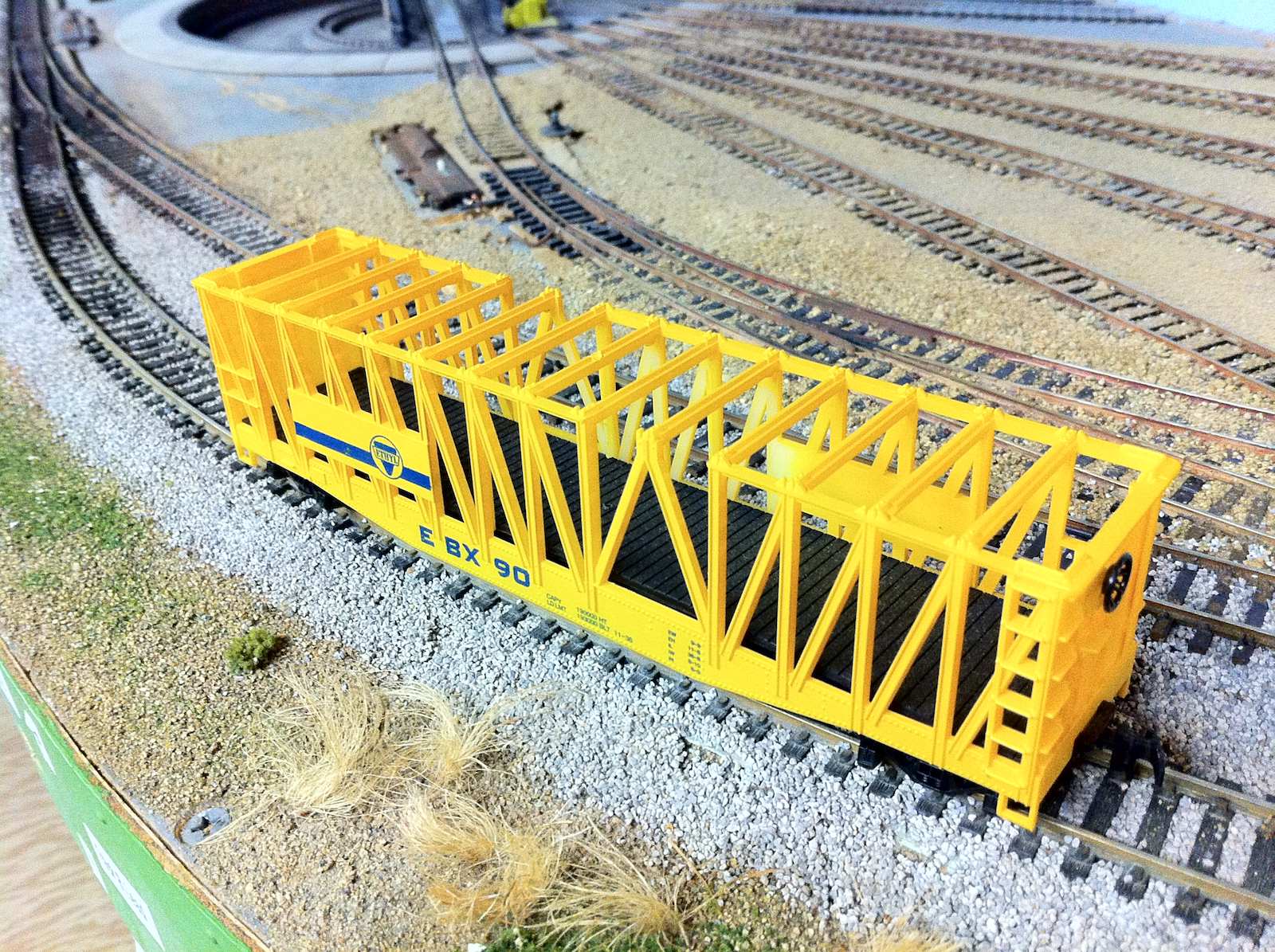

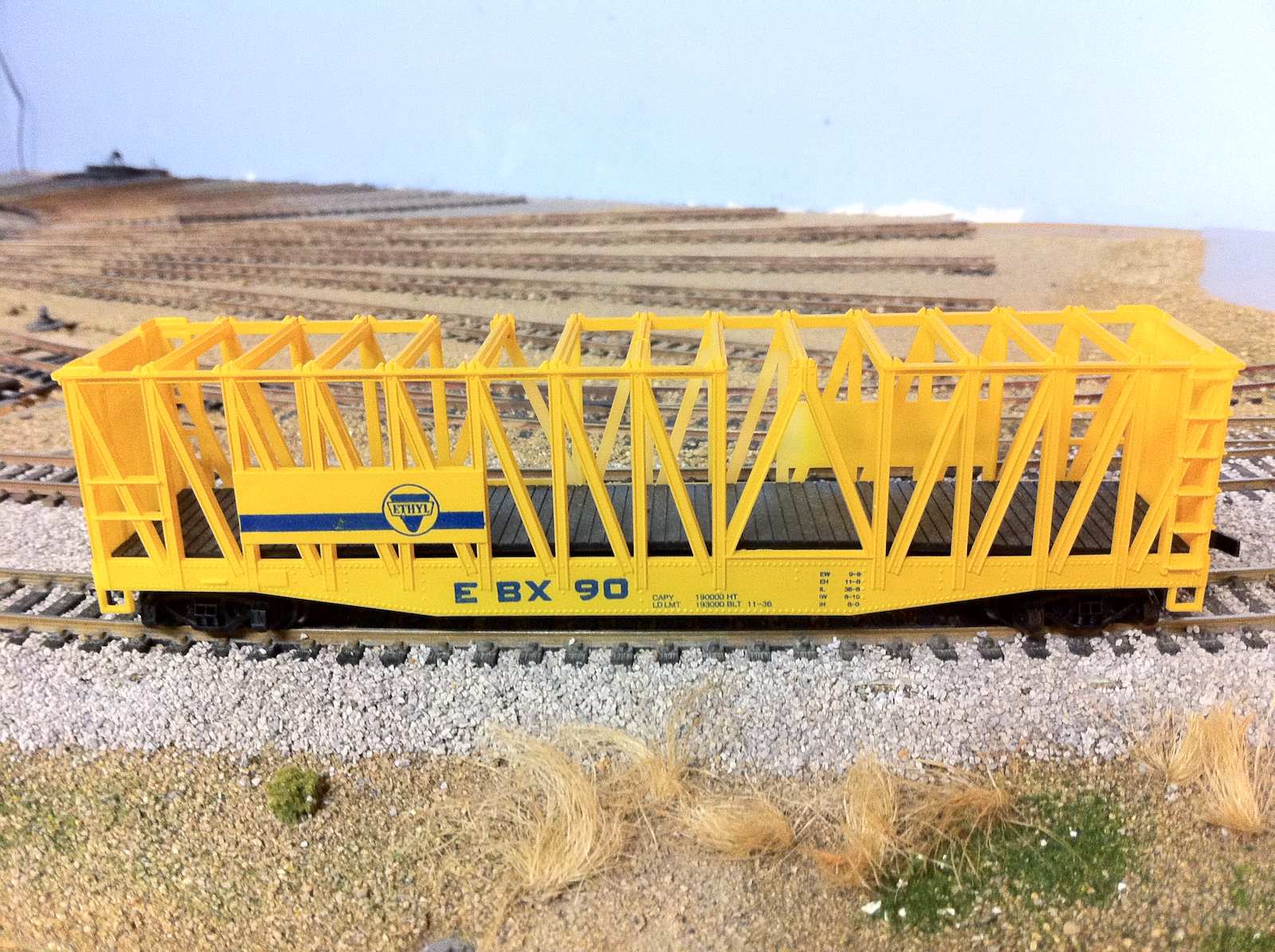

I know this is from AHM, but what kind of car is it? And how was freight loaded and unloaded from this thing?
Thanks!
-Thomas
|
Country:  USA ~
Posts: 1087 ~
Member Since: July 07 2011 ~
Last Visit: January 16 2026
|
Alert Moderator
|
|
|
|
Posted - May 01 2013 : 01:34:28 AM
|
Container car. Holds canisters (tanks) of..stuff. Inn that case, Ethyl.
Protects the tanks from damage in the event of a.....derailment.
|
Country:  United Kingdom ~
Posts: 350 ~
Member Since: April 26 2013 ~
Last Visit: May 18 2024
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 06:41:20 AM
|
| I have the same/similar car in the box by Bachmann and they want to call it a pulpwood car.
|
|
Country: USA ~
Posts: 956 ~
Member Since: January 27 2008 ~
Last Visit: May 27 2016
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 11:29:39 AM
|
neat car I need to find one of them
|
|
Country: USA ~
Posts: 14990 ~
Member Since: February 23 2009 ~
Last Visit: January 16 2026
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 9:36:12 PM
|
I have one that looks like that. It has a load of logs in the cage.
Like this one >>> http://ho-scaletrains.net/bachmannhoscalerollingstock/id62.html
|
|
Country: USA ~
Posts: 37 ~
Member Since: March 23 2013 ~
Last Visit: December 30 2025
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 10:21:10 PM
|
Ethyl Corporation, EBX reporting marks.......yeah, you could put anything IN that car. Hogs, too, probably.
http://www.matts-place.com/intermodal/part2/images/tanks/eidu0000717.jpg
http://www.matts-place.com/intermodal/part2/images/tanks/etnu1500093.jpg
http://www.matts-place.com/intermodal/part2/images/tanks/aocu0308751.jpg
http://www.matts-place.com/intermodal/part2/images/tanks/secs1221120.jpg
Since the AHM cars shown is "vintage", before containers, I would bet that's how they did it, load loose vessels inside it like the first photo.
Nowadays, as you can see, they are drop-in to trailers or container train flats...or ships.
Since the model did not come with appropriate loads, well, just tell folks when they went to containerization, they "re-purposed" the car!
Dave
|
|
Country: United Kingdom ~
Posts: 350 ~
Member Since: April 26 2013 ~
Last Visit: May 18 2024
|
Alert Moderator
|
|
|
|
Posted - May 03 2013 : 02:06:24 AM
|
No, you were right, it was called a "Container Carrier" -
http://www.ho-scaletrains.net/ahmhoscalefreightcars/id93.html
quote:AHM's Container Carrier appears to be built from the ACF prototype. ACF's RD-52 constructed at the company's Huntington plant during the late 1950s and into the early 1960s. The prototype road on 70-ton trucks, similar to those found on the AHM model. The prototype Container Carrier featured the large side name plates, as found on the AHM car. The car carried removable round chemical tanks. Information regarding the prototype and a picture of a Du Pont example may be found in Signature Press' book "American Car & Foundry" by Ed Kaminski.
The AHM Container Carrier was produced by Roco in Austria. The underframe, which is shared with the AHM Pulpwood Rack Car, includes the Roco diamond logo and Austria markings. Roco produced a similar model in N scale and it was sold by Aurora's Postage Stamp line and later other companies. |
|
|
Country: USA ~
Posts: 956 ~
Member Since: January 27 2008 ~
Last Visit: May 27 2016
|
Alert Moderator
|
|
|
|
Posted - May 03 2013 : 1:26:59 PM
|

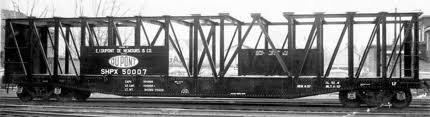

Thanks to all of you for your wisdom. These apparently were very rare. With your input I finally tracked down a pic of a similar car DUPX50021.
http://www.trainboard.com/railimages/showphoto.php/photo/61033/title/dupx50021-special-flat/cat/500
It shows a container and a hint of how it was loaded. Apparent the top beams could be lifted out and the containers were dropped in, presumbably with a crane of some sort.
Now I need to make some containers out of styrene and load up my model.
-Thomas
Edited by - Redwoods on May 03 2013 1:29:11 PM
|
|
Country: USA ~
Posts: 1087 ~
Member Since: July 07 2011 ~
Last Visit: January 16 2026
|
Alert Moderator
|
|
|
|
Posted - May 03 2013 : 2:04:52 PM
|
Here's another picture, but without containers:
|
|
