 Posted - December 25 2012 : 09:58:46 AM
|

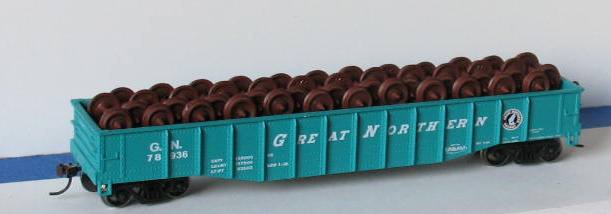

I have been converting my cars to metal wheels for most of this year and will not finish that project for quite some time. Instead of discarding the old wheels, I have been keeping them, hoping to do a wheel load for a flat car or gondola car.
The opportunity came up with the right gondola and I used "Doc Wayne's" images from the Model Railroader forum as inspiration. What I didn't realize was that he used the Tichy wheel load set (about $10.00), and not cast off wheels.

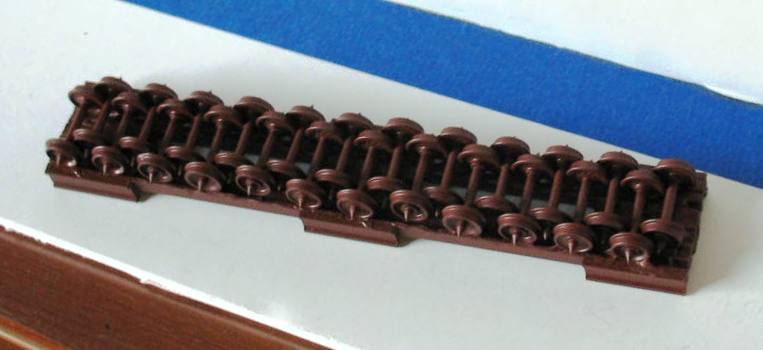

I made a carrying rack from H channel plastic beams and then tried to attach wheels- that's where my heartaches began. The acetal plastic of the wheels knows no adhesive it cannot defeat, but I found that "Amazing Goop", either the household or arts & crafts blend (clear) was the right thing. It does not bond the delrin/acetal plastic per se, but forms a strong non-pliable grip that works well.
I didn't grind down the points, because that would have made this a chore, not a project, and the entire load looks good enough for me. I painted the load in Rustoleum primer red after the glue set in, an then dull-coated it. I may return to this and air brush model master rust on it, but much later on, when I feel more confident about weathering techniques.
The load is removable, to enable change out with other loads being built.
Siouxlake Ron
|
Country:  USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - December 25 2012 : 2:08:30 PM
|
Don't think I ever seen them hauling wheels in a gondola Mostly I see is flatcars
But great idea
|
|
Country: USA ~
Posts: 15015 ~
Member Since: February 23 2009 ~
Last Visit: April 05 2026
|
Alert Moderator
|
|
|
|
Posted - December 25 2012 : 7:17:29 PM
|
quote:Don't think I ever seen them hauling wheels in a gondola Mostly I see is flatcars
But great idea
Originally posted by microbusss - December 25 2012 : 2:08:30 PM
|
That's so they don't roll off the flatcar. Must have a chain shortage on the GN.  Throw'em in a gon and they're gone.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - December 25 2012 : 8:28:33 PM
|
Ron,
AGAIN, NICE WORK! Question, what size "H" channel did you use?
I made one for myself with a custom fitted flat car, but like the Gondola idea as well!
You ought to make another one, with new wheels.....and have a removable cover over them! Hmmmmmmm Interesting, thought I must say!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - December 25 2012 : 10:03:28 PM
|
I remember in the 70s the local steel mill always had a gondola loaded with wheels. But I beLIEve that these were "junk wheels" that was going to be melted down. I used that idea on my layout back then using the yellow Tyco UP gondola with the rusty load of wheels....
Walt
Luck, usually comes dressed in work clothes...
|
|
Country: USA ~
Posts: 6279 ~
Member Since: February 18 2009 ~
Last Visit: March 04 2022
|
Alert Moderator
|
|
|
|
Posted - December 26 2012 : 02:12:20 AM
|
John- the H channels are 3/16" x 24". I had them leftover from a structure build last summer and they looked like Doc Wayne's wheel rack that he showed on MR.
I might revisit a second project like this as I keep accumulating old wheels from my metal wheel conversions.
Did you mean Make a custom gondola cover, or use a covered gondola model?
I have the latter, but want to show them off. Maybe a second load on a flat car would increase visual interest more.
Ron
|
|
Country: USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - December 26 2012 : 02:14:48 AM
|
Walt- when I was up north two yrs ago, I saw plenty of rusty-looking wheels neatly arranged in two yards I went rail fanning at, and I am not sure if they were old stuff or spares for repair switch outs.
Ron
|
|
Country: USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - December 26 2012 : 09:35:38 AM
|
quote:John- the H channels are 3/16" x 24". I had them leftover from a structure build last summer and they looked like Doc Wayne's wheel rack that he showed on MR.
I might revisit a second project like this as I keep accumulating old wheels from my metal wheel conversions.
Did you mean Make a custom gondola cover, or use a covered gondola model?
I have the latter, but want to show them off. Maybe a second load on a flat car would increase visual interest more.
Ron
Originally posted by siouxlake - December 26 2012 : 02:12:20 AM
|
Ron, Thanks for the size of the "H" channel, I can buy that from Plastuct, or Evergreen Scale Models.....As I plan to add a few of these cars, to my fleet as well!
As for my "Covered Gondola" idea, add the wheel load, and make the roof or "Cover" removable! Add a short section of thin sheet metal in the bottom of the cover, and have a place to have a magnet that would pick it off the car, to show the load!
Simply put, looking at the current load, it looks AWESOME!
A little piece of knowledge, try using Walthers Goo, the next time to hold the wheels.......It doesn't stick, per se, but it will hold onto it kind of like hot glue would....."grabs" not adhere.
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - December 26 2012 : 09:59:42 AM
|

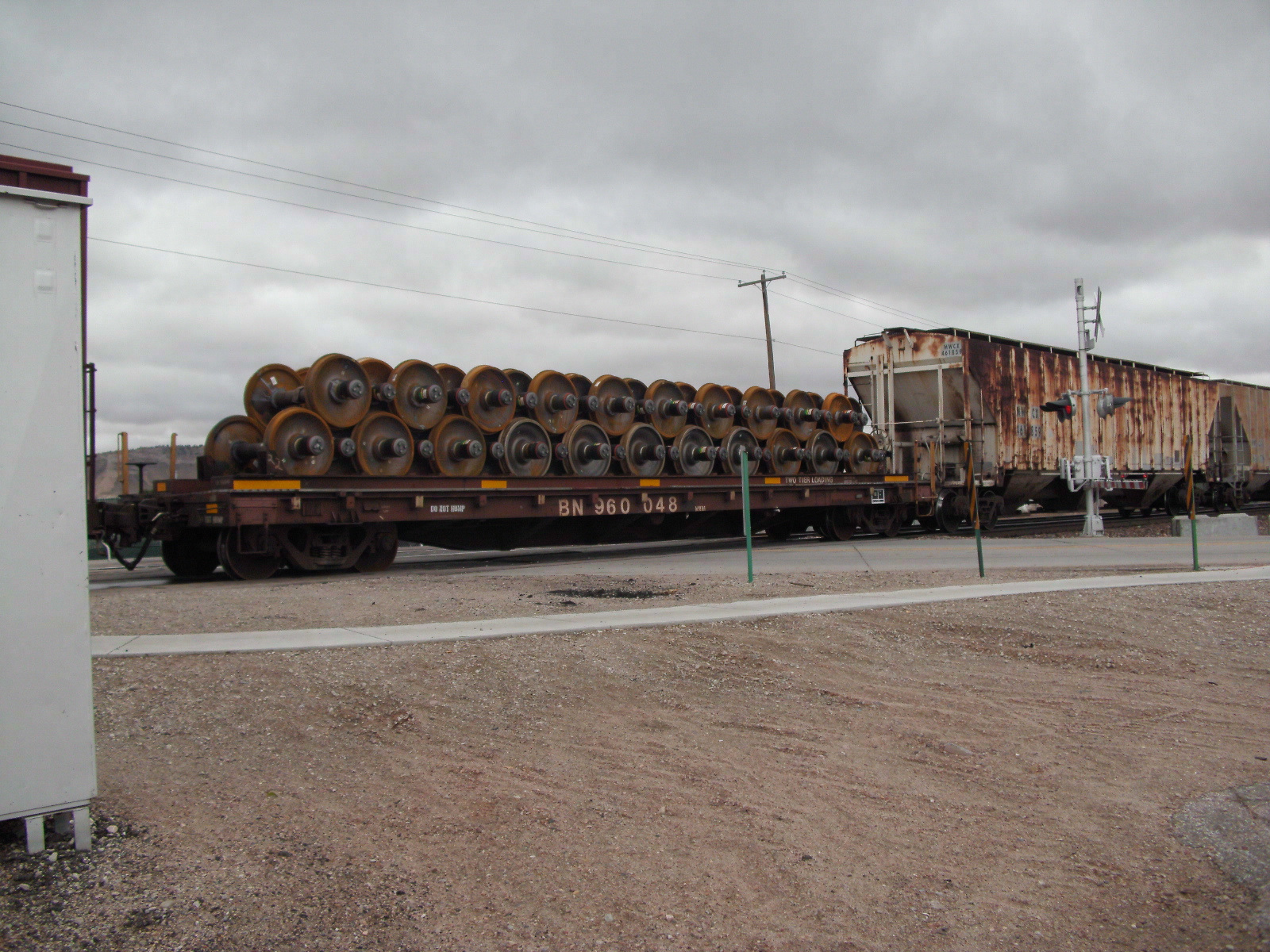

Here is PROOF that I sees wheels on FLATCARS
Took this either this year or last year sometime
Note how they are stacked
|
|
Country: USA ~
Posts: 15015 ~
Member Since: February 23 2009 ~
Last Visit: April 05 2026
|
Alert Moderator
|
|
|
|
Posted - December 26 2012 : 4:41:03 PM
|
Nice job, Ron. Doc Wayne's work is always inspiring. He's one of my favorite modelers, and a nice guy to boot.
Nice photo, Ben. Thankfully those are too heavy for you to snitch.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - December 27 2012 : 7:15:08 PM
|
OK you guys, where do I find this book with "Doc. Wayne" in it?
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - December 27 2012 : 8:59:02 PM
|
John: http://cs.trains.com/mrr/f/88/p/212777/2332508.aspx
Also: http://www.the-gauge.net/forum/viewtopic.php?f=35&t=1359
The Tyco Depot
Edited by - NickelPlate759 on December 27 2012 9:07:42 PM
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - December 28 2012 : 01:44:41 AM
|
Thanks Nelson, I'll have to see whats all there!
