 Posted - November 29 2012 : 7:05:08 PM
|
Hey guys. I wanted to get my (new in box) UPacific 4073 ready for some run time. Can anyone help me with how and what area to lubricate. I can't see how to gain access to motor very easily.
Thank you very much,
RTR
|
Country:  USA ~
Posts: 39 ~
Member Since: January 15 2011 ~
Last Visit: January 21 2014
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 7:43:54 PM
|

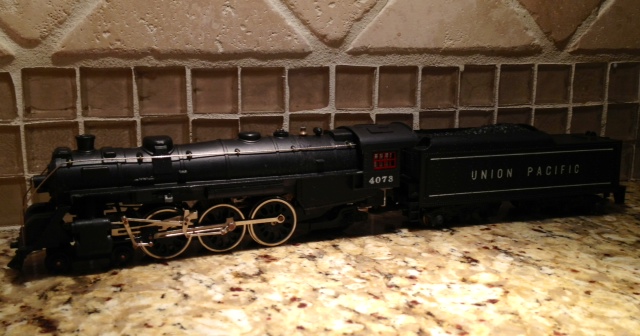

A picture of her
|
|
Country: USA ~
Posts: 39 ~
Member Since: January 15 2011 ~
Last Visit: January 21 2014
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 8:08:43 PM
|
All moving parts is what I say!  All the valve gear such as the piston rods, valve guides, rod screws and crankpins. Then Oil the axle where it meets the frame. Grease the gears, and you can use Labelle #107 on the armature shafts of the motor for even better performance and that'll do ya! If you need help locating all these parts and pin pointing where to lubricate let us know!
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 9:04:50 PM
|
thanks for the help.. if you can please help me locate to most important areas to oil that would be great quote:All moving parts is what I say! All the valve gear such as the piston rods, valve guides, rod screws and crankpins. Then Oil the axle where it meets the frame. Grease the gears, and you can use Labelle #107 on the armature shafts of the motor for even better performance and that'll do ya! If you need help locating all these parts and pin pointing where to lubricate let us know!
Originally posted by SCVR66Â -Â November 29 2012Â :Â 8:08:43 PM
|

Edited by - RollTycoRoll on November 29 2012 9:07:00 PM
|
|
Country: USA ~
Posts: 39 ~
Member Since: January 15 2011 ~
Last Visit: January 21 2014
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 9:13:56 PM
|

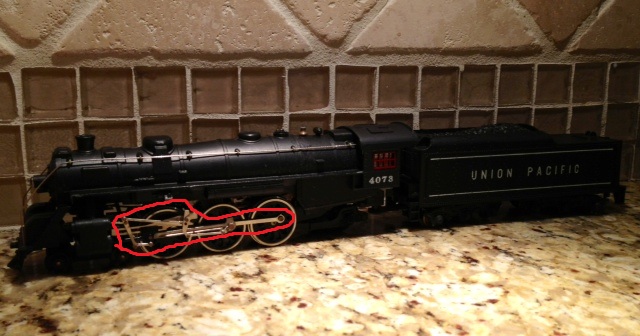

I crudely circled the important areas to oil. Every rods screw, basically everyhting that moves.
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 9:17:37 PM
|

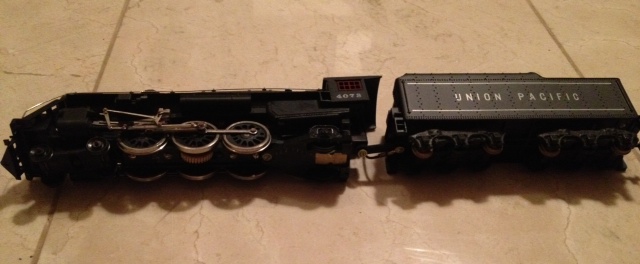

underneath view.. just cant tell what to remove first
Edited by - RollTycoRoll on November 29 2012 9:20:03 PM
|
|
Country: USA ~
Posts: 39 ~
Member Since: January 15 2011 ~
Last Visit: January 21 2014
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 9:25:09 PM
|
| Ok I really appreciate it, trying to get my 6 year old a smooth running train to go around the Xmas tree. Looks far easier for maintenance than I was expecting.. Thanks again!
|
|
Country: USA ~
Posts: 39 ~
Member Since: January 15 2011 ~
Last Visit: January 21 2014
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 9:25:14 PM
|

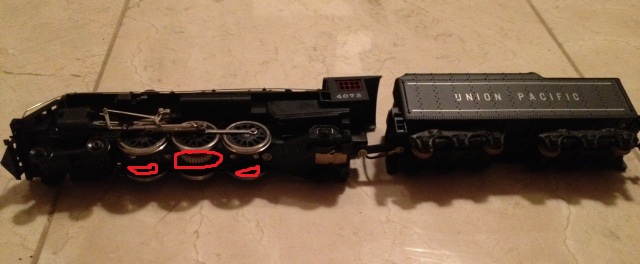

You don't have to remove the cover plate. You can just oil the axles where it touches the frame, simply by pushing the drivers to one side then the other.'
Reminder, Grease the drive gear!
and no problem! I'm a young guy too! I will have HO and O gauge trains around the tree this year! Last year I got creative and had a custom built HO loop inside the G scale loop! Was a lot of fun!
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
Edited by - SCVR66 on November 29 2012 9:27:21 PM
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - November 29 2012 : 11:22:44 PM
|
I think I should get creative with the tree layout then.. instead of a loop. Thanks again for helping us.
RTR
|
|
Country: USA ~
Posts: 39 ~
Member Since: January 15 2011 ~
Last Visit: January 21 2014
|
Alert Moderator
|
|
|
|
Posted - November 30 2012 : 10:27:12 AM
|
No problem! Always here to help.
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - November 30 2012 : 2:05:34 PM
|
RTR, SCVRR is right, just go sparingly with the oil, otherwise it will work it's way down to the rails. A pen oiler with a needle tip is best, but you can put a small drop on the tip of a toothpick as well. You can reach the motor bearings without removing the boiler, but oil sparingly, especially the front bearing.
Here are some diagrams so you can see under the hood. The boiler is very easy to remove with just the screw in the stack, and the 2 under the cab.

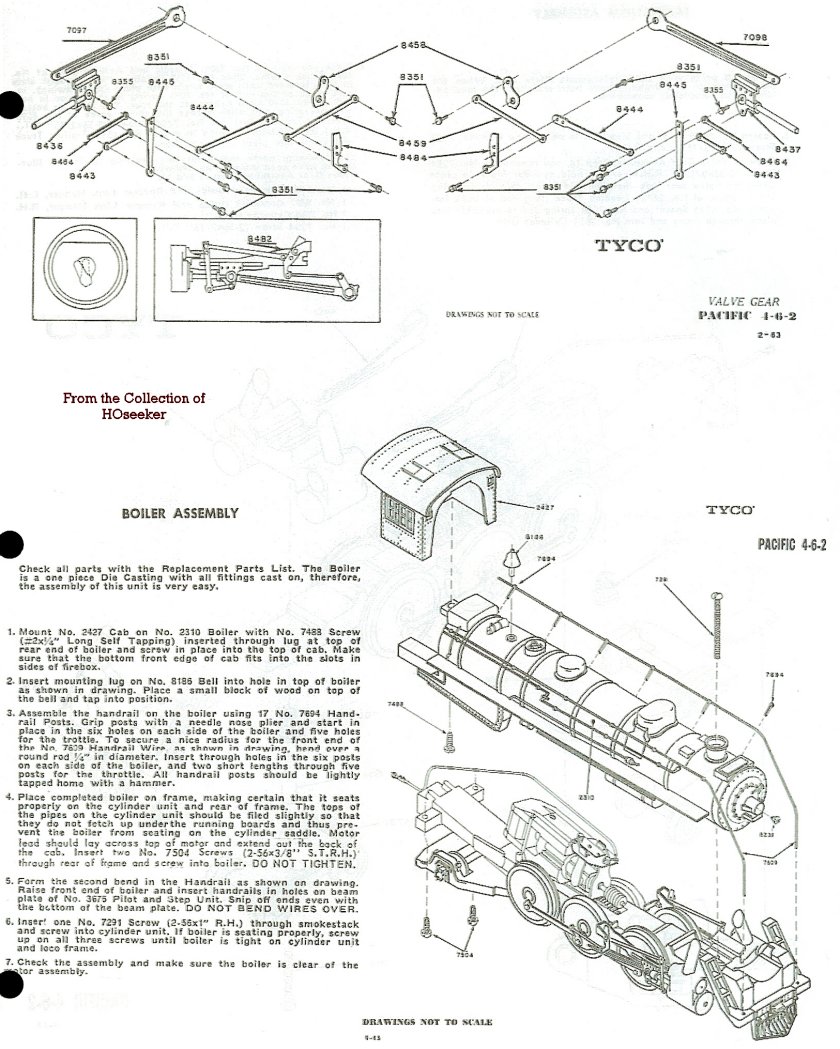

http://www.hoseeker.org/assemblyexplosiontyco/tyco462pacificpg2.jpg

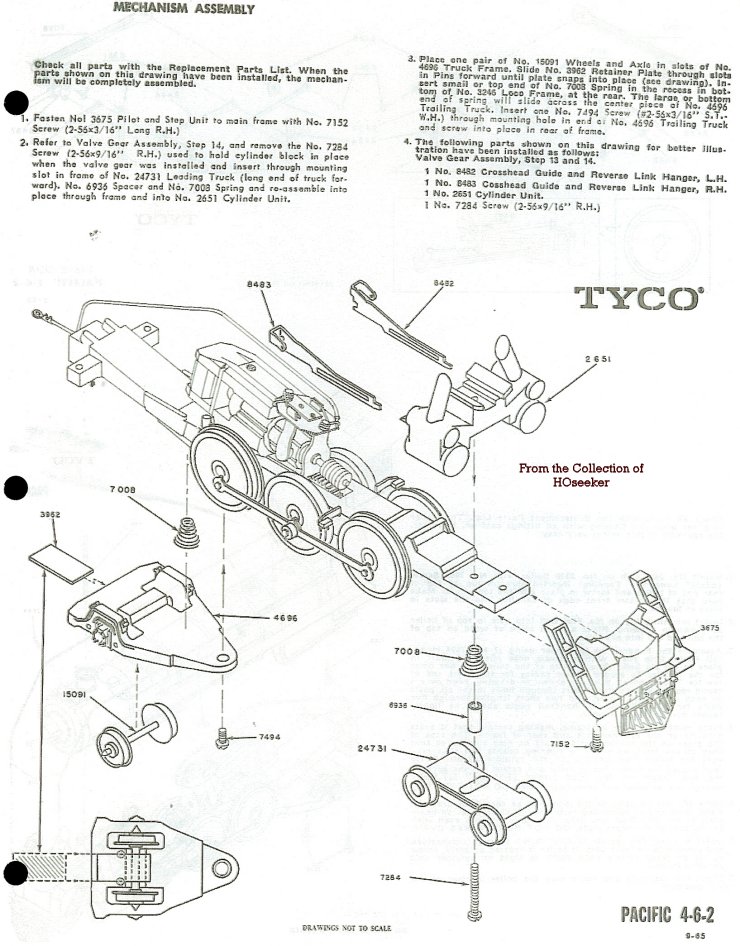

http://www.hoseeker.org/assemblyexplosiontyco/tyco462pacificpg3.jpg

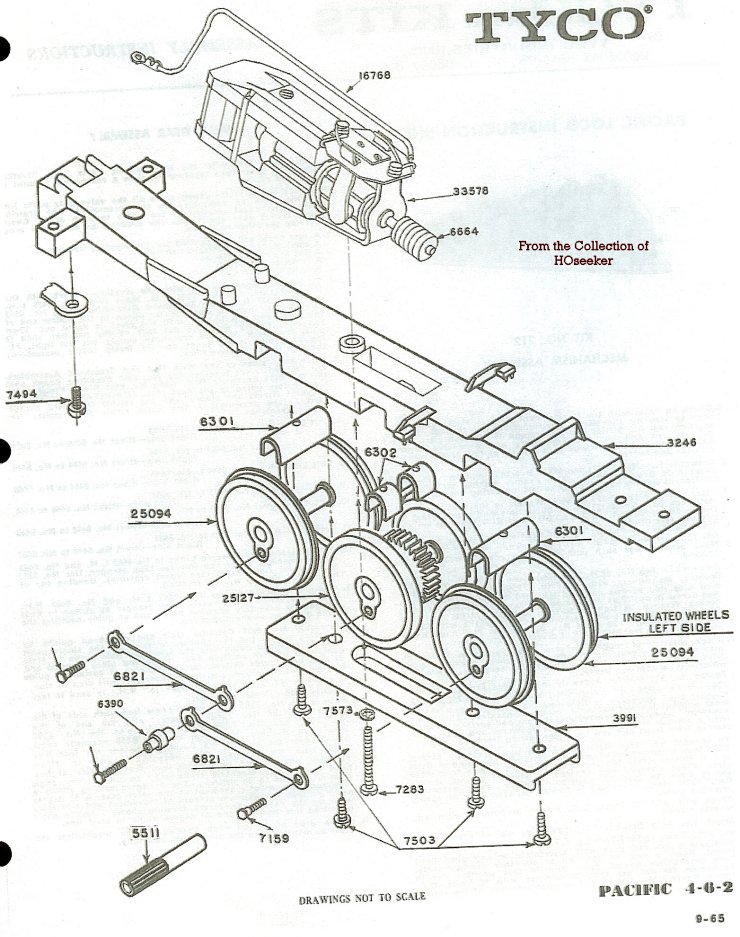

http://www.hoseeker.org/assemblyexplosiontyco/tyco462pacificpg4.jpg
Bookmark HOSeeker... it can be invaluable. http://www.hoseeker.org/
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - November 30 2012 : 2:35:44 PM
|
Thanks NP.. very helpful diagram. I did the things recommended earlier... now Ill uncover the inside this evening and finish the service. I ran her for a minute to work the lube in and shot a quick video of it. Thanks again for showing me how its done.
http://youtu.be/nPetk7PlJjU
(wouldnt post between youtube tags)
Edited by - RollTycoRoll on November 30 2012 2:44:20 PM
|
|
Country: USA ~
Posts: 39 ~
Member Since: January 15 2011 ~
Last Visit: January 21 2014
|
Alert Moderator
|
|
|
|
Posted - November 30 2012 : 7:06:45 PM
|
Looks good! Glad me and Nelson could be of service.
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - December 01 2012 : 01:53:35 AM
|
Very good... she sounds very smooth at low speeds. They're very rugged, reliable locos. Your 6 year-old ought to enjoy it, especially at full throttle.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - December 01 2012 : 02:39:07 AM
|
I would suggest alittle white lithium grease around the axles..... its better then oil in that brass bearing.......Sparingly tho, only a little coating just enough till you see the hint of white of the grease is all it needs.
As NP said, it will end up on your rails if over done!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
