 Posted - September 02 2012 : 01:08:37 AM
|

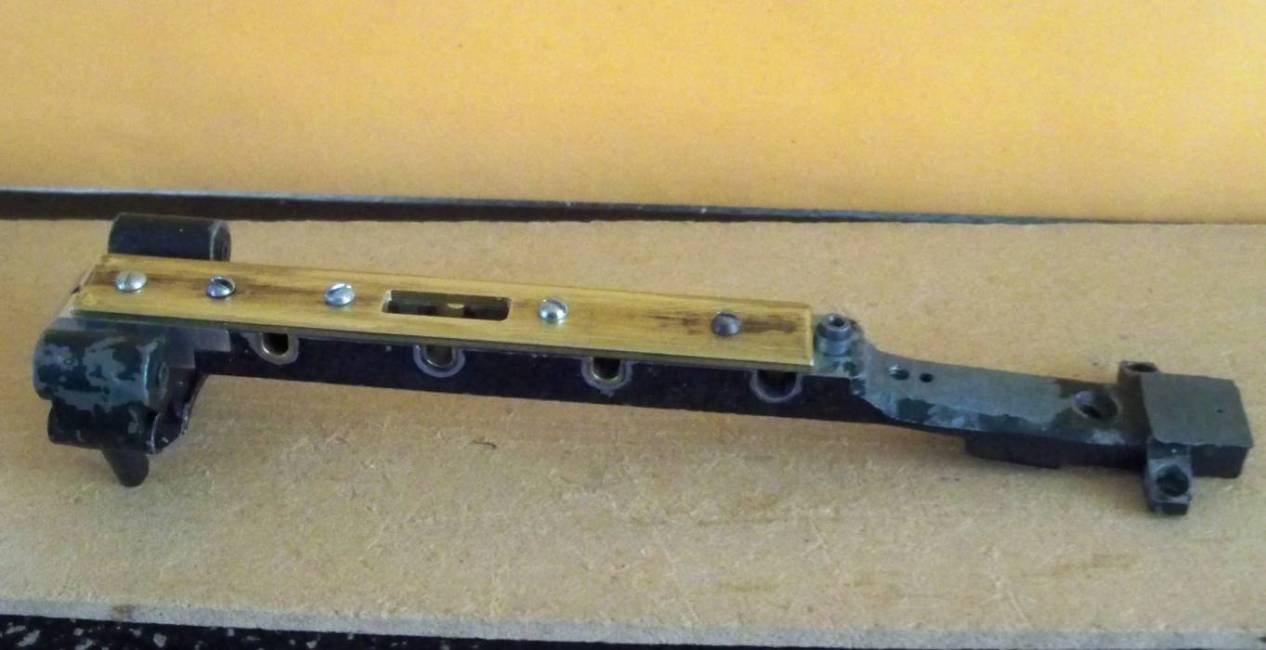

This is the repaired frame for the Mantua Mikado I got at the show.
The original bottom frame piece was broken due to zinc pest.
The bottom plate on these included the front of the frame that the cylinder and pilot bolt to.

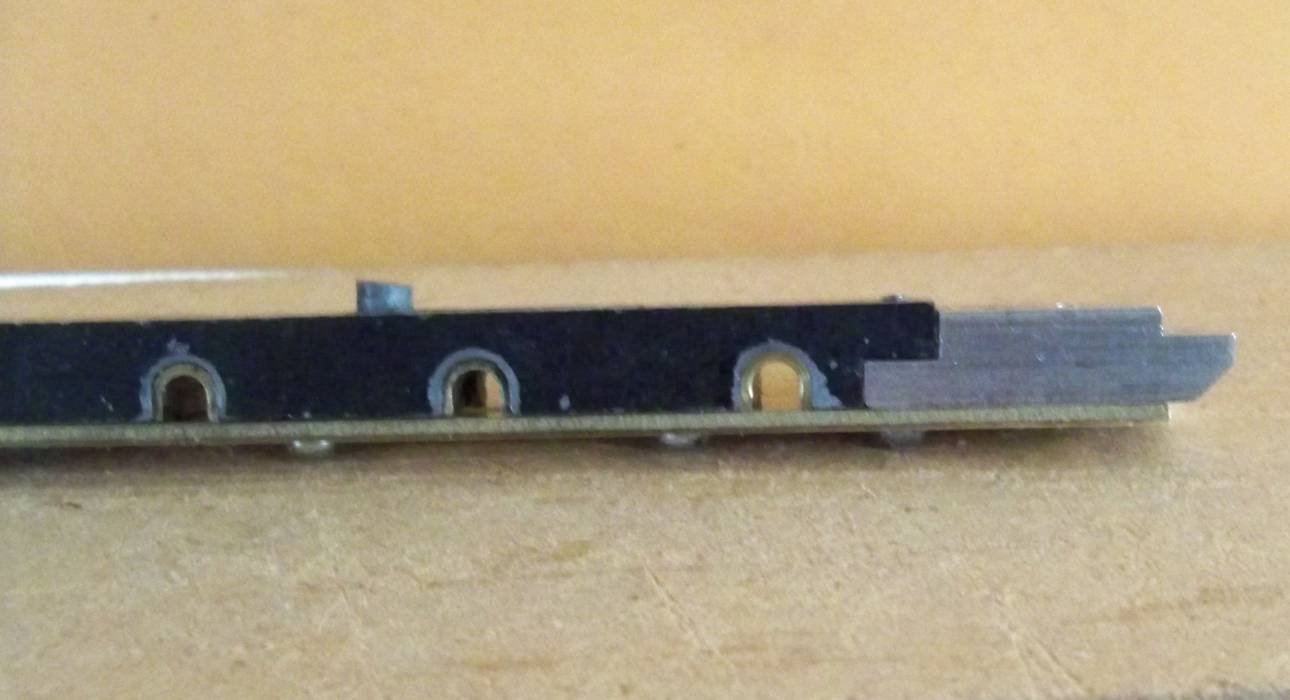

I decided to make the replacement in 2 pieces. The front frame piece was milled from a piece of 1/4"x 1/2" extruded aluminum and the bottom plate was made from a 1/16"x1/2 brass strap.
Ray
|
Country:  USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - September 02 2012 : 01:53:47 AM
|
Ray,
NICE mill work! did you do it yourself?
As for the plates, I've done that more then once for more reason then just zink rot!

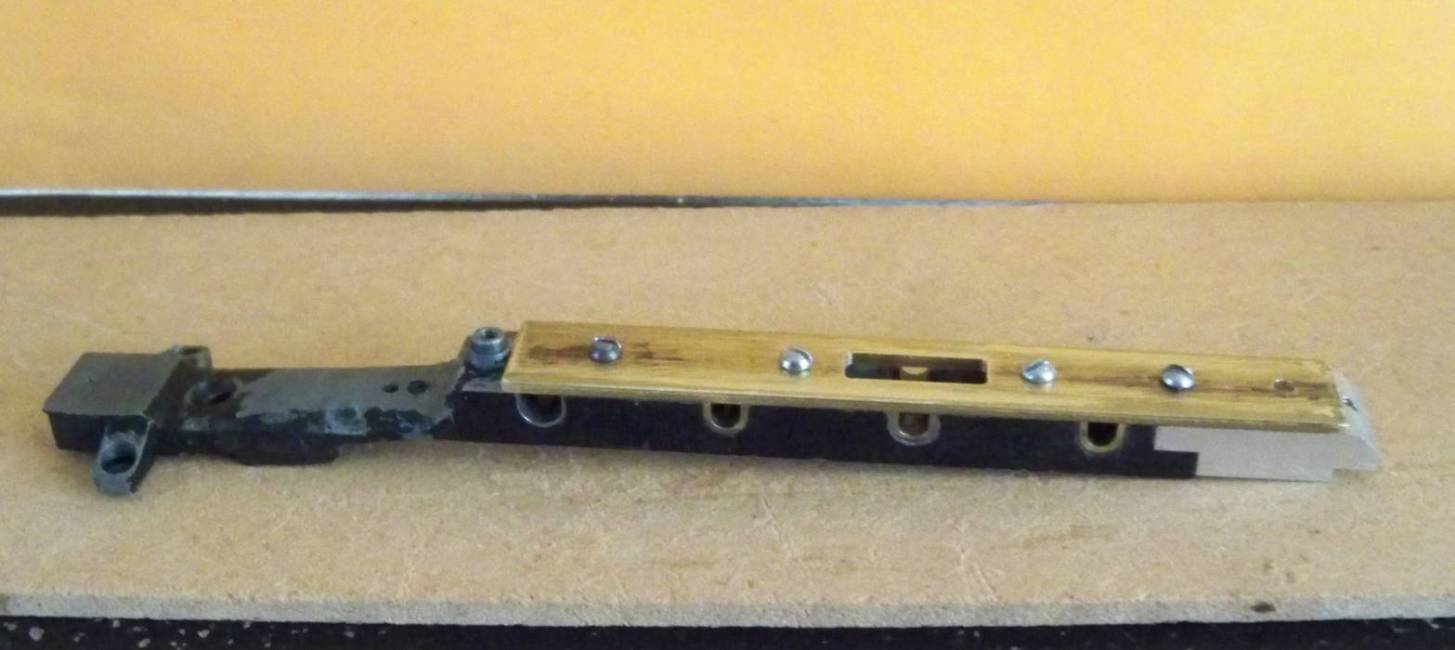

That last picture looks like it will be a GREAT rebuilt frame! Nice, clean work!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - September 02 2012 : 02:15:59 AM
|
Thanks John.

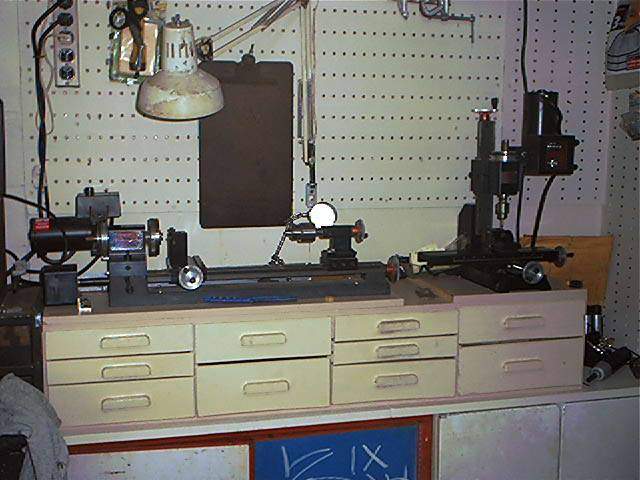

I did the milling and drilling on my Sherline milling machine.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - September 02 2012 : 03:47:39 AM
|
Ray,
Thats an AWESOME set up you got there for a shop! VERY NICE! (I'm jealous of the lathe! its bigger then mine!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - September 02 2012 : 8:20:50 PM
|
Very nice piece of surgery, Ray. I have an early Pacific with a touch of zinc pest that made it too long to fit the boiler. It cracked in the axle slots for the center drivers, making a repair difficult. At least the gearbox and bottom plate hold it together.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
