 Posted - August 18 2012 : 2:38:32 PM
|
Guys, I thought I'd make a posting of this one. I'm partial to the EMD GP30......just because of its "stylish" looks.....
Glad to see they still are around today even if they're RDMT "slugs".....

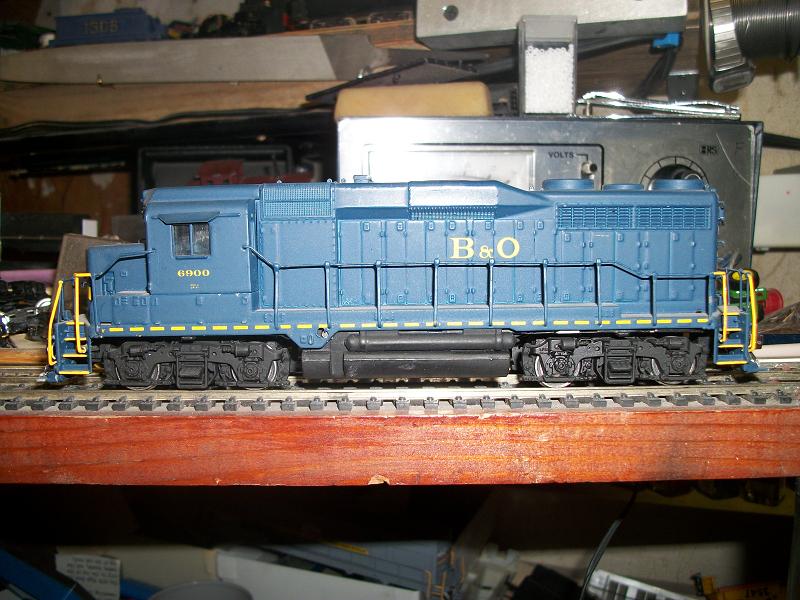

This model was made by Bachmann, the train set GP30. Took and removed EVERYTHING, then added grab irons, windshield wipers, MU cables, air hoses both front and back pilots, life rings, you name it..... Then it got painted in my favorite B&O paint scheme that was ever on a GP30....

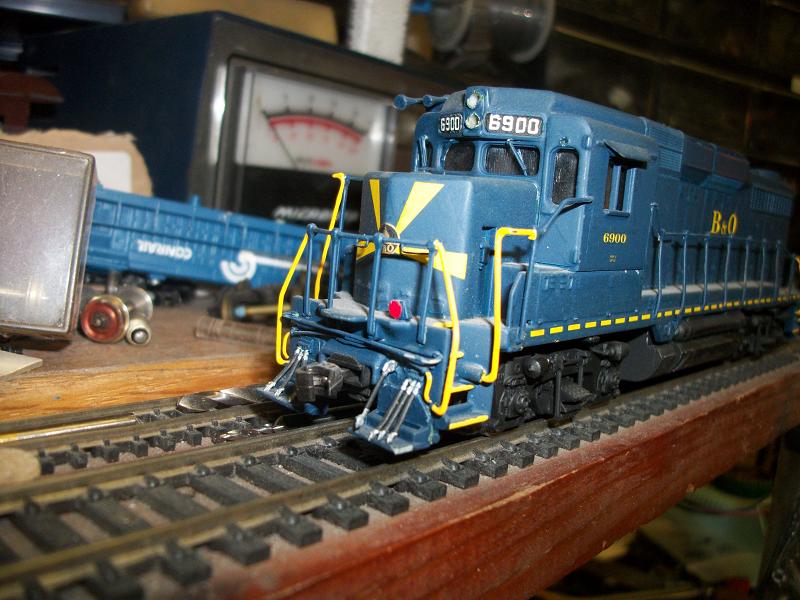

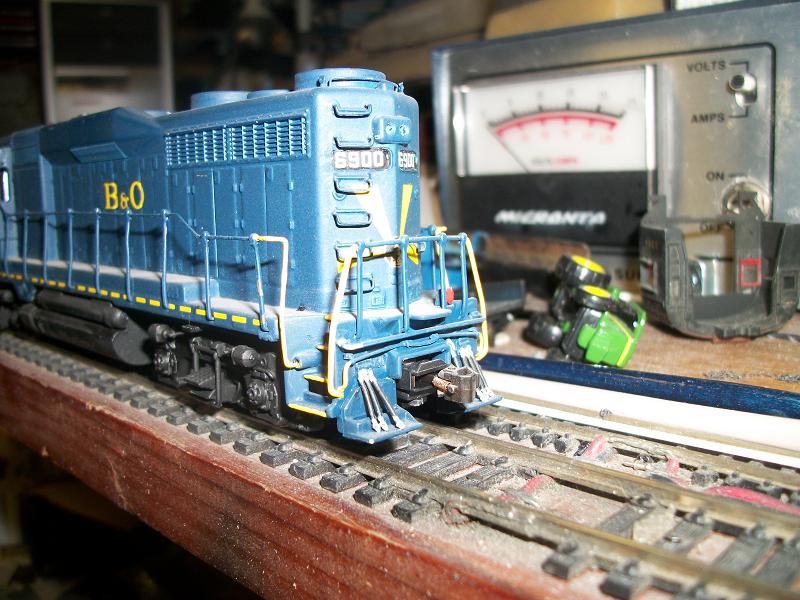

After painting, it got the same treatment with handrailing, all metal from Athearn stanchions, custom fitted "rails" and then it got painted......
After the shell was done, the factory frame was scrapped and a new Athearn GP35 frame was used, powered with a Athearn C44-9W motor and flywheels. It once was dual mode DCC with sound, but I didn't like it as that was a sound chip and decoder out of an Athearn Genesis SD45-2, which was not a 567 EMD it was a 645 so......AND it was troubled. I had nothing but issues with that whole mess of electronics and got rid of it. I'll find another one to add to it at some point but for now, shes all DC cab control!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
Country:  USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 18 2012 : 9:54:52 PM
|
where do you find rails and stanchions like those.
I need to replace some made form plastic that are missing
|
|
Country: USA ~
Posts: 424 ~
Member Since: June 25 2010 ~
Last Visit: July 30 2021
|
Alert Moderator
|
|
|
|
Posted - August 18 2012 : 10:17:39 PM
|

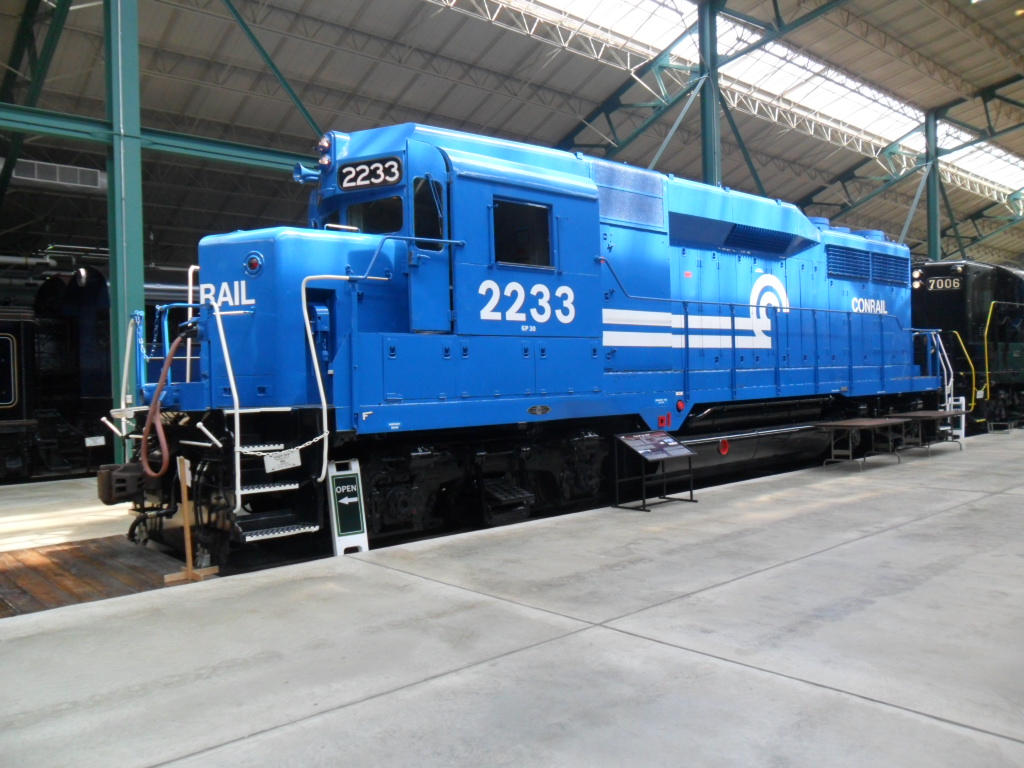

Took this picture a few days ago at the Pennsylvania Railroad Museum...
Mike
|
Country:  Canada ~
Posts: 1586 ~
Member Since: December 07 2007 ~
Last Visit: December 16 2025
|
Alert Moderator
|
|
|
|
Posted - August 19 2012 : 12:09:47 AM
|
quote:where do you find rails and stanchions like those.
I need to replace some made form plastic that are missing
Originally posted by derfberger - August 18 2012 : 9:54:52 PM
|
Those my friend are the stanchions from Athearn. The old blue box era "kit" locomotives, I collect them for such things as I myself, HATE (and I know the word "hate" is such a strong word!) plastic handrailing, and I replace ALL of it I can with metal. it will bend if bumped, can be easily re-straightened, scuffed? repaints easily. And will take normal handling, well without breaking. I can't say that for the plastic stuff!
I use the Athearn stanchions, to make custom bent rails that are made from hard music wire thats .025 thick, which is the exact thickness of the factory Athearn handrailing "rails"
HTH
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 19 2012 : 12:10:48 AM
|
Mike,
NICE shot! I've always loved the looks of the GP30's............. just because they were different.....Not t mention, had some style as well......
Head on view? Just a "MEAN" looking locomotive!
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - August 19 2012 : 9:03:29 PM
|
Nice work as always, John. I don't know why people consider the GP30 ugly... I think they're cool too. They look like a diesel with a 'tude.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - August 20 2012 : 06:42:42 AM
|
Nelson,
Yes, I agree they did look to have some 'tude, nevertheless they still on the rails and not being rendered scrap these days, well atleast under CSX anyway, alot are RDMT slugs which I don't care if the prime mover is still moving, its the shell thats got me......it still carries that "look" about itself, you know?
Yes they were different, but a stylish, different.....
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
