 Posted - March 28 2012 : 8:13:06 PM
|
As soon as I get the right Mantua 0-4-0Shifter, I wanna kitbash it in a 2-4-2. What trailing/lead truck could I use thats short enough for the already short frame? I was looking at some MDC trail/lead trucks. Also,would the valve rods that yard bird trains has for the Prairie, Shifter and Big 6, could it be modified to fit an 0-4-0 Shifter?
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
Edited by - Redneck Justin on March 28 2012 8:15:16 PM
|
Country:  USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 27 2025
|
Alert Moderator
|
|
|
|
Posted - March 28 2012 : 9:16:09 PM
|
Just look for mantua pilot/trailing trucks like from a 2-6-2 and try that. Why would u modify the rods? They already fit
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - March 28 2012 : 9:55:29 PM
|
quote:As soon as I get the right Mantua 0-4-0Shifter, I wanna kitbash it in a 2-4-2. What trailing/lead truck could I use thats short enough for the already short frame? I was looking at some MDC trail/lead trucks. Also,would the valve rods that yard bird trains has for the Prairie, Shifter and Big 6, could it be modified to fit an 0-4-0 Shifter?
Originally posted by Redneck Justin - March 28 2012 : 8:13:06 PM
|
Do not use the standard Mantua 4-6-2 trucks as they are too long. Here is what I have done in the past; I have used the Athearn Little Monster 0-4-2 trailing trucks and a cut down Athearn Genesis 2-8-2 pilot & trailing trucks. The trailing trucks were a little large and required a significant amount of grinding of the Mantua chassis but worked well when done.
Examples below:

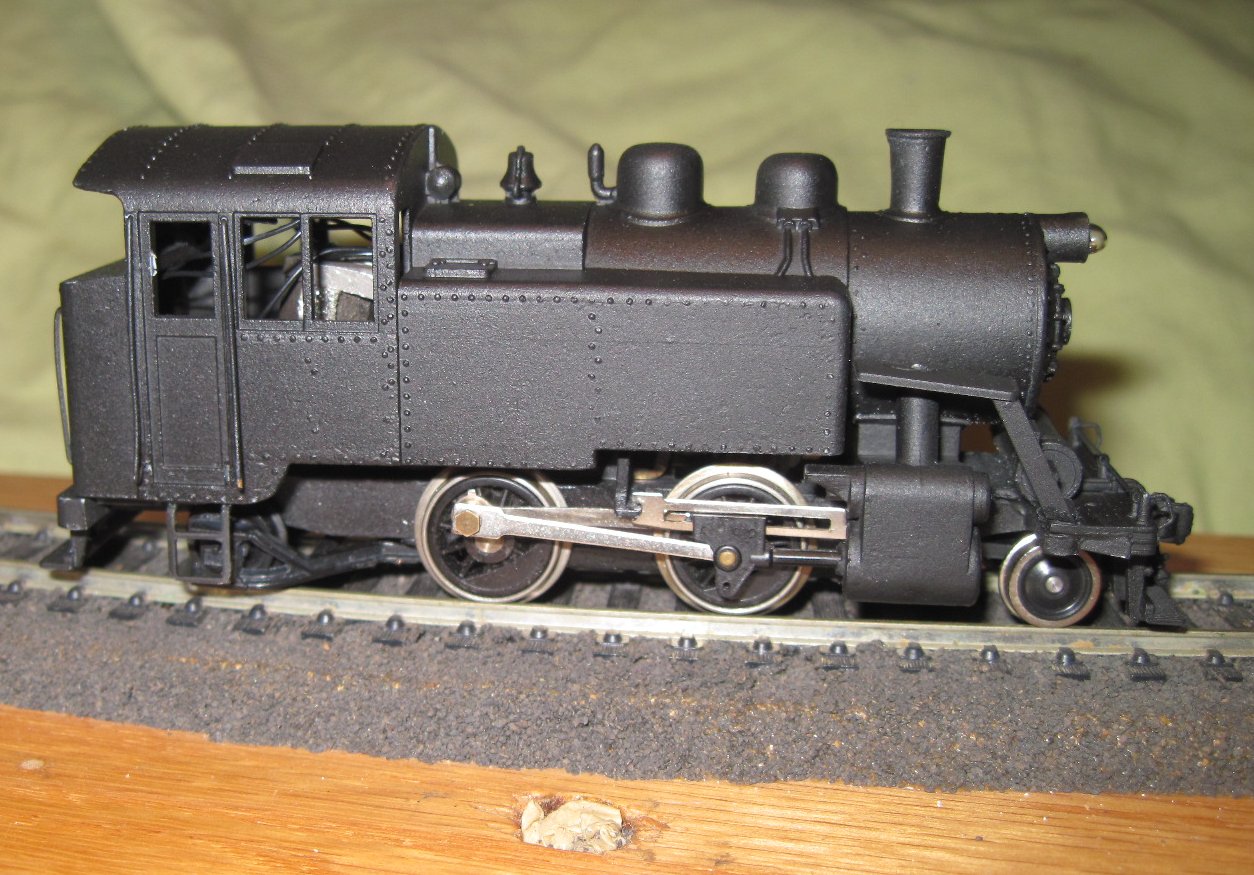

Little Monster trailing & Genesis pilot truck / 1 Genesis pilot deck Parts:

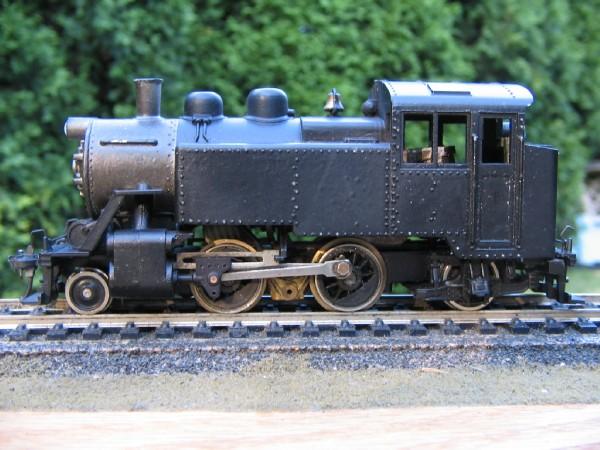

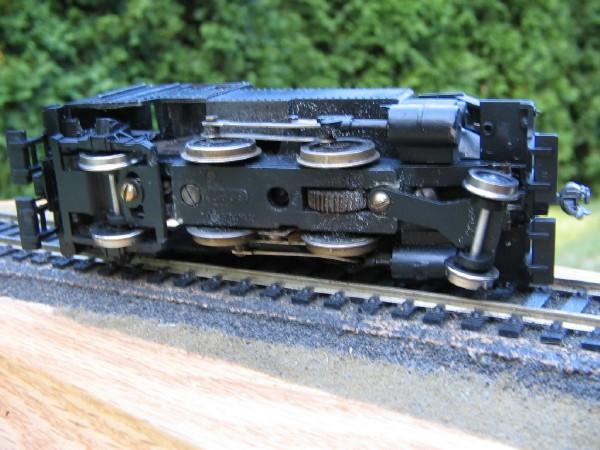

Genesis trailing & Genesis pilot truck / 2 Genesis pilot deck Parts:

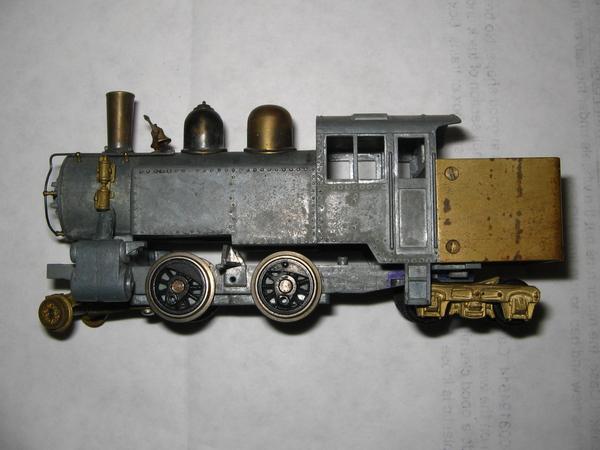

A kitbash I acquired that is really neat and a 2-4-4 to boot!
The Athearn / Mantua kit bashes I did myself and the total time for each was less than 4 hours on each, start to finish. I started with shifters that already had broken off steps and ground the original pilots down uuntil they were stubs/tabs that I could mount the replacement / extended Athearn pilot decks & steps to. I sold each on eBay. The first sold I think for ~$50 and the other sold for $110 some two years apart. I have plans to make more.
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
Edited by - Mustangs_n_Trains on March 29 2012 09:05:33 AM
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - March 28 2012 : 10:34:32 PM
|
I've got a Mantua 0-4-0 if interested let me know $25.00 and its yours! In pretty much new shape, for an older model....
~John
Many have tried to, and failed, ya just can't repair stupid...
Do NOT try to Idiot-Proof anything!!!! God, will simply create a better......IDIOT!
|
|
Country: USA ~
Posts: 2911 ~
Member Since: March 26 2012 ~
Last Visit: January 14 2014
|
Alert Moderator
|
|
|
|
Posted - March 28 2012 : 10:57:33 PM
|
Personally I think you should use 2 athearn 2-8-2 pilot wheels, the booster you showed looks a little weird with that trailing truck. keep the same wheels on pilot on trailing
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - March 28 2012 : 11:54:51 PM
|
quote:Personally I think you should use 2 athearn 2-8-2 pilot wheels, the booster you showed looks a little weird with that trailing truck. keep the same wheels on pilot on trailing
Originally posted by SCVR66Â -Â March 28 2012Â :Â 10:57:33 PM
|
Since I did both, I have to say, yes, Athearn, but the Little Monster trailing truck looks the best. It actually has a thin small frame and was designed to fit under a smaller locomotive. The trailing trucks without an external frame look kind of funny if you ask me.
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - March 29 2012 : 12:10:24 AM
|
I think most Columbia types had trailing trucks with inside bearings.
/tyco/forum/uploaded/NickelPlate759/Baldwin242.jpg
/tyco/forum/uploaded/NickelPlate759/2-4-2_03.jpg
http://www.mendorailhistory.org/1_railroads/locos/2-4-2.htm
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - March 29 2012 : 01:33:28 AM
|
See I love the way thT looks
I buy, repair, and collect
http://scvr.weebly.com/
http://seyboldlocomotiveworks.weebly.com/
http://www.youtube.com/user/TheDeputation?feature=watch
Hyde.
|
|
Country: USA ~
Posts: 1352 ~
Member Since: January 15 2012 ~
Last Visit: July 25 2021
|
Alert Moderator
|
|
|
|
Posted - March 29 2012 : 06:13:05 AM
|
my little columbia ken
love this sean simple but nice
Edited by - catfordken on March 29 2012 09:31:49 AM
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 27 2013 : 09:31:54 AM
|
Nice work. I wonder if the trucks from a Prarie might work too.
rich p
|
|
Country: USA ~
Posts: 190 ~
Member Since: December 26 2010 ~
Last Visit: November 01 2024
|
Alert Moderator
|
|
